System Diagrams

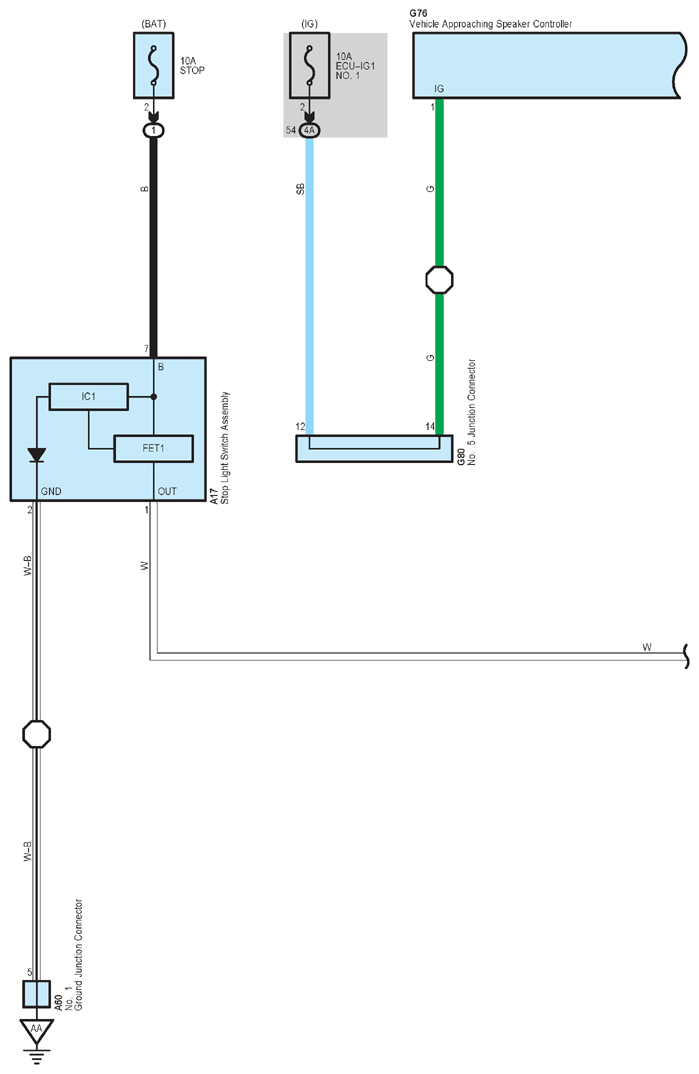

Fig 1: Vehicle Proximity Notification System (1 Of 3)
G12204537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

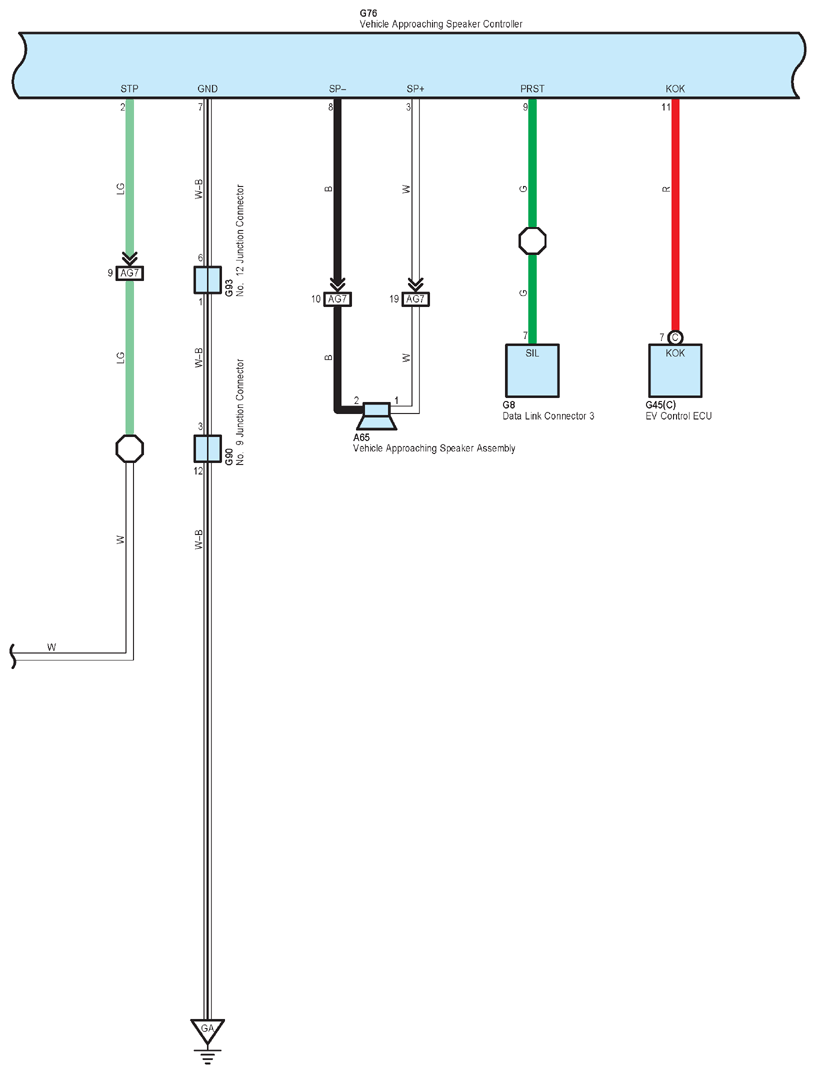

Fig 2: Vehicle Proximity Notification System (2 Of 3)
G12204538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

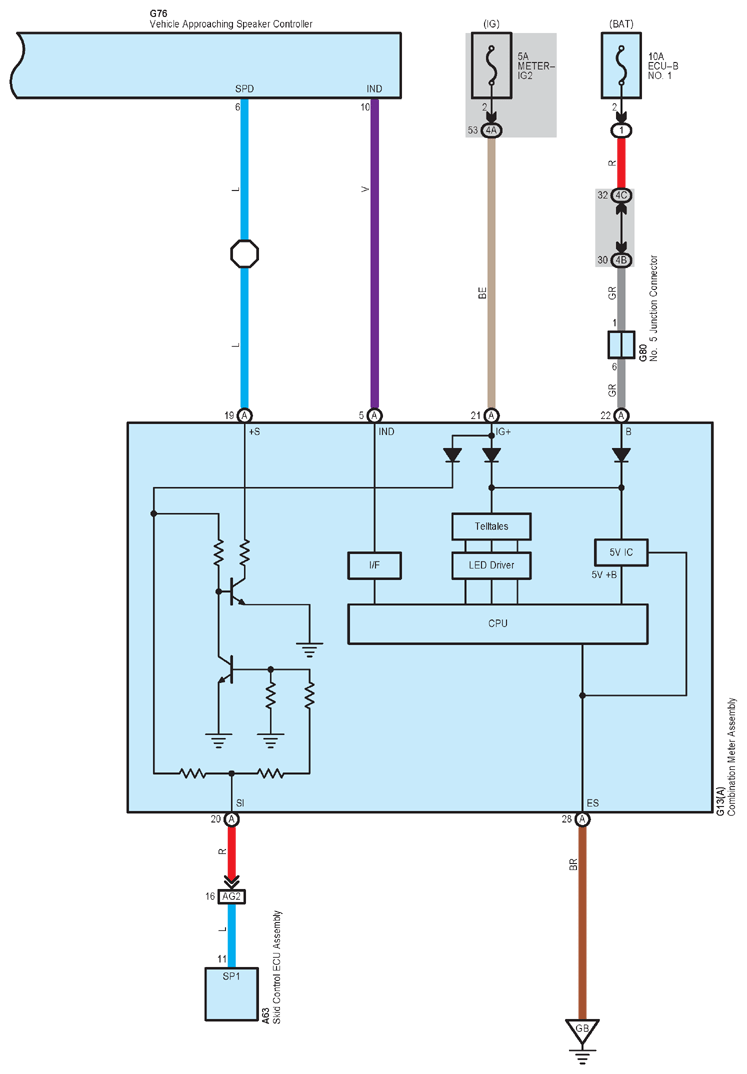

Fig 3: Vehicle Proximity Notification System (3 Of 3)
G12204539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
