System Diagrams

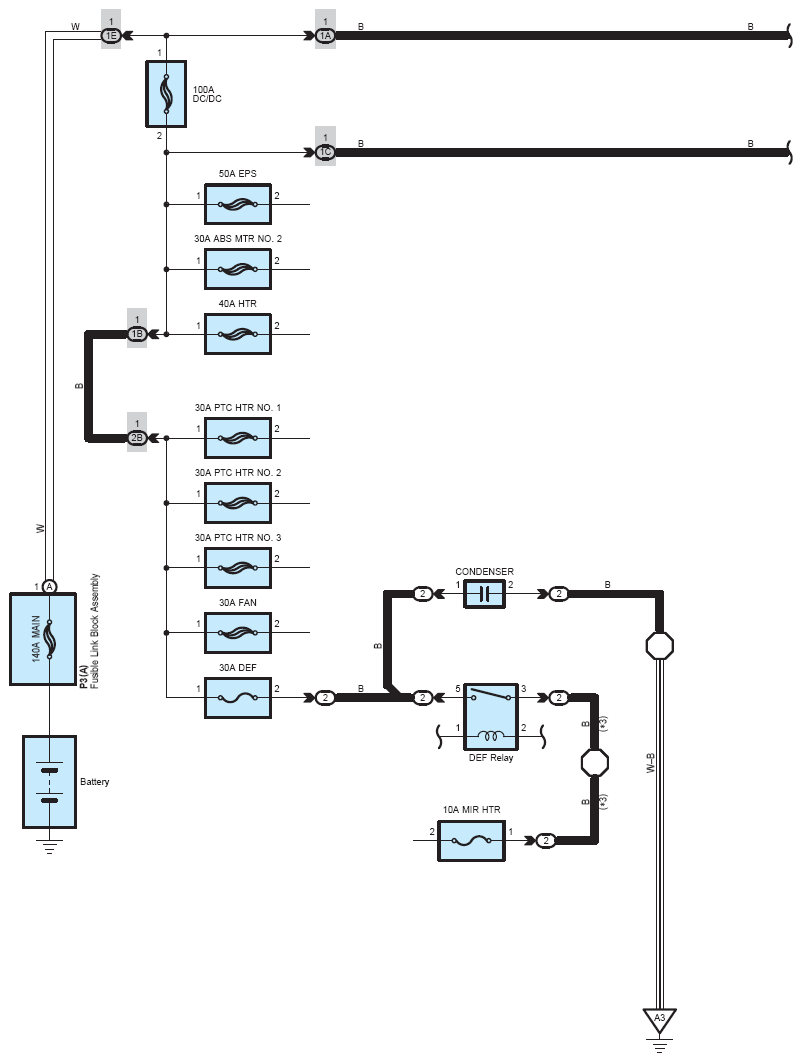

Fig 1: Power Source (1 Of 6)
G12211362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

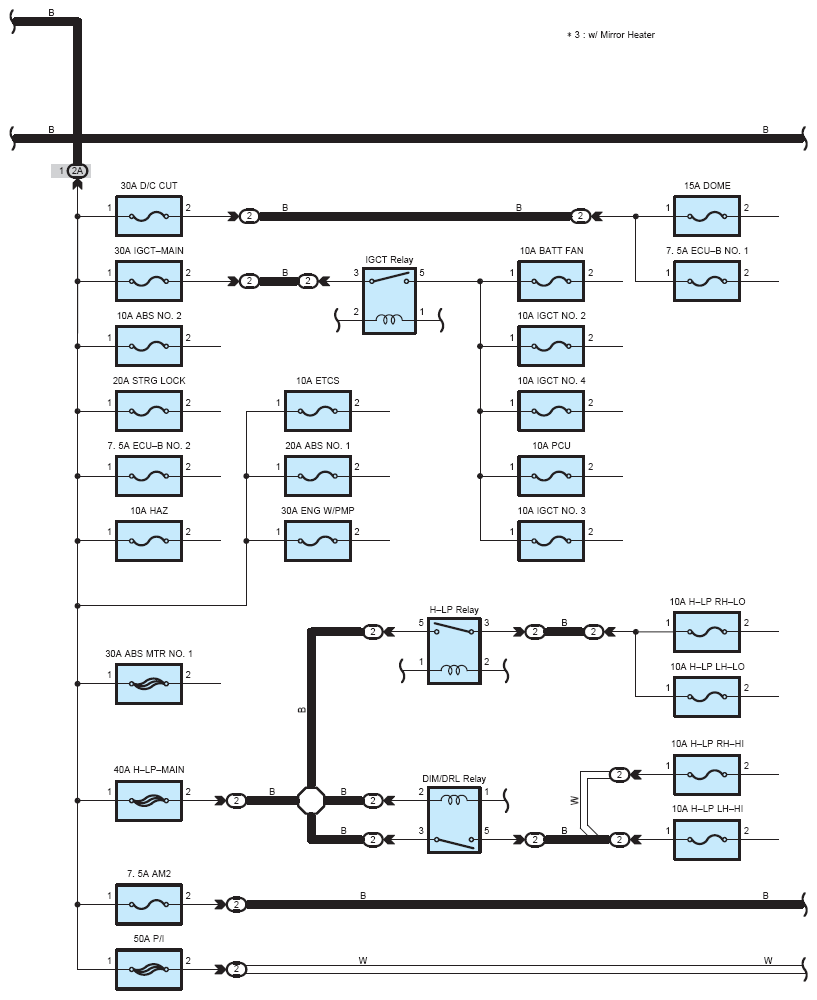

Fig 2: Power Source (2 Of 6)
G12211363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

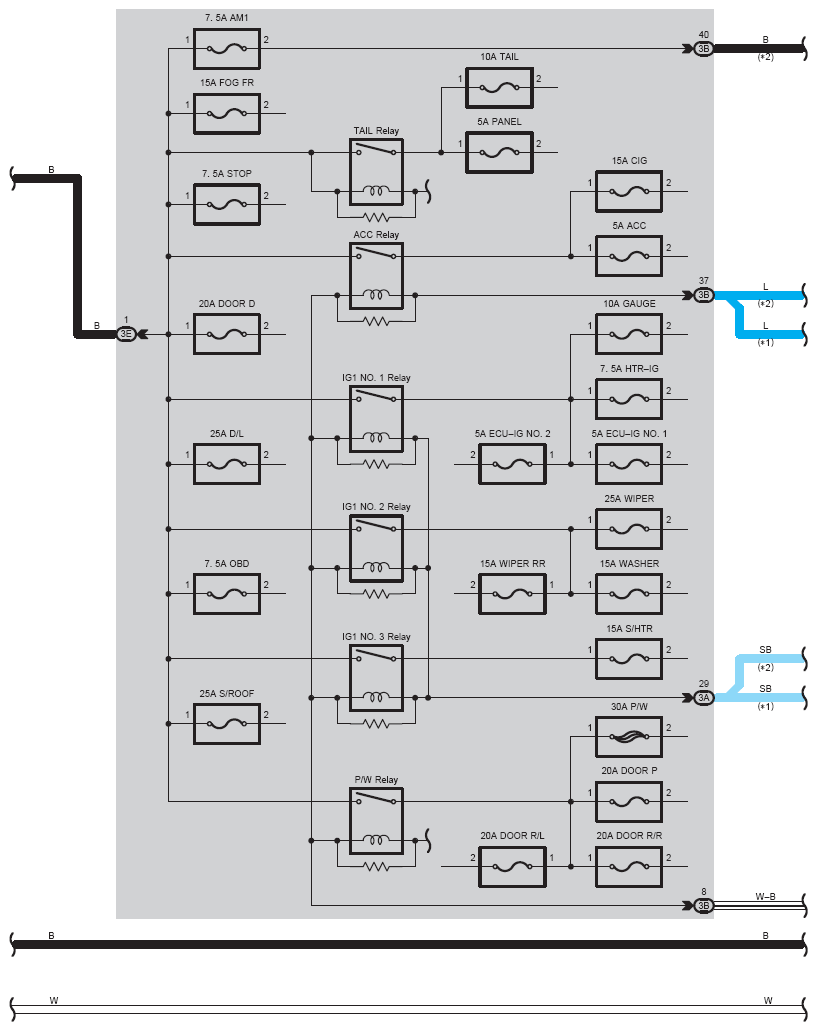

Fig 3: Power Source (3 Of 6)
G12211364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

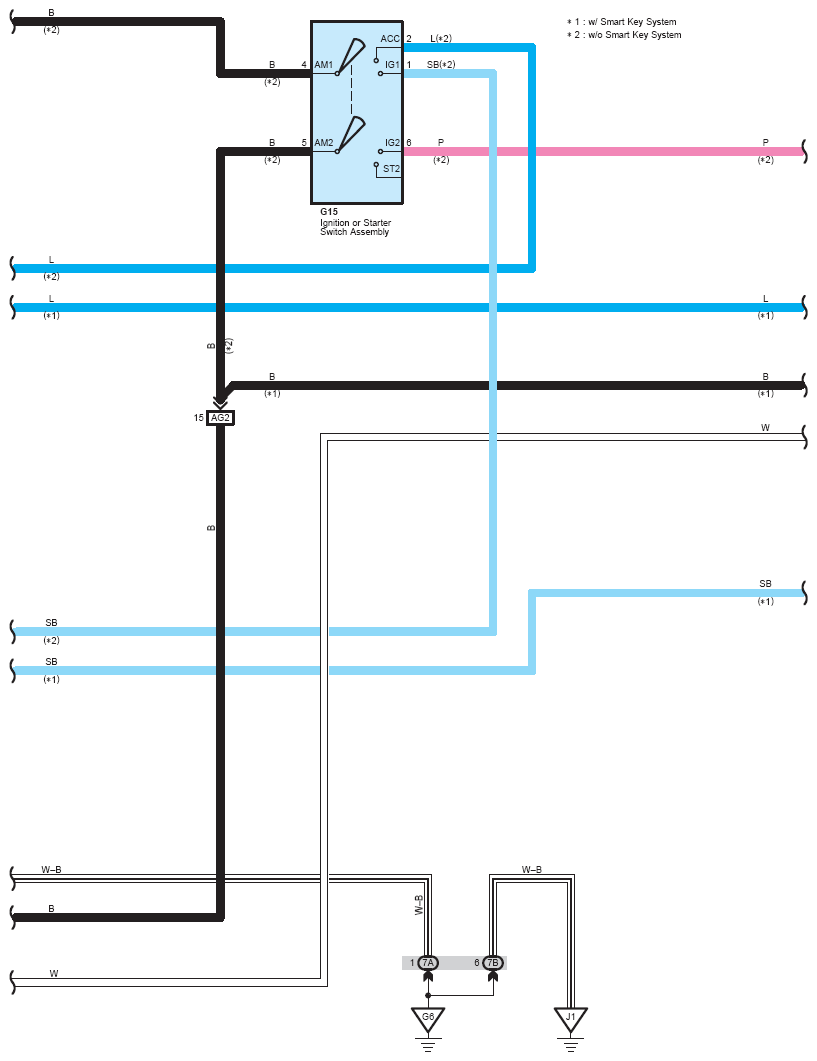

Fig 4: Power Source (4 Of 6)
G12211365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

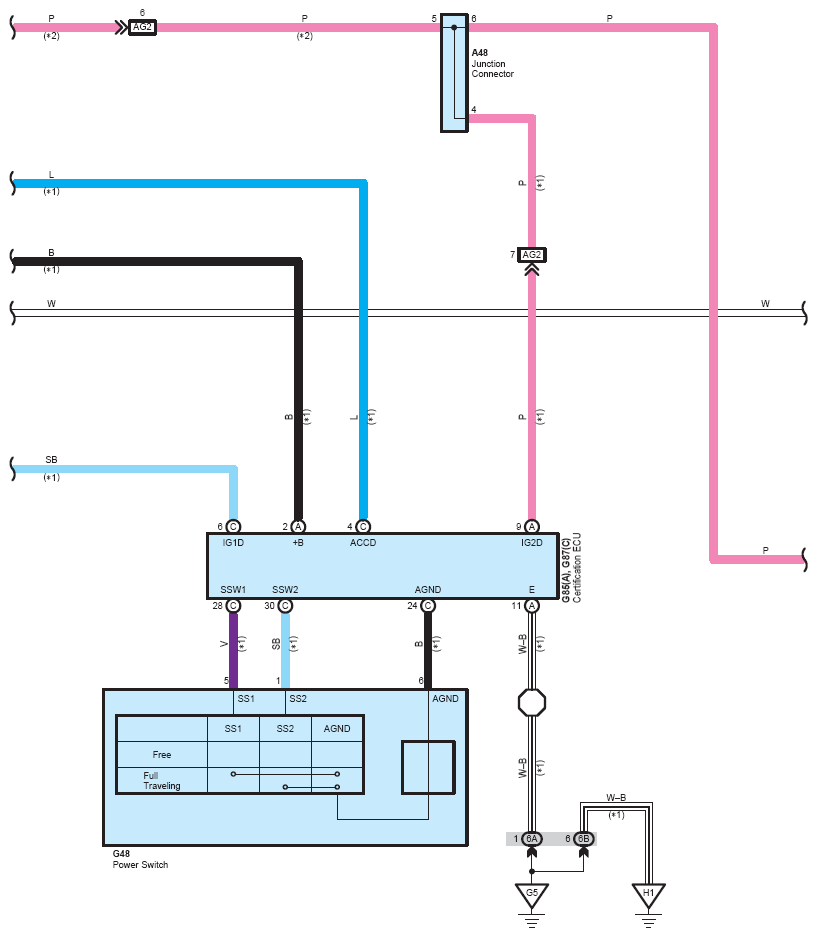

Fig 5: Power Source (5 Of 6)
G12211366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

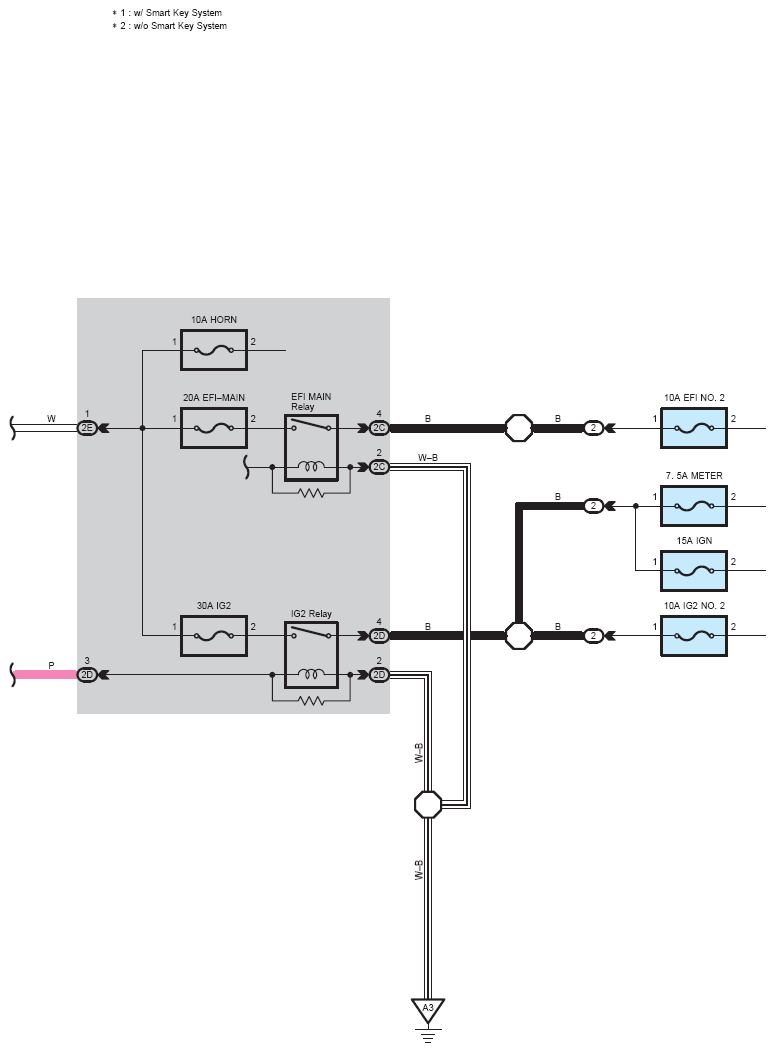

Fig 6: Power Source (6 Of 6)
G12211367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
