Sienna XLE, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM System Circuits
>>
Headlight Beam Level Control
>>
System Diagrams
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagrams

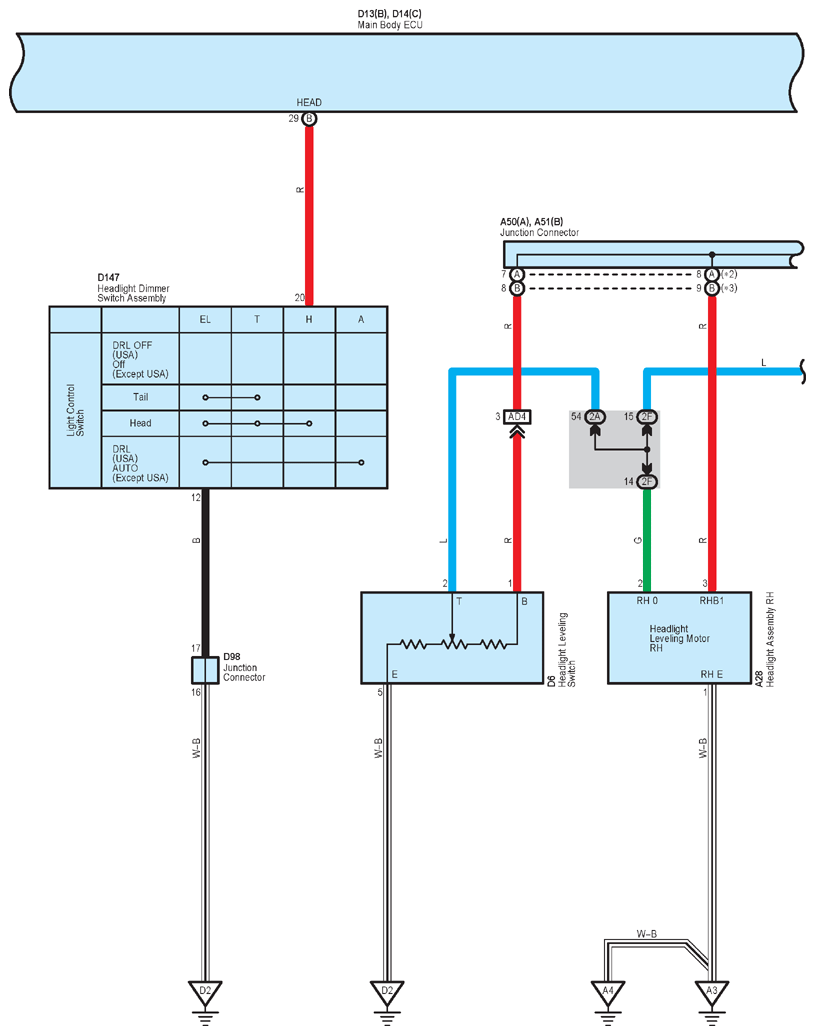

Fig 1: Headlight Beam Level Control (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

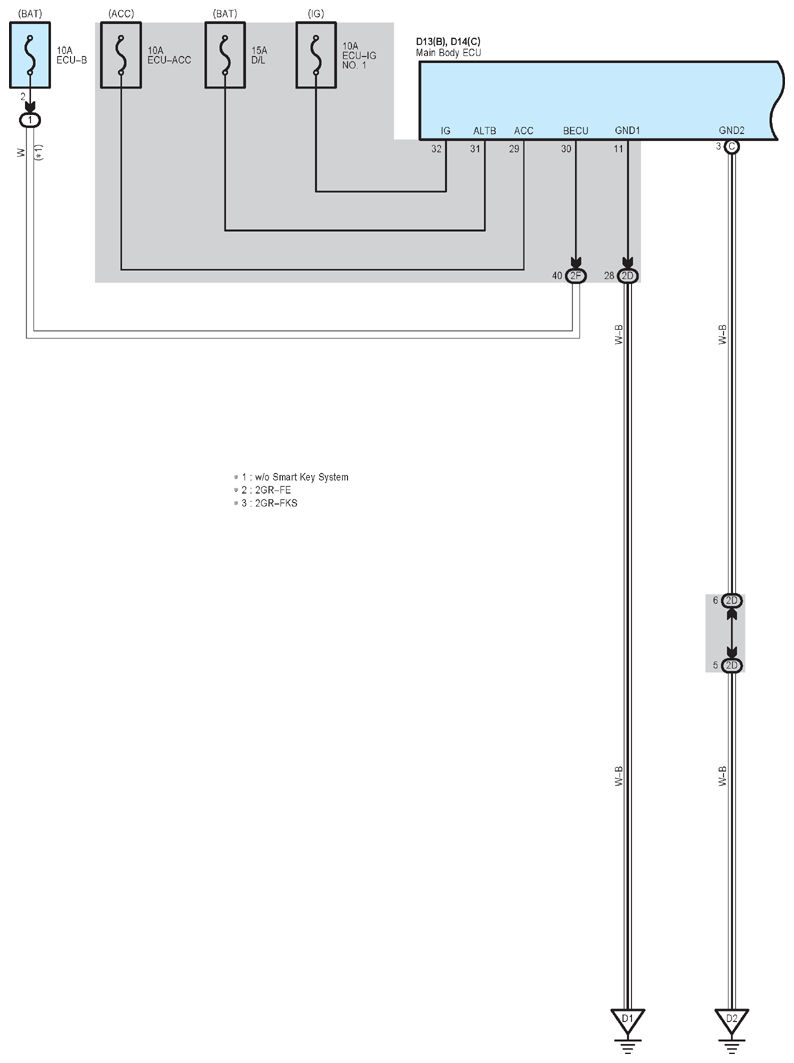

Fig 2: Headlight Beam Level Control (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

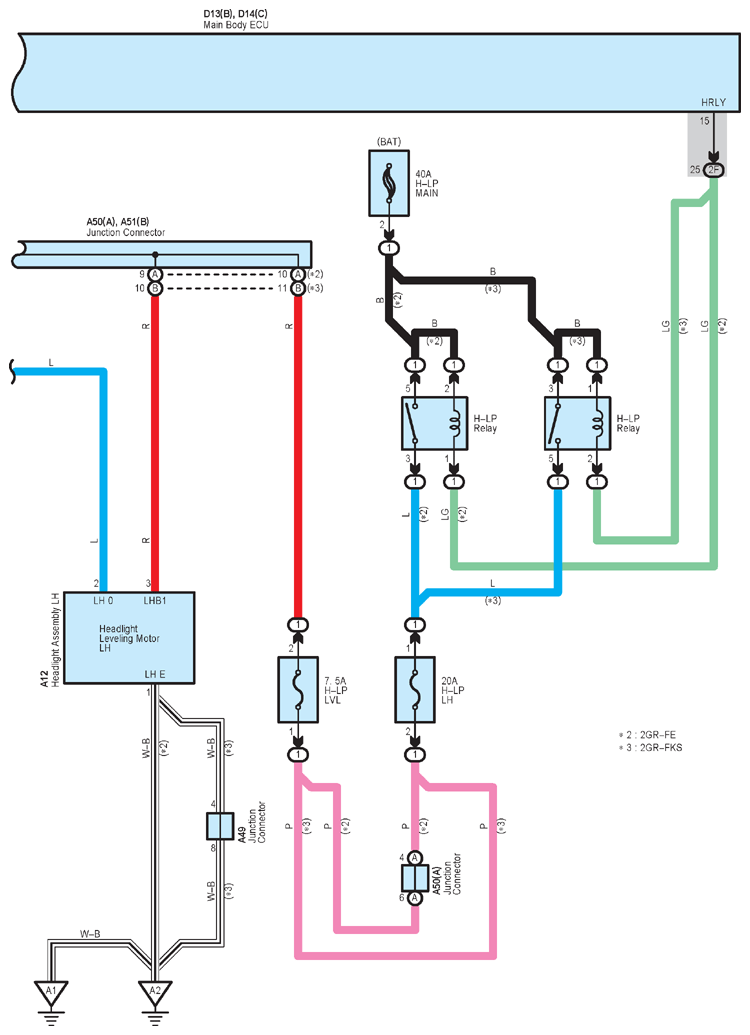

Fig 3: Headlight Beam Level Control (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
