System Diagrams

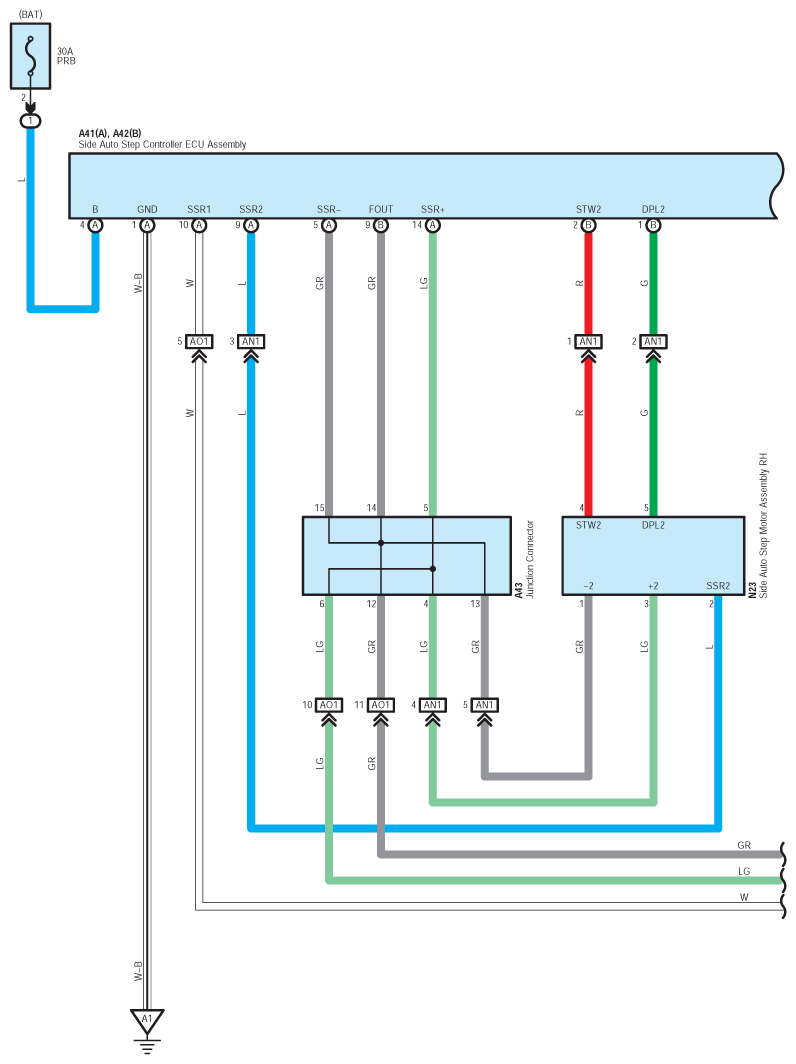

Fig 1: Automatic Running Board (1 Of 6)
G12198258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

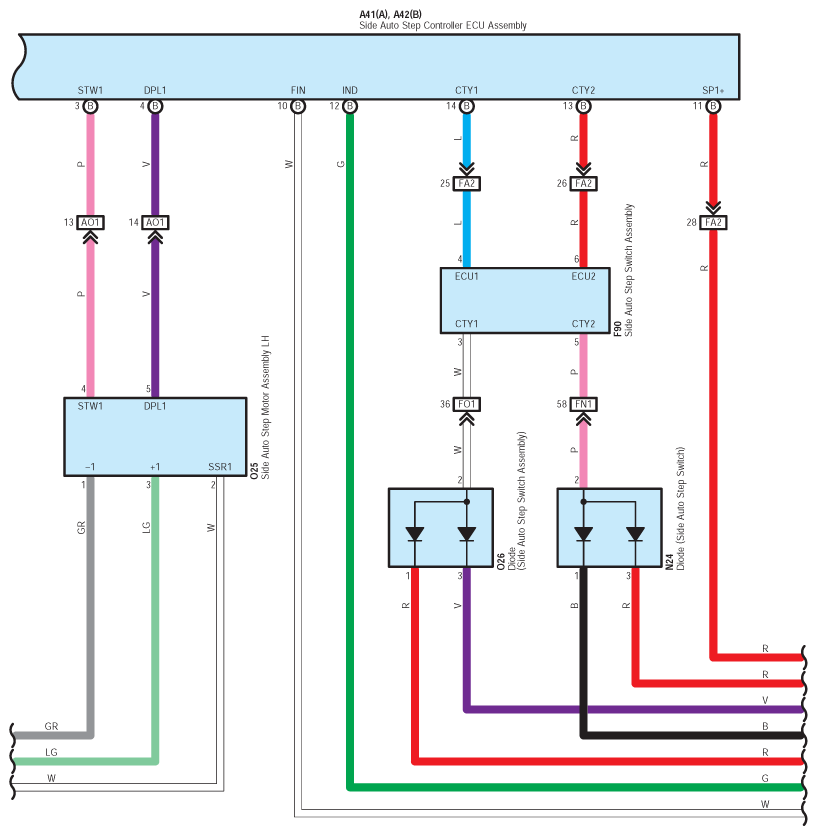

Fig 2: Automatic Running Board (2 Of 6)
G12198259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

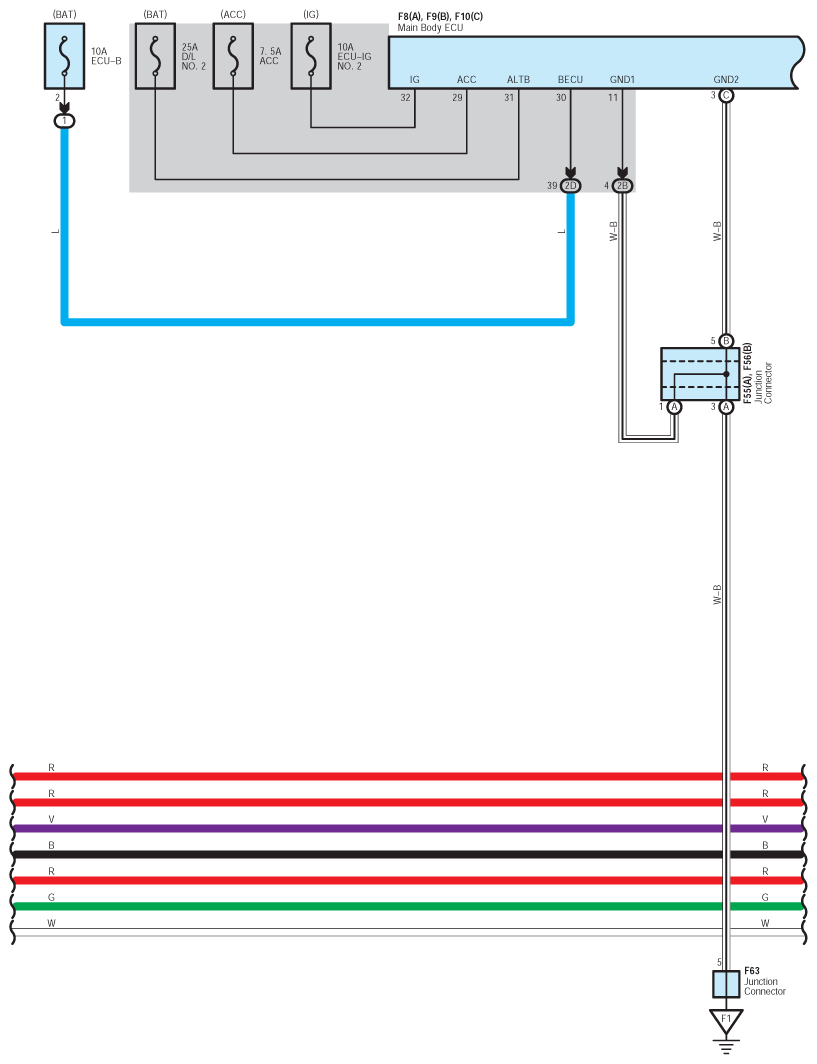

Fig 3: Automatic Running Board (3 Of 6)
G12198260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

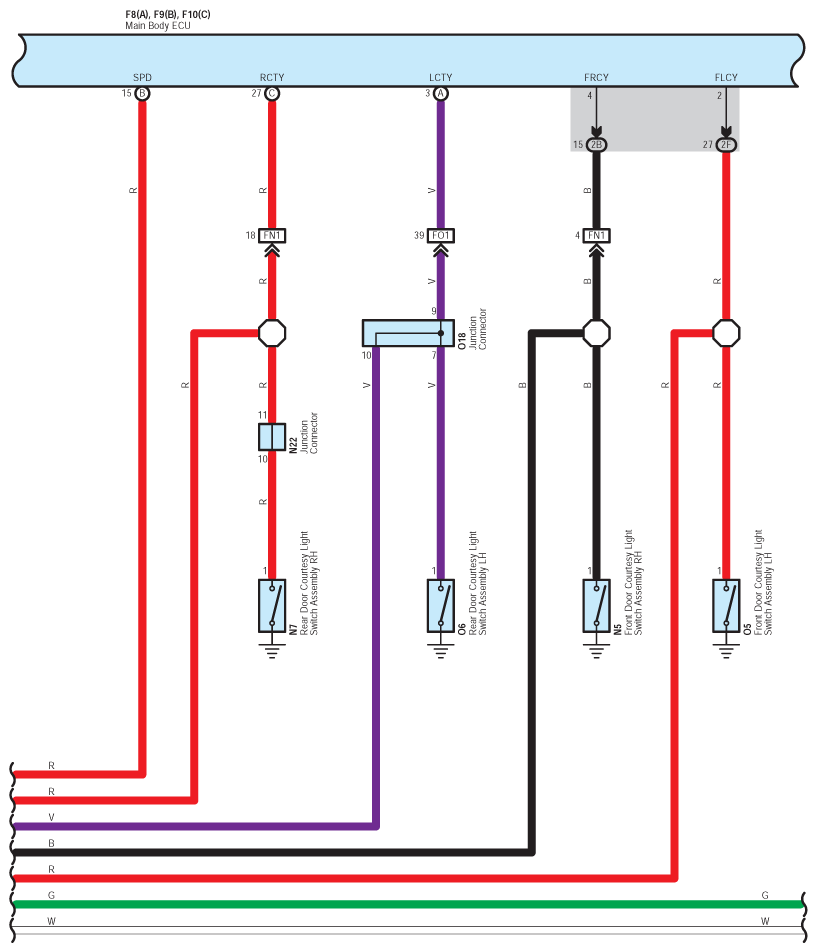

Fig 4: Automatic Running Board (4 Of 6)
G12198261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

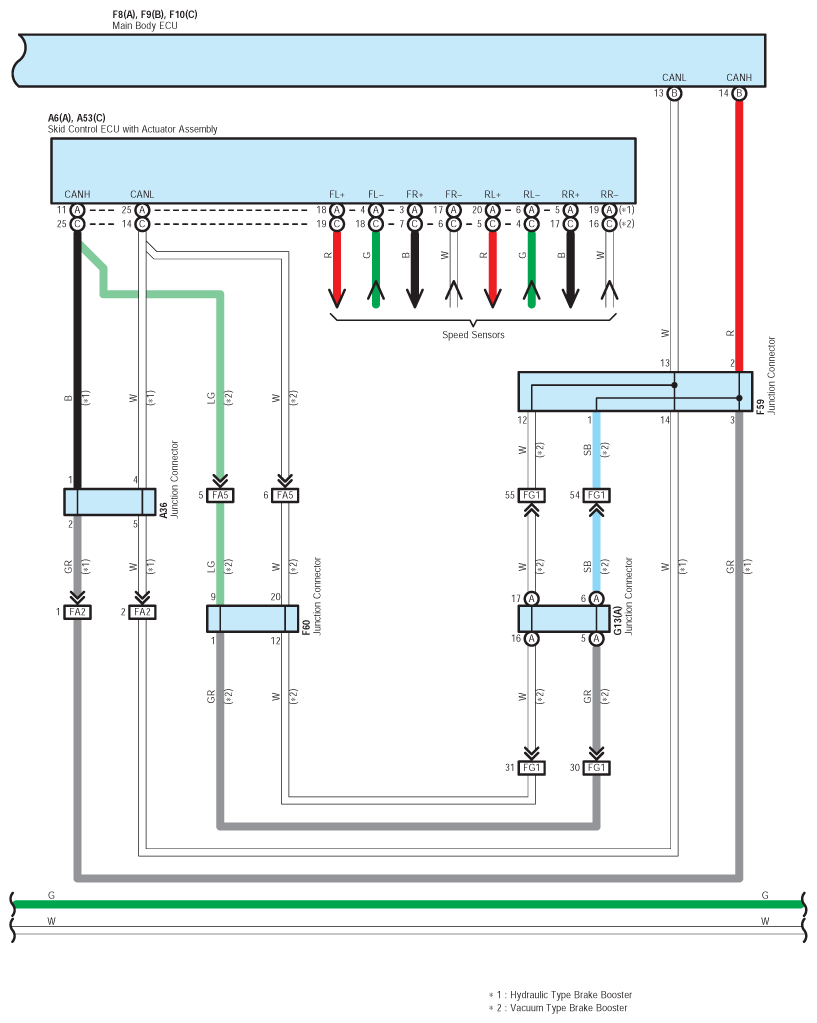

Fig 5: Automatic Running Board (5 Of 6)
G12198262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

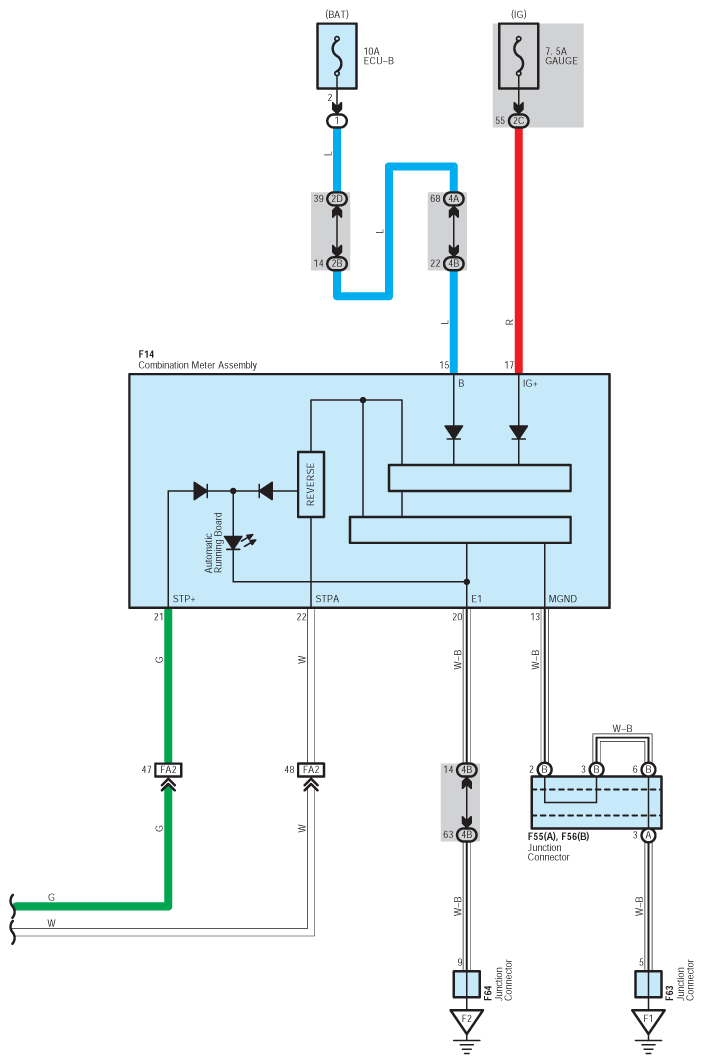

Fig 6: Automatic Running Board (6 Of 6)
G12198263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
