System Diagrams — 2017 Toyota 4Runner Limited, AWD Service Manual ~ LEMON Manuals

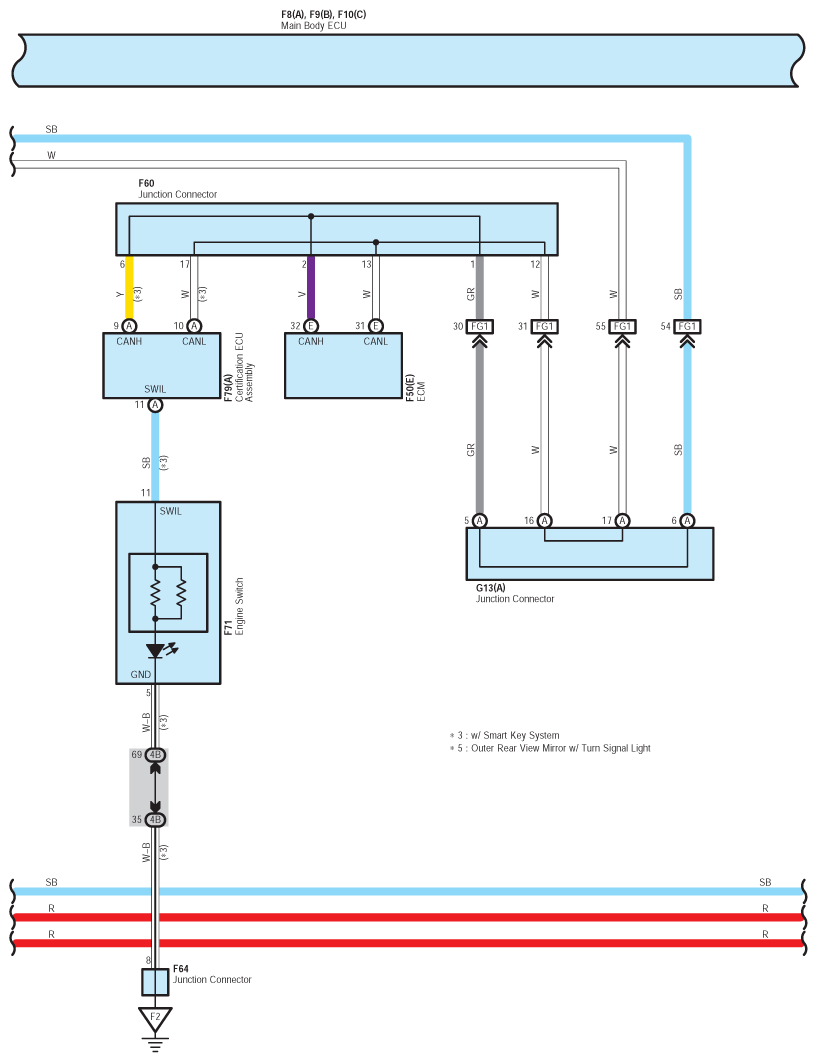

Fig 1: Interior Light (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

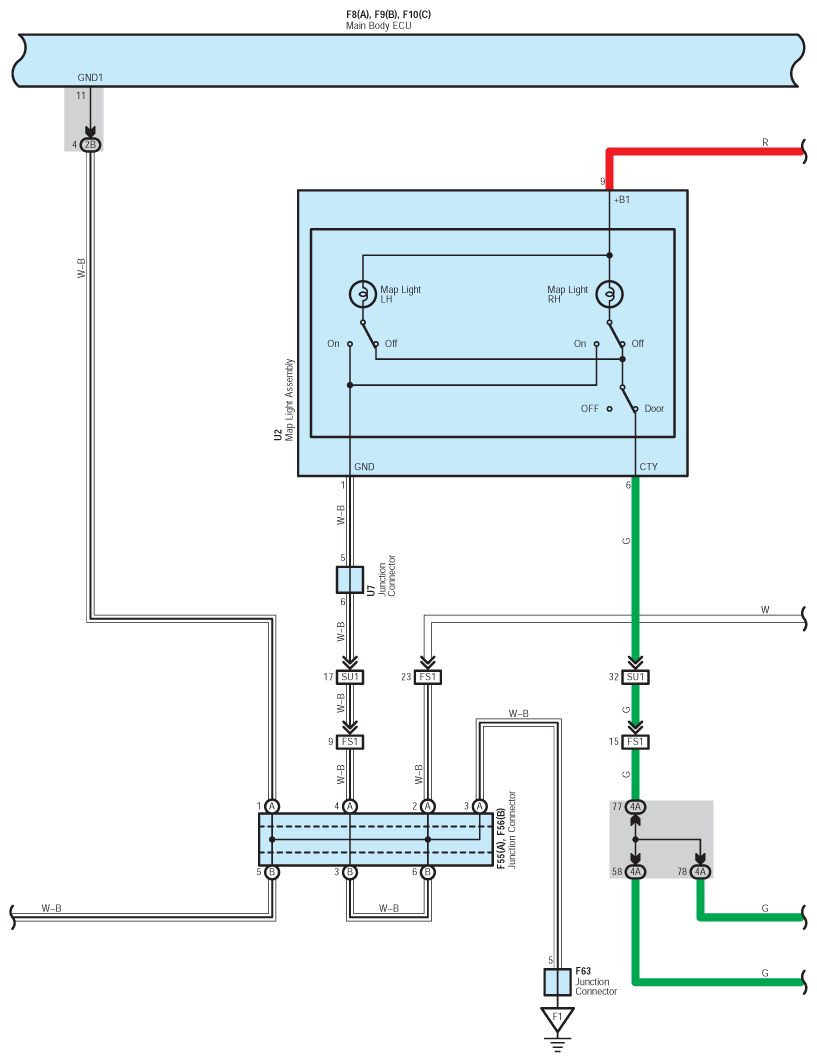

Fig 2: Interior Light (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

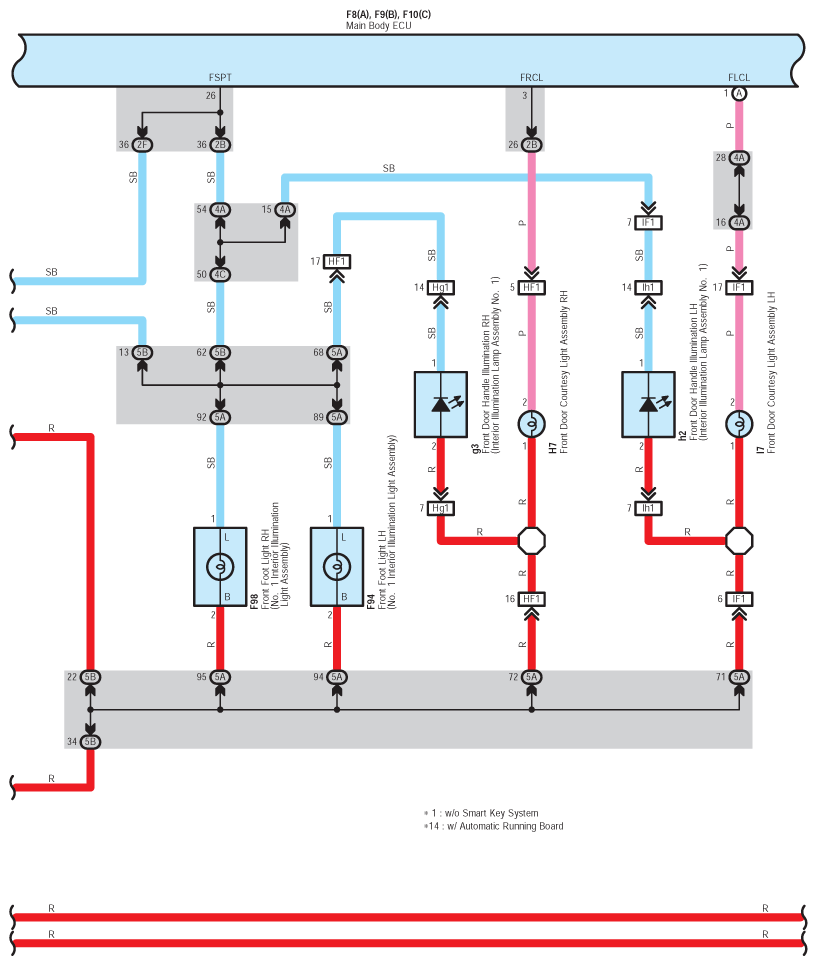

Fig 3: Interior Light (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

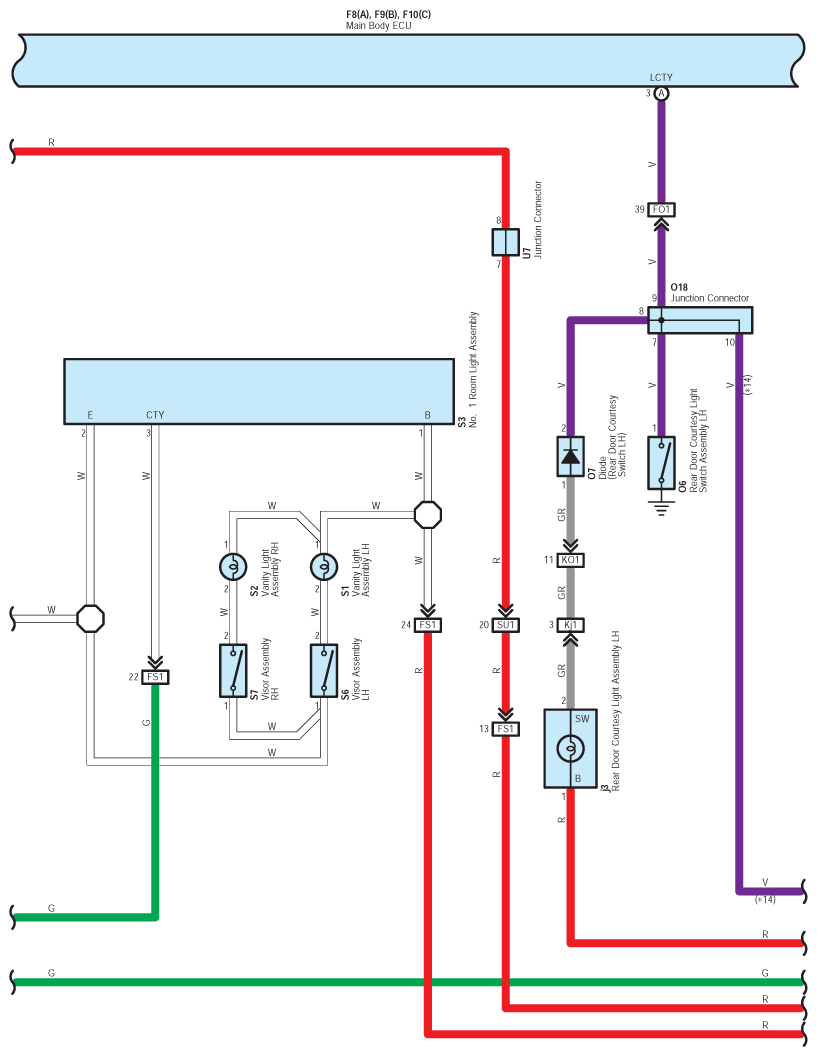

Fig 4: Interior Light (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Interior Light (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Interior Light (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Interior Light (7 Of 10)

Fig 8: Interior Light (8 Of 10)

Fig 9: Interior Light (9 Of 10)

Fig 10: Interior Light (10 Of 10)
