Removal [06/2016 - ]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 1

  2. REMOVE INSTRUMENT SIDE PANEL RH

    Refer to PROCEDURE - Step 11 [06/2016 - 03/2017] , or refer to PROCEDURE - Step 11 [03/2017 - ]

  3. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

    Refer to PROCEDURE - Step 16 [06/2016 - 03/2017] , or refer to PROCEDURE - Step 16 [03/2017 - ]

  4. REMOVE CONTROL UNIT RELAY ASSEMBLY

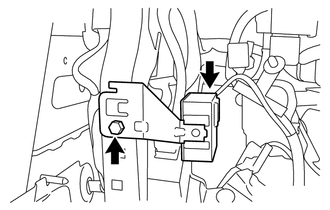

    1. Disconnect the control unit relay assembly connector.
      GTY389745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and control unit relay assembly unit.
