System Diagrams — 2017 Toyota Corolla LE Service Manual ~ LEMON Manuals

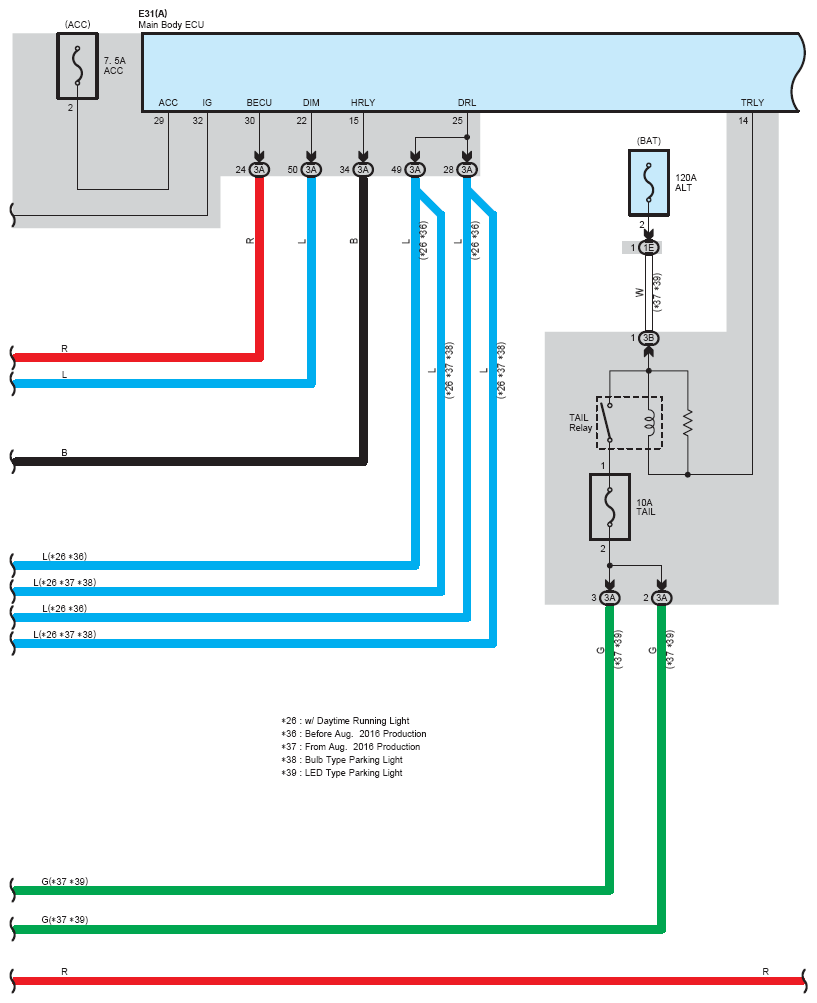

Fig 1: Headlight (5 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

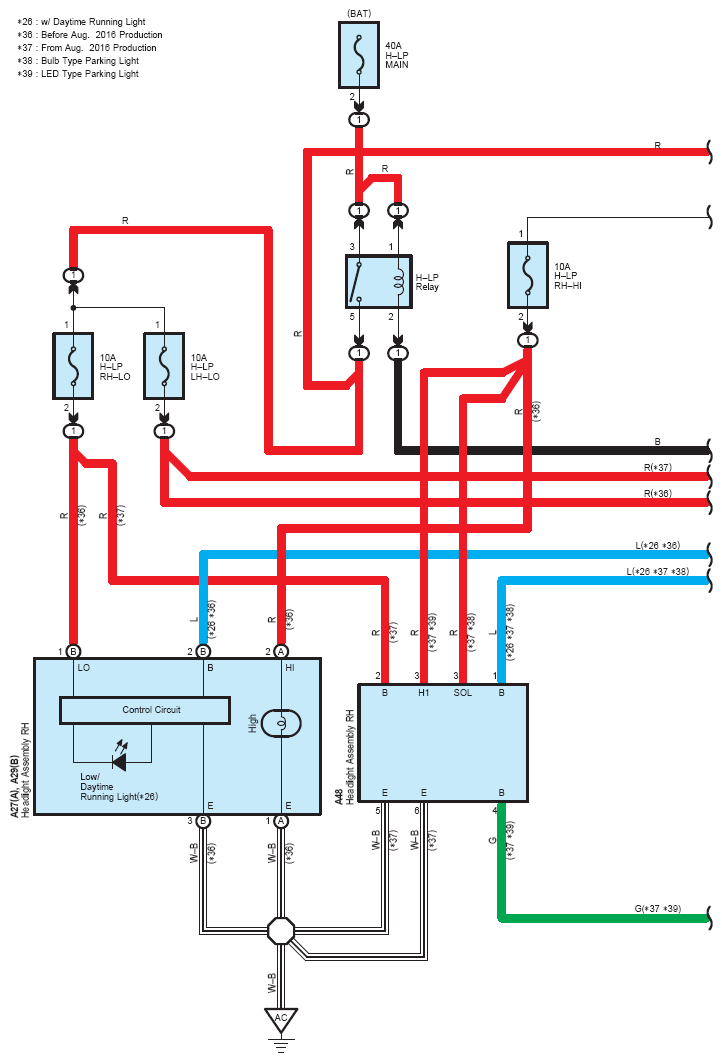

Fig 2: Headlight (6 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

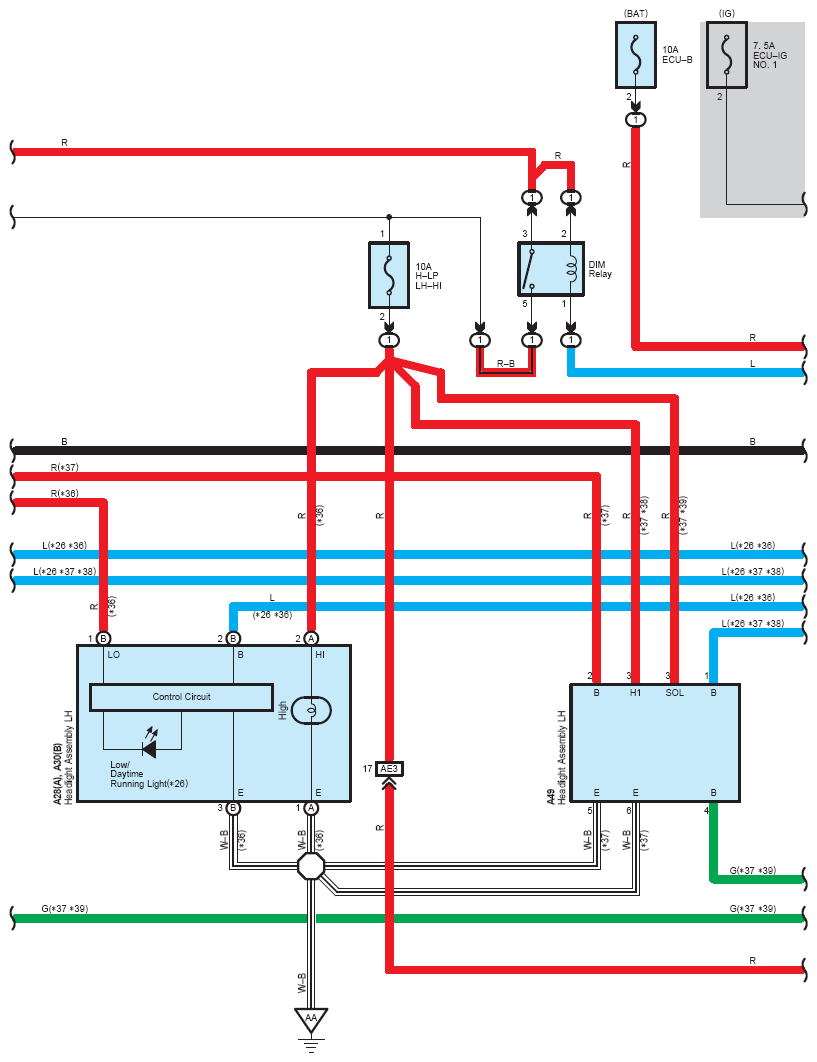

Fig 3: Headlight (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

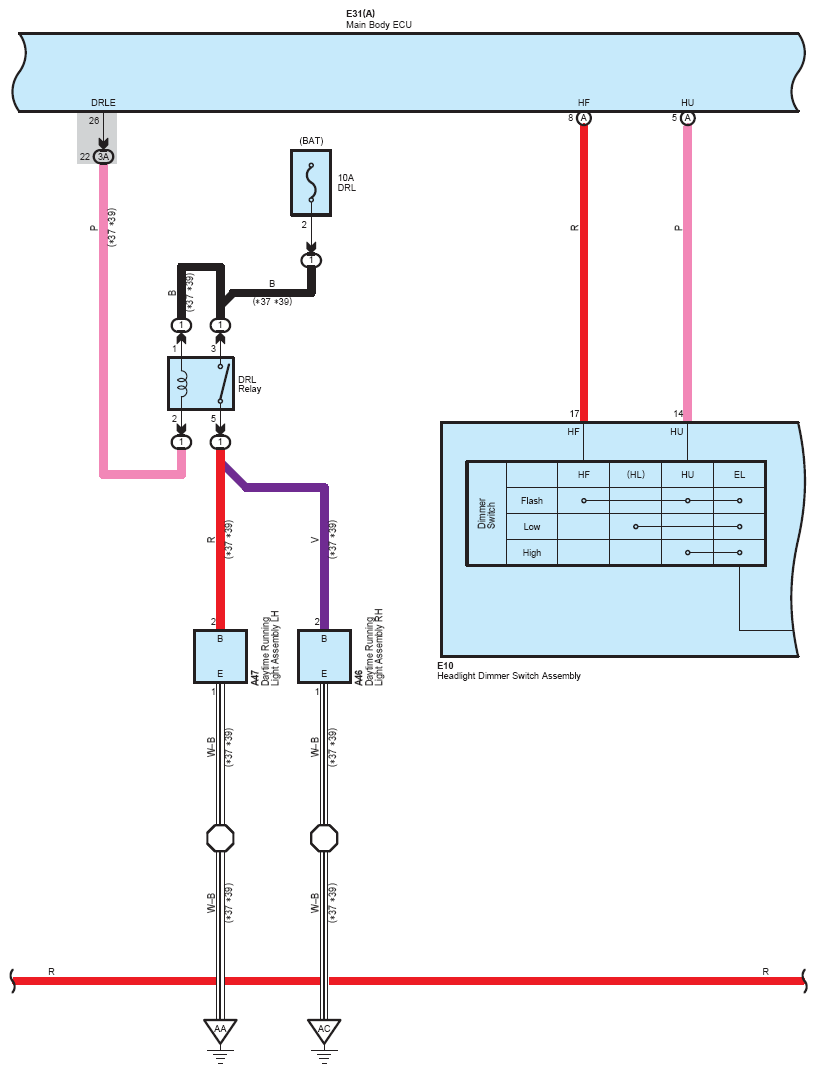

Fig 4: Headlight (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

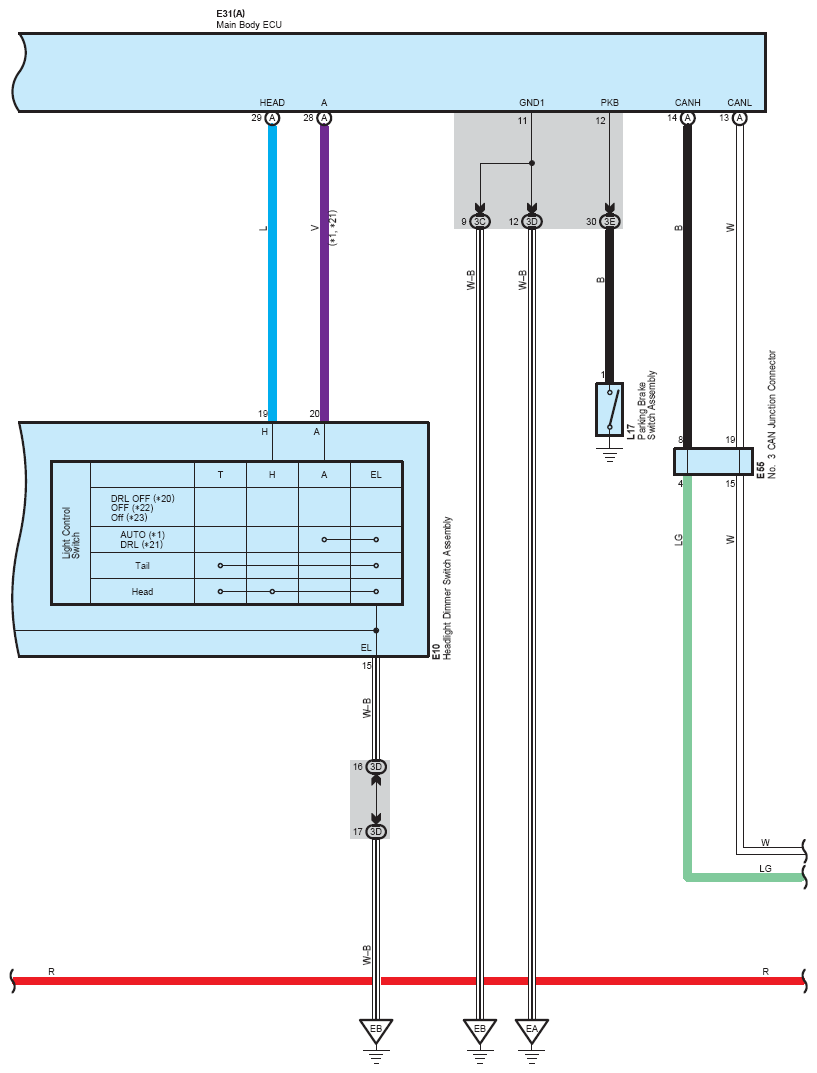

Fig 5: Headlight (3 Of 6)

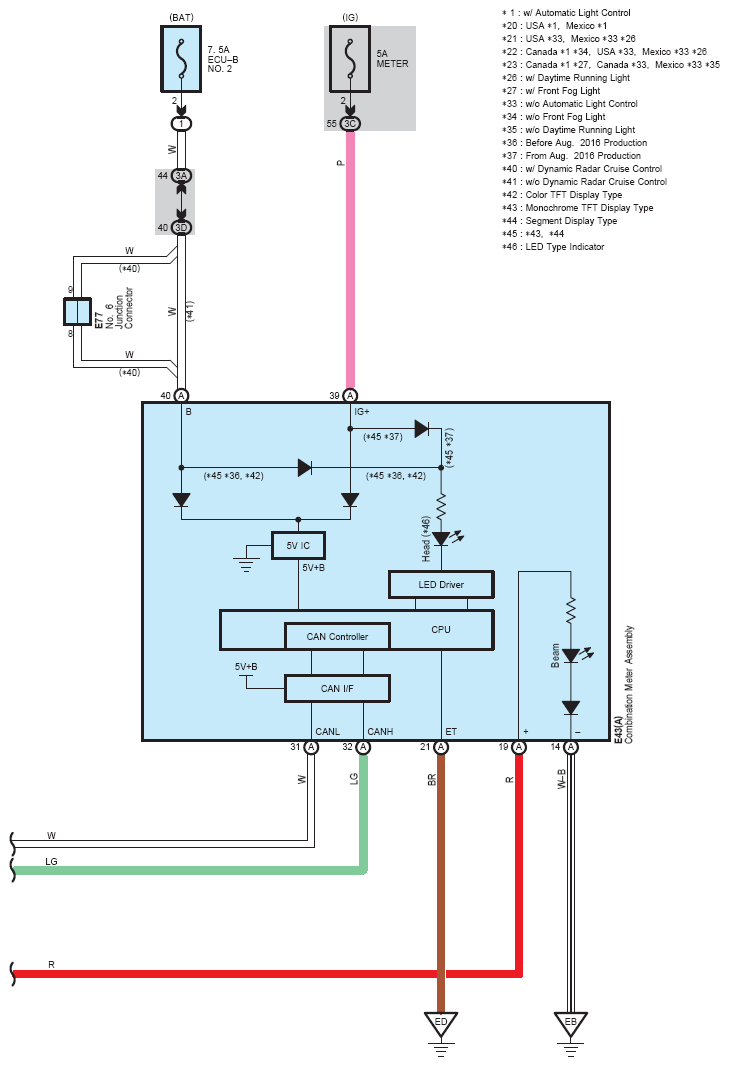

Fig 6: Headlight (4 Of 6)
