Key Reminder (W/O Smart Key System): Connectors

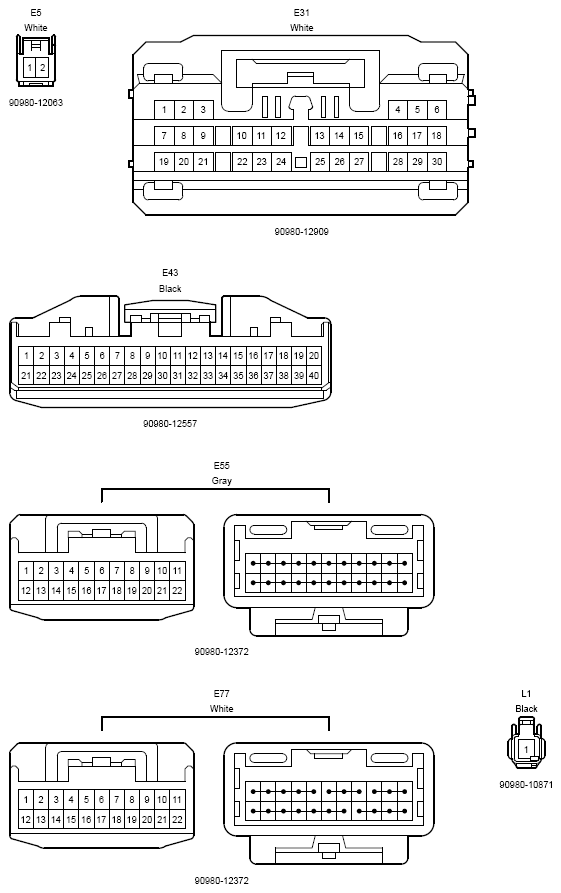

Fig 1: Connectors (1 Of 2)
G12199603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

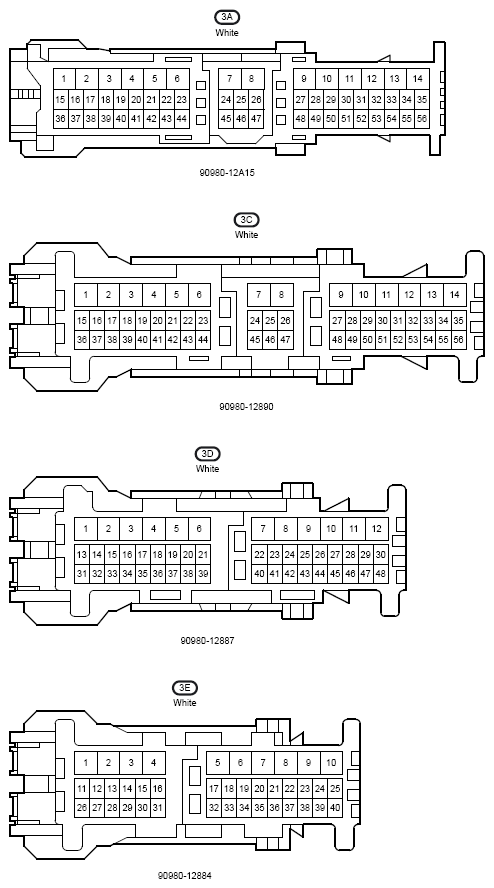

Fig 2: Connectors (2 Of 2)
G12199604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
