System Diagrams — 2017 Toyota Corolla LE Service Manual ~ LEMON Manuals

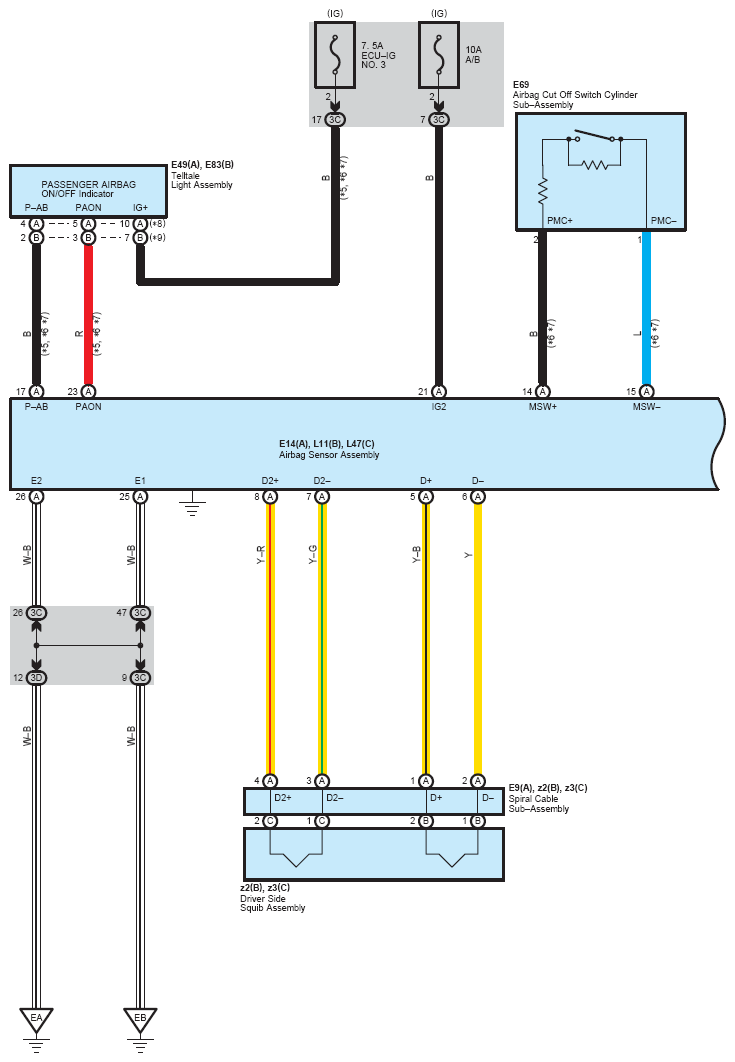

Fig 1: SRS (1 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

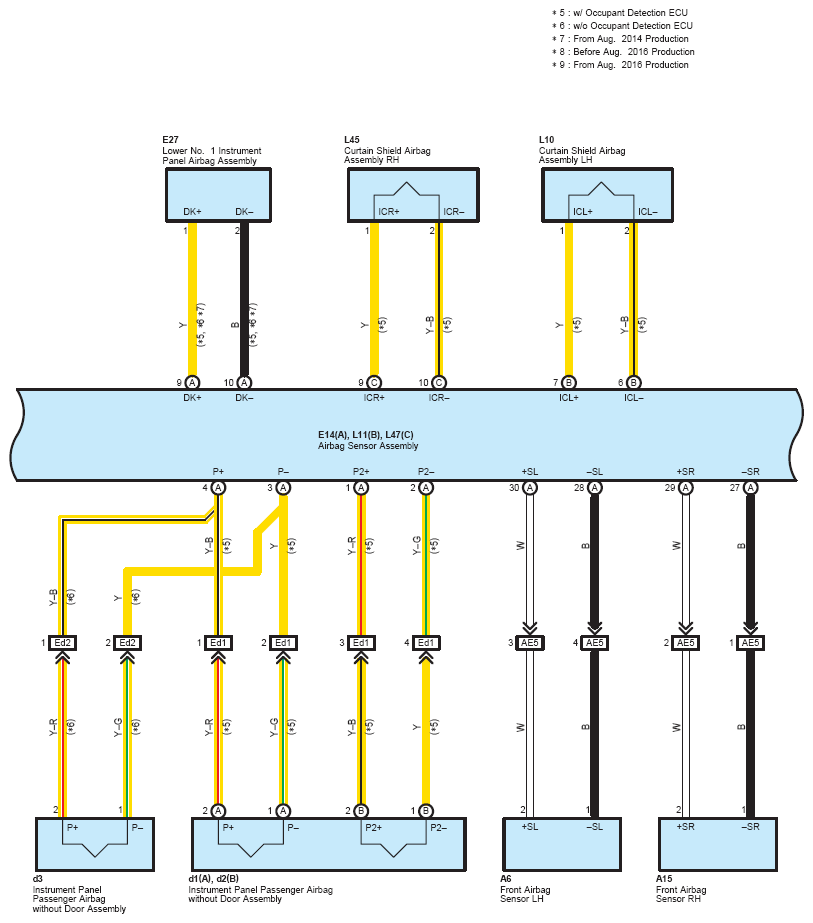

Fig 2: SRS (2 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: SRS (3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

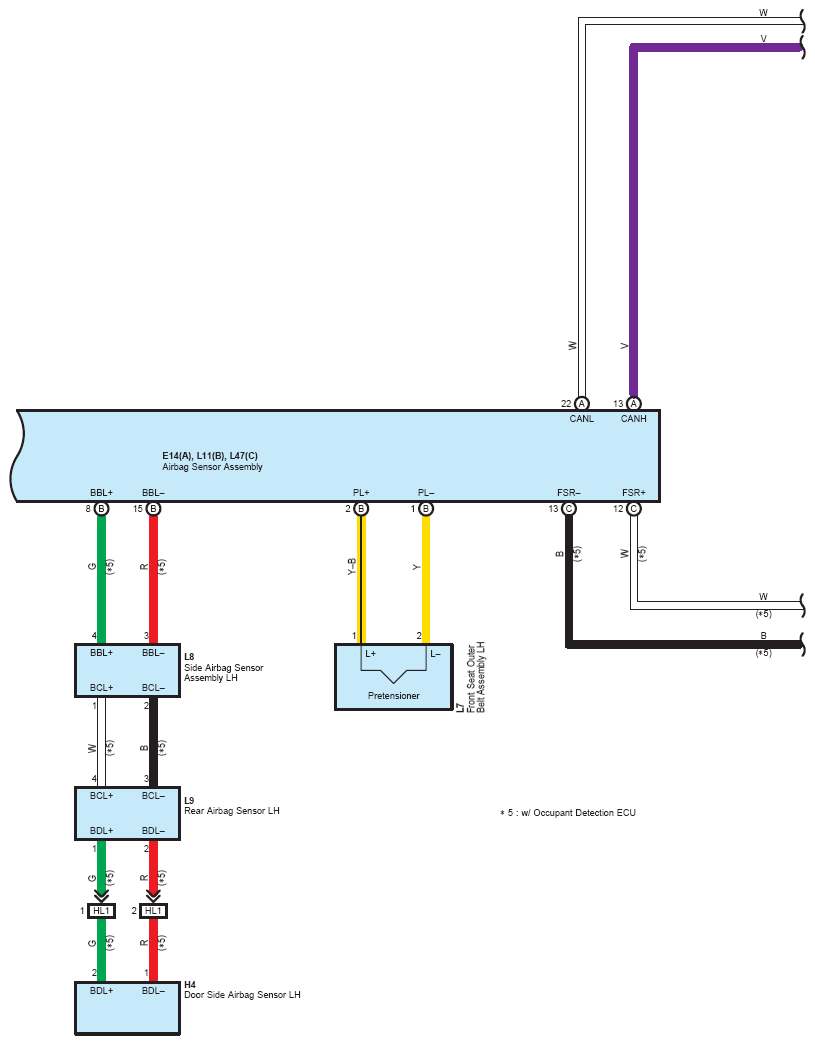

Fig 4: SRS (4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

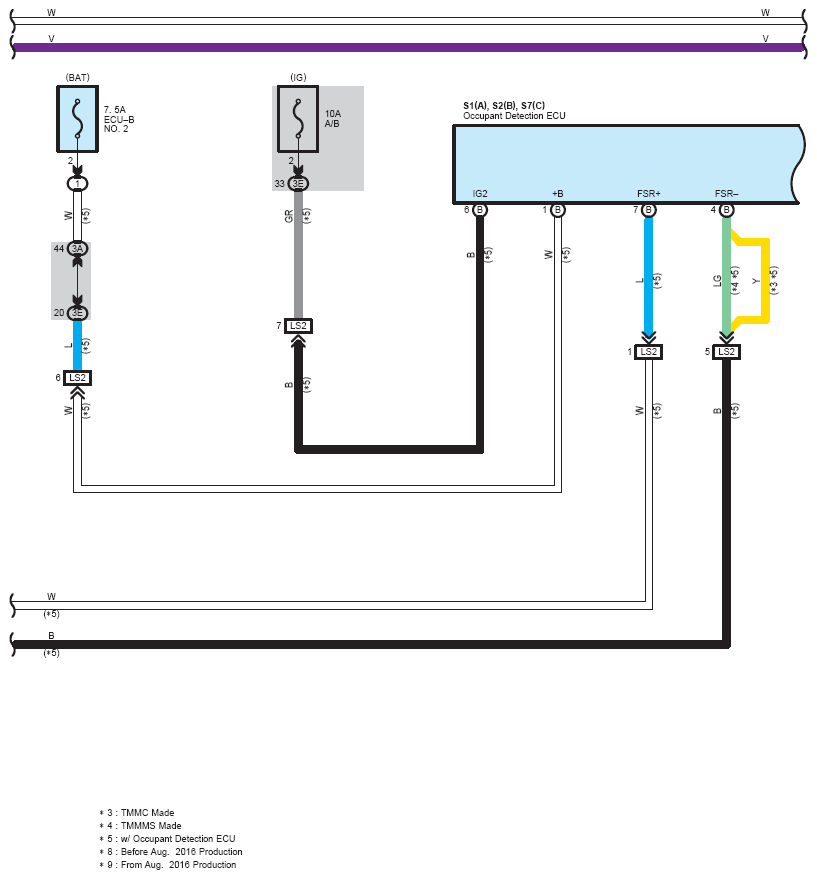

Fig 5: SRS (5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: SRS (6 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

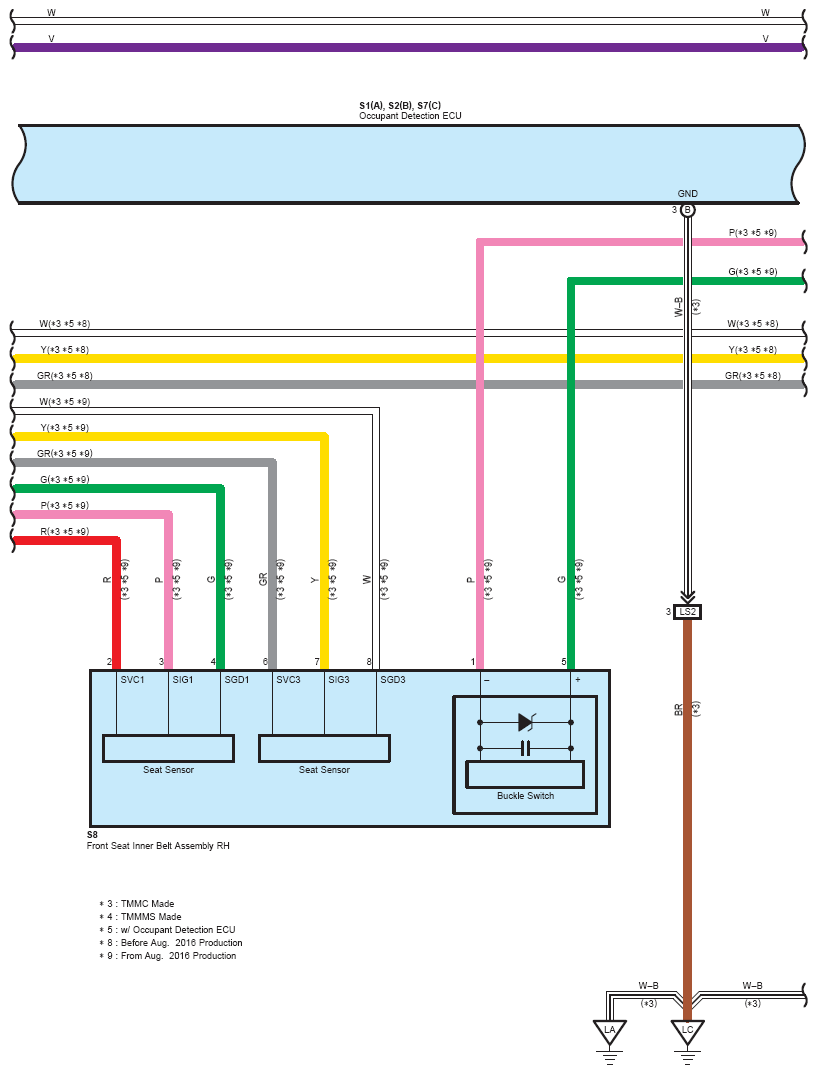

Fig 7: SRS (7 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

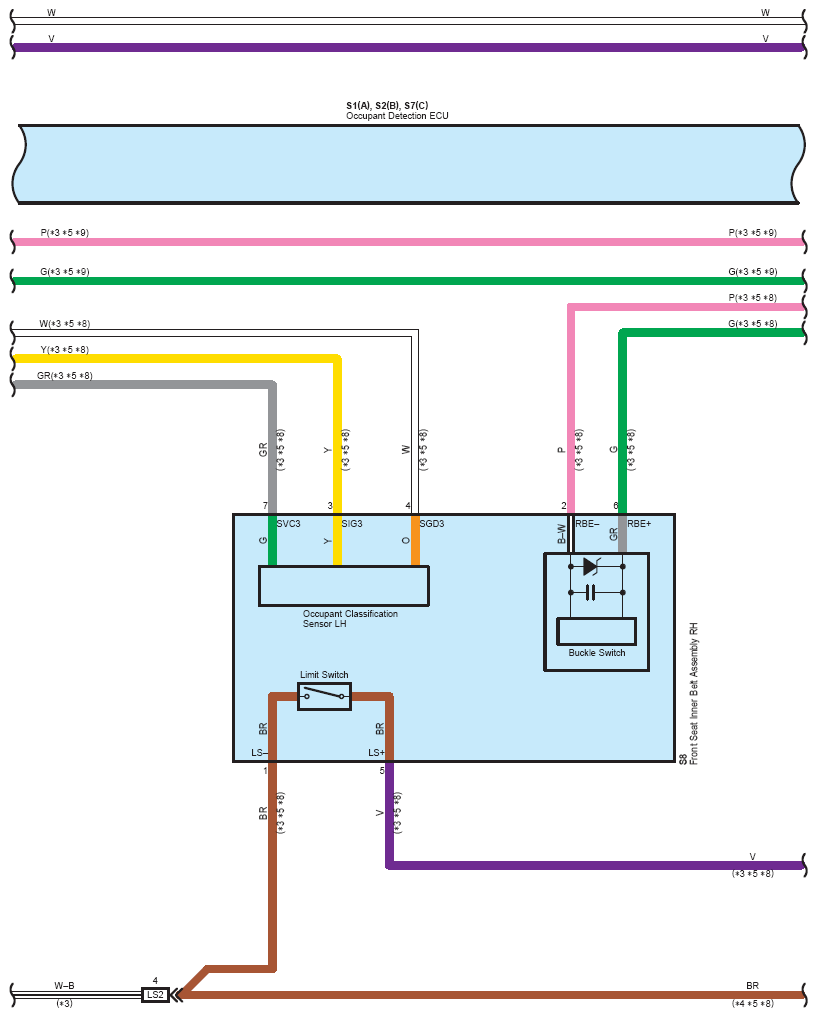

Fig 8: SRS (8 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

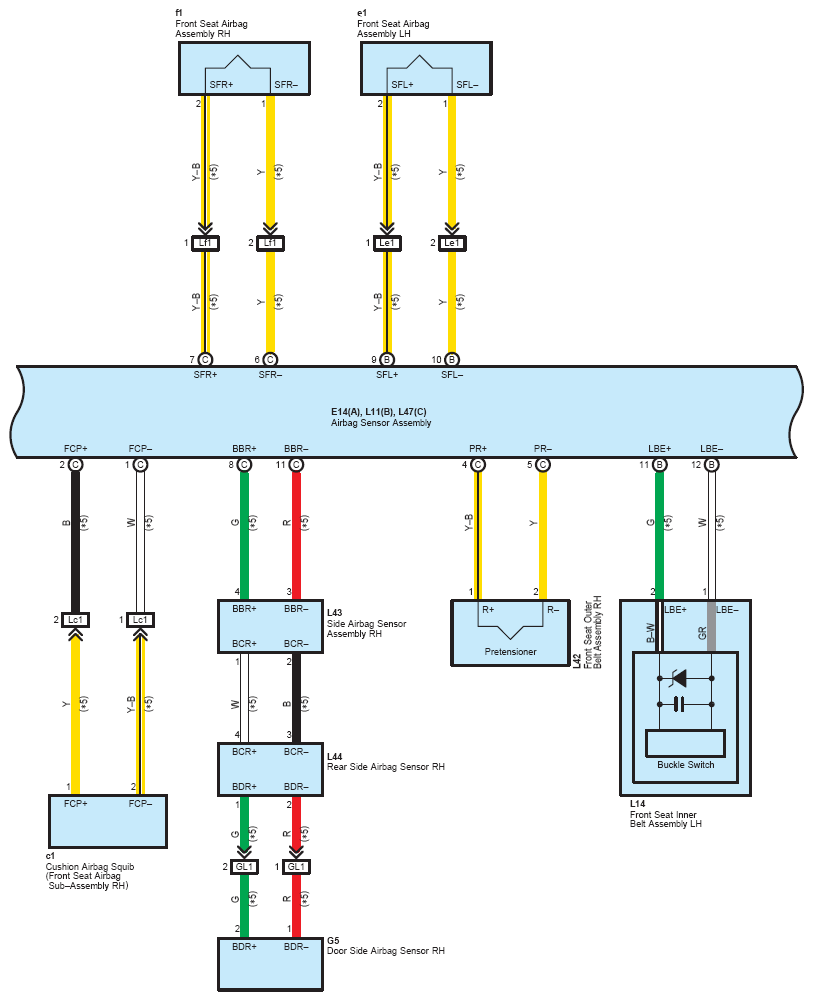

Fig 9: SRS (9 Of 12)

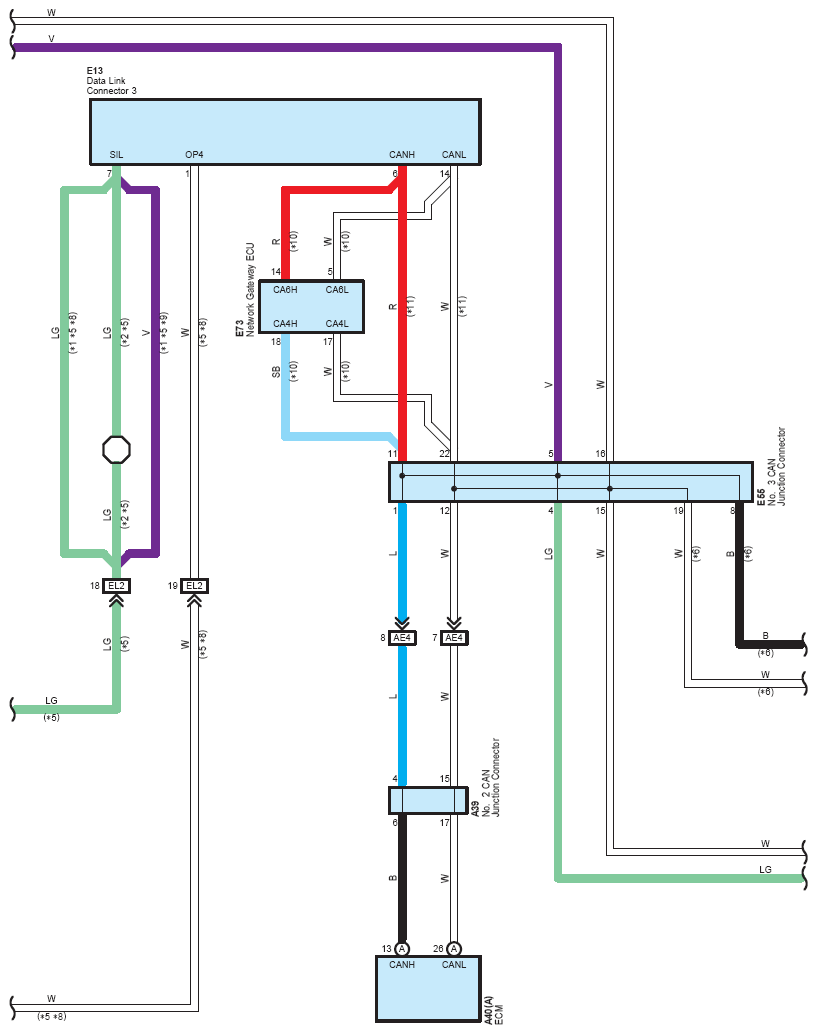

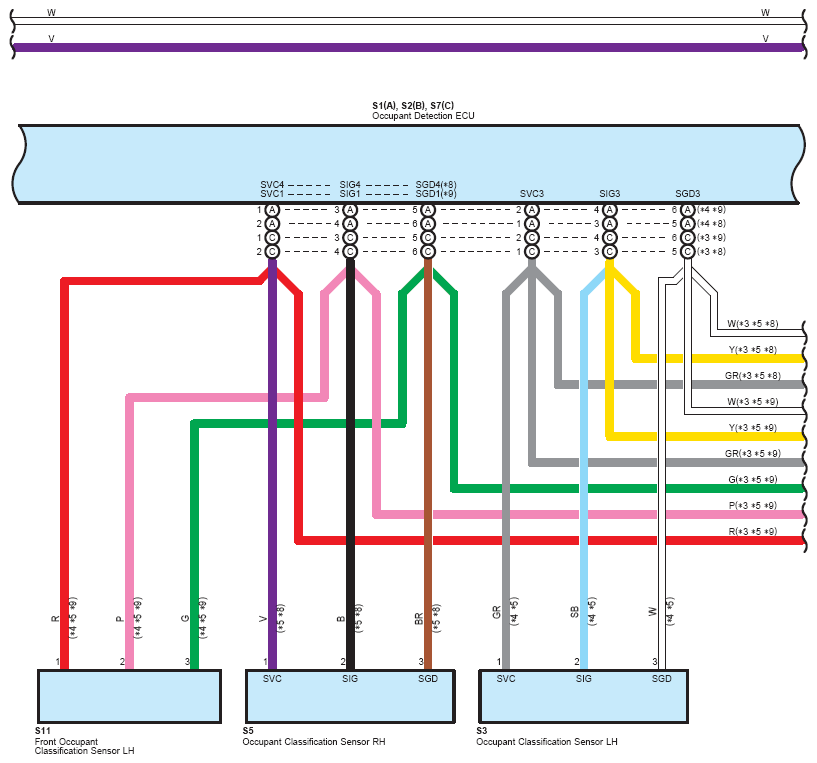

Fig 10: SRS (10 Of 12)

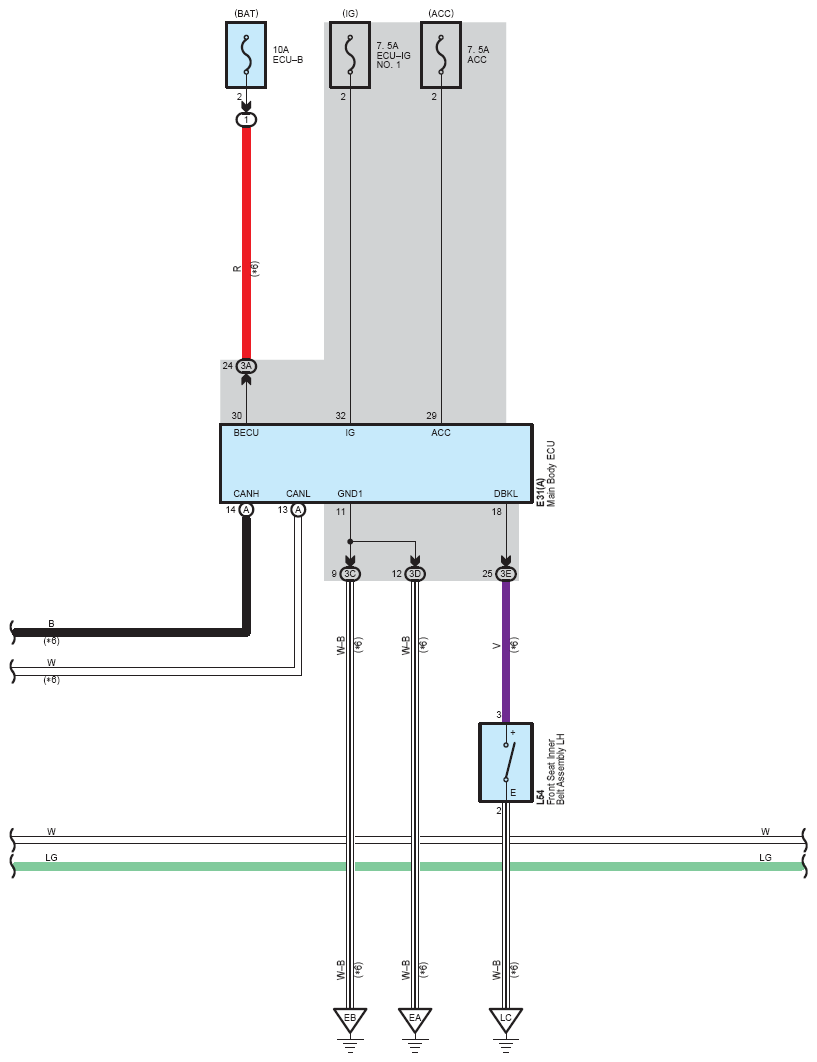

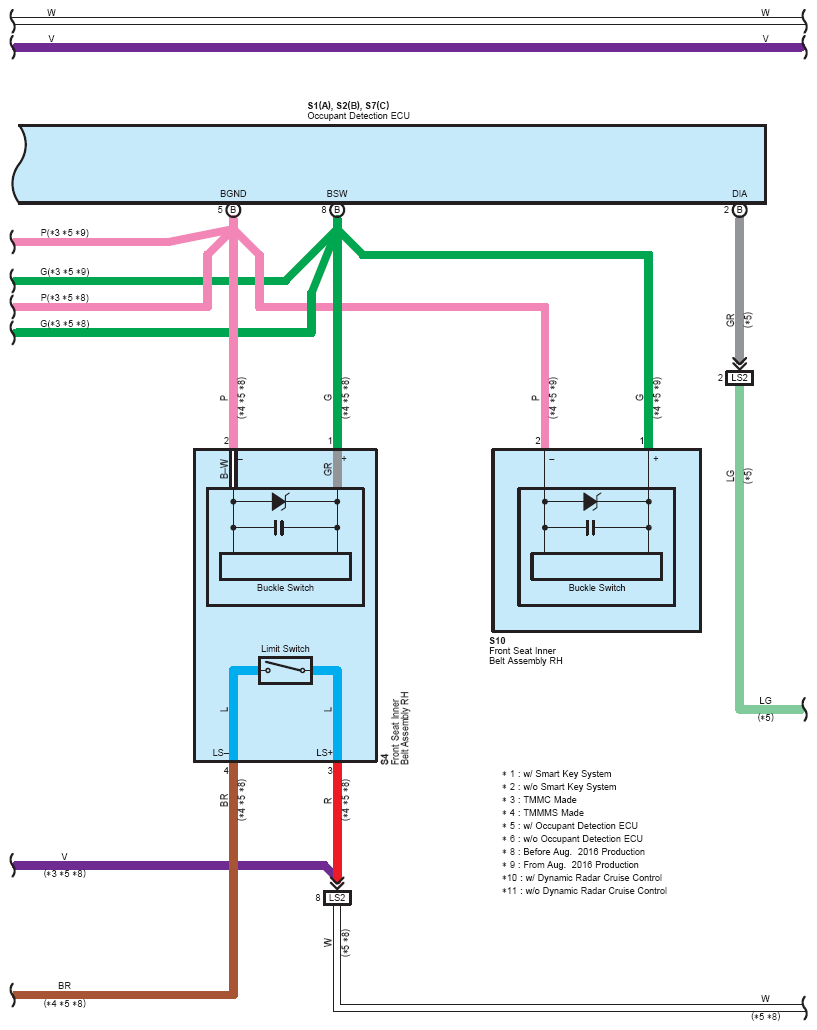

Fig 11: SRS (11 Of 12)

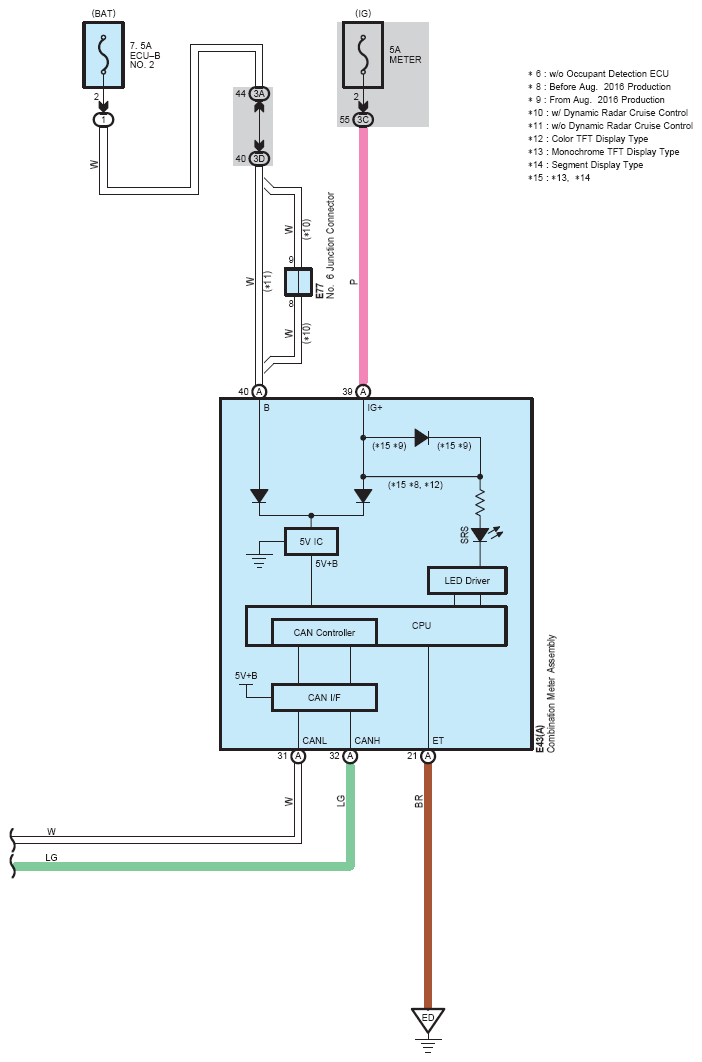

Fig 12: SRS (12 Of 12)
