System Diagrams

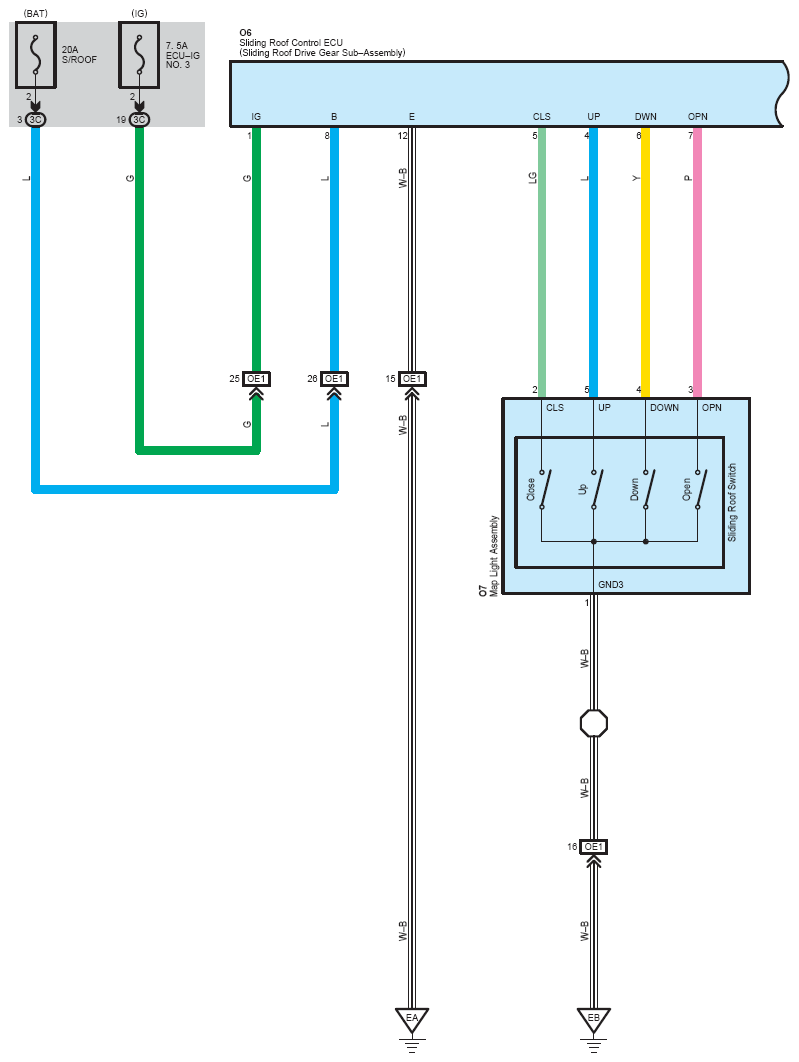

Fig 1: Sliding Roof (1 Of 4)

G12199704

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

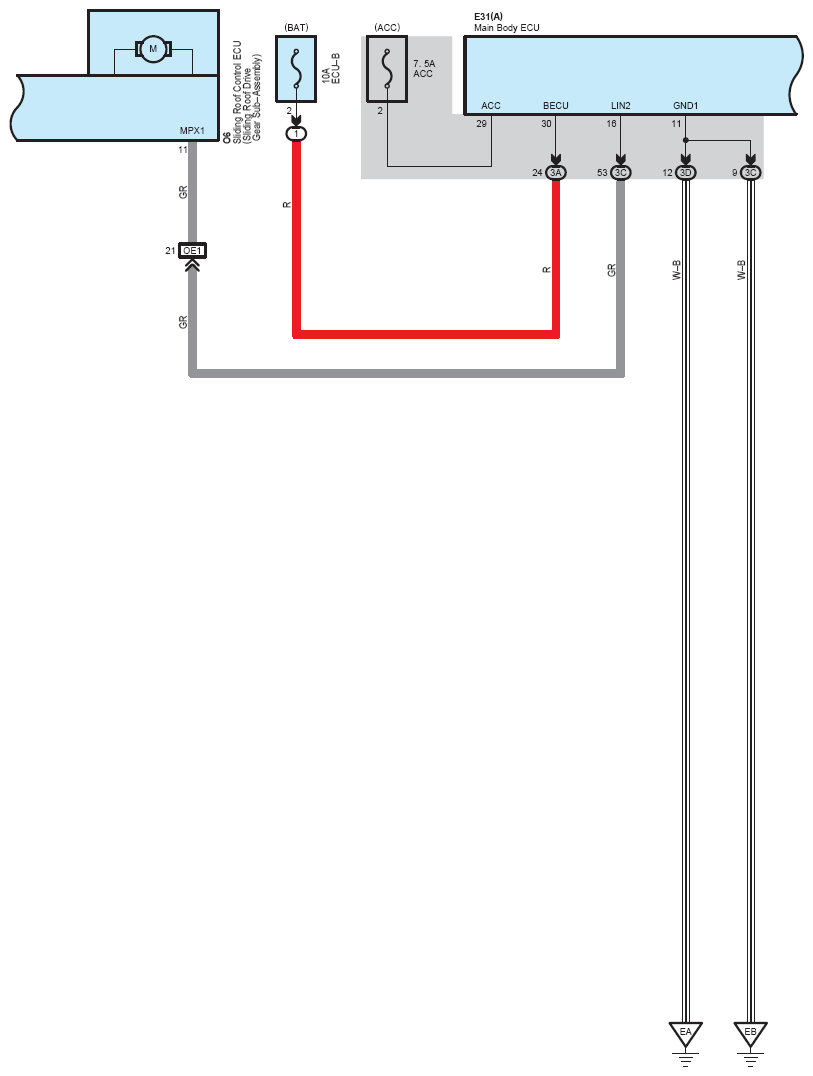

Fig 2: Sliding Roof (2 Of 4)

G12199705

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

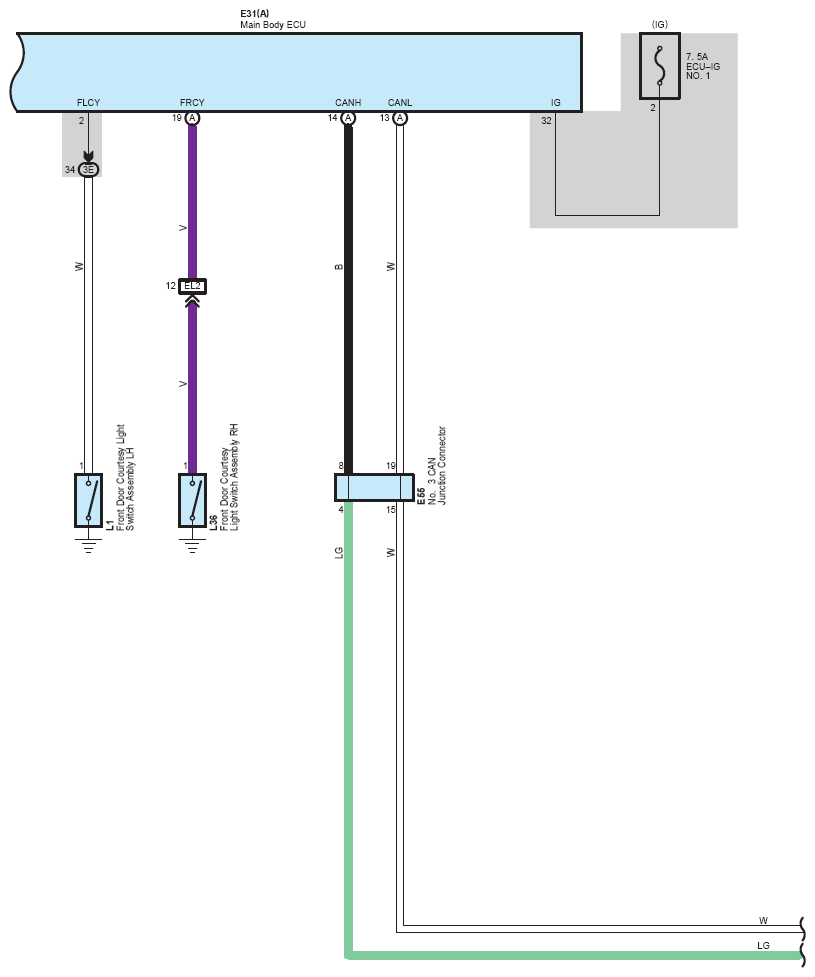

Fig 3: Sliding Roof (3 Of 4)

G12199706

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

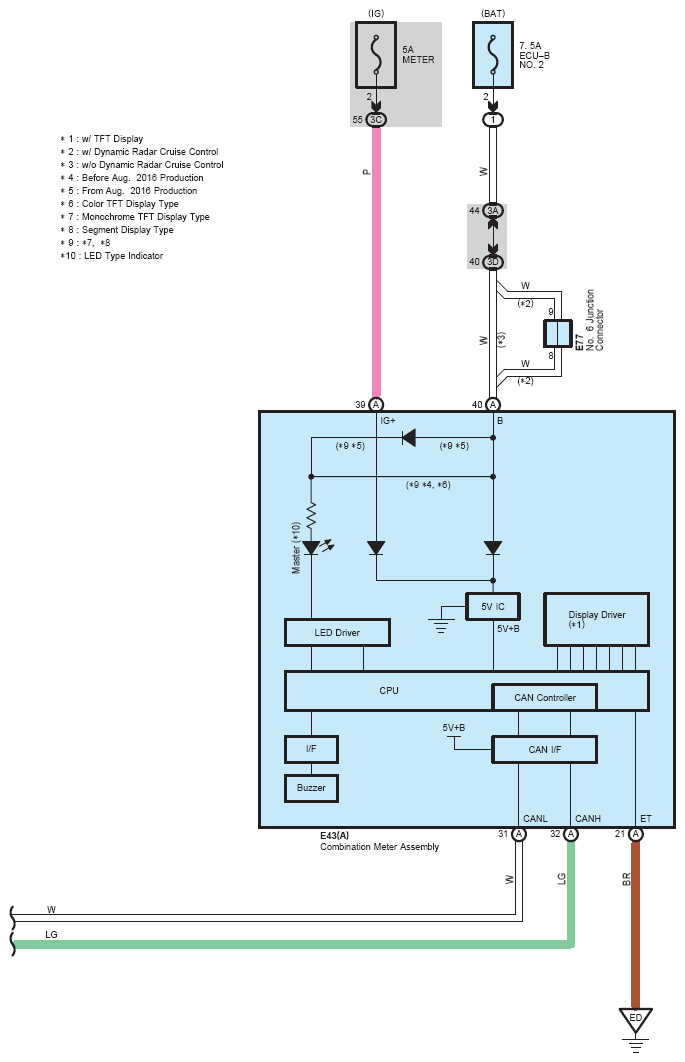

Fig 4: Sliding Roof (4 Of 4)

G12199707

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
