Interior Light: Connectors

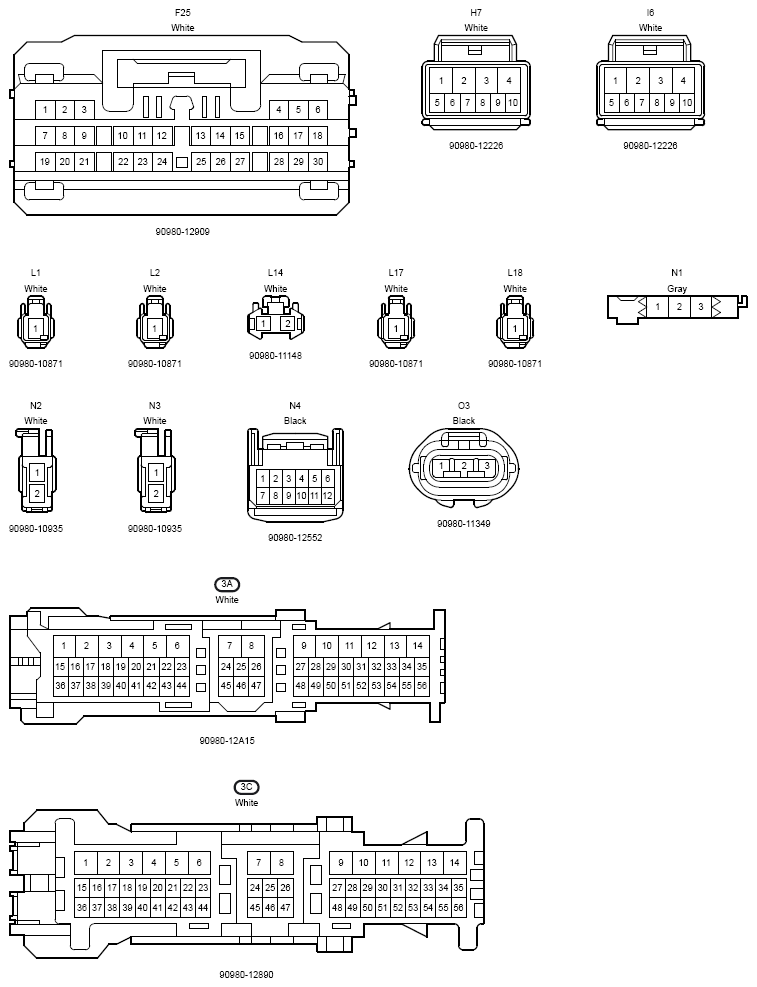

Fig 1: Connectors (1 Of 4)
G12205518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

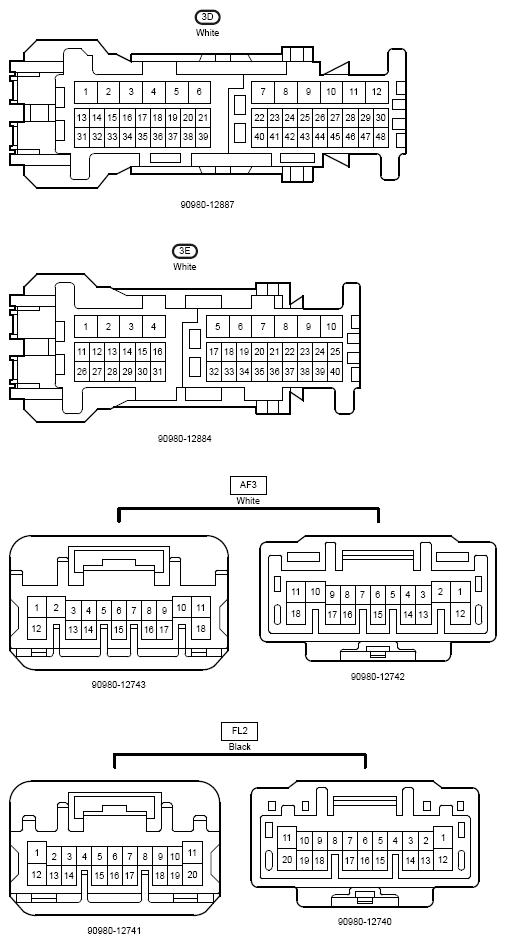

Fig 2: Connectors (2 Of 4)
G12205519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

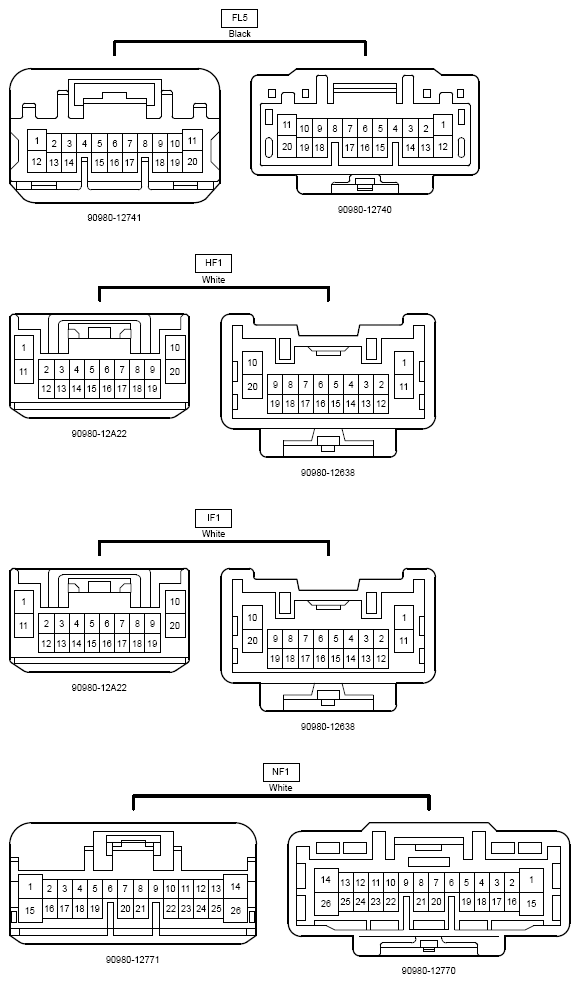

Fig 3: Connectors (3 Of 4)
G12205520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Connectors (4 Of 4)
G12205521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
