System Diagrams

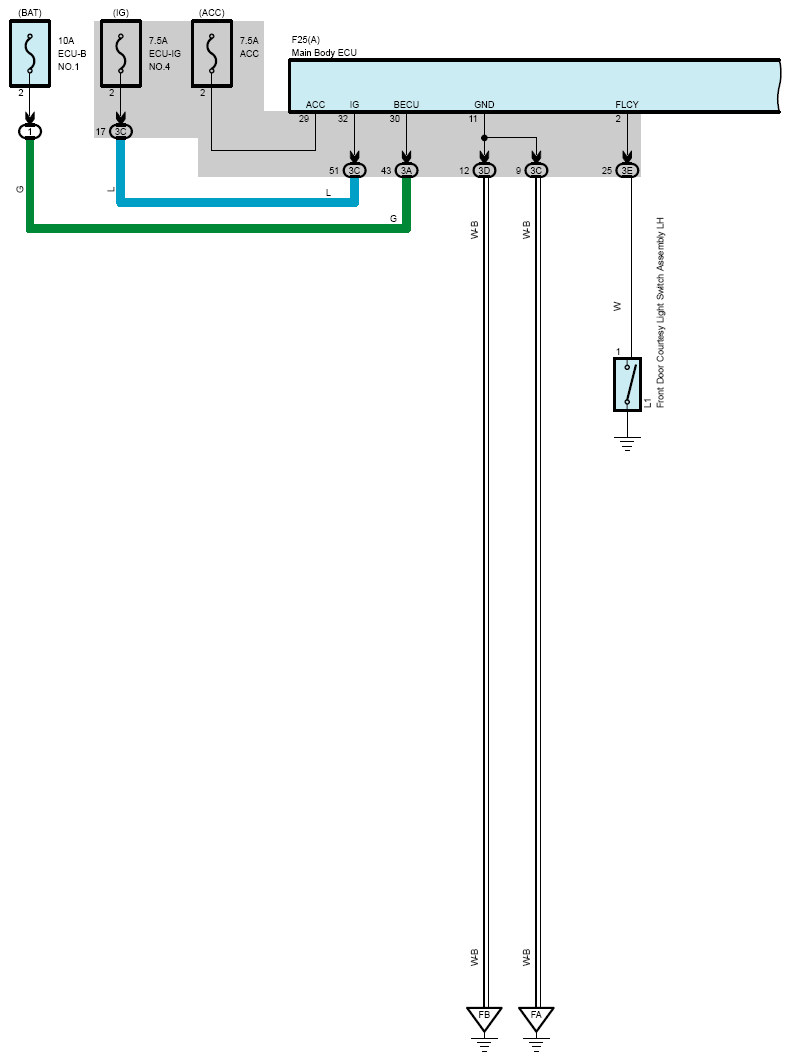

Fig 1: Light Reminder (1 Of 3)
G12205548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

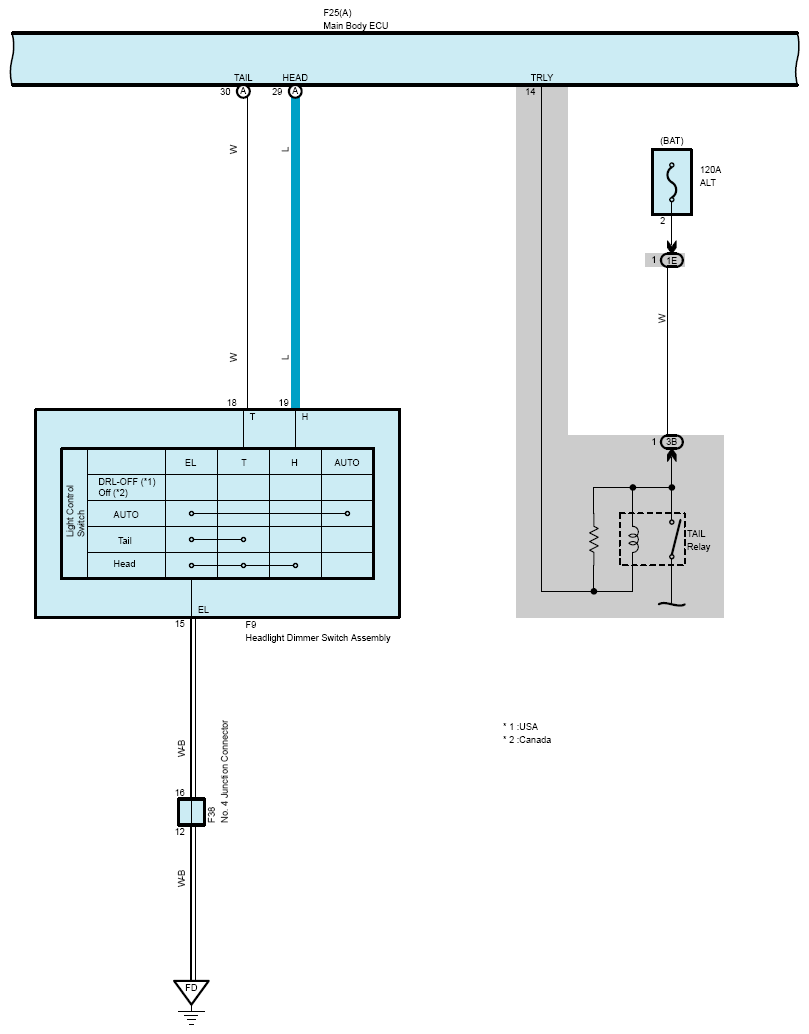

Fig 2: Light Reminder (2 Of 3)
G12205549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

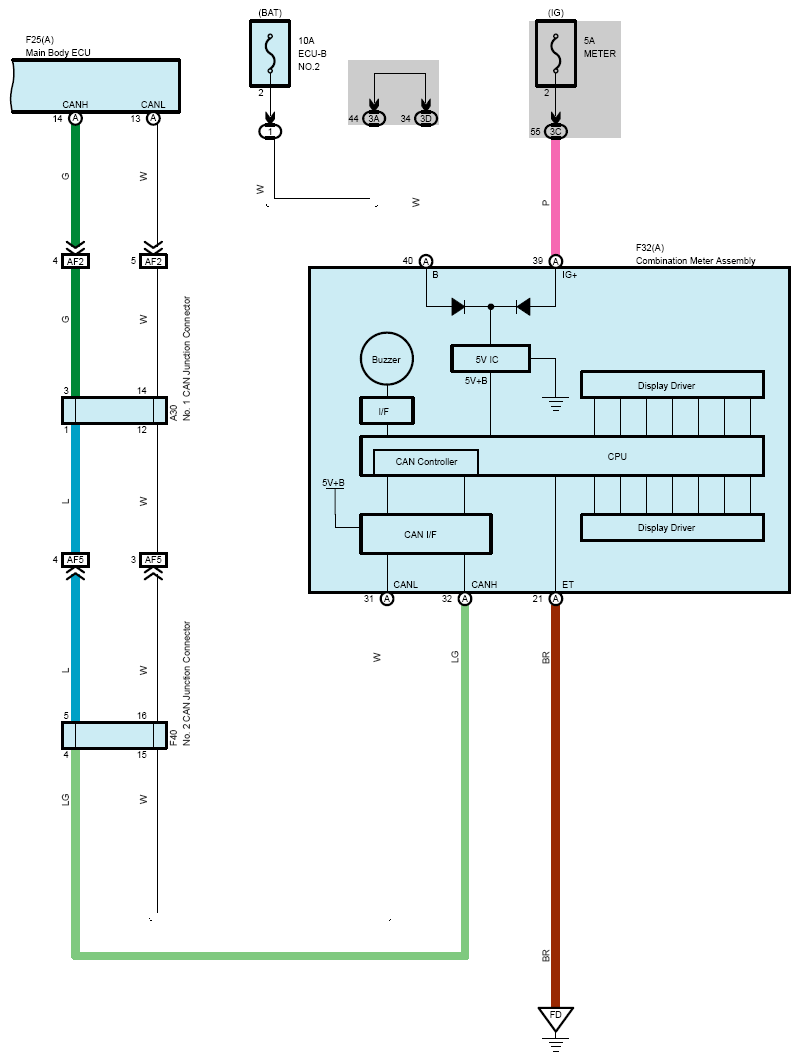

Fig 3: Light Reminder (3 Of 3)
G12205550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
