System Diagrams

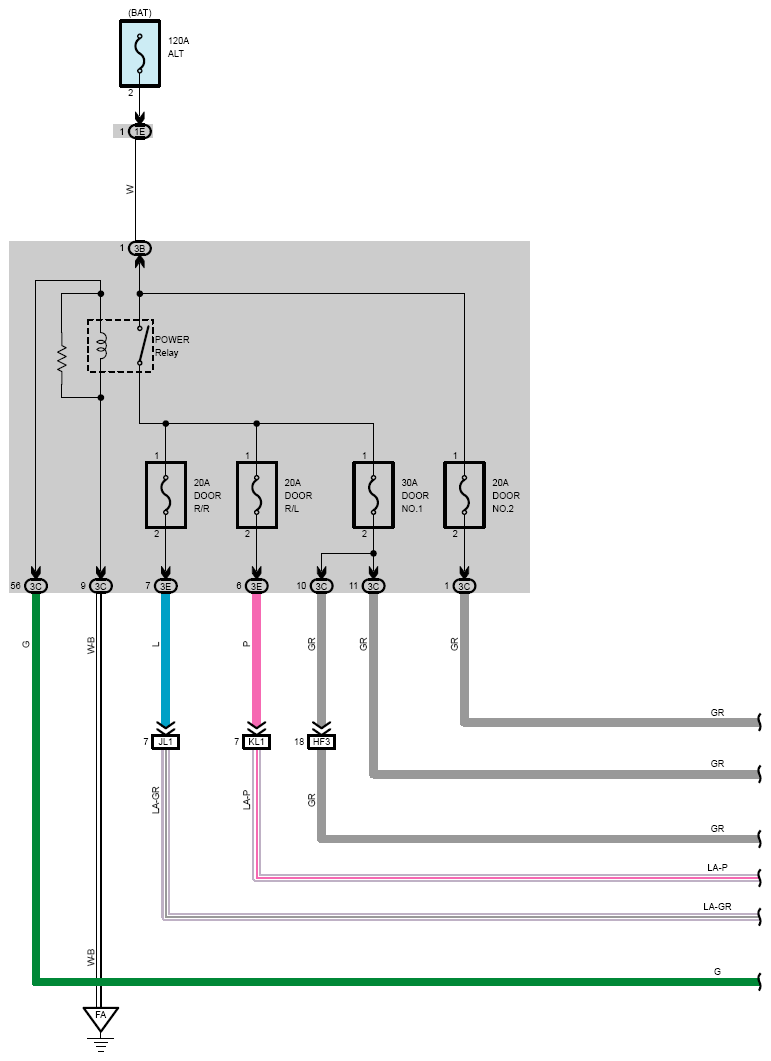

Fig 1: Power Window (1 Of 4)
G12205574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

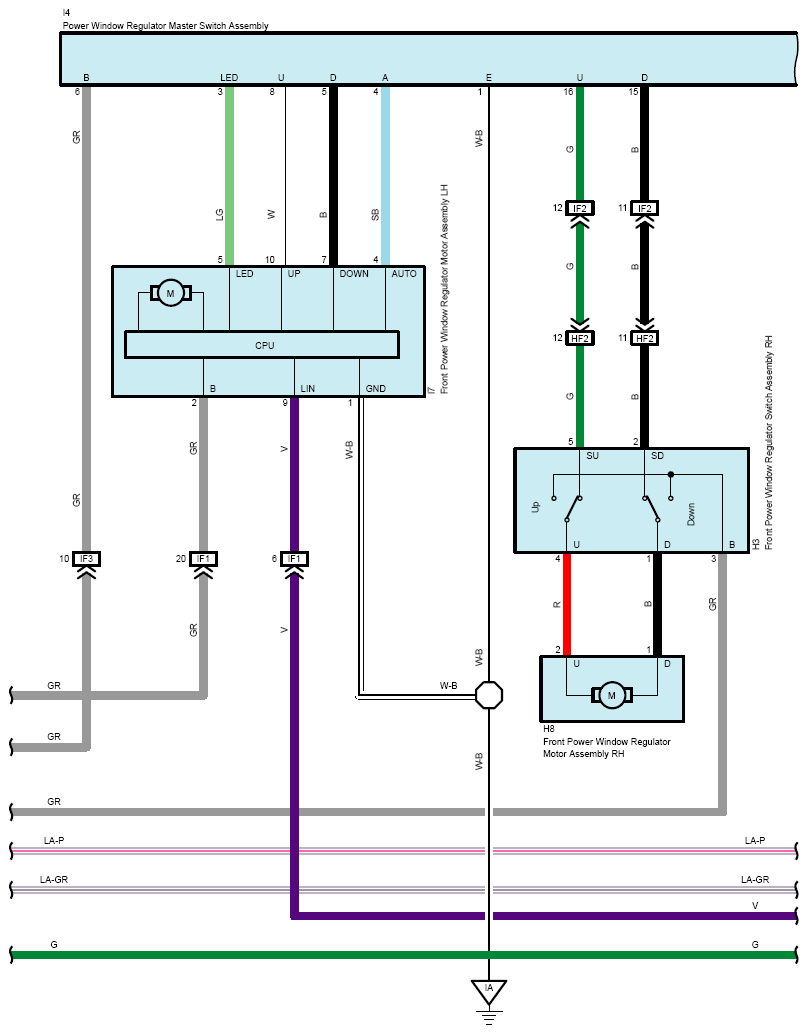

Fig 2: Power Window (2 Of 4)
G12205575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

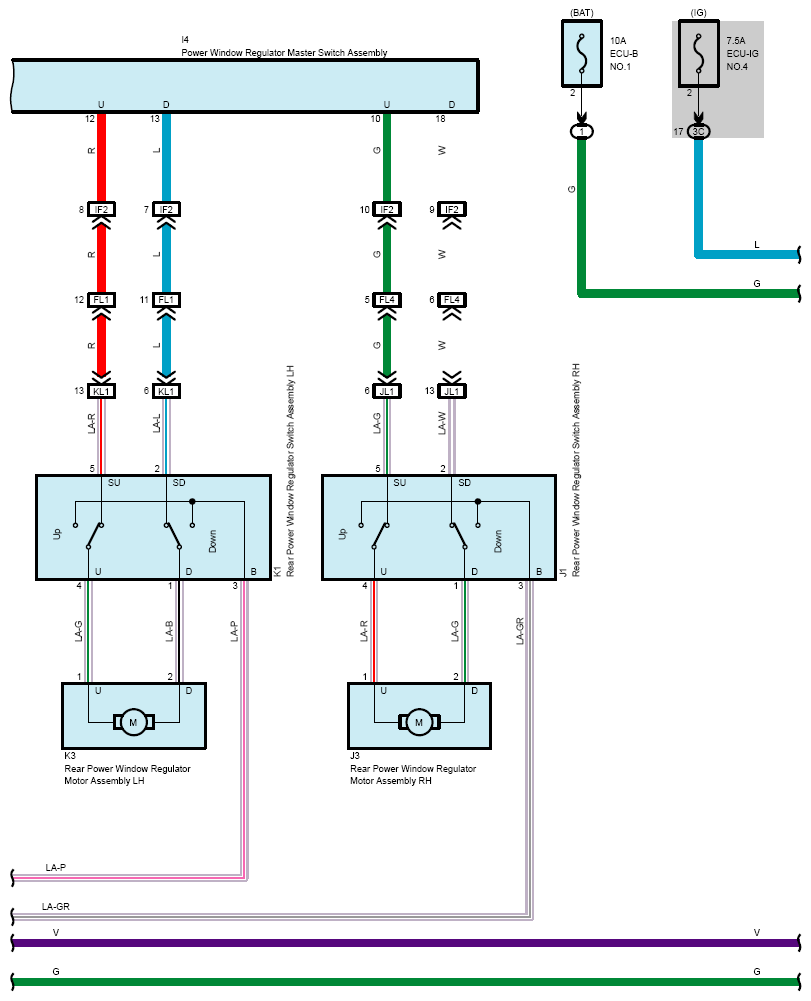

Fig 3: Power Window (3 Of 4)
G12205576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

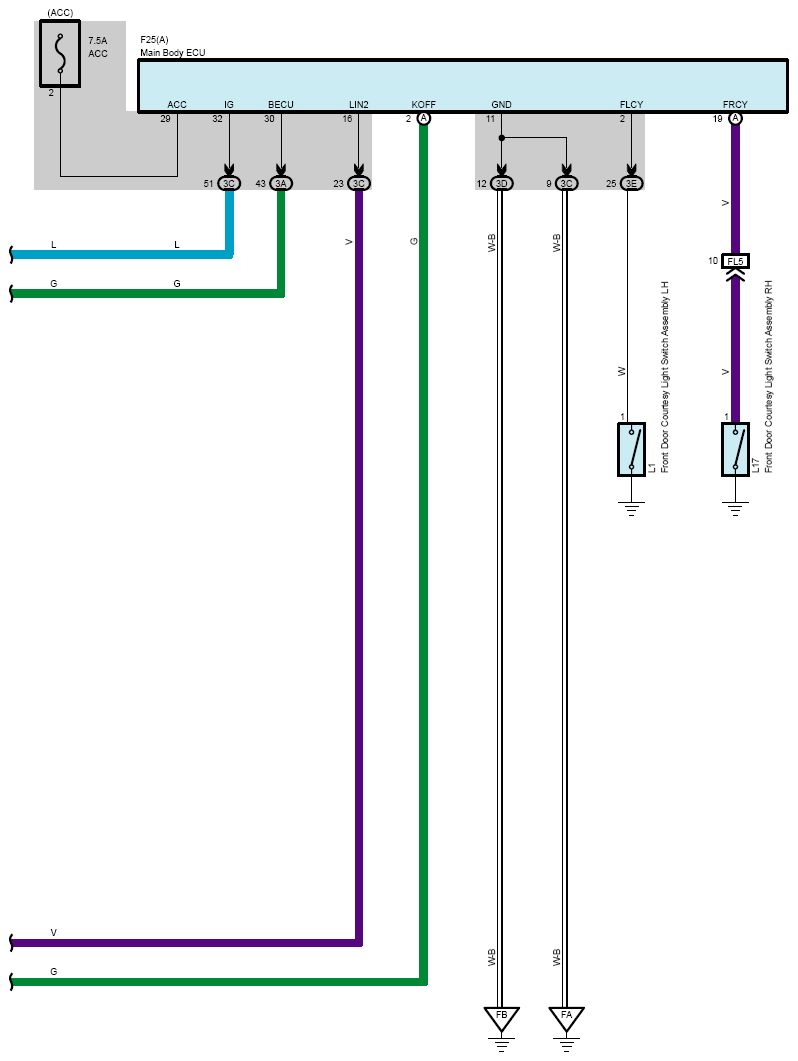

Fig 4: Power Window (4 Of 4)
G12205577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
