System Diagrams

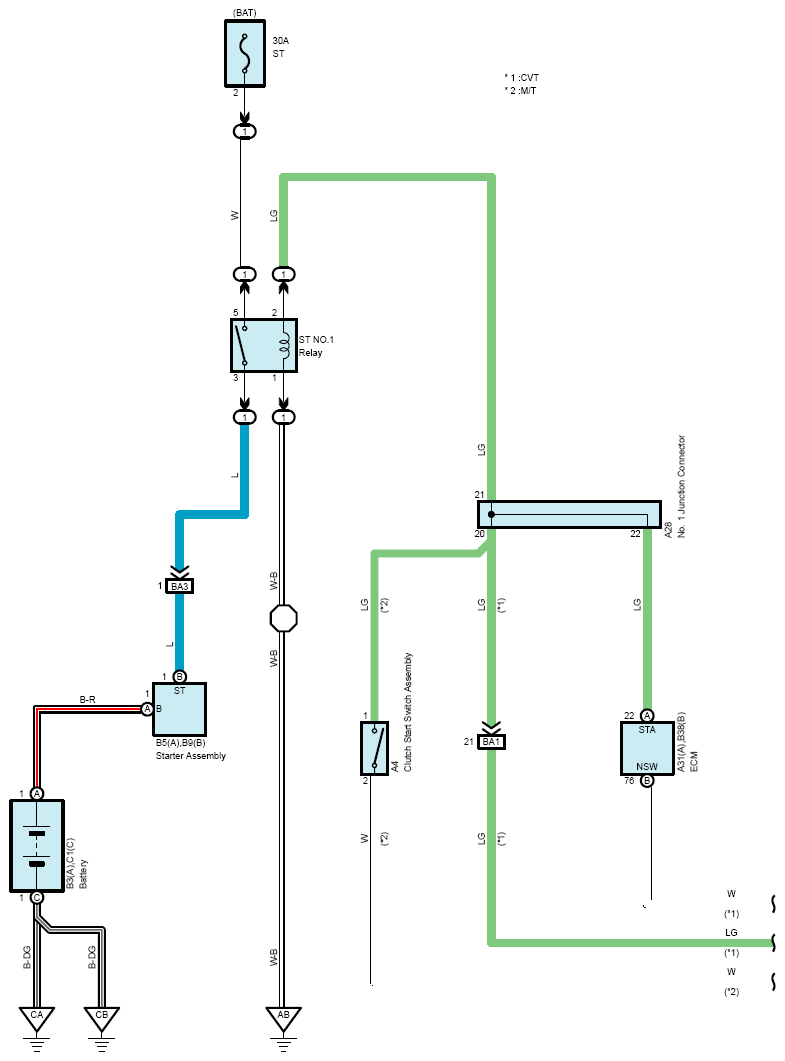

Fig 1: Starting (1 Of 2)
G12205610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

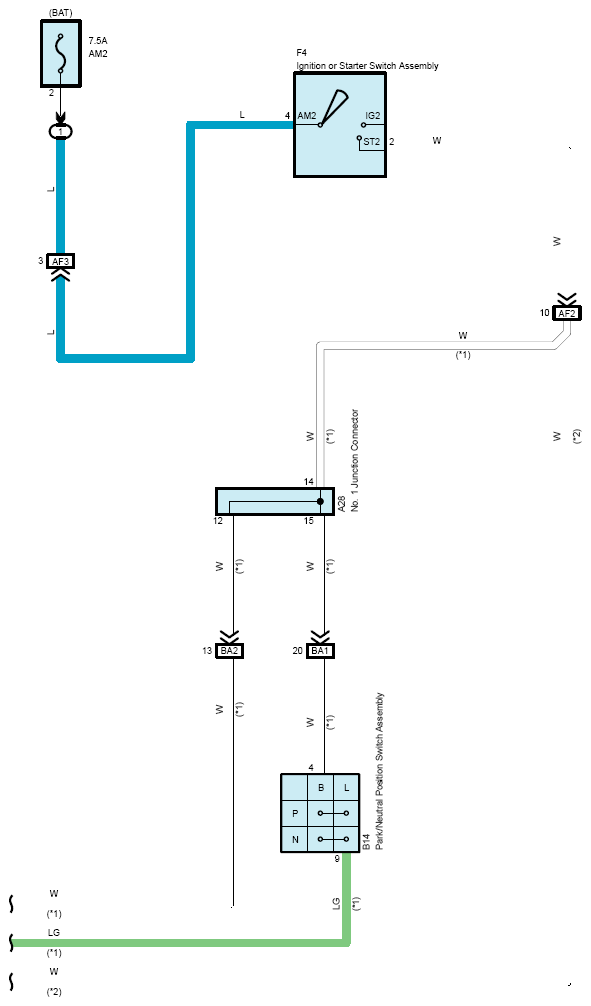

Fig 2: Starting (2 Of 2)
G12205611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
