System Diagrams

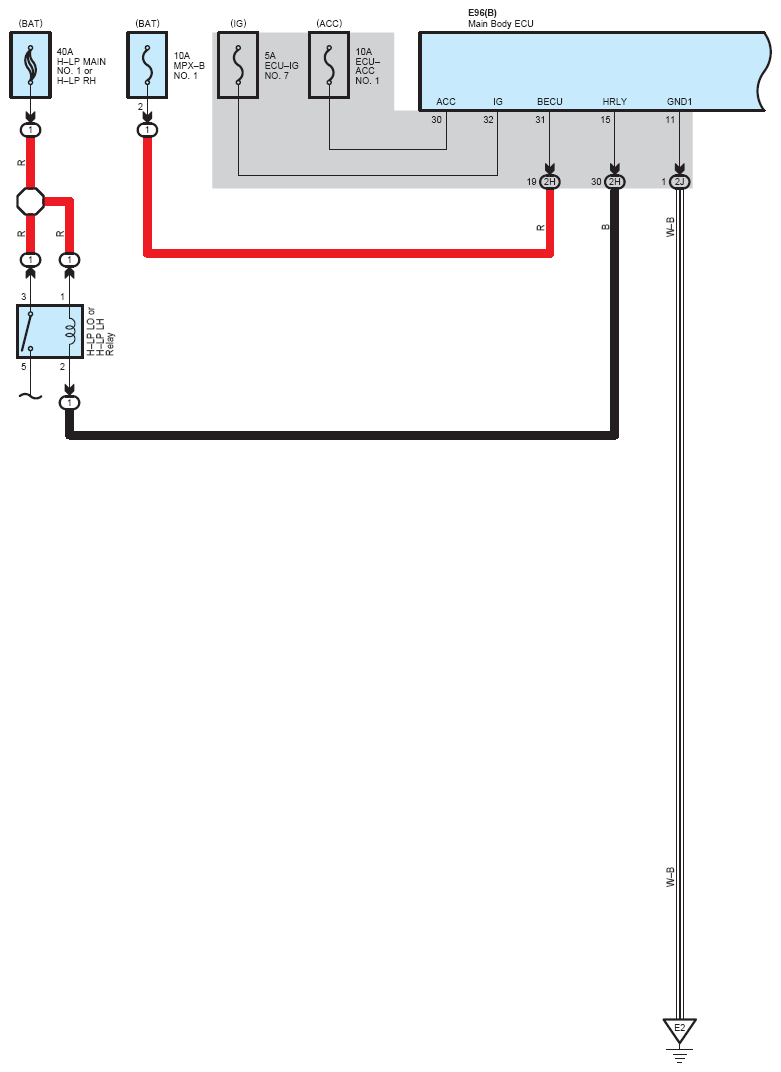

Fig 1: Automatic Light Control, Light Auto Turn Off System, Light Reminder (1 Of 5)
G12206328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

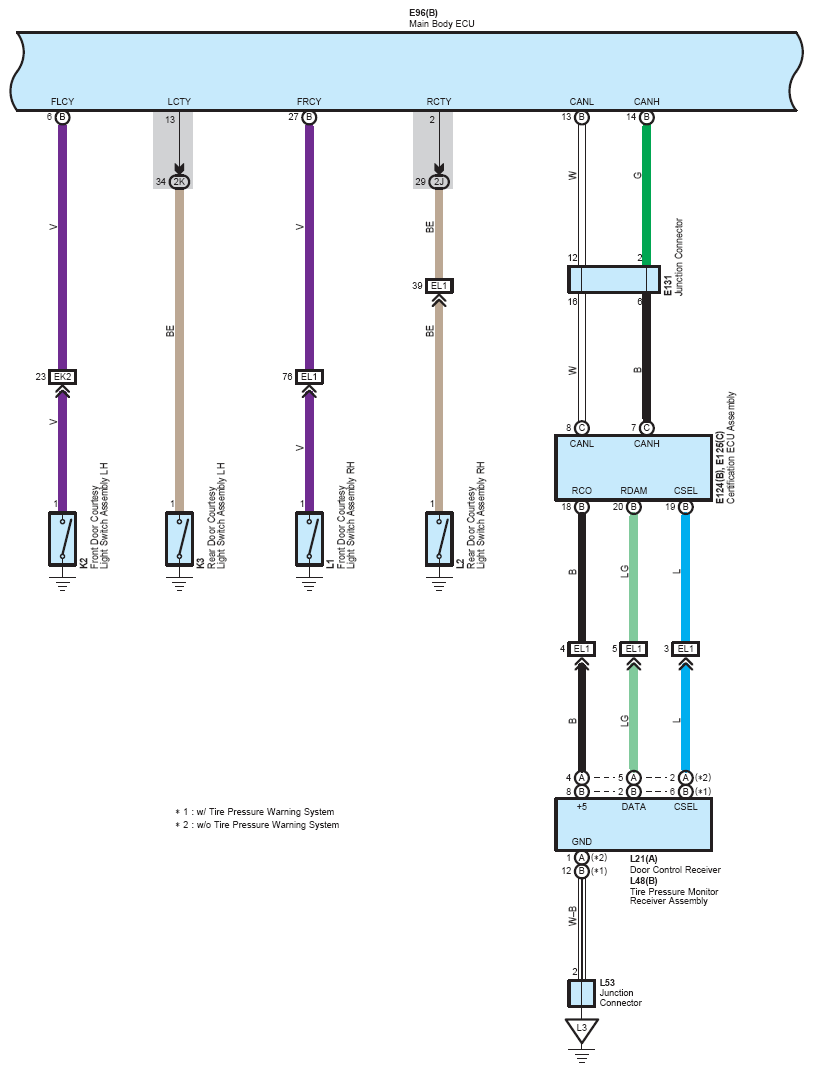

Fig 2: Automatic Light Control, Light Auto Turn Off System, Light Reminder (2 Of 5)
G12206329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

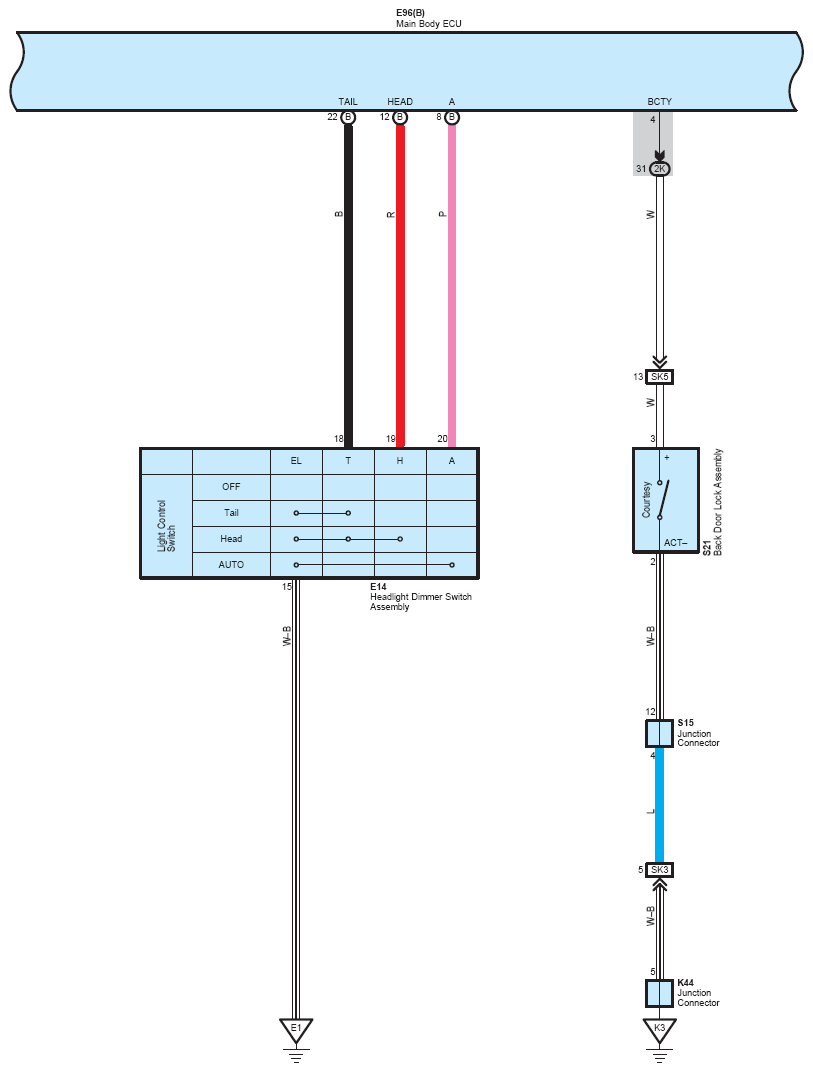

Fig 3: Automatic Light Control, Light Auto Turn Off System, Light Reminder (3 Of 5)
G12206330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

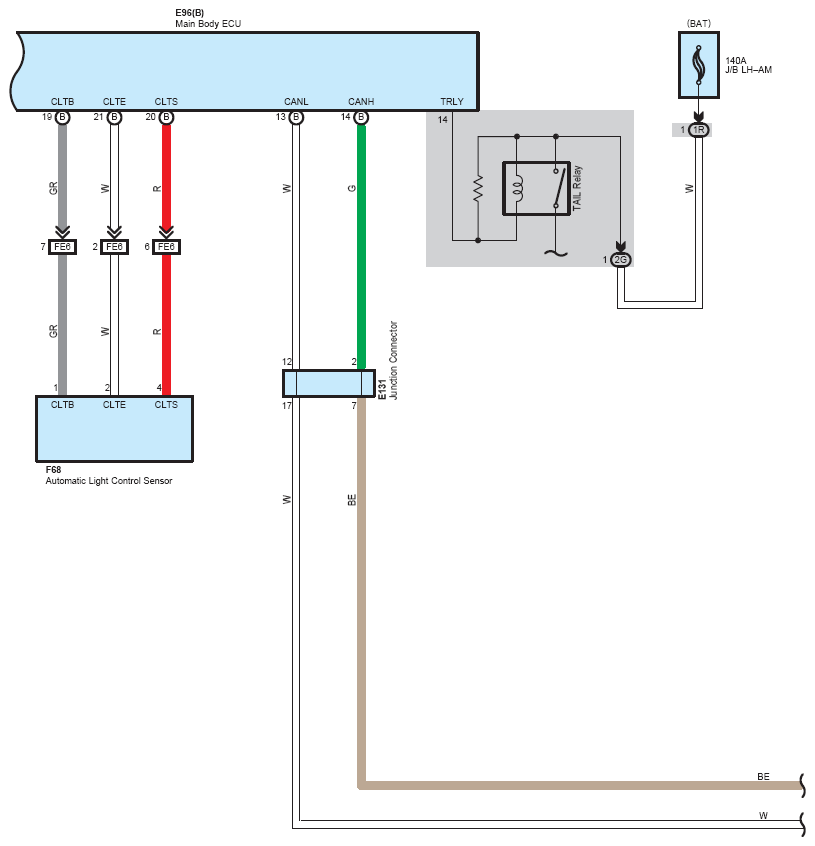

Fig 4: Automatic Light Control, Light Auto Turn Off System, Light Reminder (4 Of 5)
G12206331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

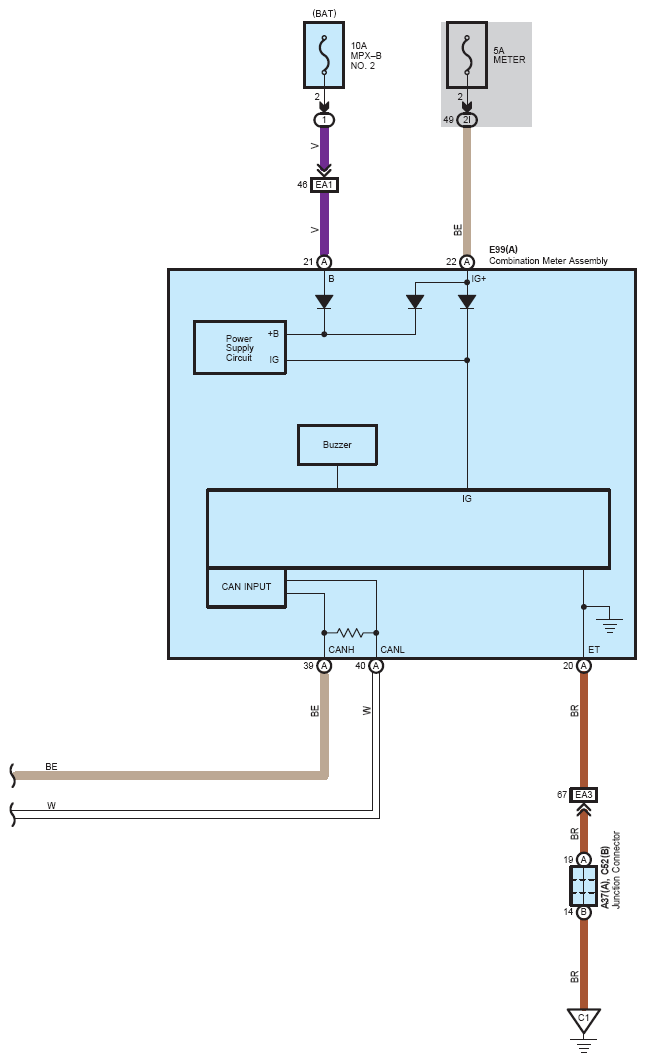

Fig 5: Automatic Light Control, Light Auto Turn Off System, Light Reminder (5 Of 5)
G12206332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
