System Diagrams

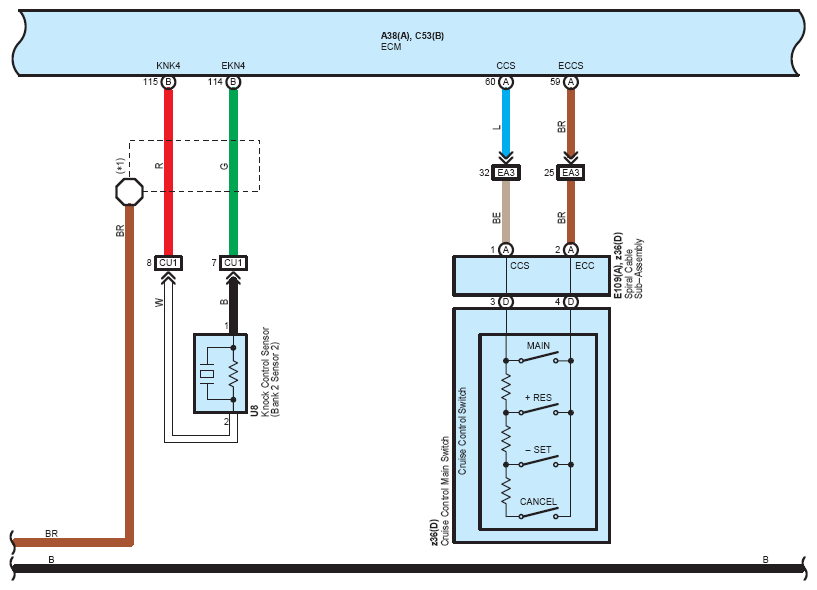

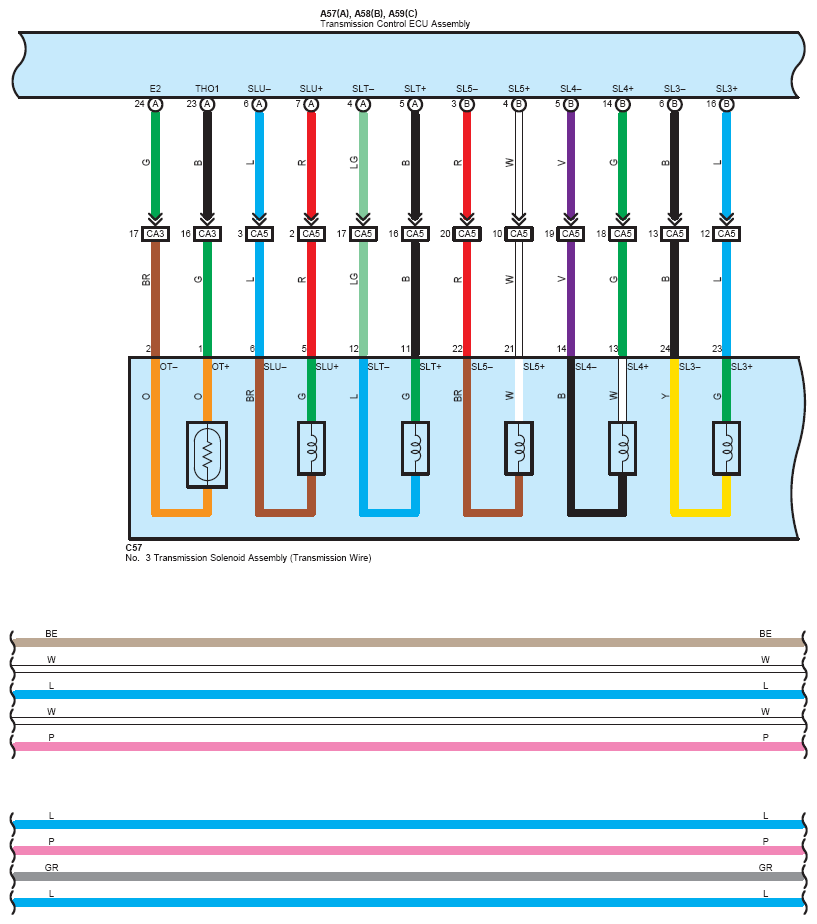

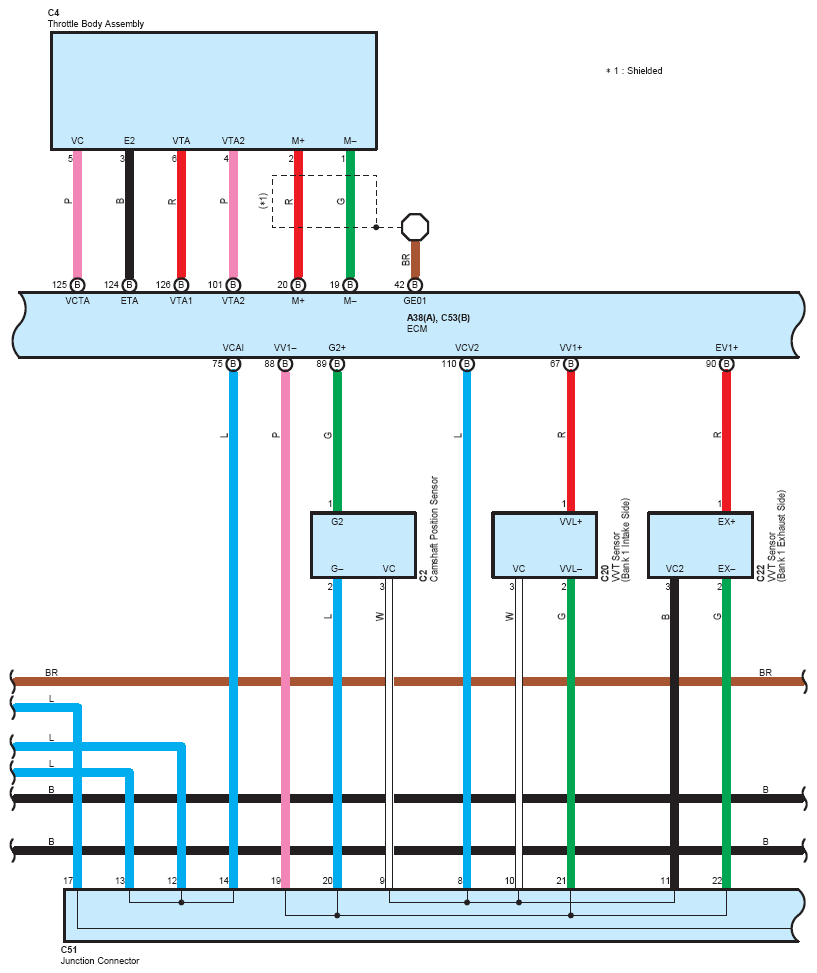

Fig 1: Cruise Control, Electronically Controlled Transmission And A/T Indicator, Engine Control (1 Of 25)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

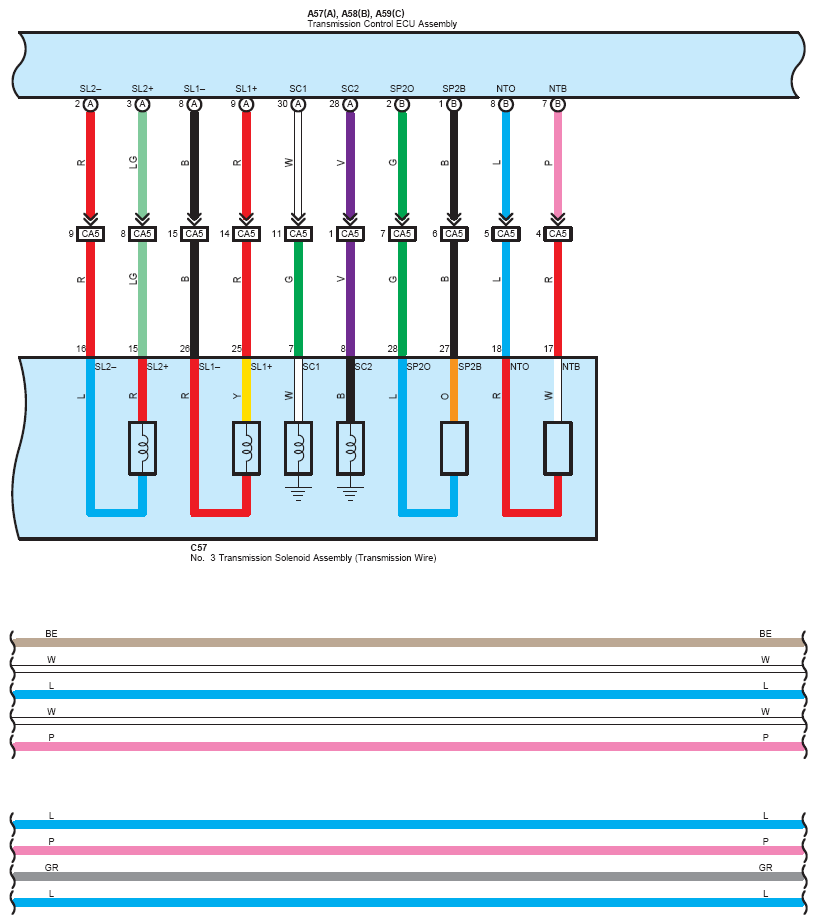

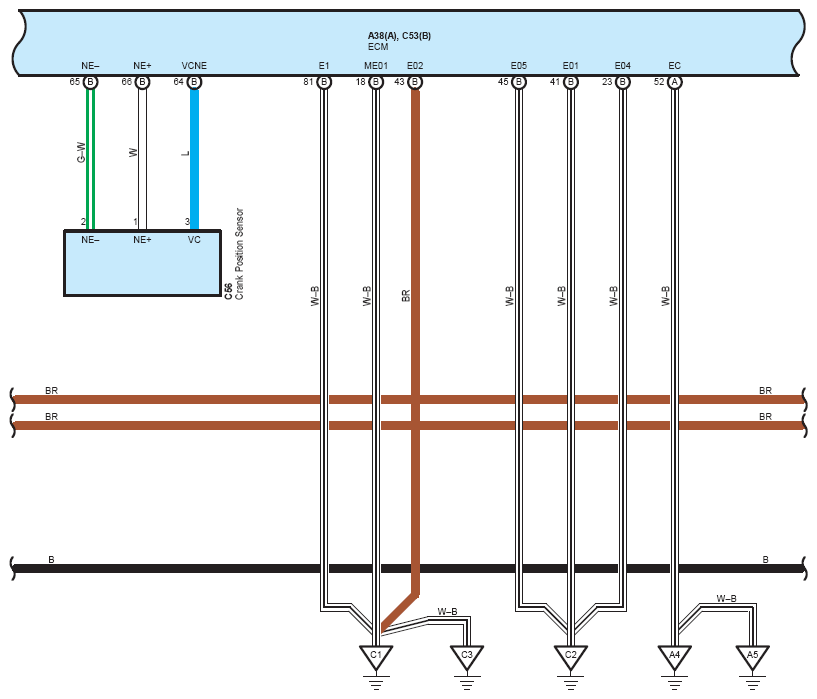

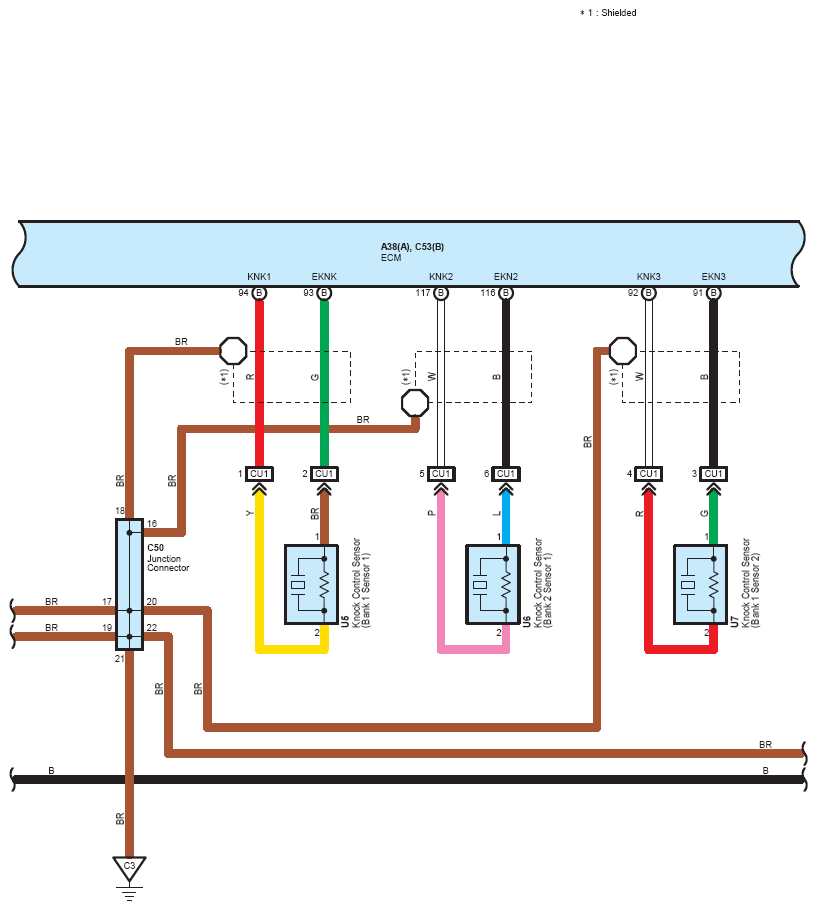

Fig 2: Cruise Control, Electronically Controlled Transmission And A/T Indicator, Engine Control (2 Of 25)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

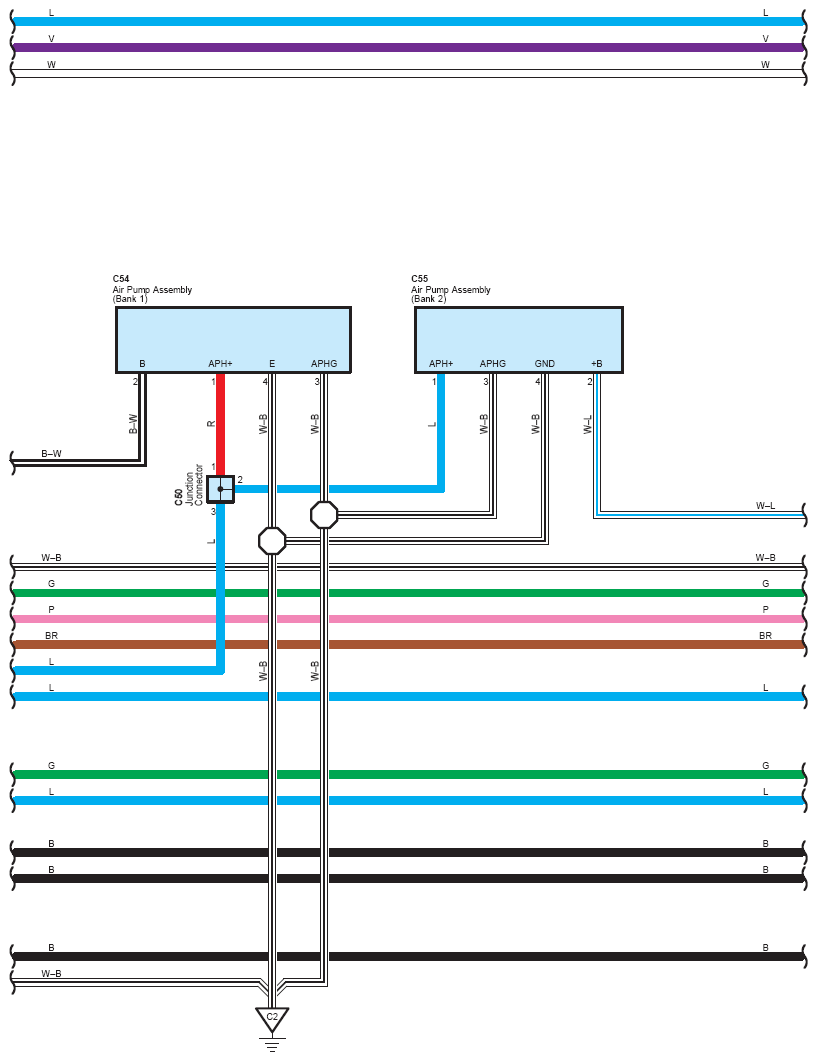

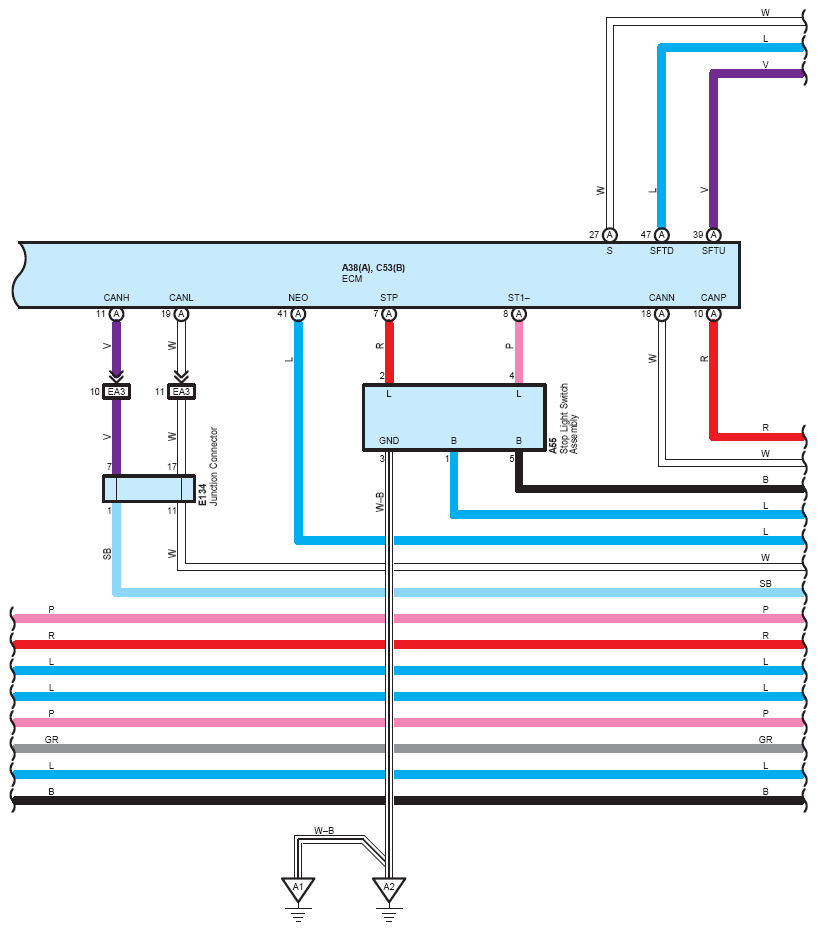

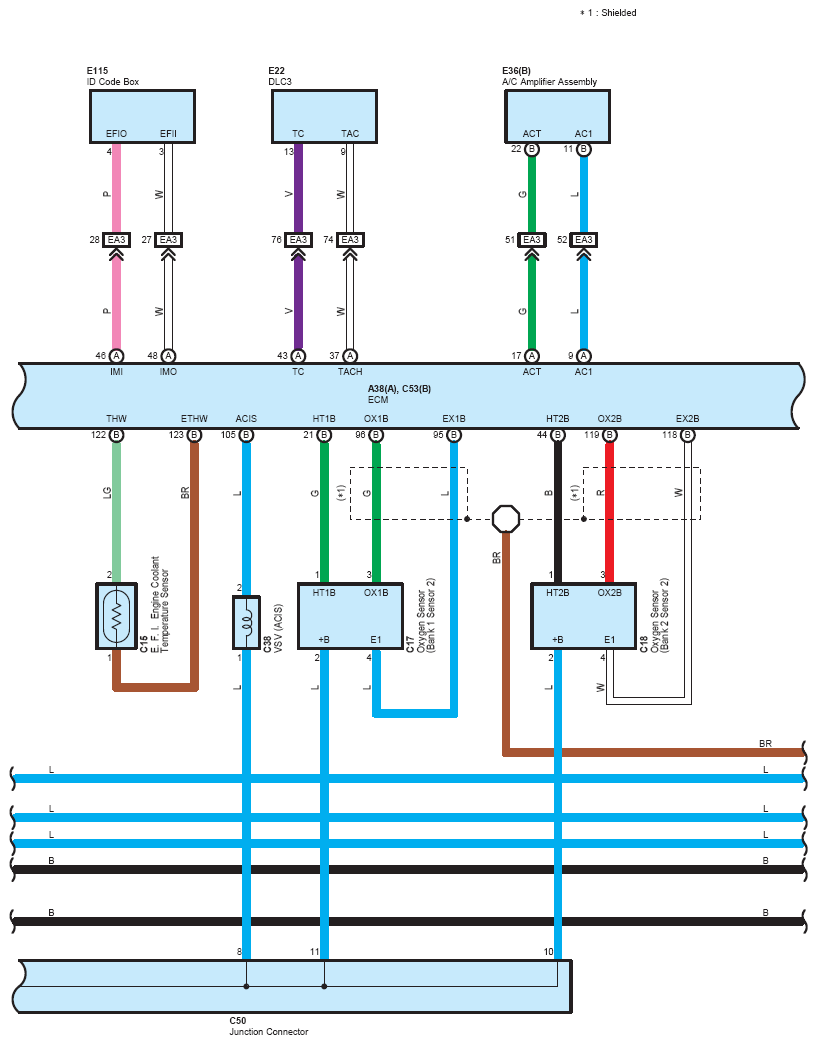

Fig 3: Cruise Control, Electronically Controlled Transmission And A/T Indicator, Engine Control (3 Of 25)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

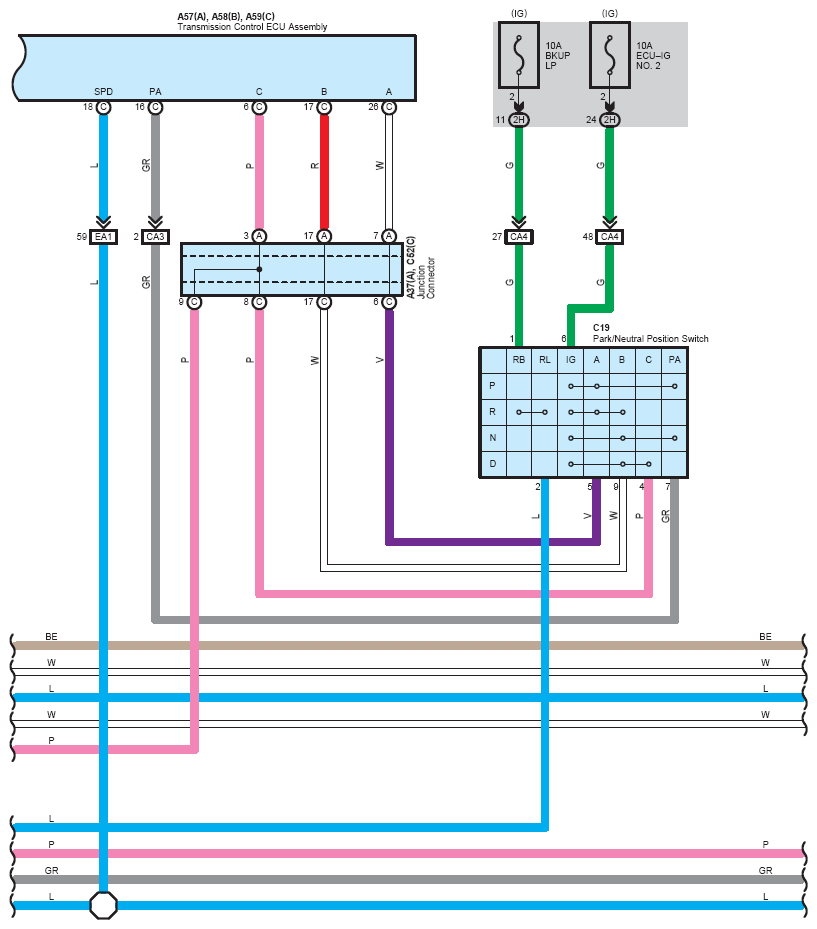

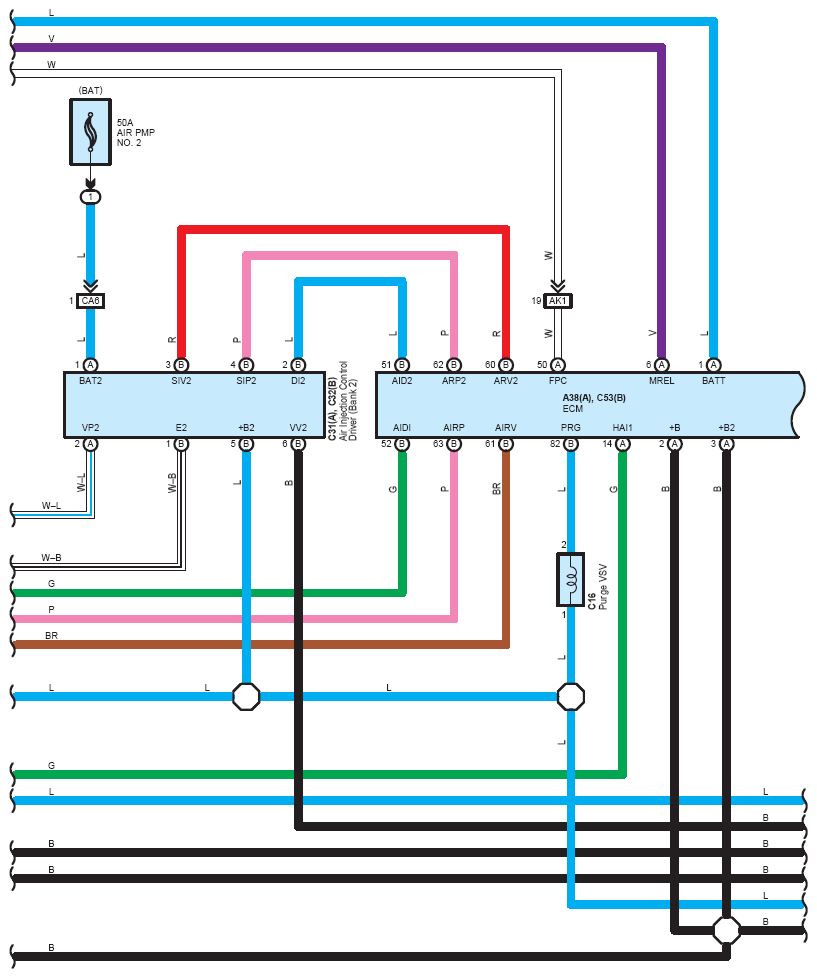

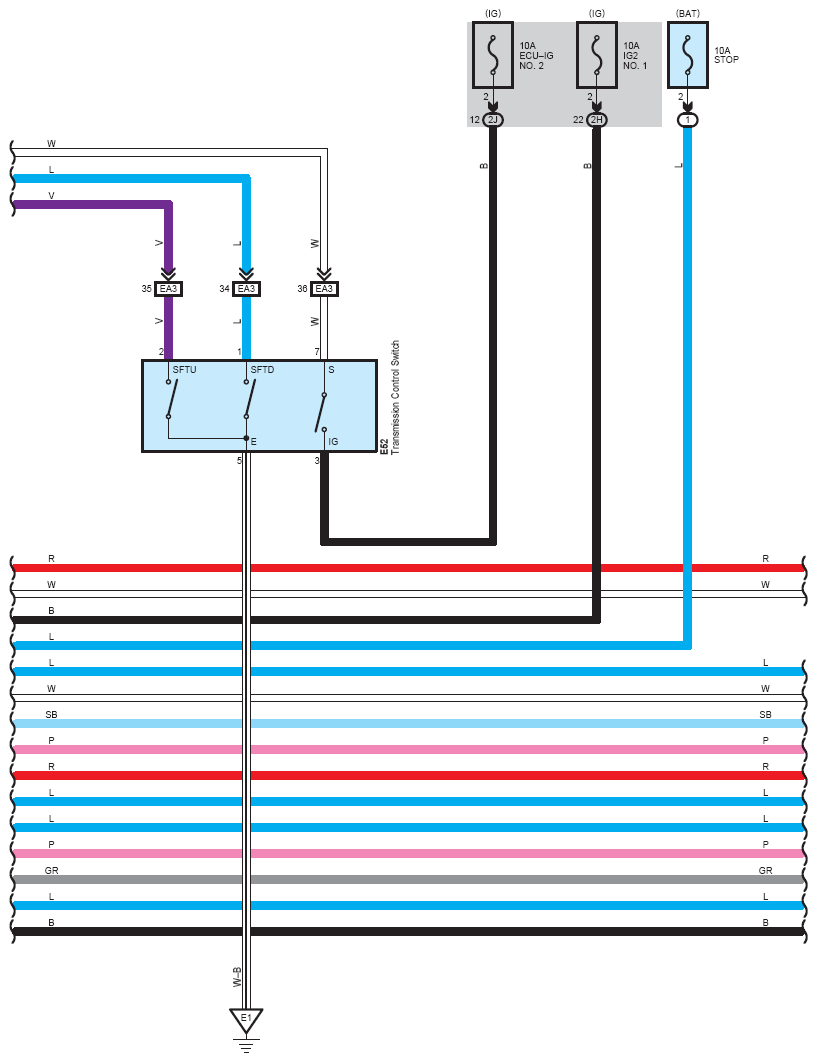

Fig 4: Cruise Control, Electronically Controlled Transmission And A/T Indicator, Engine Control (4 Of 25)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

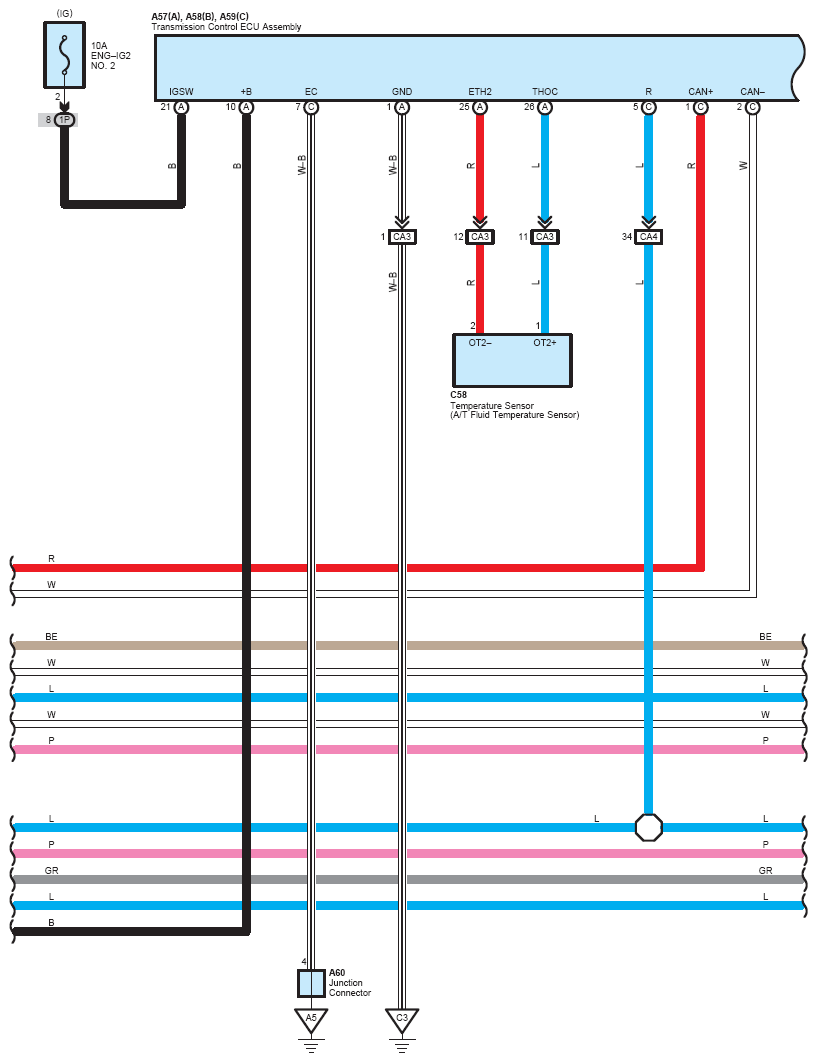

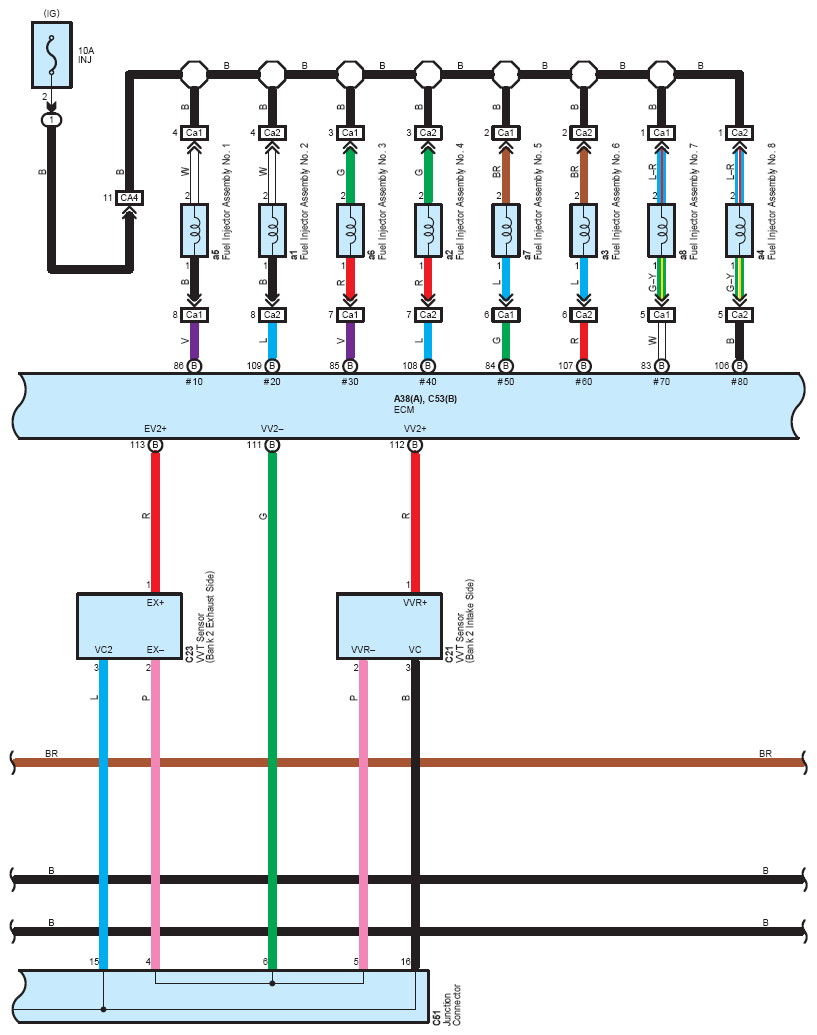

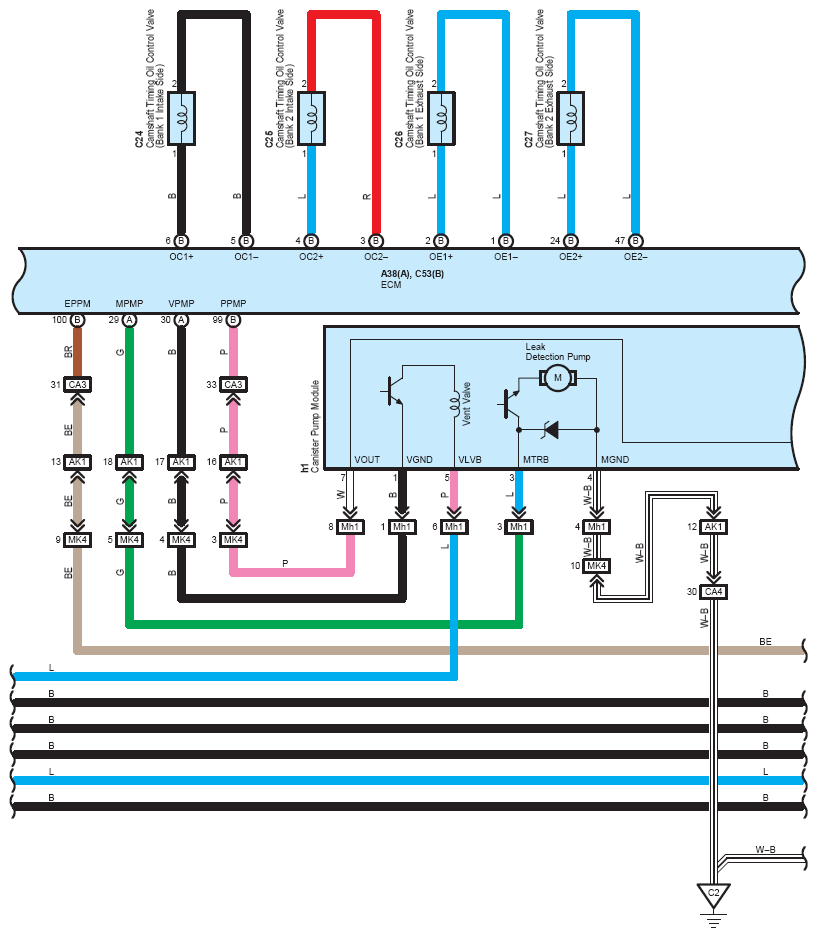

Fig 5: Cruise Control, Electronically Controlled Transmission And A/T Indicator, Engine Control (5 Of 25)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

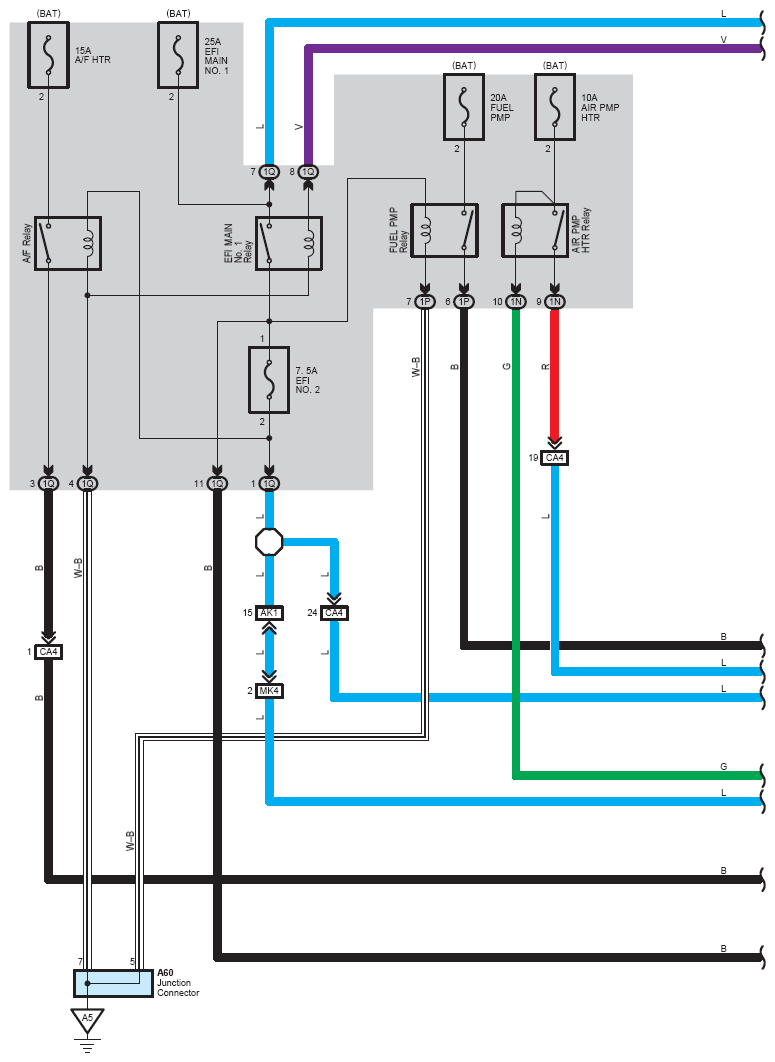

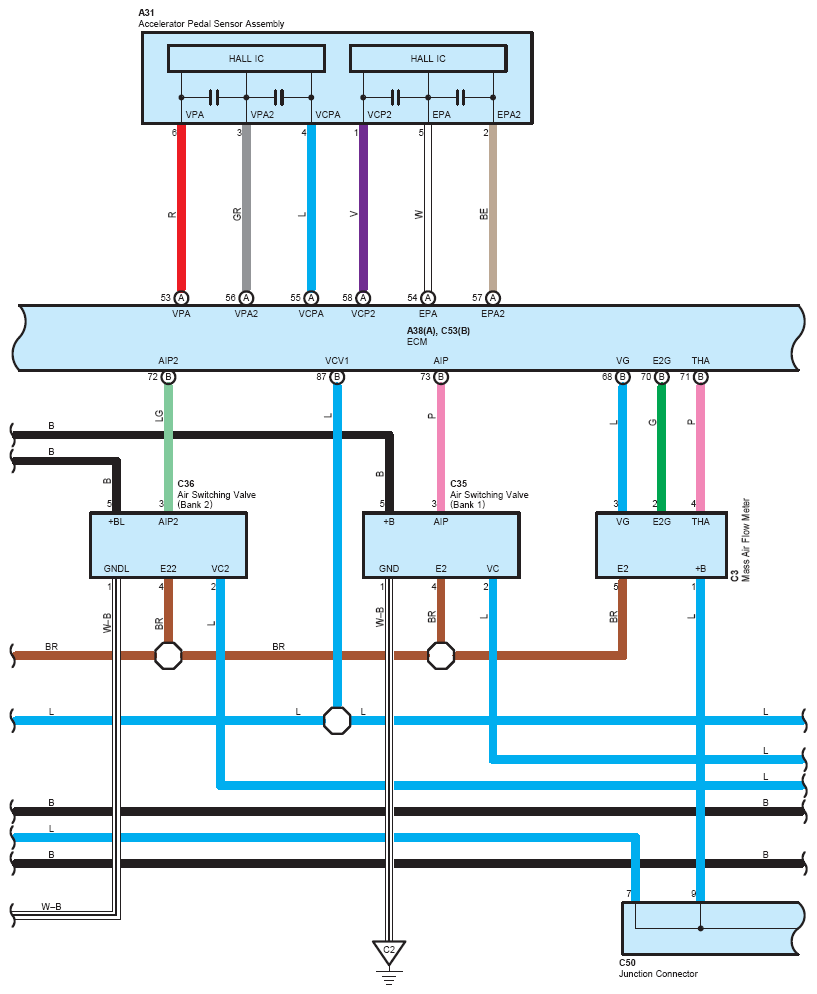

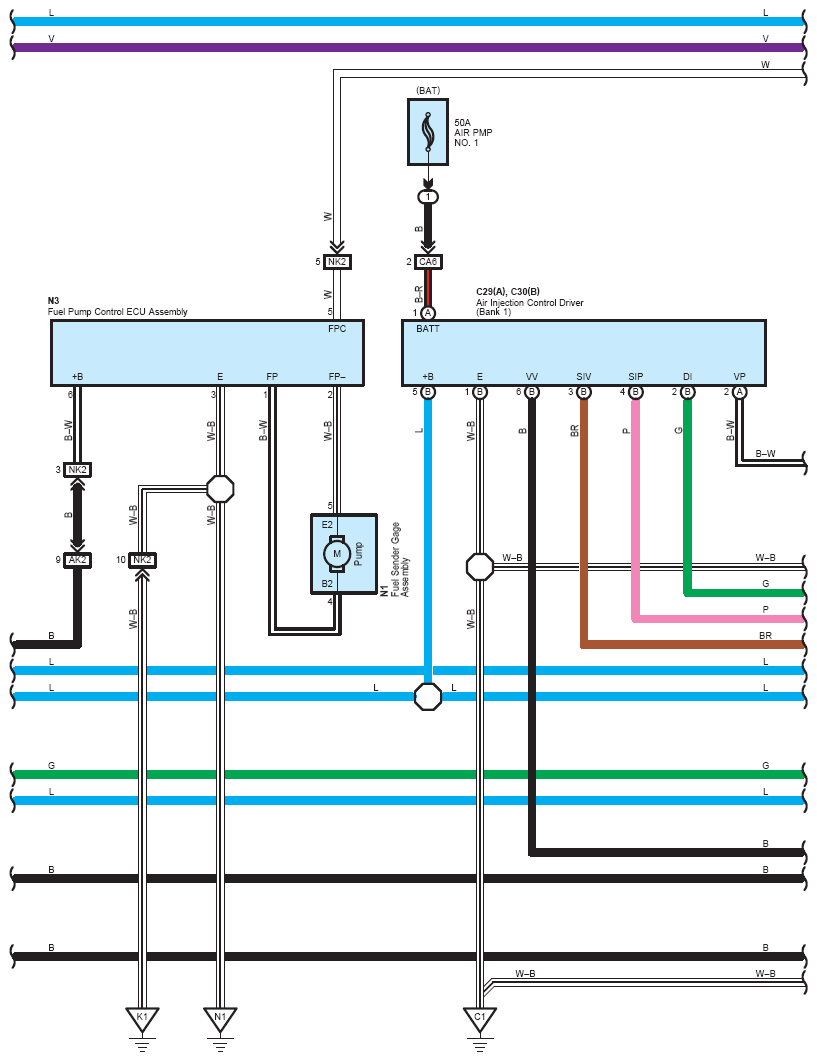

Fig 6: Cruise Control, Electronically Controlled Transmission And A/T Indicator, Engine Control (6 Of 25)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

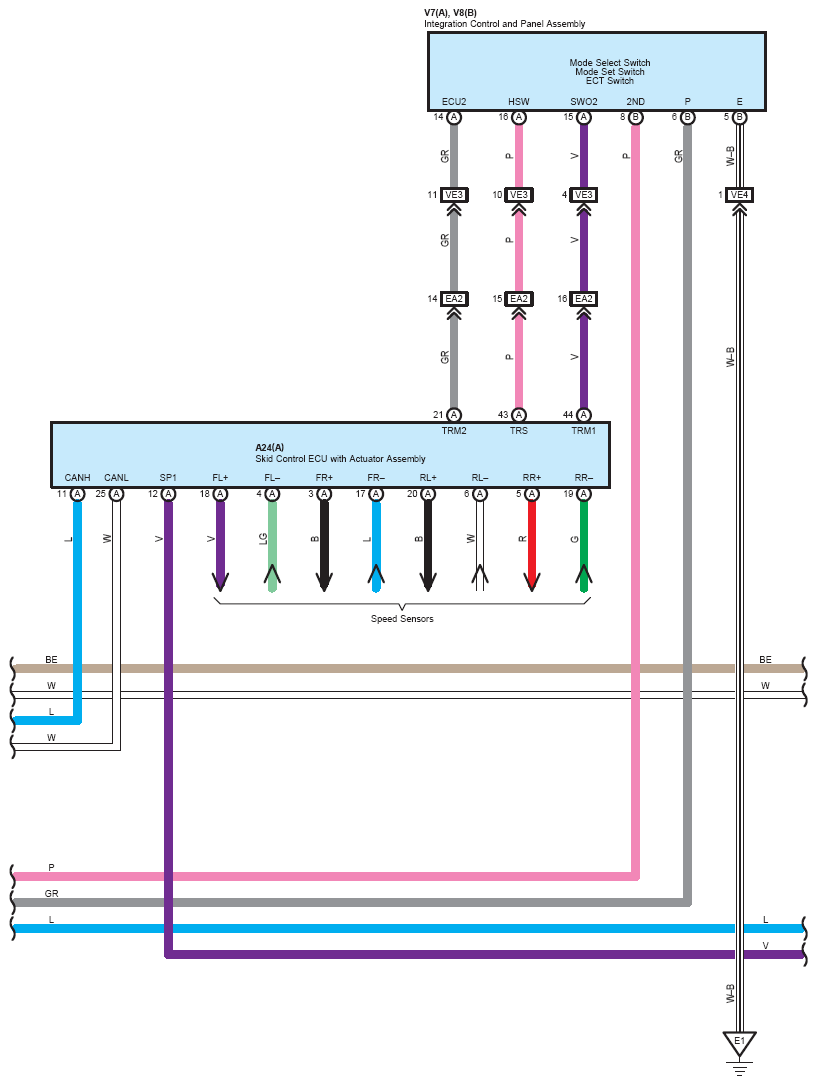

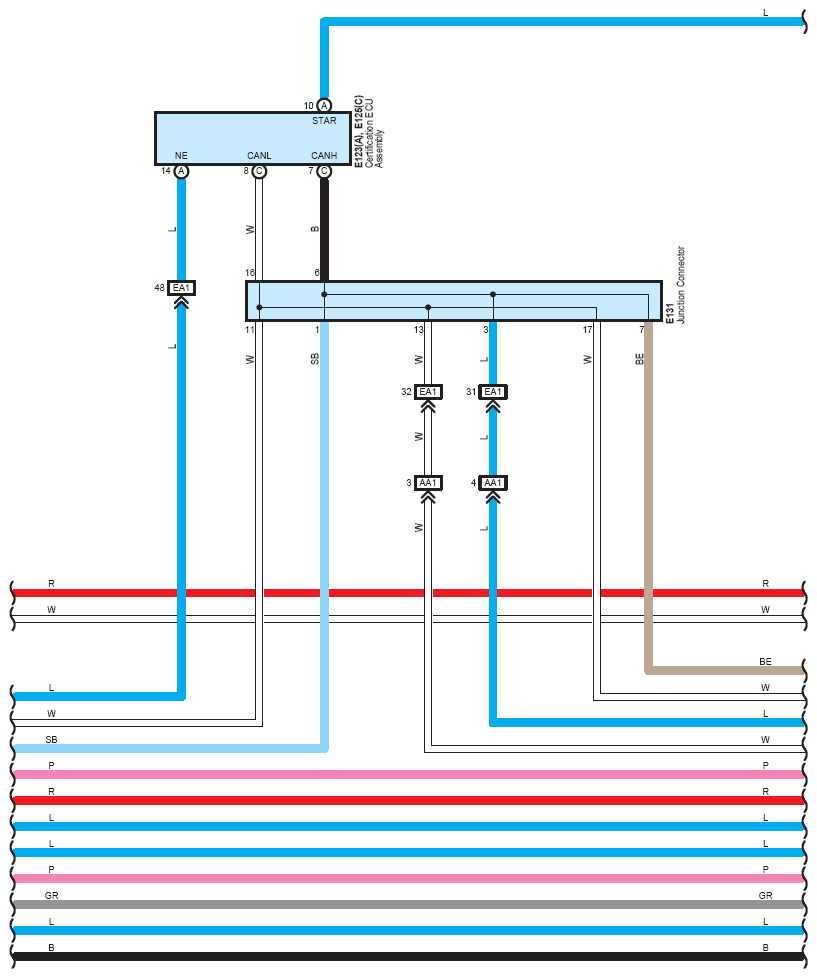

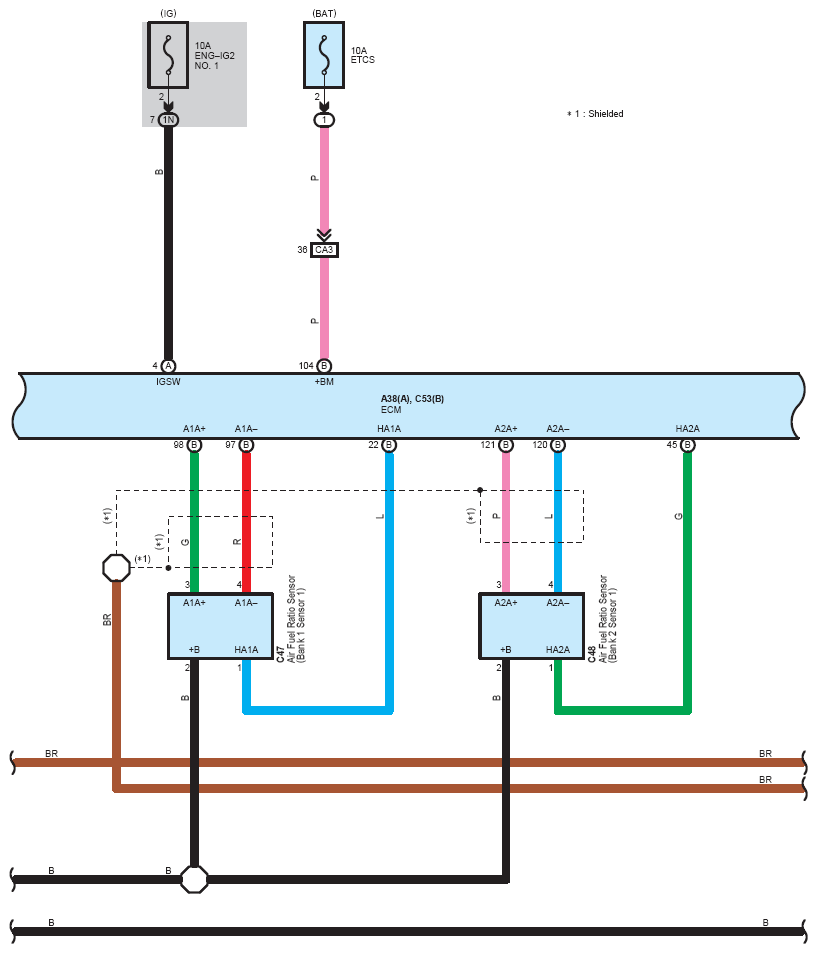

Fig 7: Cruise Control, Electronically Controlled Transmission And A/T Indicator, Engine Control (7 Of 25)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

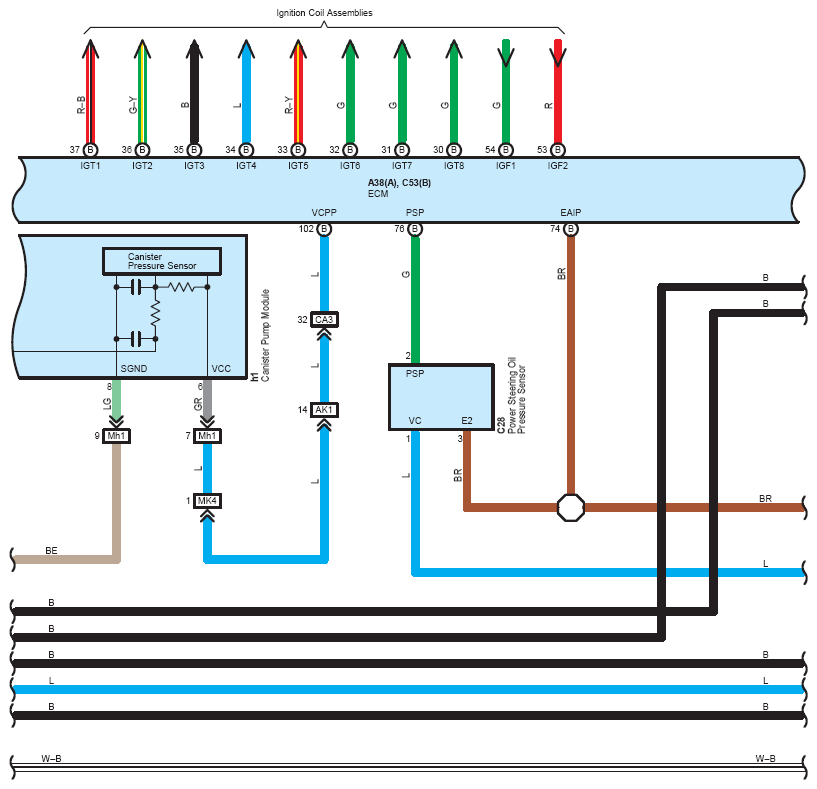

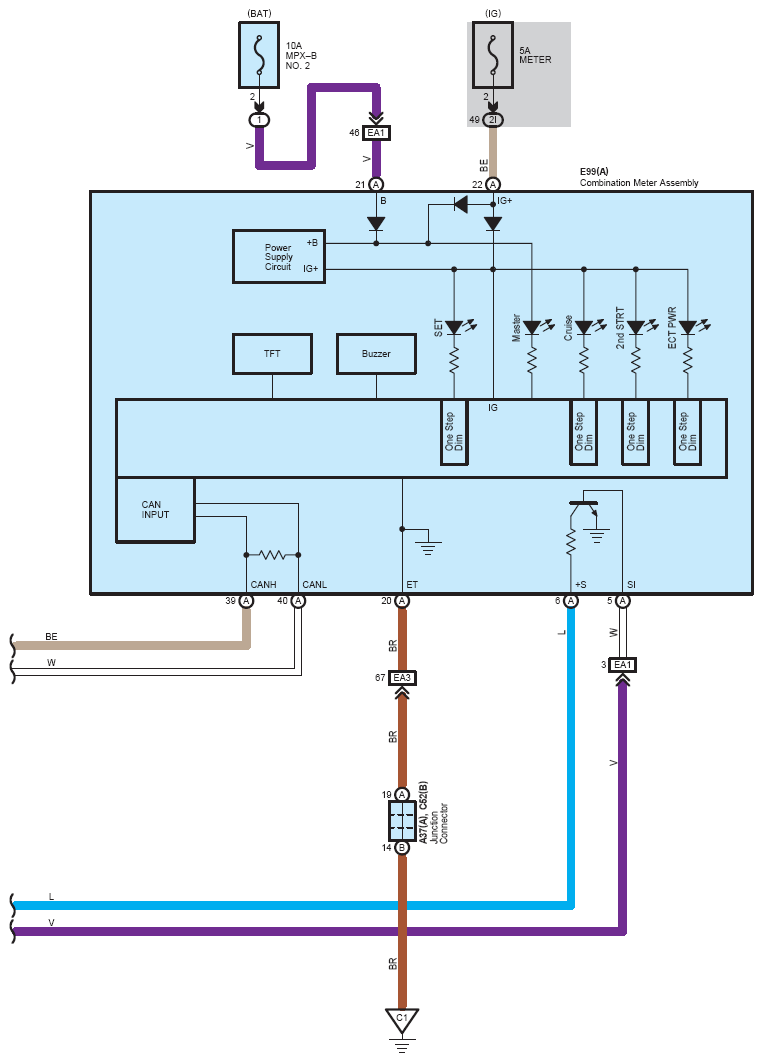

Fig 8: Cruise Control, Electronically Controlled Transmission And A/T Indicator, Engine Control (8 Of 25)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Cruise Control, Electronically Controlled Transmission And A/T Indicator, Engine Control (9 Of 25)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Cruise Control, Electronically Controlled Transmission And A/T Indicator, Engine Control (10 Of 25)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Cruise Control, Electronically Controlled Transmission And A/T Indicator, Engine Control (11 Of 25)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Cruise Control, Electronically Controlled Transmission And A/T Indicator, Engine Control (12 Of 25)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Cruise Control, Electronically Controlled Transmission And A/T Indicator, Engine Control (13 Of 25)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Cruise Control, Electronically Controlled Transmission And A/T Indicator, Engine Control (14 Of 25)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Cruise Control, Electronically Controlled Transmission And A/T Indicator, Engine Control (15 Of 25)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Cruise Control, Electronically Controlled Transmission And A/T Indicator, Engine Control (16 Of 25)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Cruise Control, Electronically Controlled Transmission And A/T Indicator, Engine Control (17 Of 25)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: Cruise Control, Electronically Controlled Transmission And A/T Indicator, Engine Control (18 Of 25)

Fig 19: Cruise Control, Electronically Controlled Transmission And A/T Indicator, Engine Control (19 Of 25)

Fig 20: Cruise Control, Electronically Controlled Transmission And A/T Indicator, Engine Control (20 Of 25)

Fig 21: Cruise Control, Electronically Controlled Transmission And A/T Indicator, Engine Control (21 Of 25)

Fig 22: Cruise Control, Electronically Controlled Transmission And A/T Indicator, Engine Control (22 Of 25)

Fig 23: Cruise Control, Electronically Controlled Transmission And A/T Indicator, Engine Control (23 Of 25)

Fig 24: Cruise Control, Electronically Controlled Transmission And A/T Indicator, Engine Control (24 Of 25)

Fig 25: Cruise Control, Electronically Controlled Transmission And A/T Indicator, Engine Control (25 Of 25)
