System Diagrams

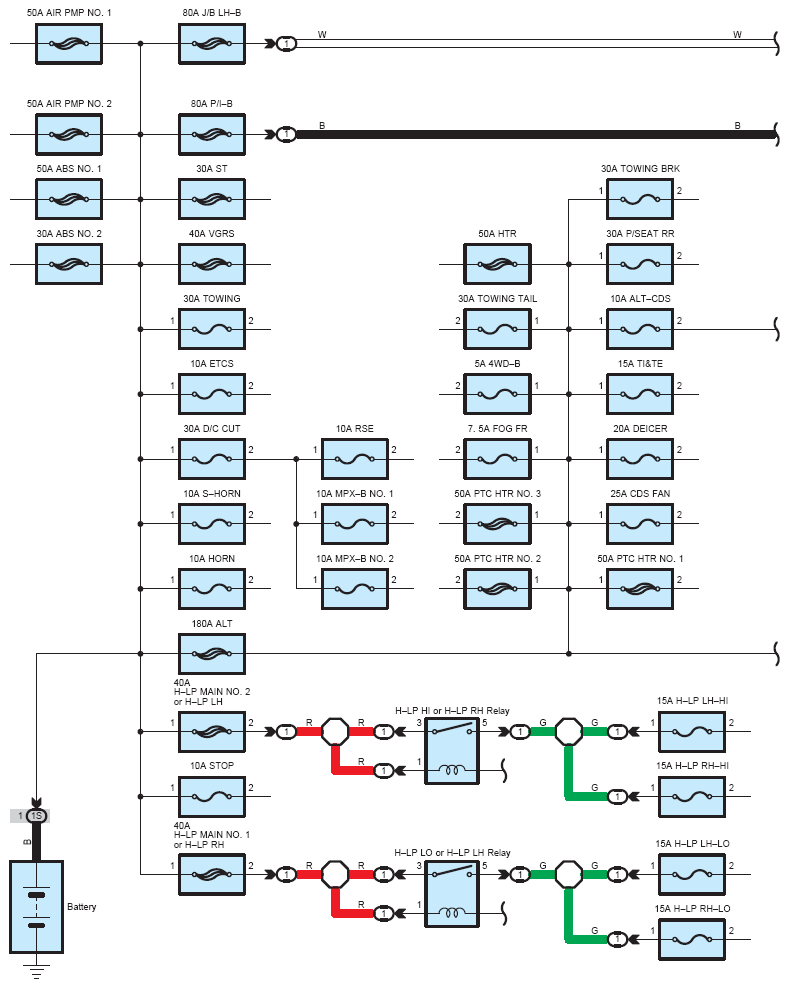

Fig 1: Power Source (1 Of 5)
G12206646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

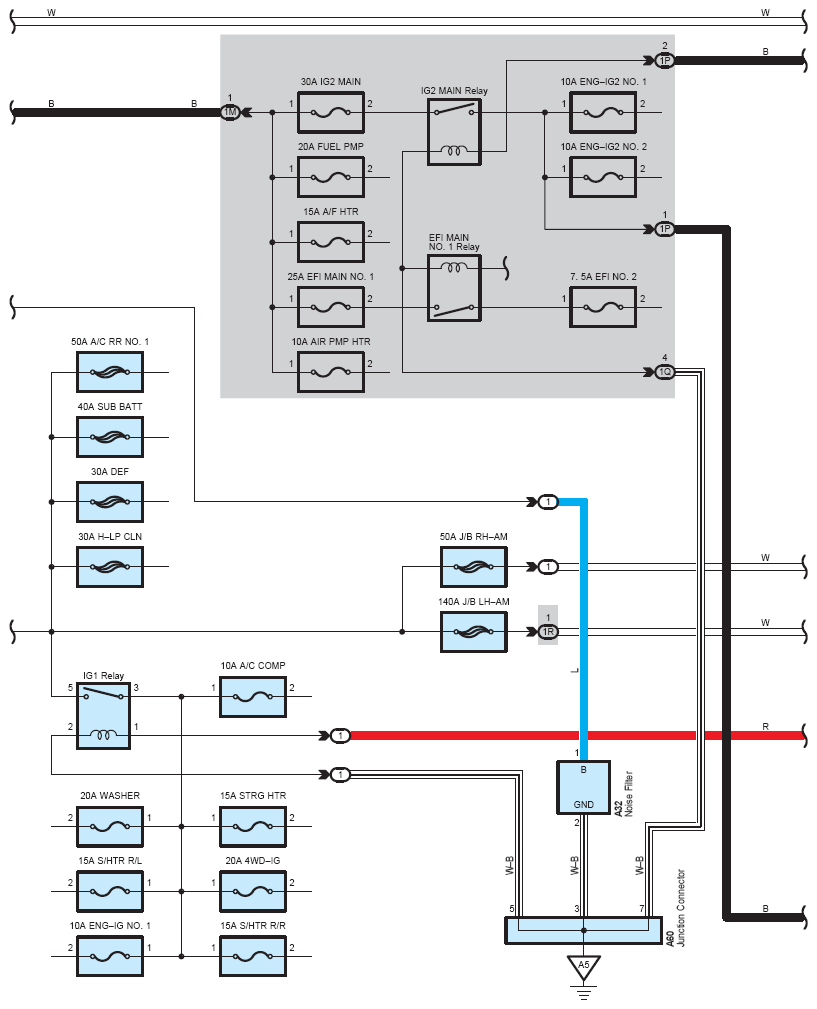

Fig 2: Power Source (2 Of 5)
G12206647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

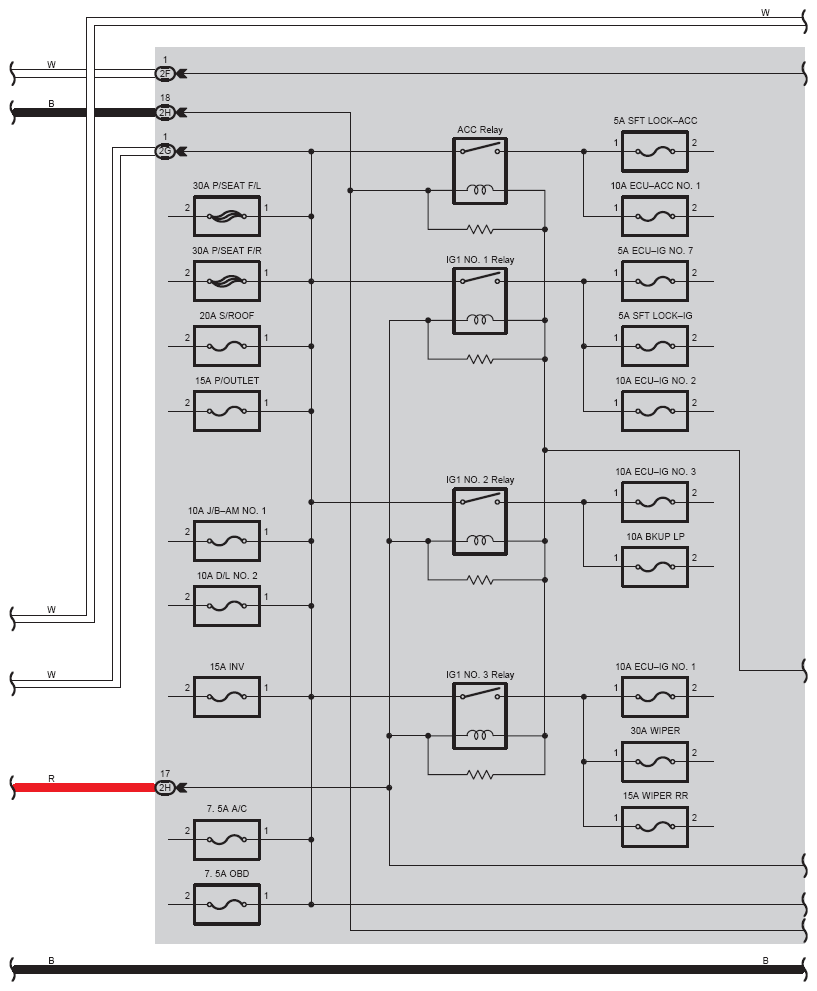

Fig 3: Power Source (3 Of 5)
G12206648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

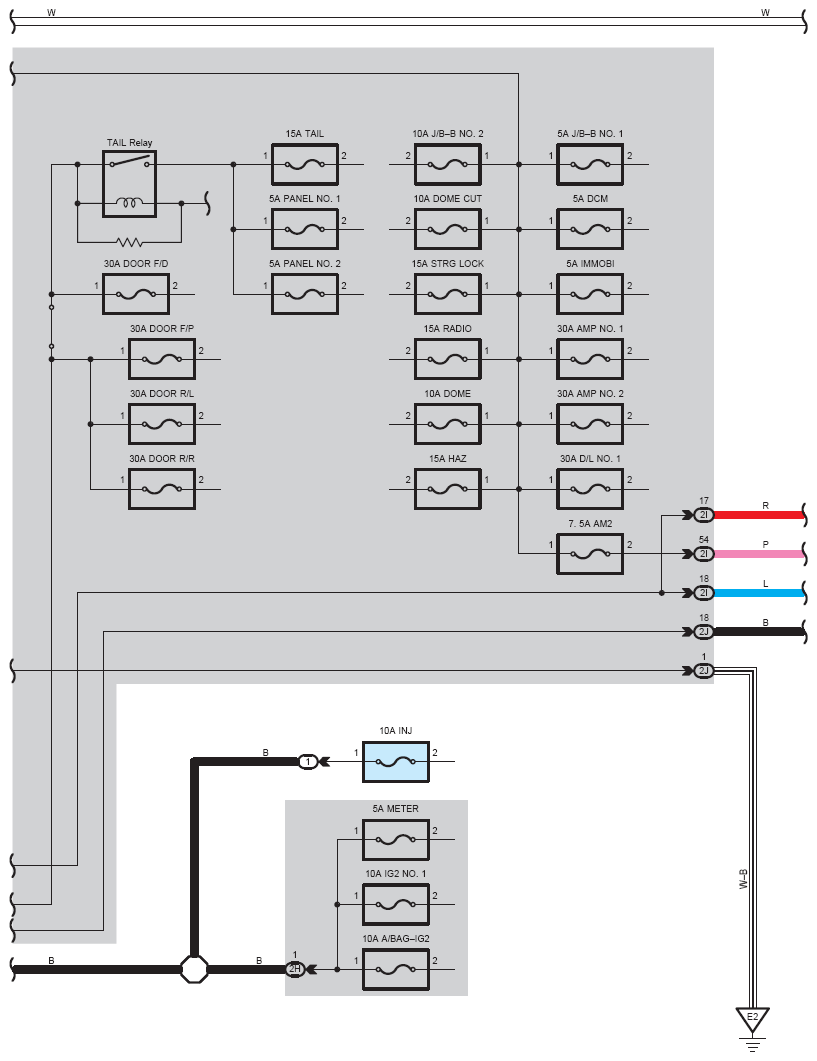

Fig 4: Power Source (4 Of 5)
G12206649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

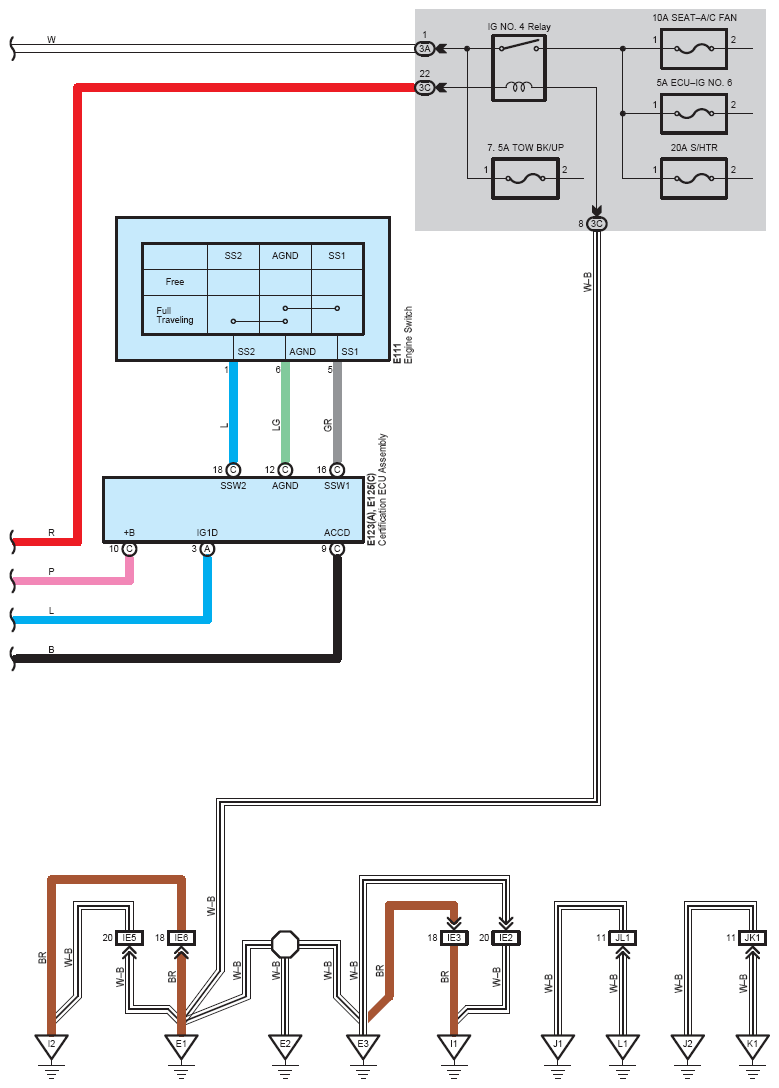

Fig 5: Power Source (5 Of 5)
G12206650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
