Prius C Two
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM System Circuits
>>
EPS
>>
System Diagrams
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagrams

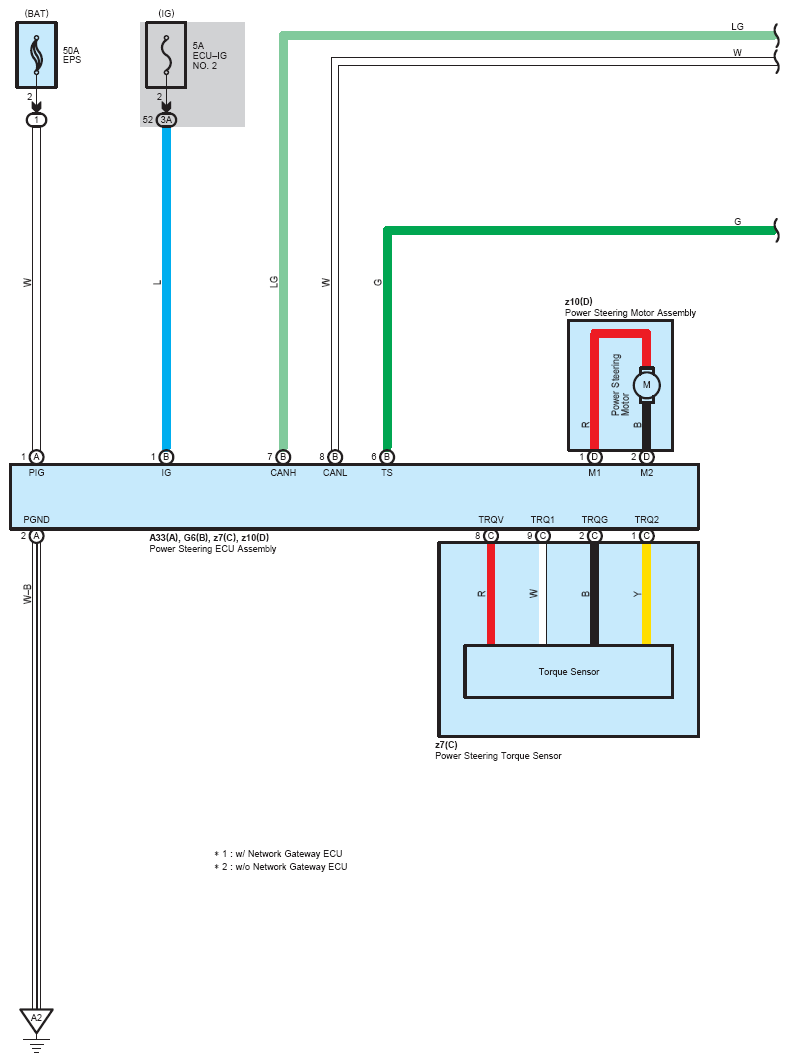

Fig 1: EPS (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

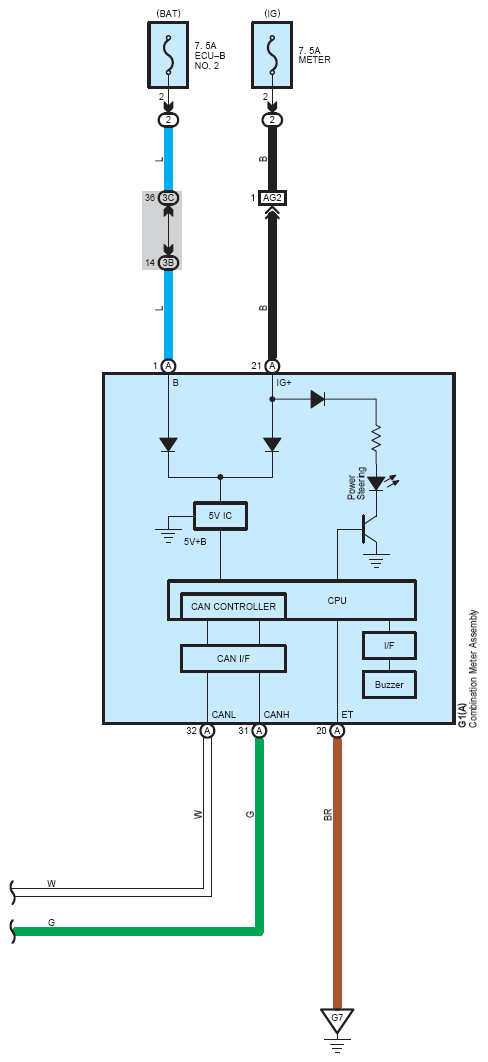

Fig 2: EPS (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

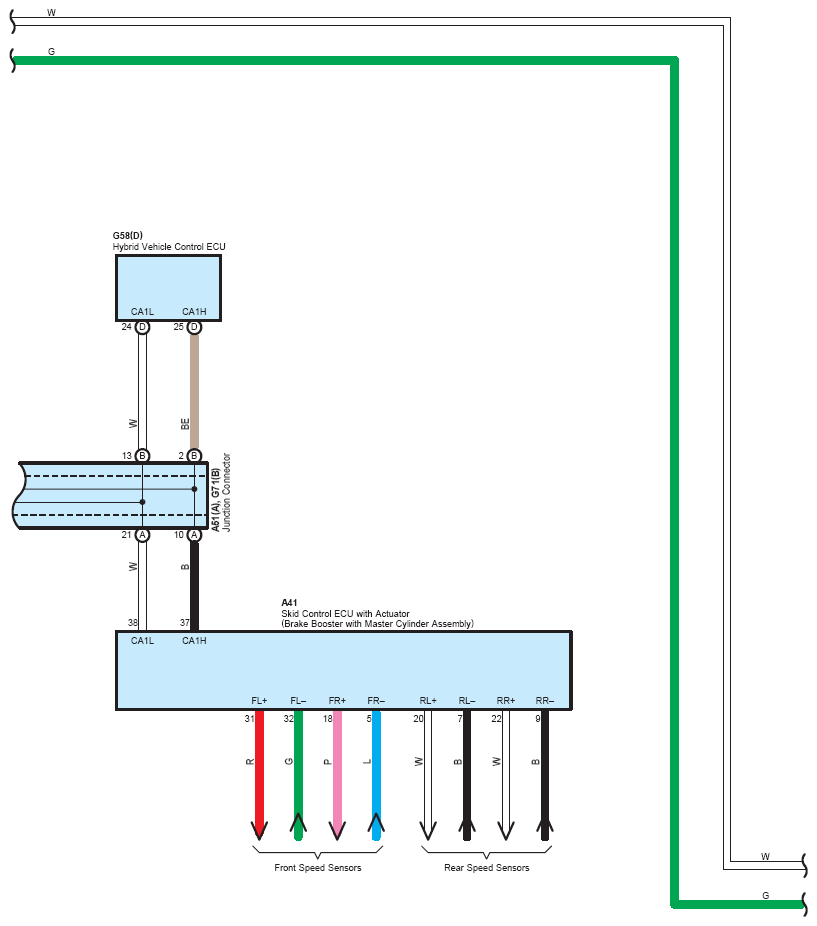

Fig 3: EPS (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

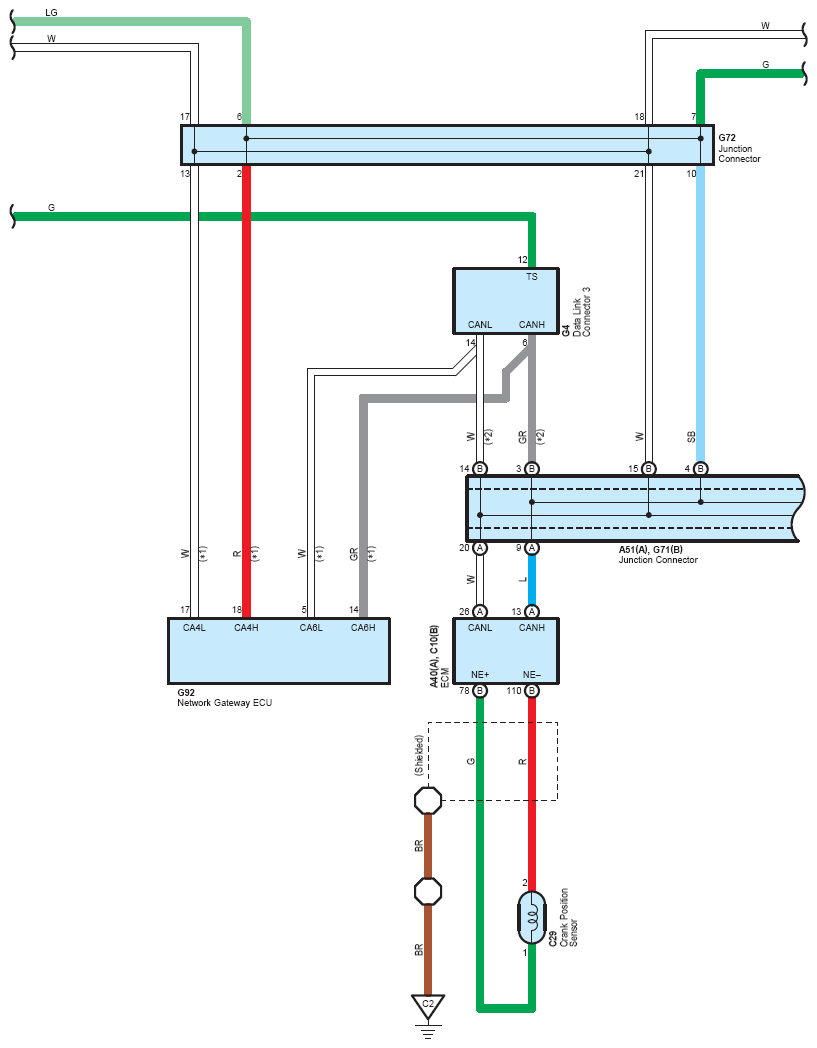

Fig 4: EPS (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
