System Diagrams

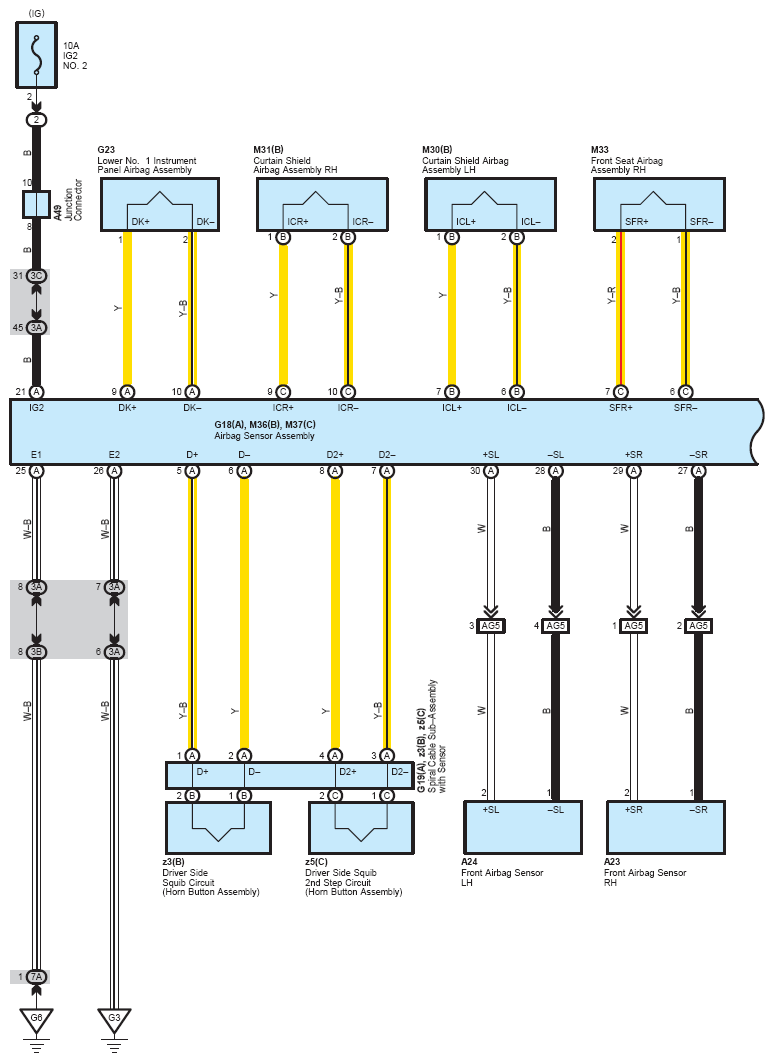

Fig 1: SRS (1 Of 6)
G12211425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

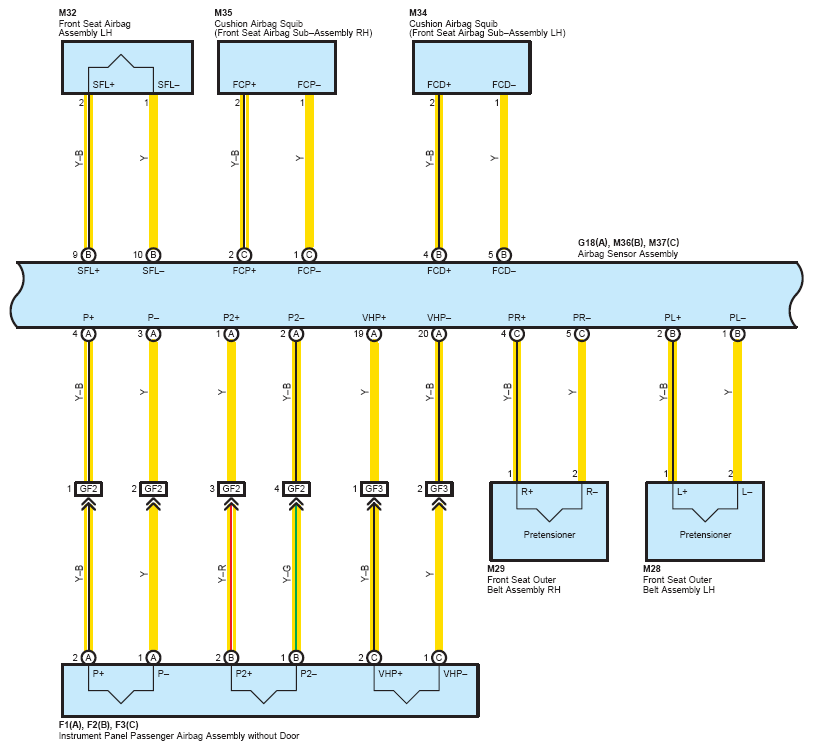

Fig 2: SRS (2 Of 6)
G12211426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

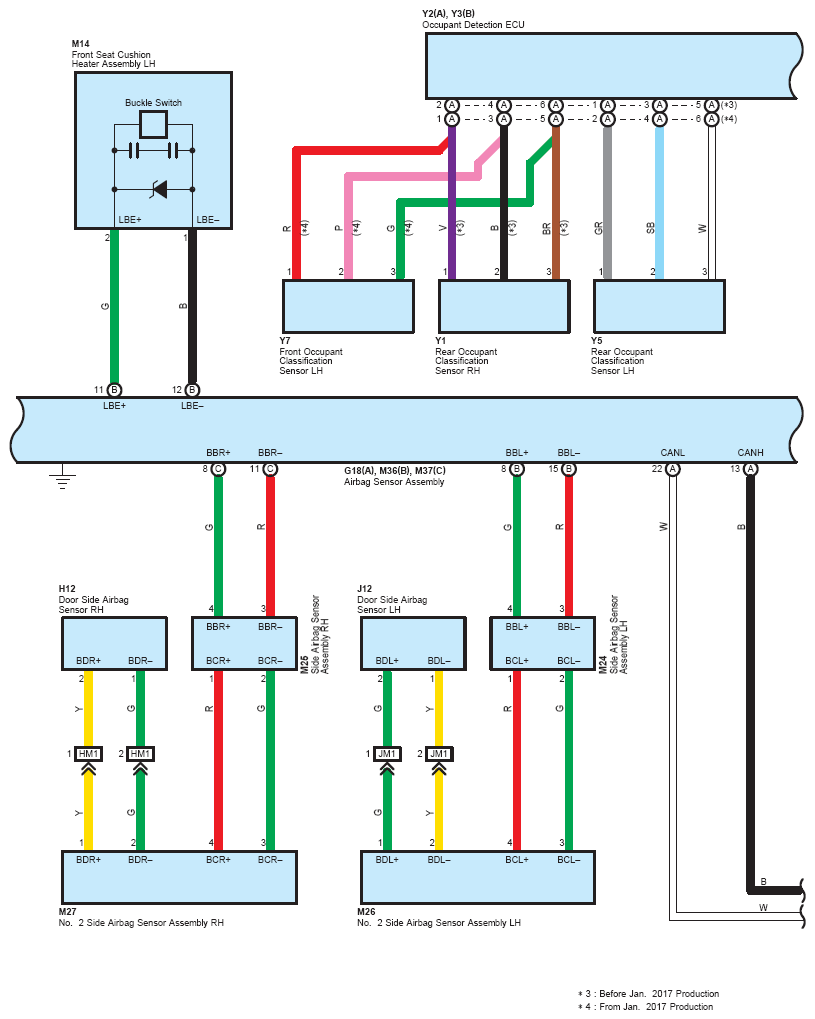

Fig 3: SRS (3 Of 6)
G12211427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

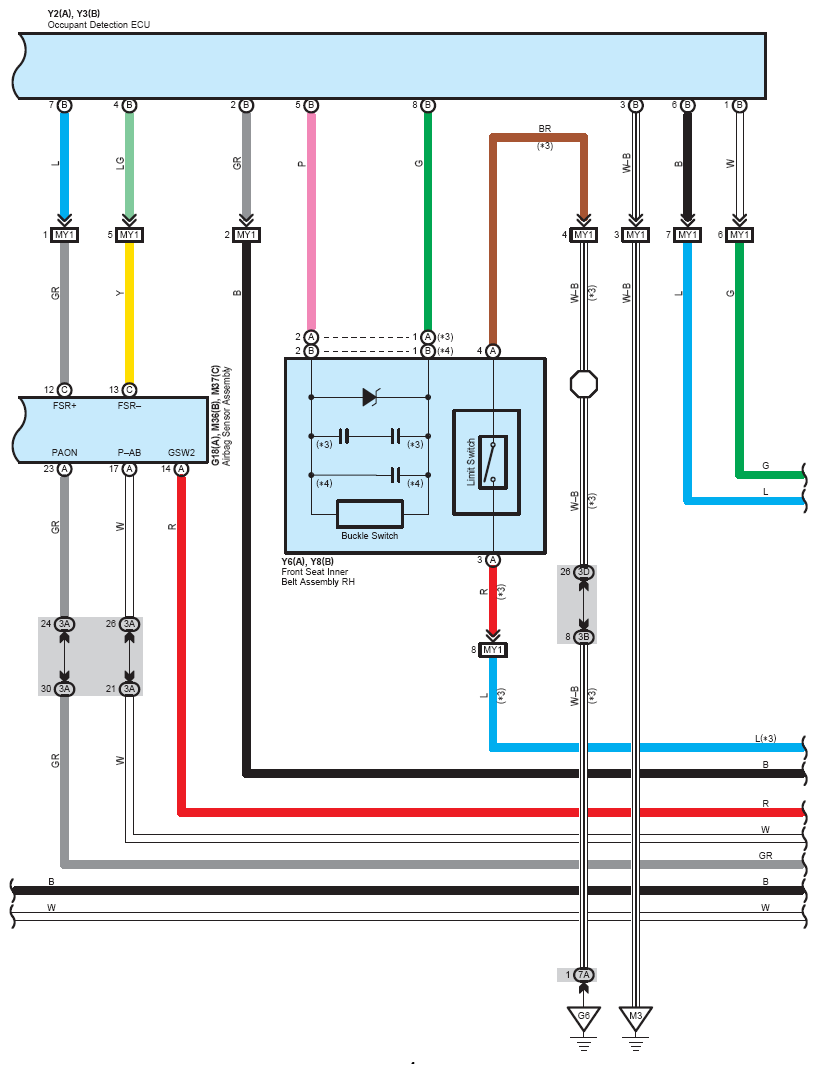

Fig 4: SRS (4 Of 6)
G12211428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

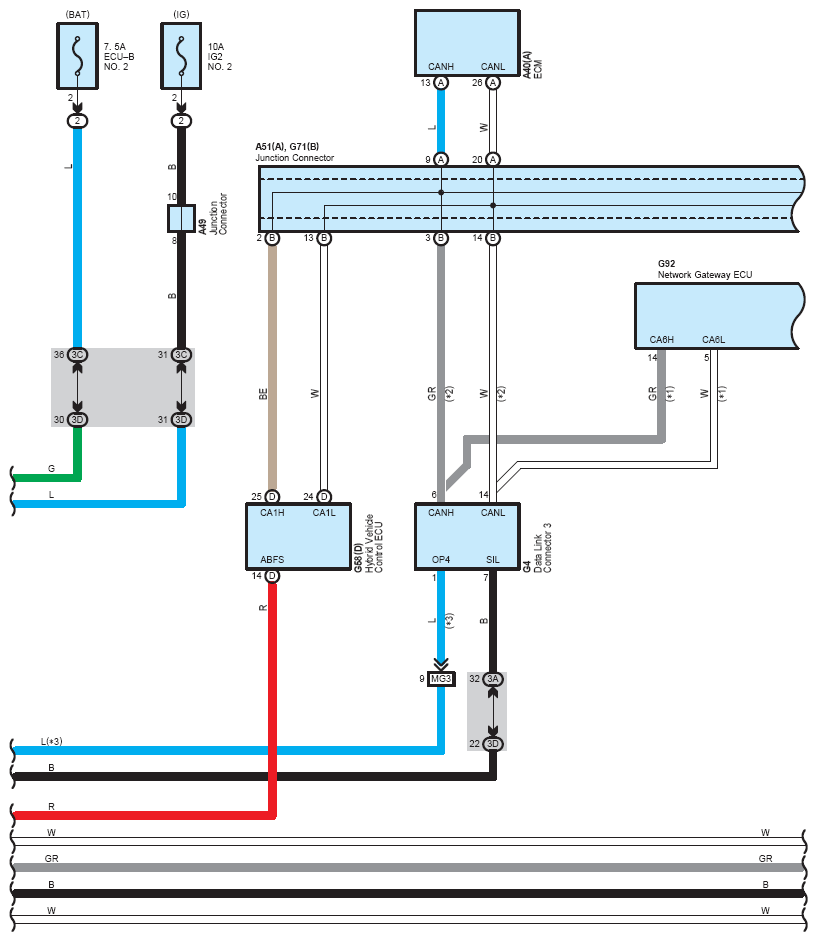

Fig 5: SRS (5 Of 6)
G12211429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

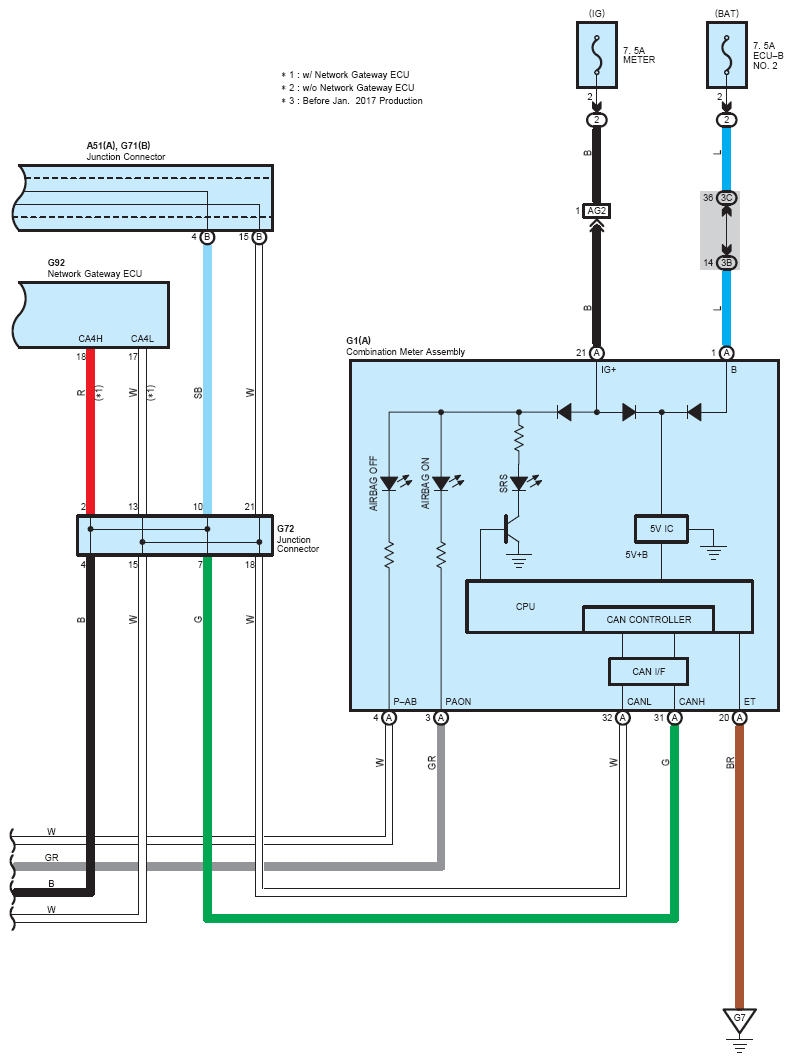

Fig 6: SRS (6 Of 6)
G12211430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
