Ground Point: Connectors

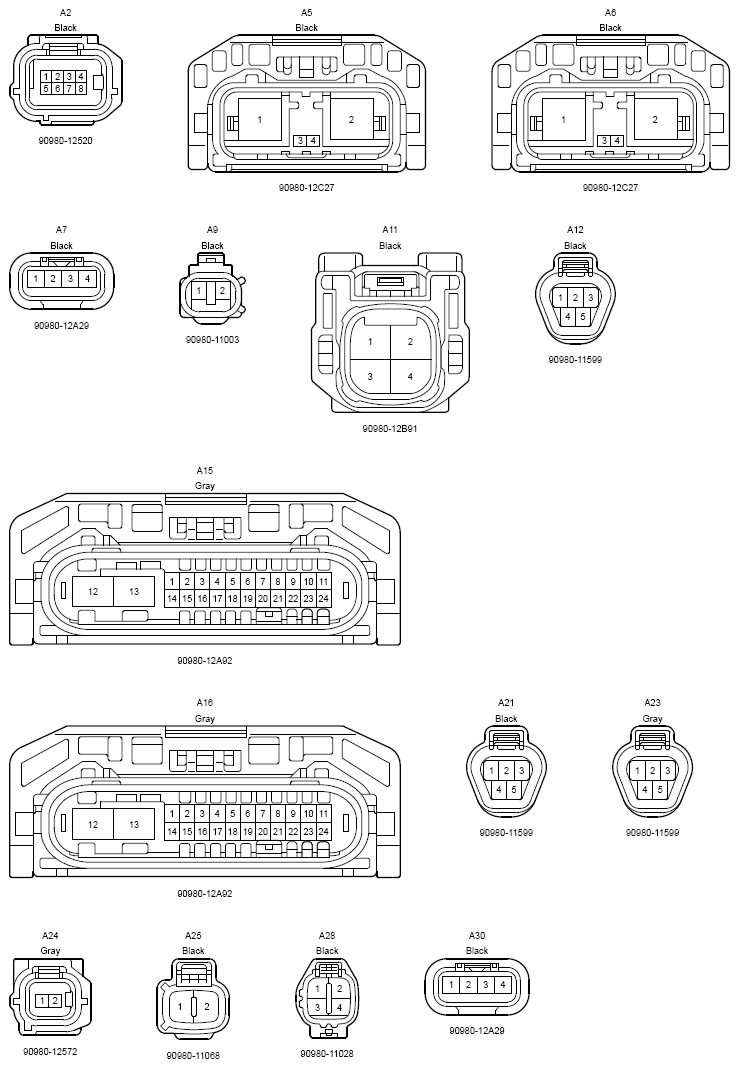

Fig 1: Connectors (1 Of 14)

G12210450

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

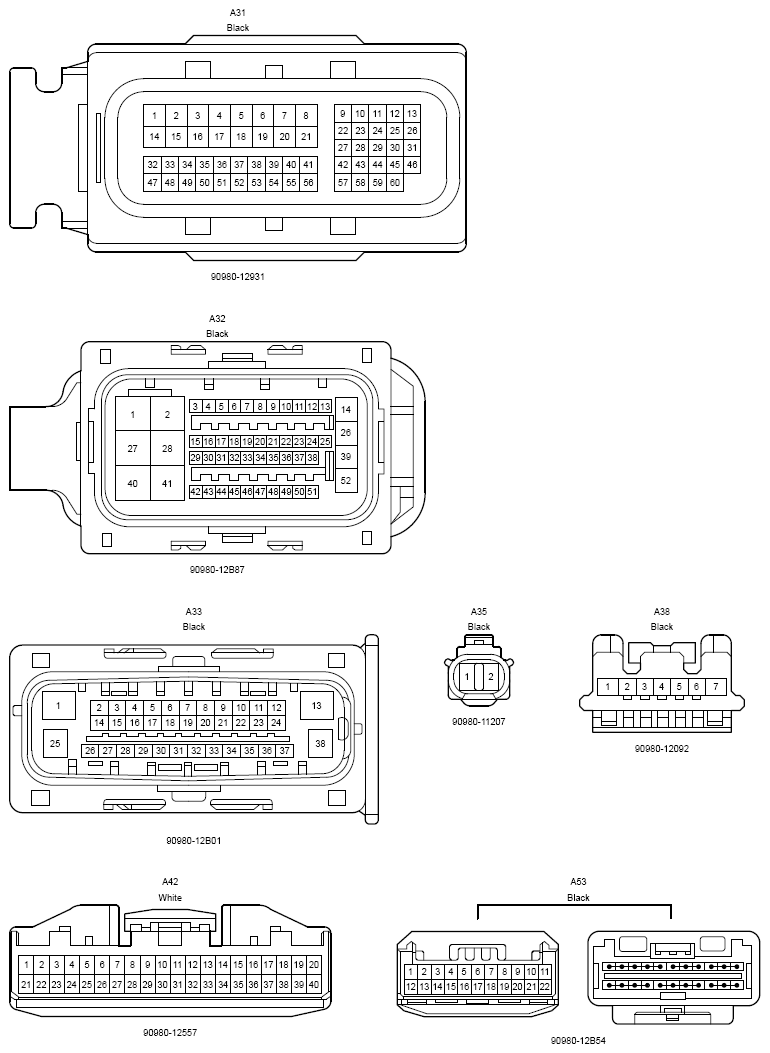

Fig 2: Connectors (2 Of 14)

G12210451

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

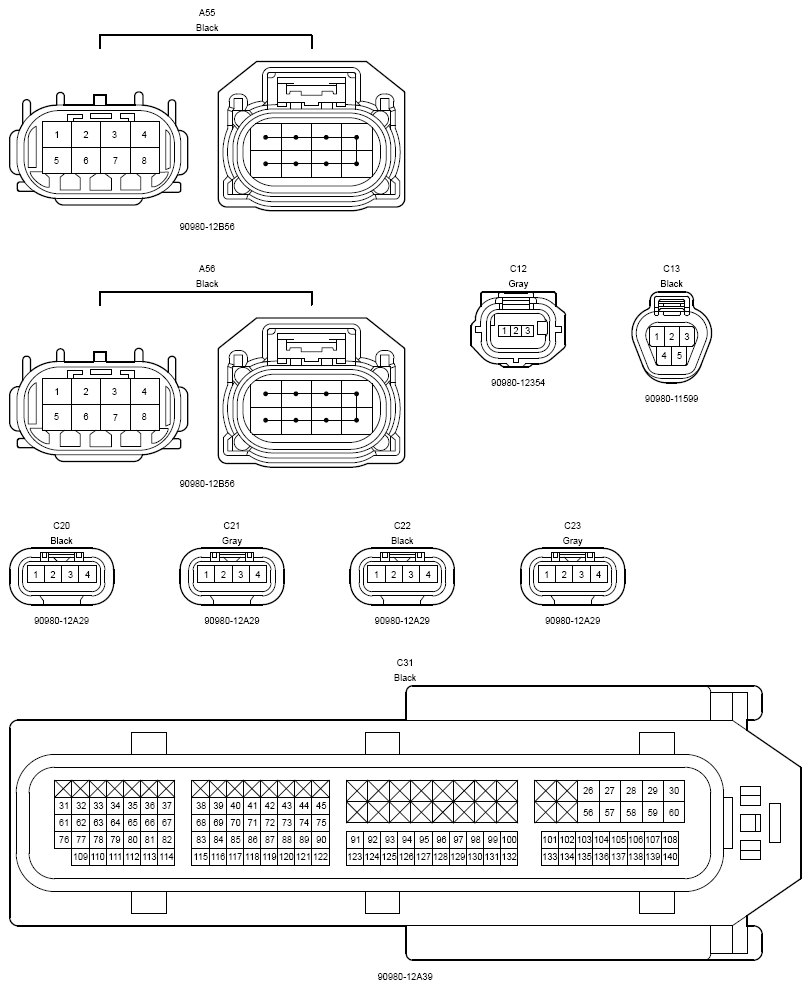

Fig 3: Connectors (3 Of 14)

G12210452

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

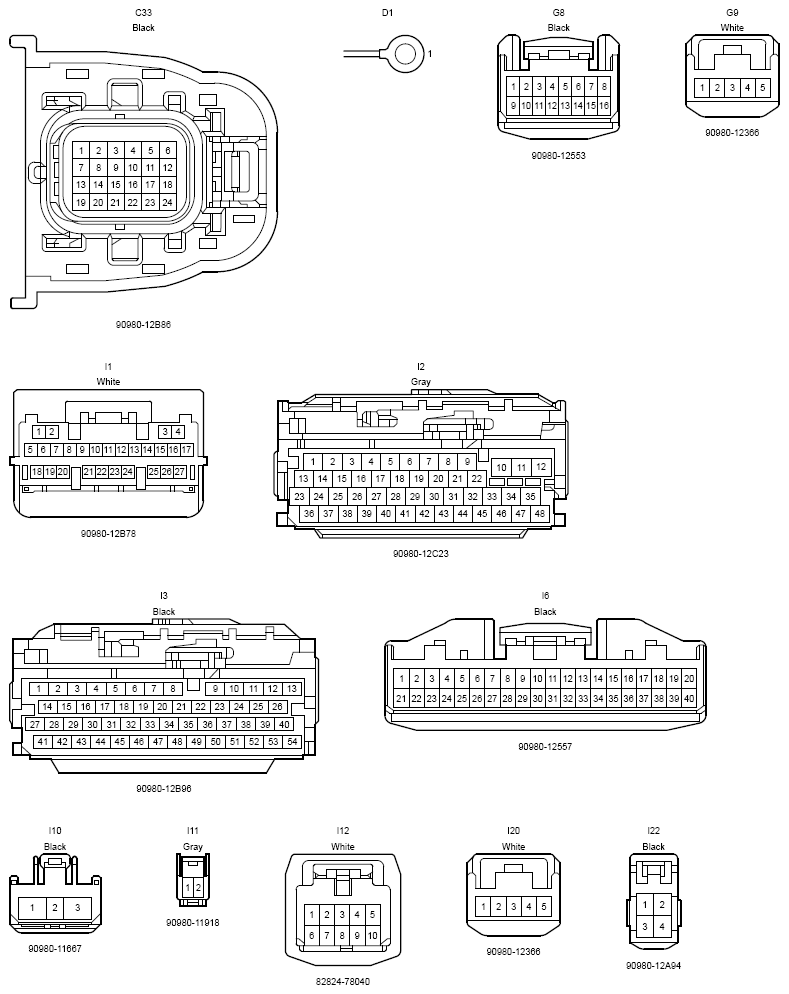

Fig 4: Connectors (4 Of 14)

G12210453

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

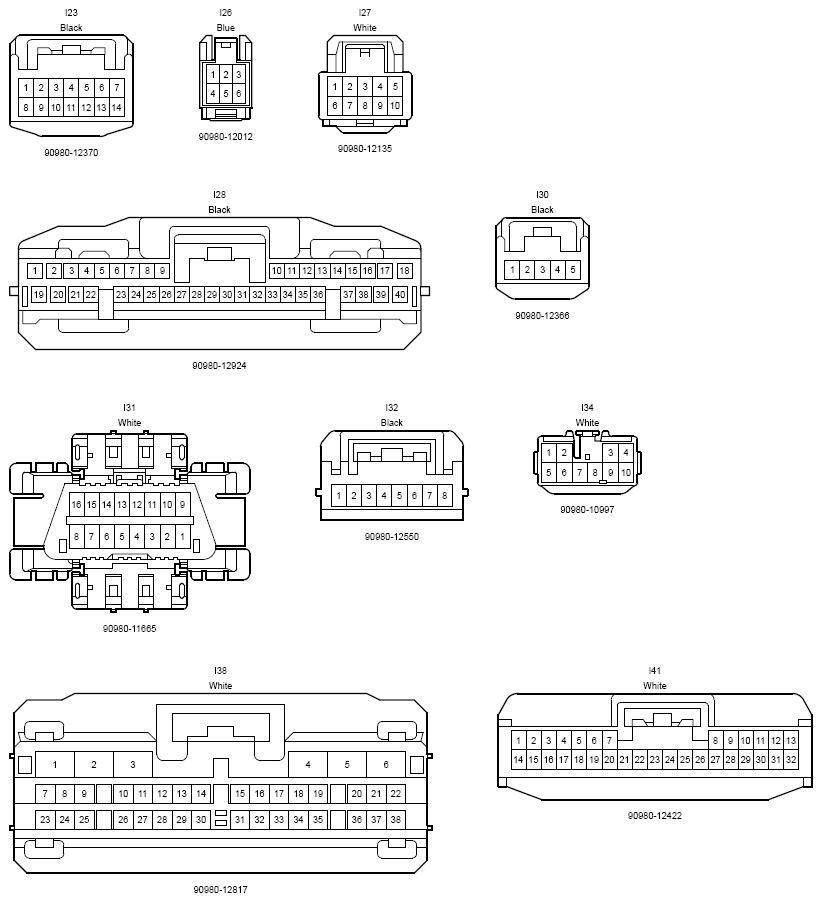

Fig 5: Connectors (5 Of 14)

G12210454

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

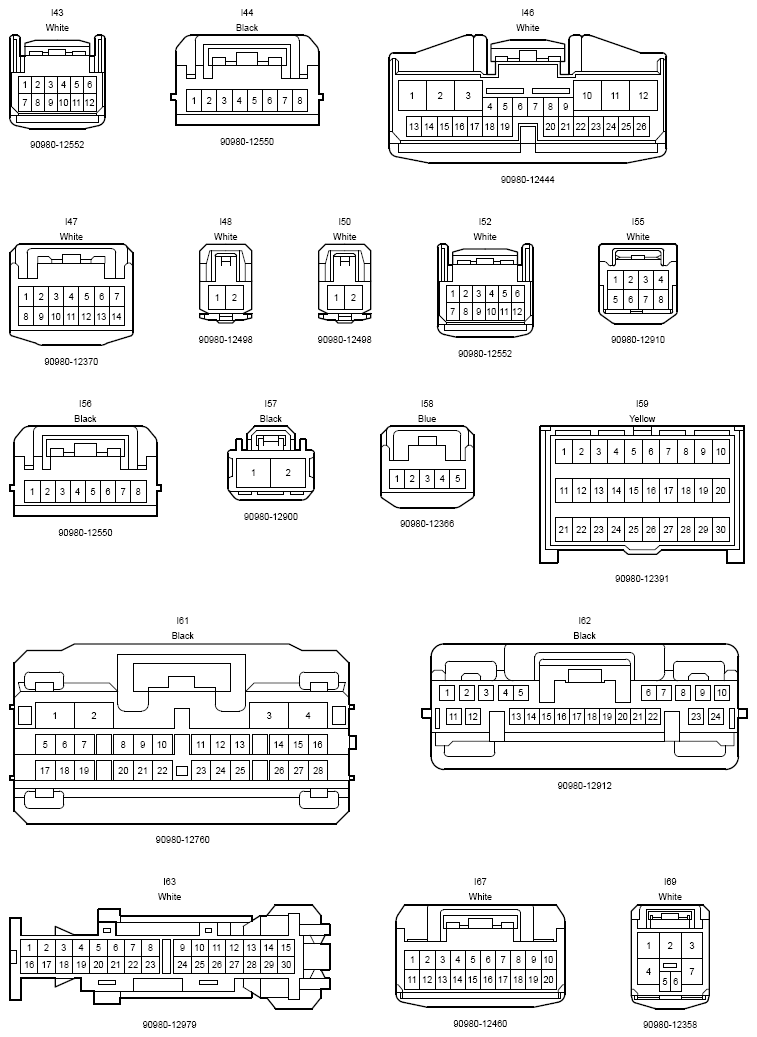

Fig 6: Connectors (6 Of 14)

G12210455

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

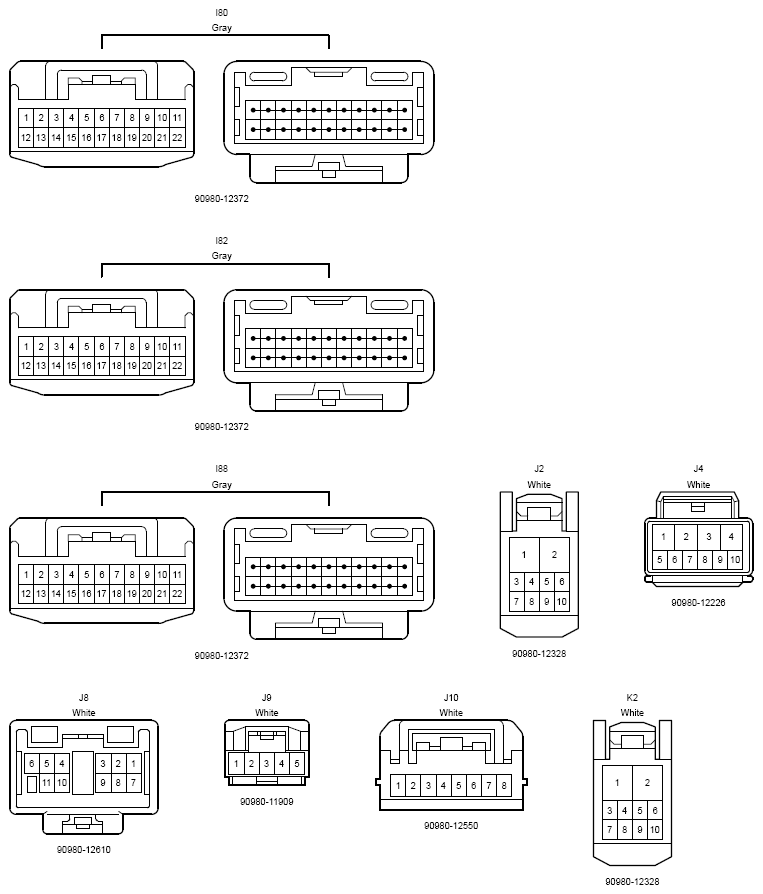

Fig 7: Connectors (7 Of 14)

G12210456

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

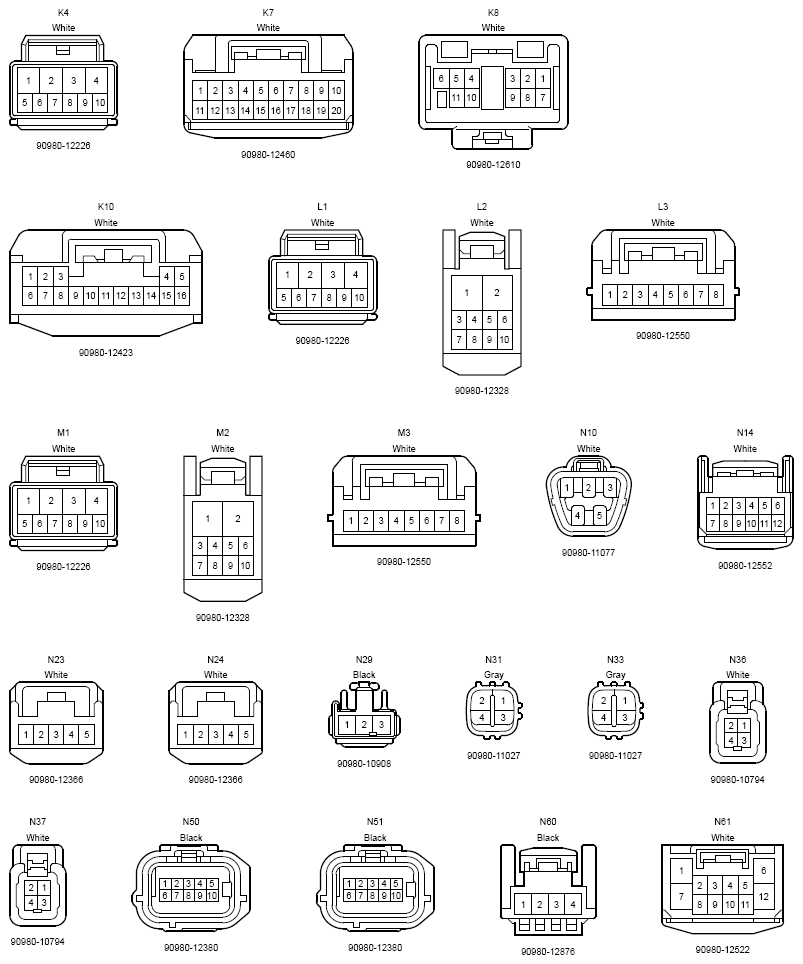

Fig 8: Connectors (8 Of 14)

G12210457

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

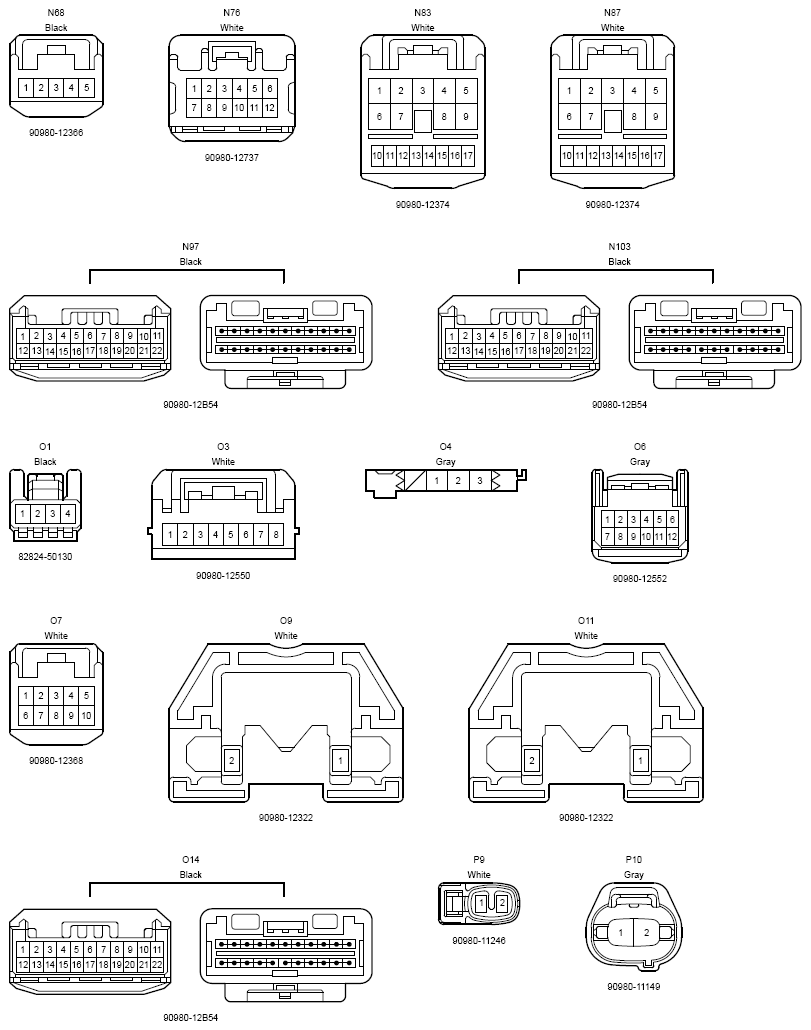

Fig 9: Connectors (9 Of 14)

G12210458

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

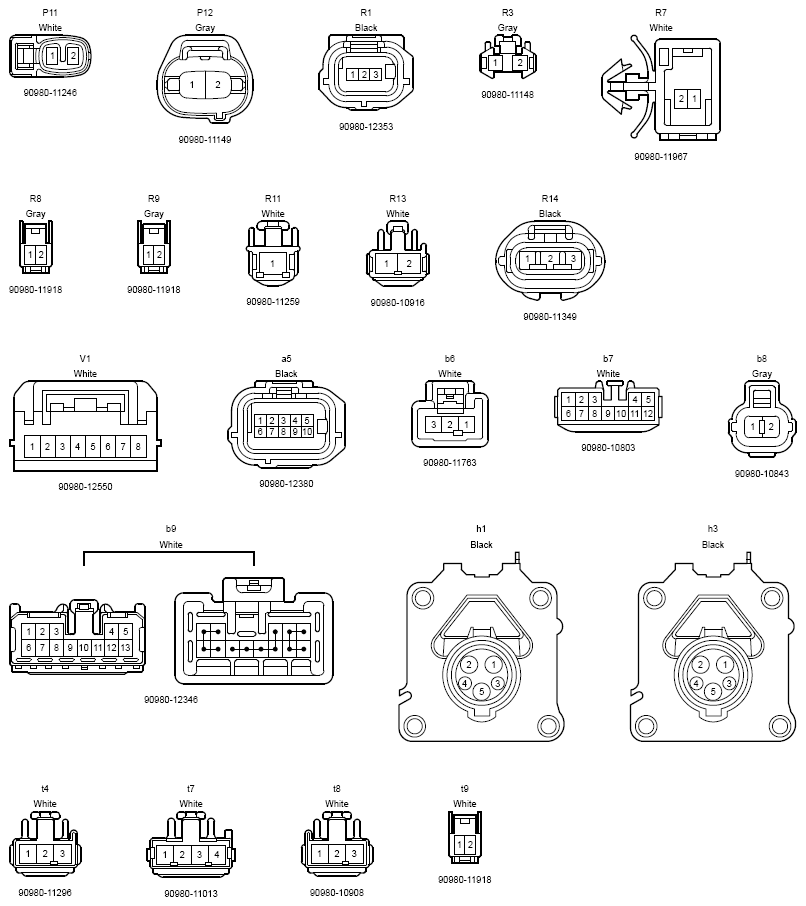

Fig 10: Connectors (10 Of 14)

G12210459

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

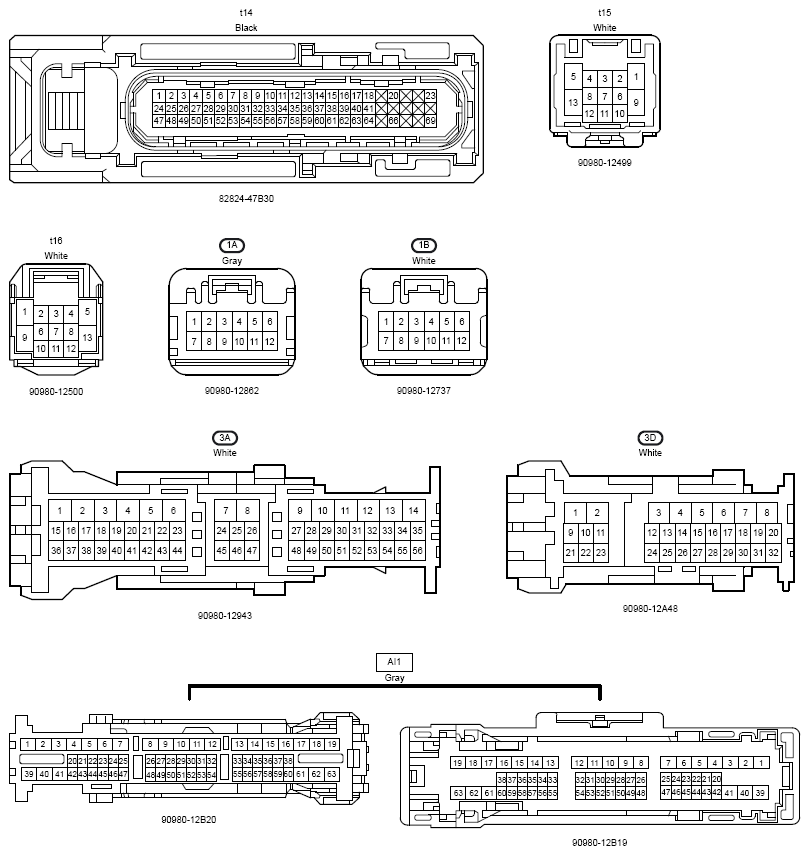

Fig 11: Connectors (11 Of 14)

G12210460

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

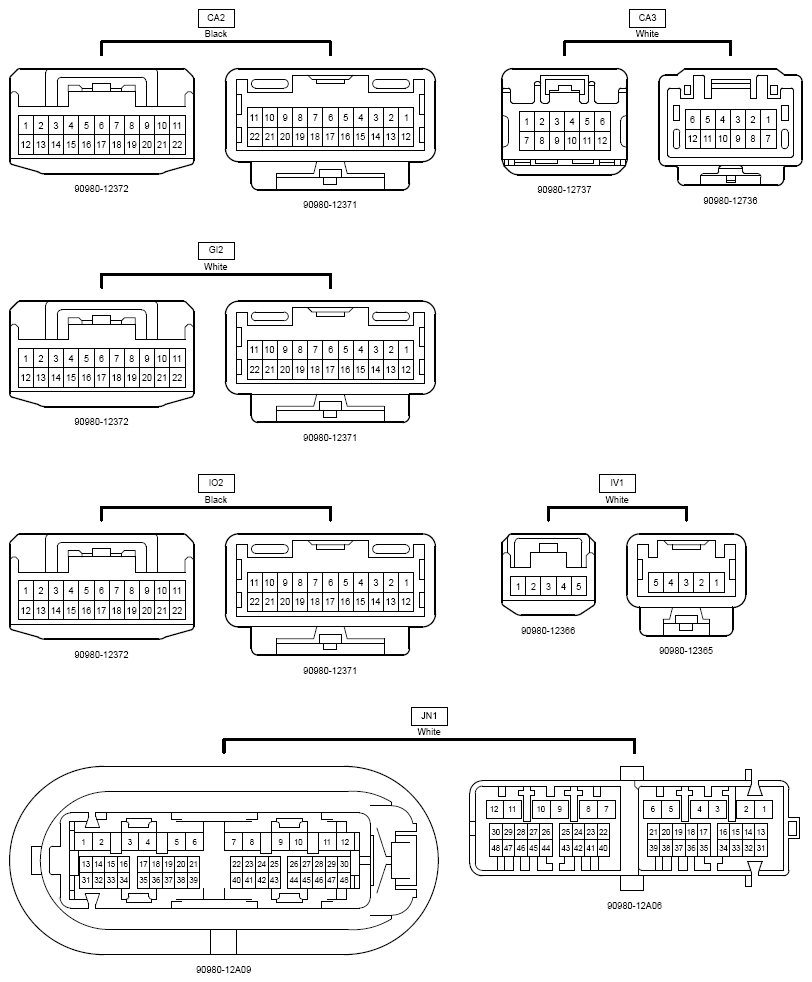

Fig 12: Connectors (12 Of 14)

G12210461

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

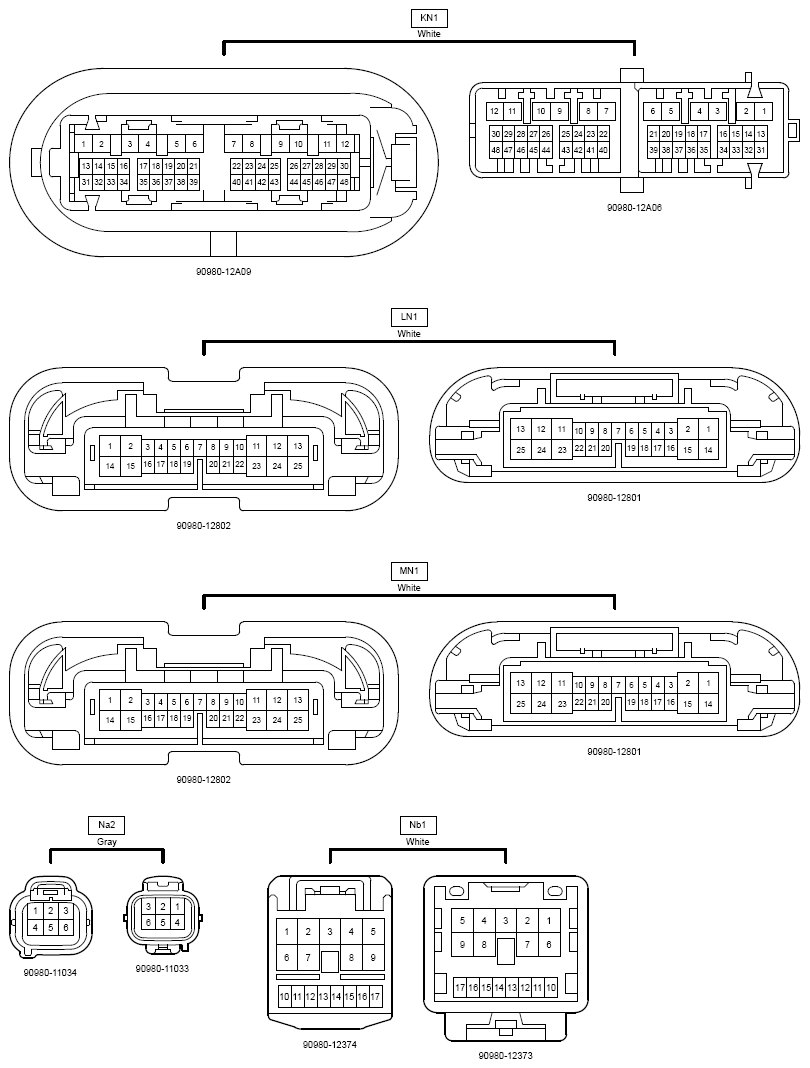

Fig 13: Connectors (13 Of 14)

G12210462

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

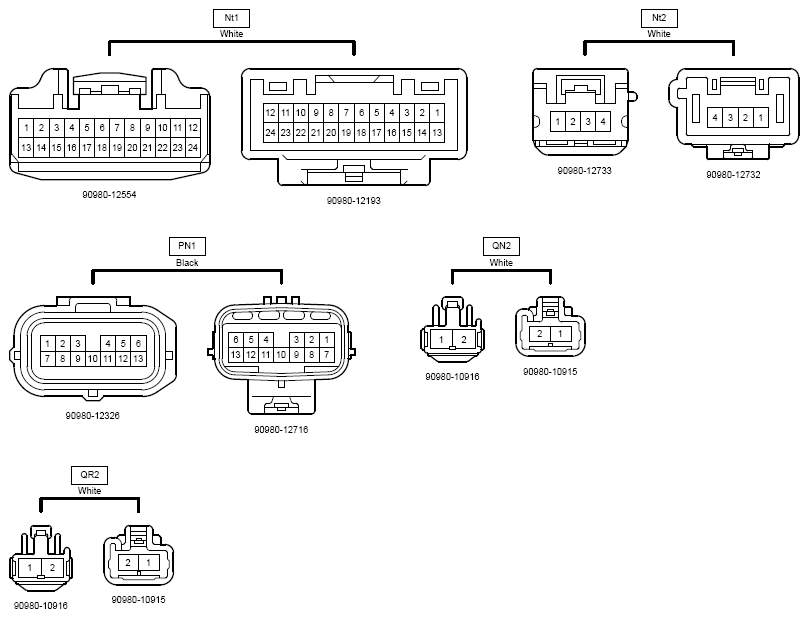

Fig 14: Connectors (14 Of 14)

G12210463

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
