System Diagrams

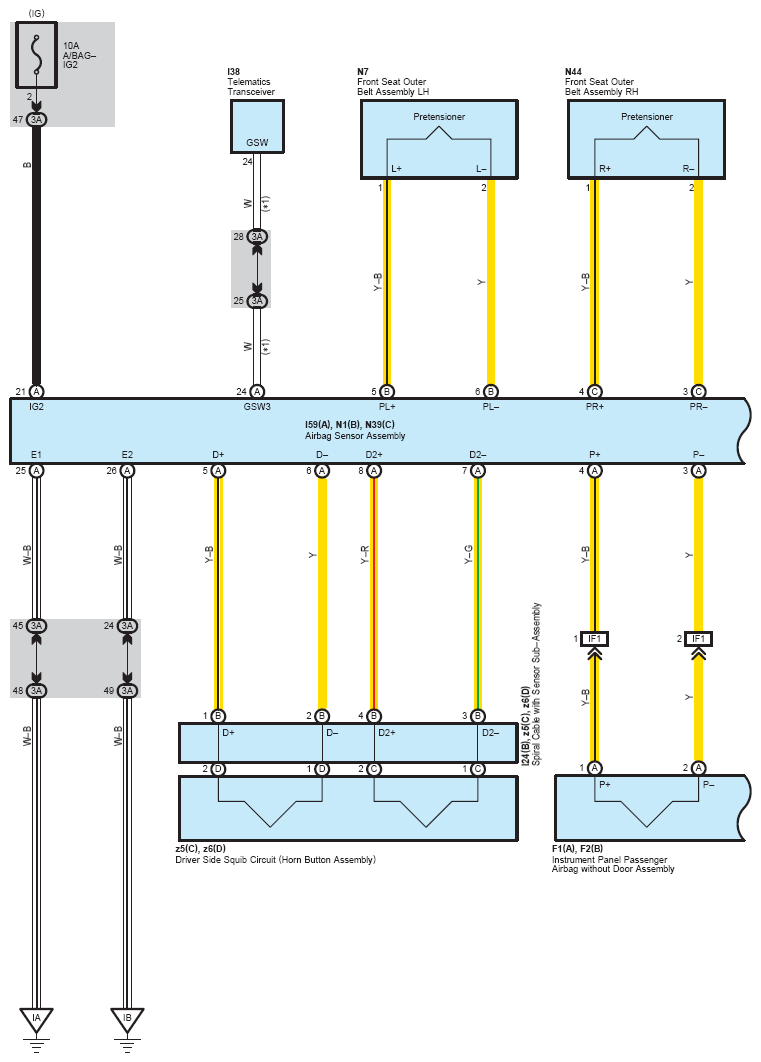

Fig 1: SRS (1 Of 6)
G12210735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

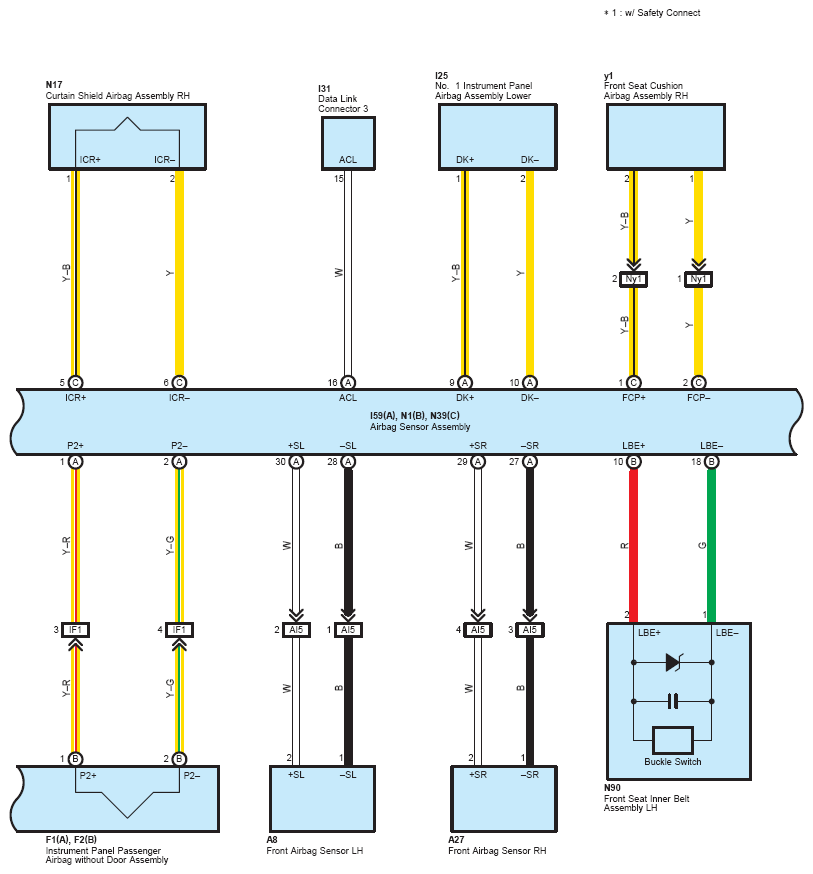

Fig 2: SRS (2 Of 6)
G12210736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

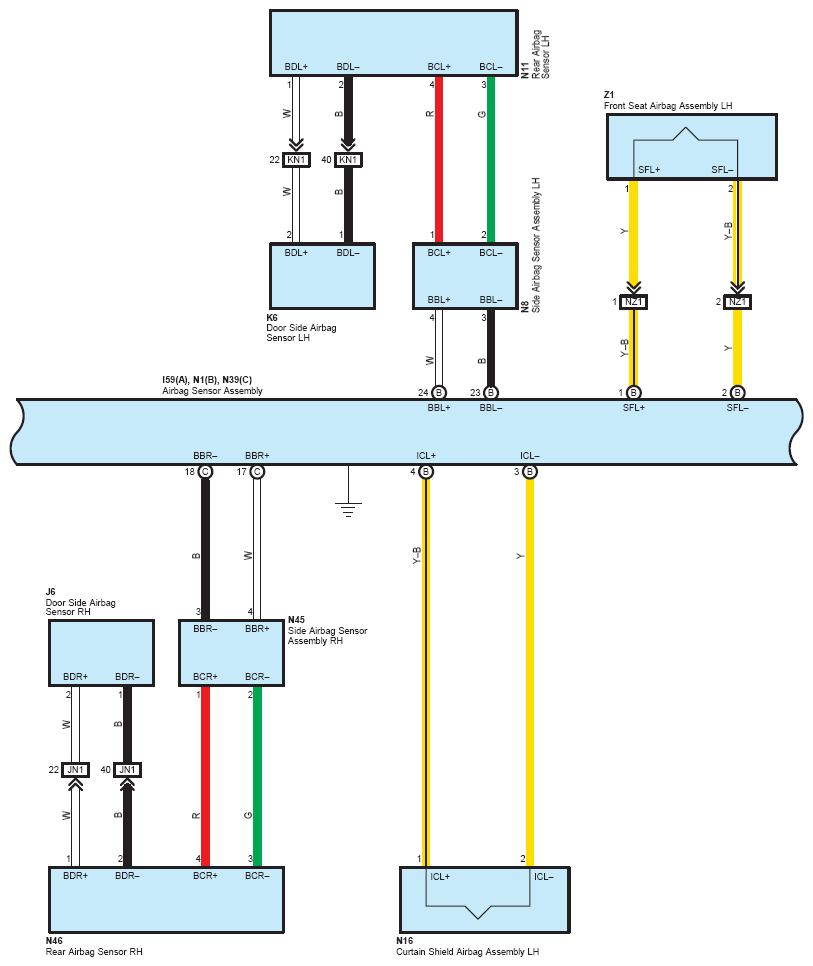

Fig 3: SRS (3 Of 6)
G12210737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

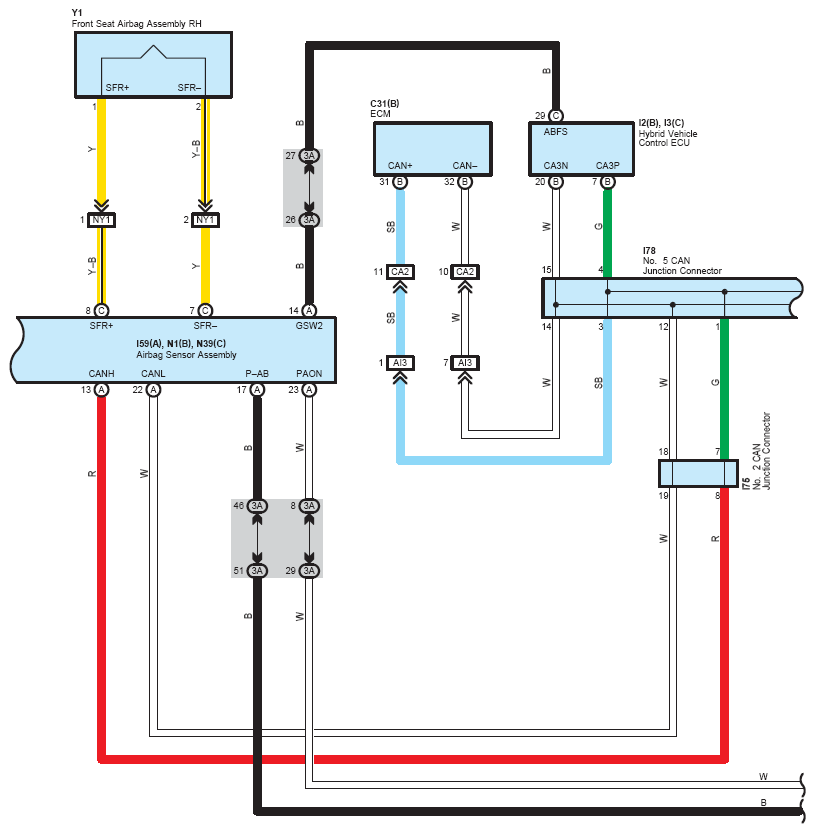

Fig 4: SRS (4 Of 6)
G12210738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

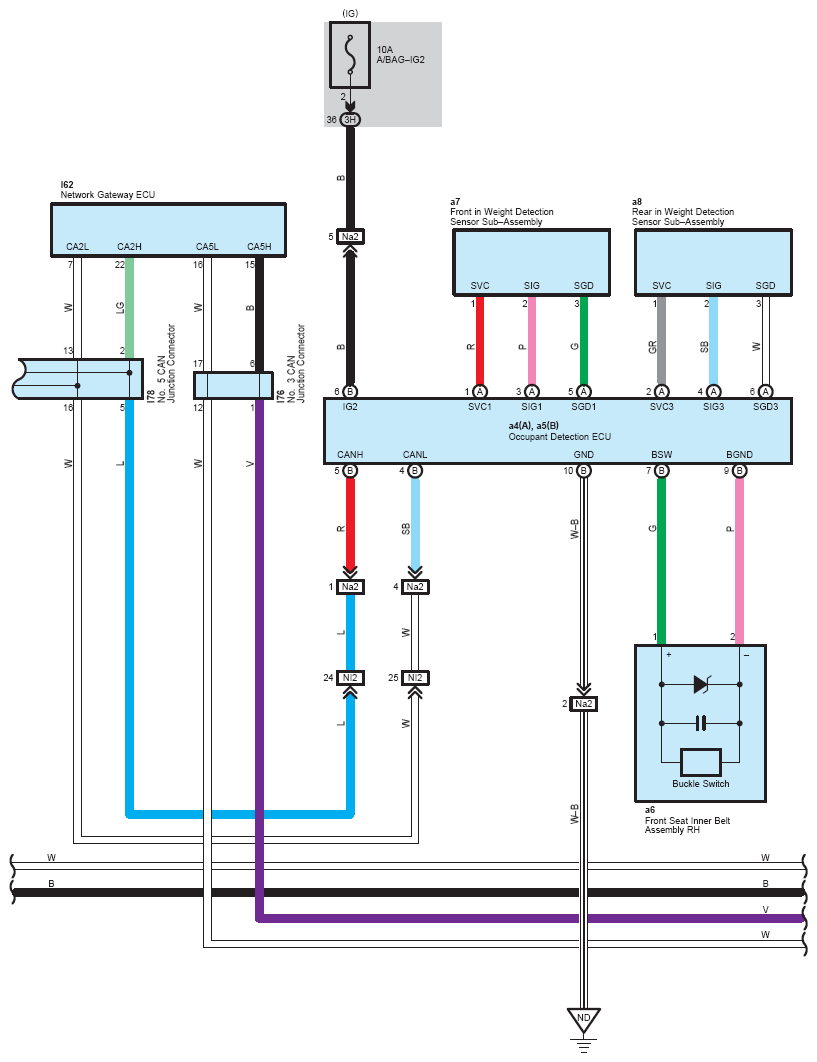

Fig 5: SRS (5 Of 6)
G12210739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: SRS (6 Of 6)
G12210740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
