System Diagrams

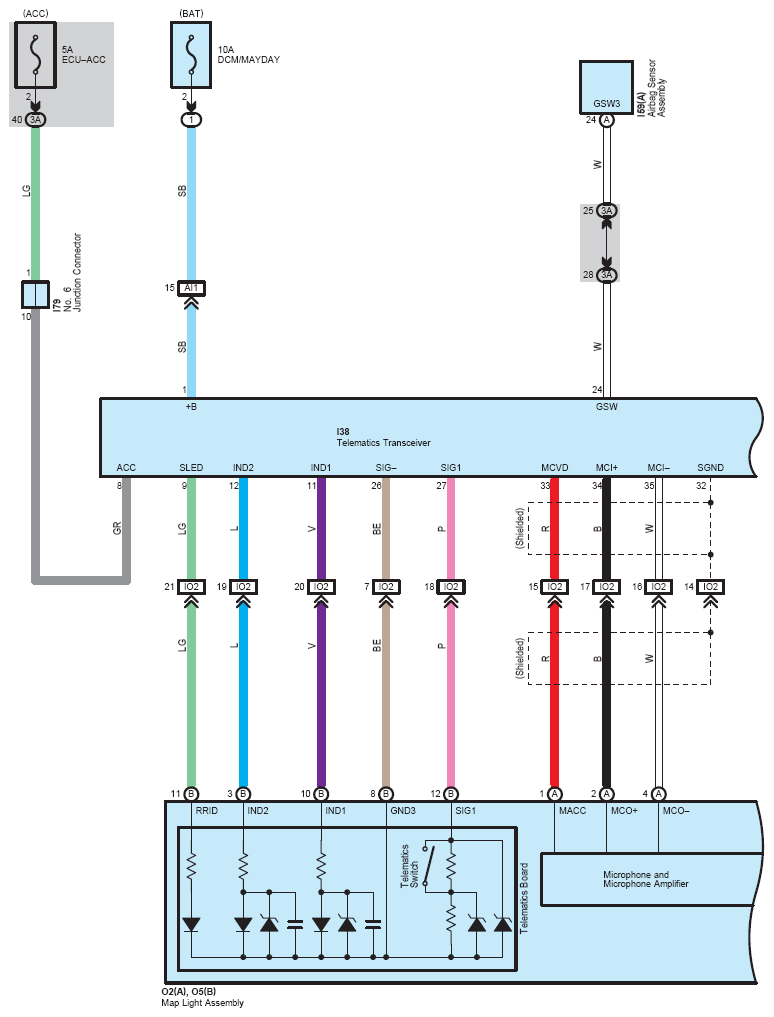

Fig 1: Safety Connect (1 Of 4)

G12210687

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

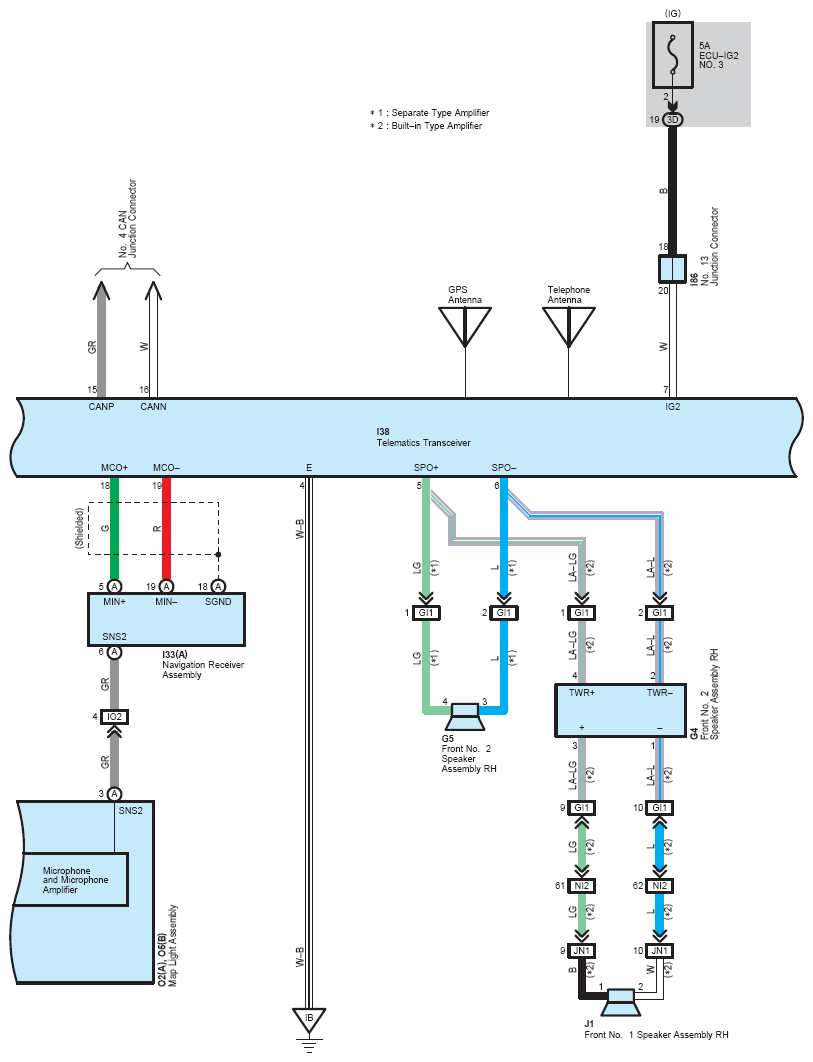

Fig 2: Safety Connect (2 Of 4)

G12210688

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Safety Connect (3 Of 4)

G12210689

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

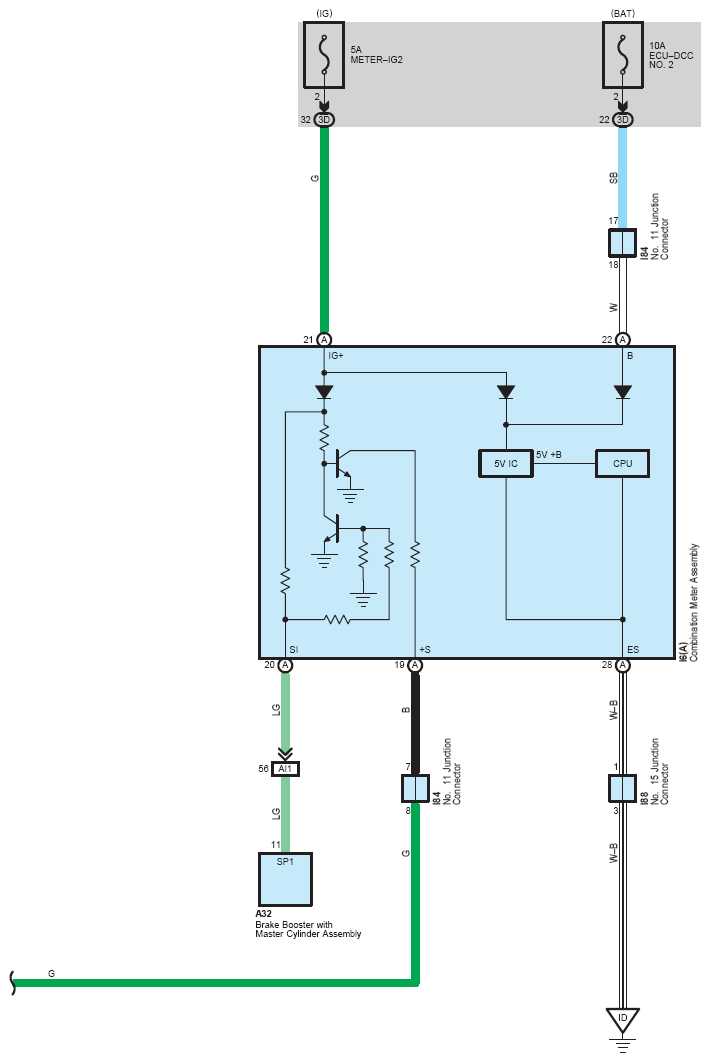

Fig 4: Safety Connect (4 Of 4)

G12210690

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
