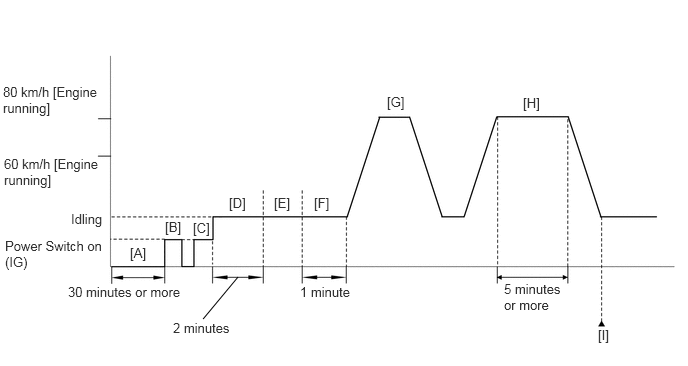

Confirmation Driving Pattern
- Stop the engine for 30 minutes or more [A].
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG) [B].
- Turn the Techstream on.
- Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
- Turn the power switch off and wait for at least 30 seconds.
- Turn the power switch on (IG) [C].
- Turn the Techstream on.
- Put the engine in Inspection Mode (Maintenance Mode).
Refer to INSPECTION MODE PROCEDURE [11/2015 - 12/2018] , or refer to INSPECTION MODE PROCEDURE [12/2018 - ]
- Start the engine and wait 2 minutes [D].
- Warm up the engine until the engine coolant temperature is 75°C (167°F) or higher [E].
- Idle the engine for 1 minute [F].
- With the engine running, accelerate the vehicle to 80 km/h (50 mph) and stop the vehicle [G].WARNING:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.
HINT:
If the engine stops, further depress the accelerator pedal to restart the engine.
- With the engine running, drive the vehicle at 60 to 80 km/h (37 to 50 mph) for 5 minutes or more [H].WARNING:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.
HINT:
If the engine stops, further depress the accelerator pedal to restart the engine.
- Enter the following menus: Powertrain / Engine / Trouble Codes [I].
- Read the pending DTCs.
HINT:
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.
- Enter the following menus: Powertrain / Engine / Utility / All Readiness.
- Input the DTC: P0607-96, P0136-11, P0136-13, P0136-14, P0136-15, P0136-17 or P0136-23.
- Check the DTC judgment result.
Techstream Display Description NORMAL - DTC judgment completed
- System normal
ABNORMAL - DTC judgment completed
- System abnormal
INCOMPLETE - DTC judgment not completed
- Perform driving pattern after confirming DTC enabling conditions
N/A - Unable to perform DTC judgment
- Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit
HINT:
- If the judgment result is NORMAL, the system is normal.
- If the judgment result is ABNORMAL, the system is malfunctioning.
- If the judgment result is INCOMPLETE or N/A, perform steps [E] through [I] again.
- If no pending DTCs are output, perform a universal trip and check for permanent DTCs.
Refer to DTC CHECK / CLEAR [11/2015 - 07/2020] , or refer to DTC CHECK / CLEAR [07/2020 - ]
HINT:
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTCs are output, the system is normal.
