System Diagrams

Fig 1: Combination Meter (1 Of 14)

G12214305

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

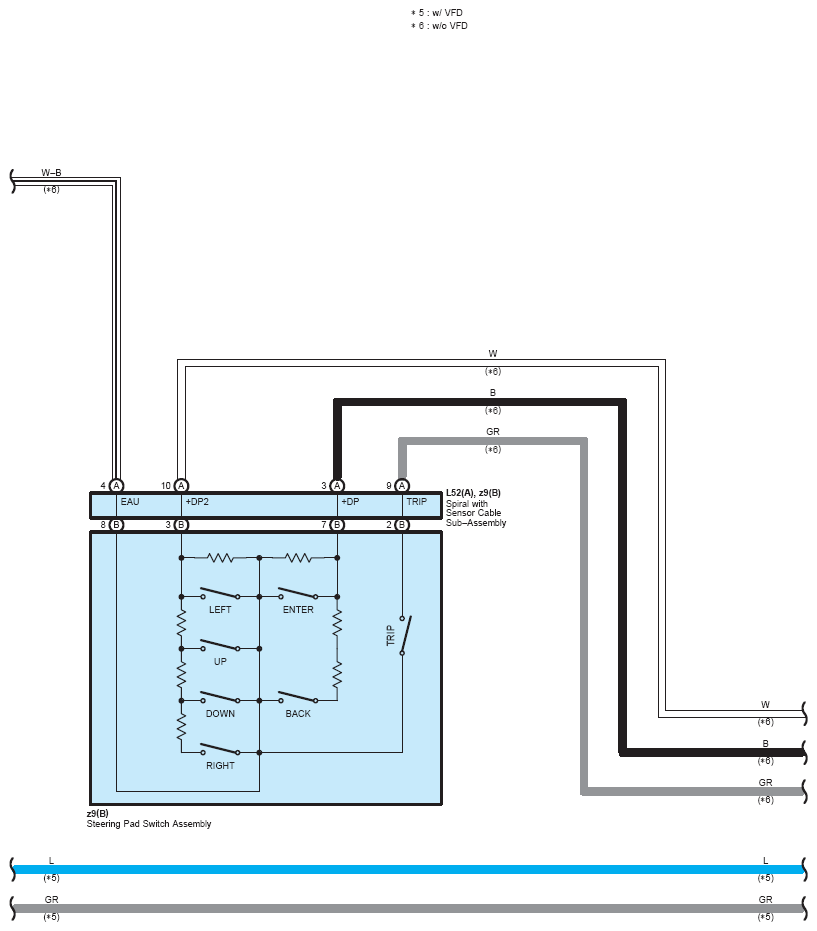

Fig 2: Combination Meter (2 Of 14)

G12214306

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

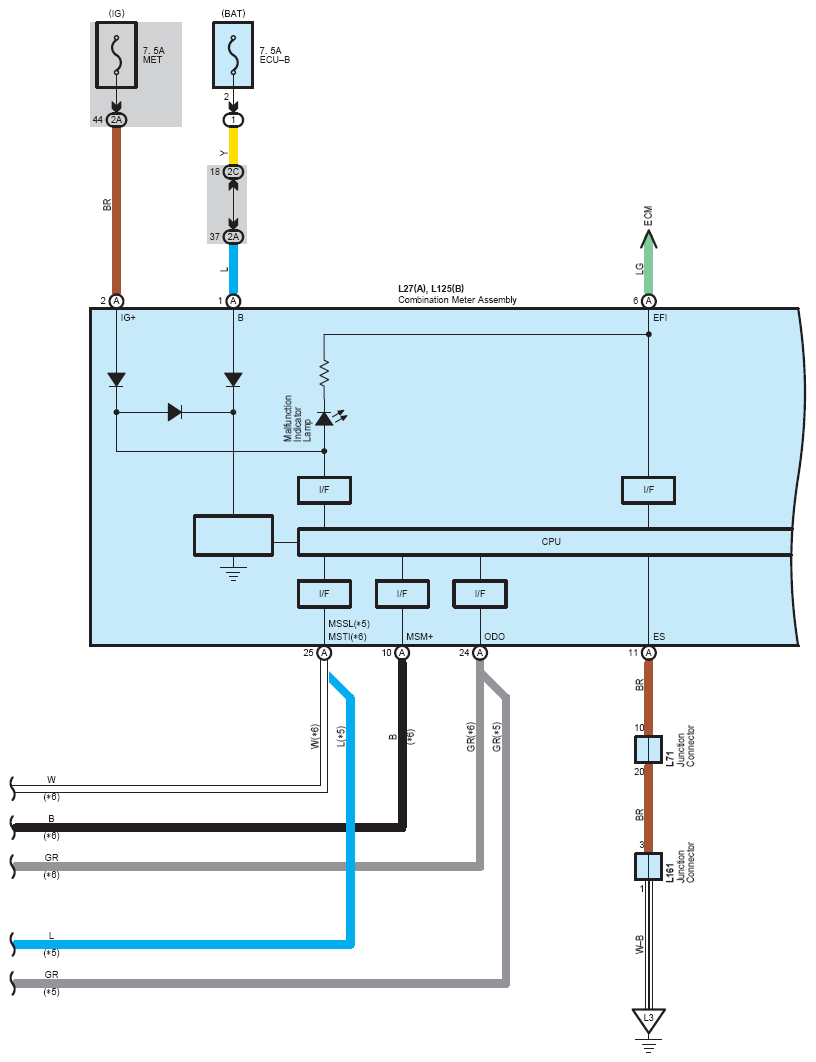

Fig 3: Combination Meter (3 Of 14)

G12214307

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

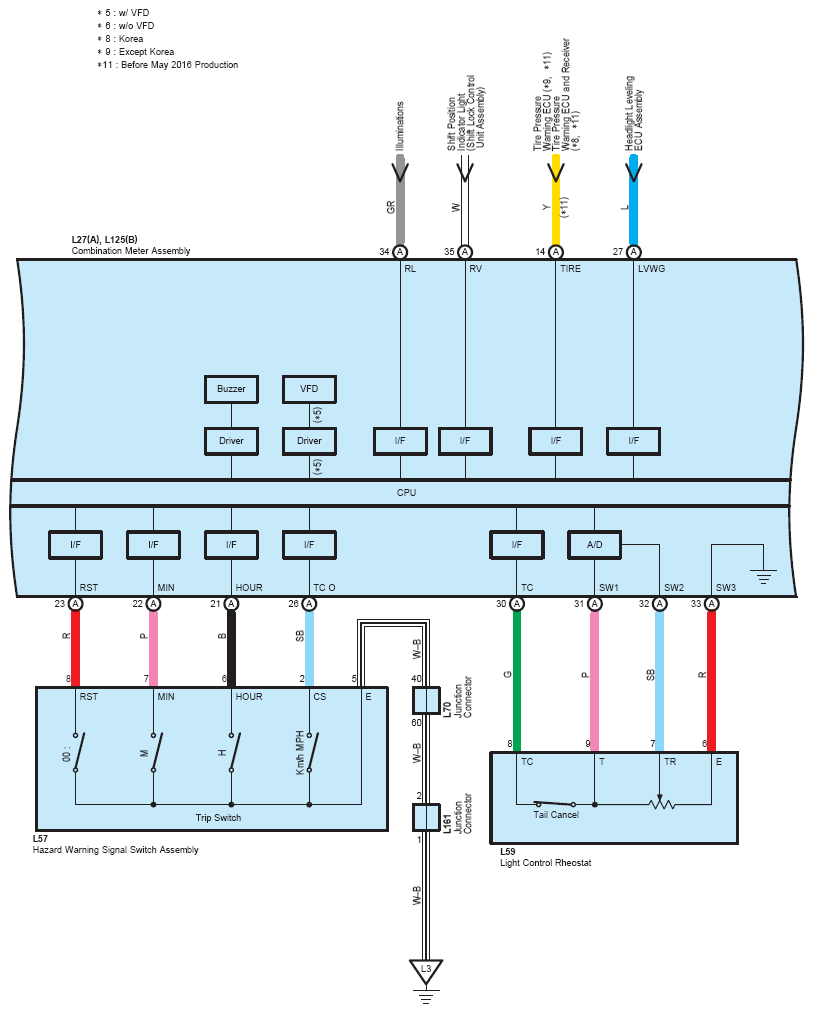

Fig 4: Combination Meter (4 Of 14)

G12214308

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

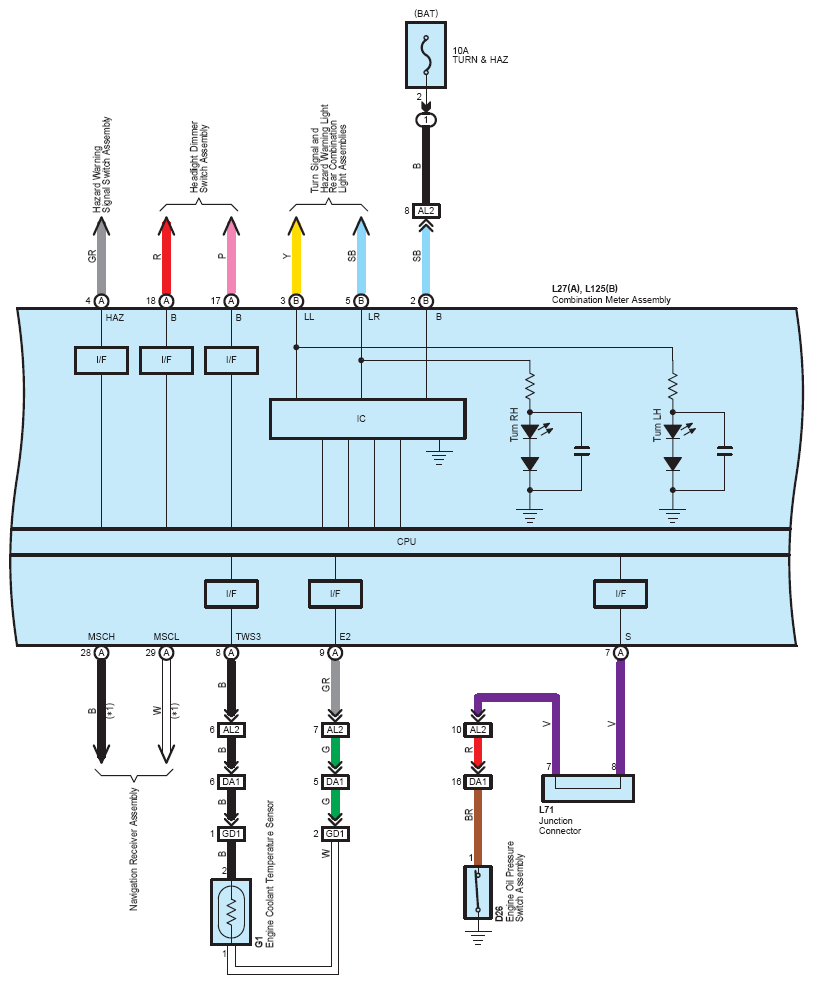

Fig 5: Combination Meter (5 Of 14)

G12214309

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

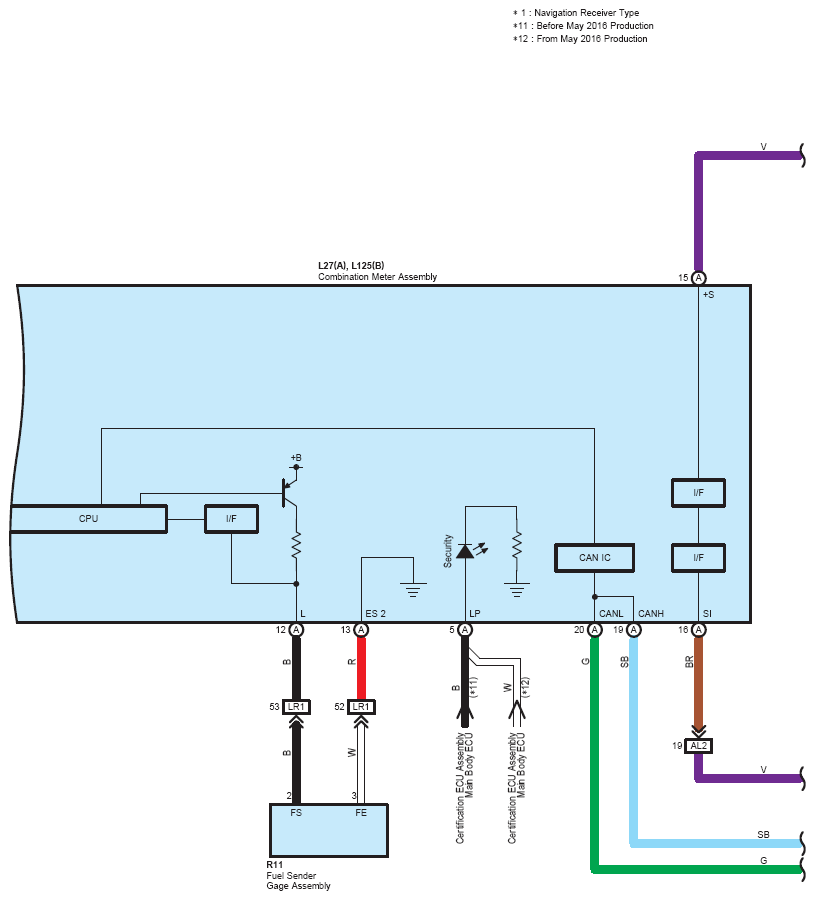

Fig 6: Combination Meter (6 Of 14)

G12214310

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

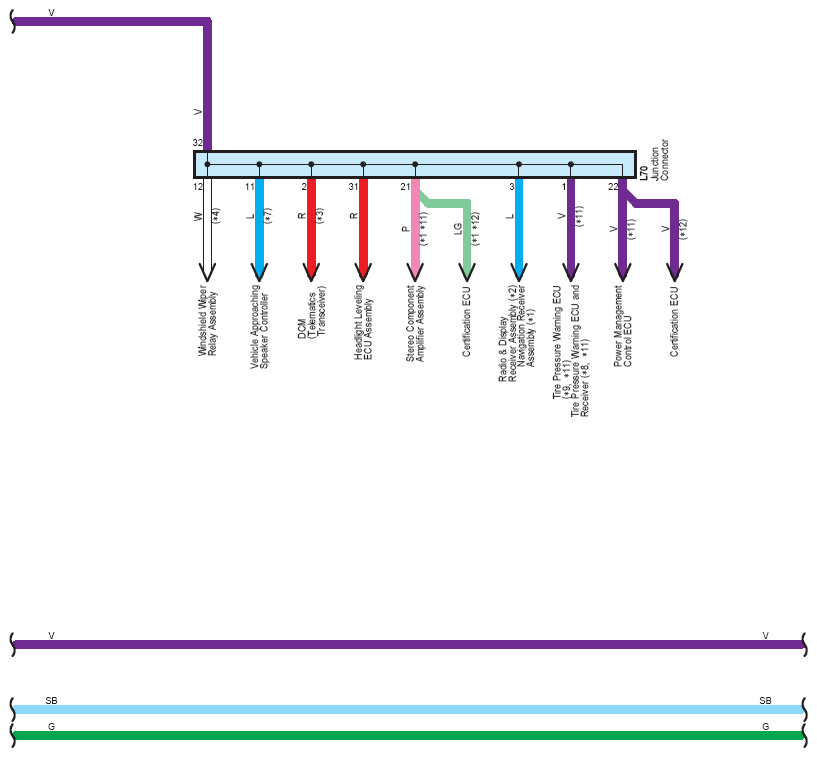

Fig 7: Combination Meter (7 Of 14)

G12214311

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

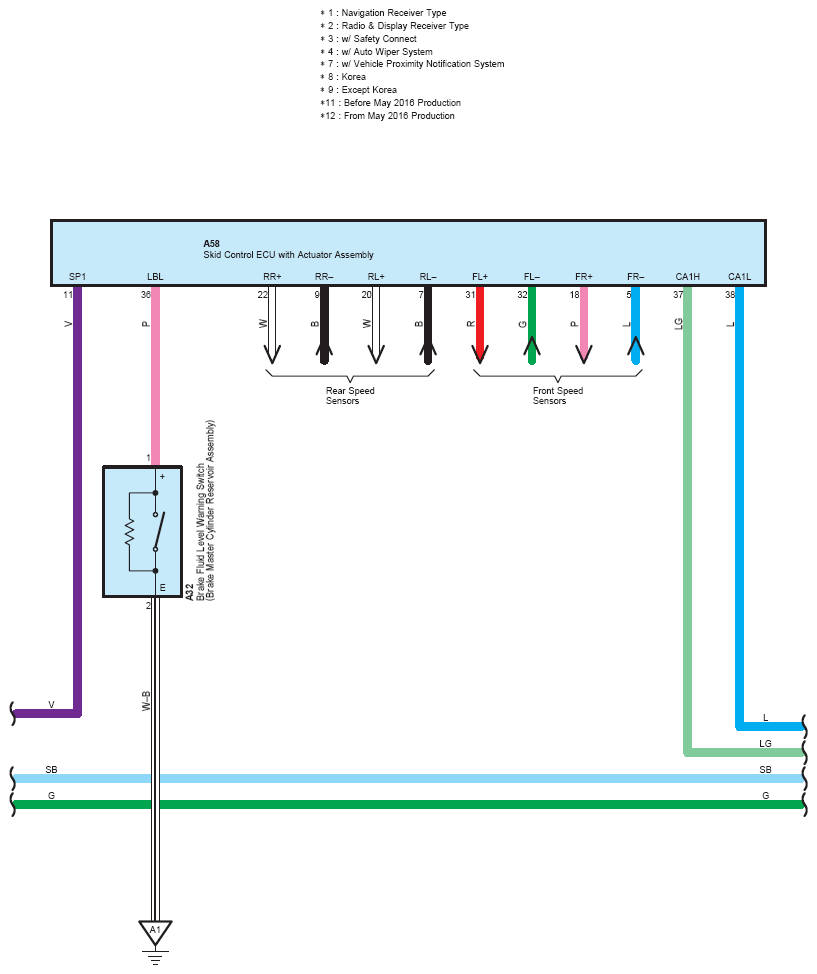

Fig 8: Combination Meter (8 Of 14)

G12214312

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

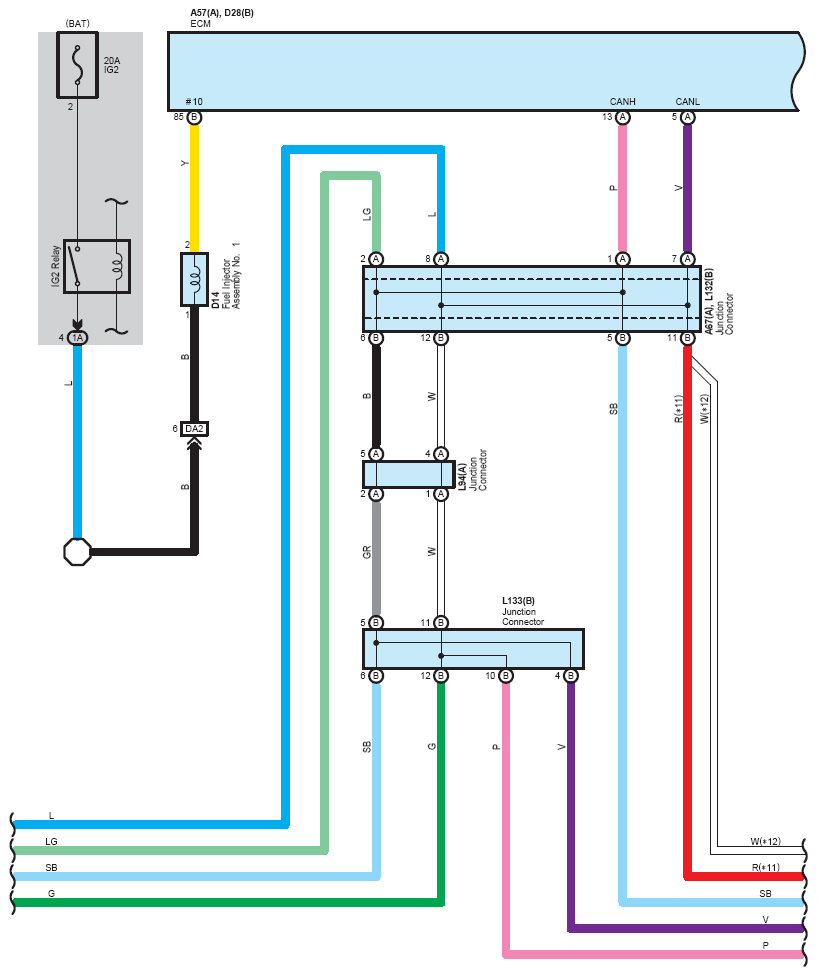

Fig 9: Combination Meter (9 Of 14)

G12214313

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

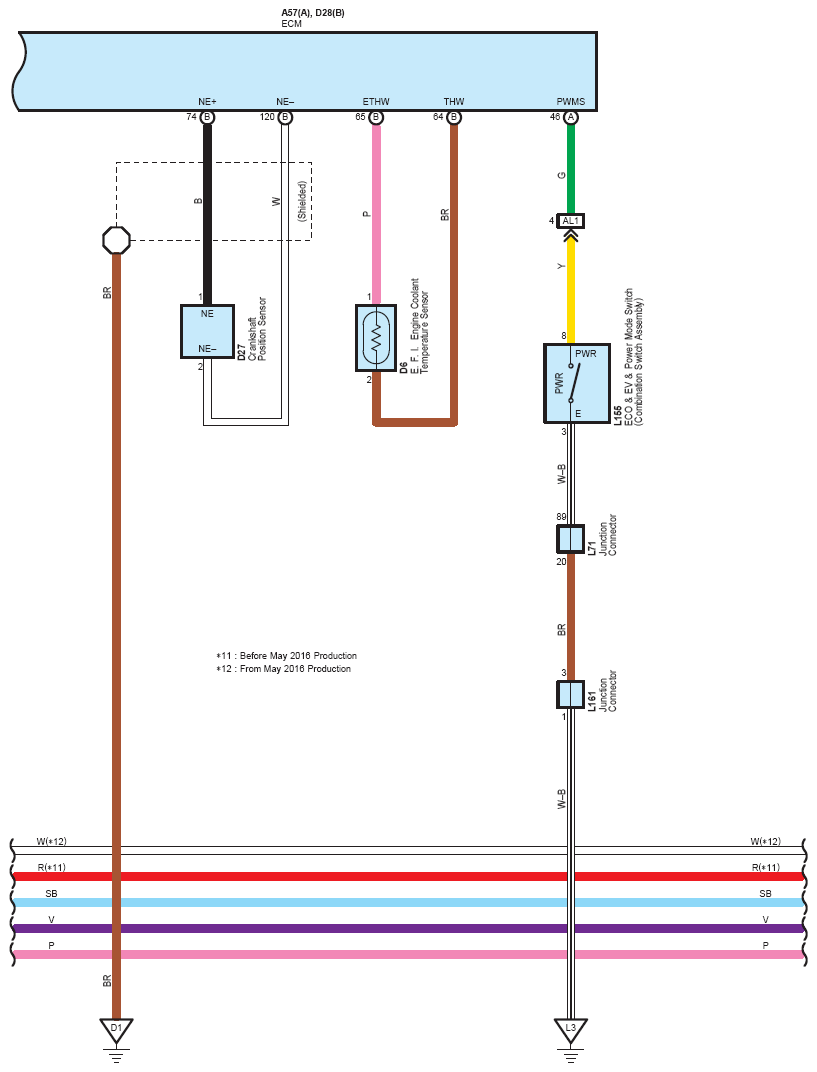

Fig 10: Combination Meter (10 Of 14)

G12214314

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

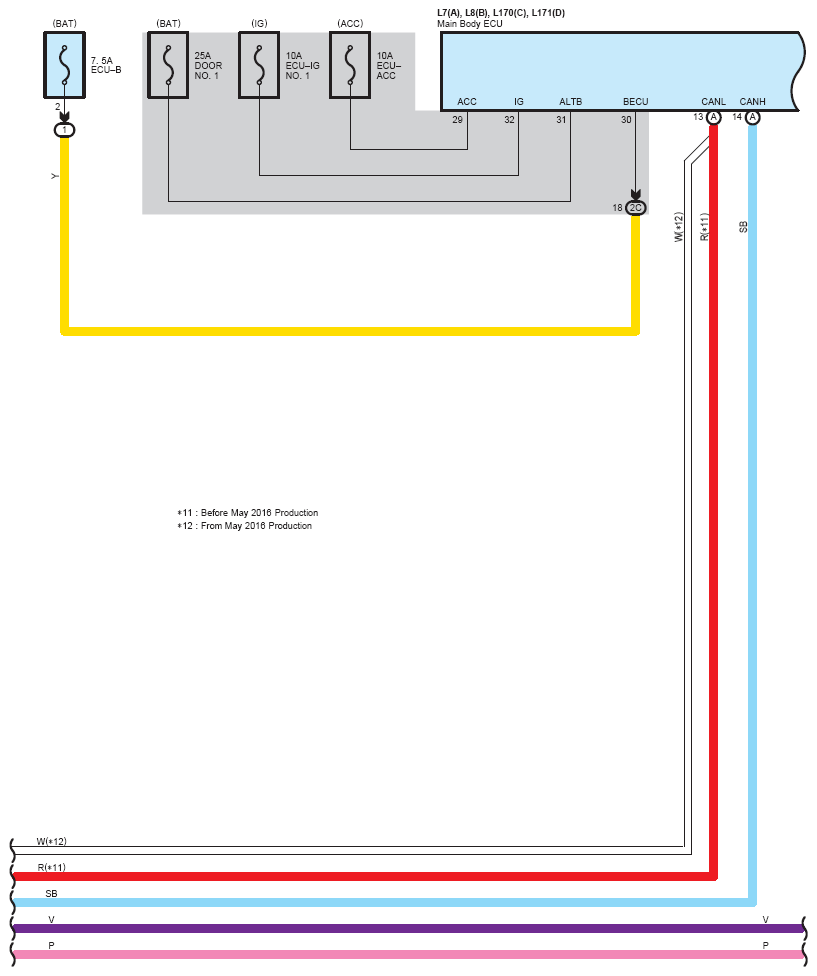

Fig 11: Combination Meter (11 Of 14)

G12214315

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

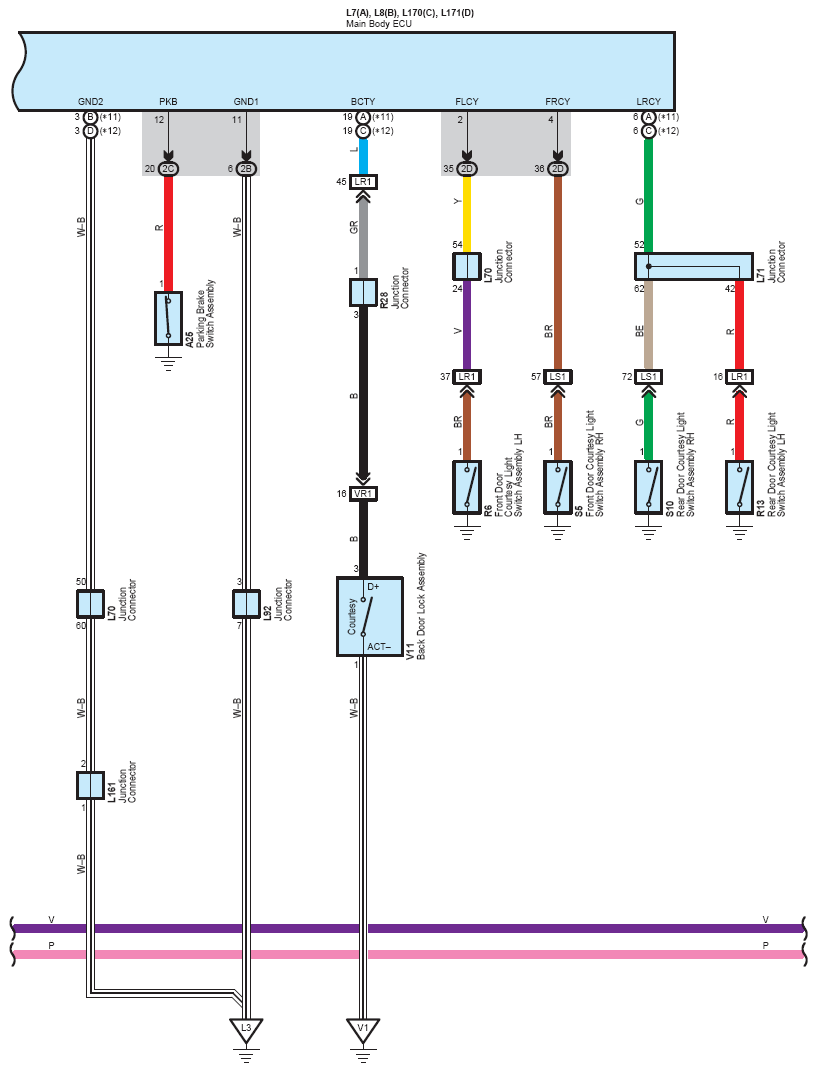

Fig 12: Combination Meter (12 Of 14)

G12214316

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

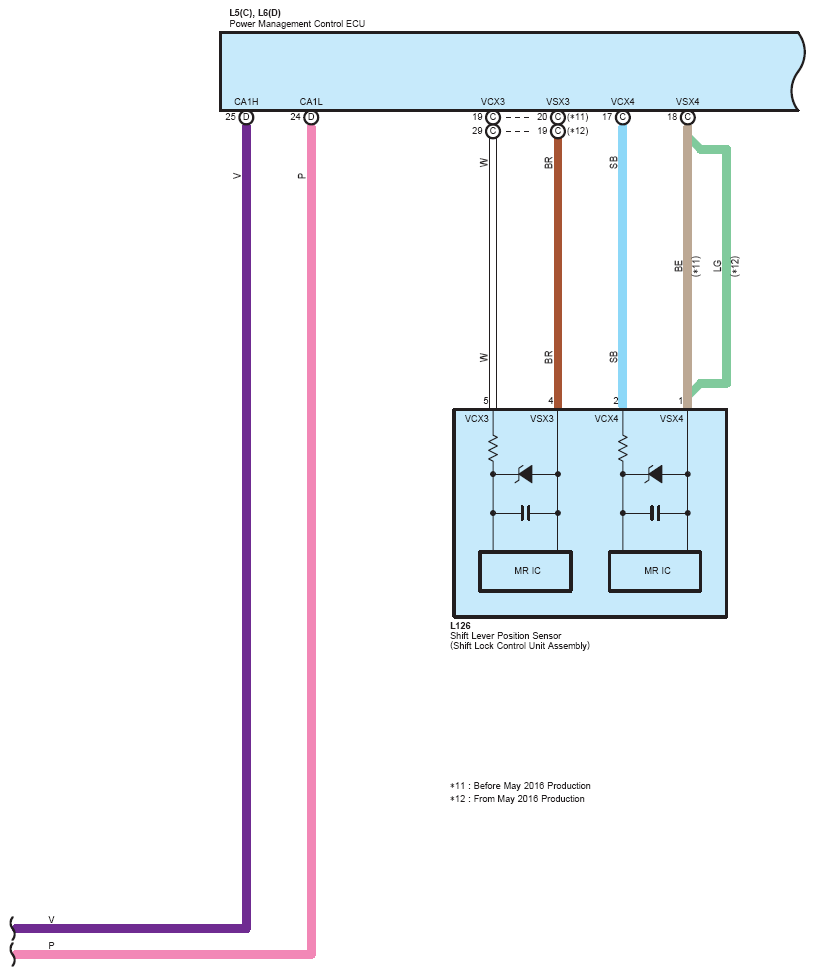

Fig 13: Combination Meter (13 Of 14)

G12214317

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

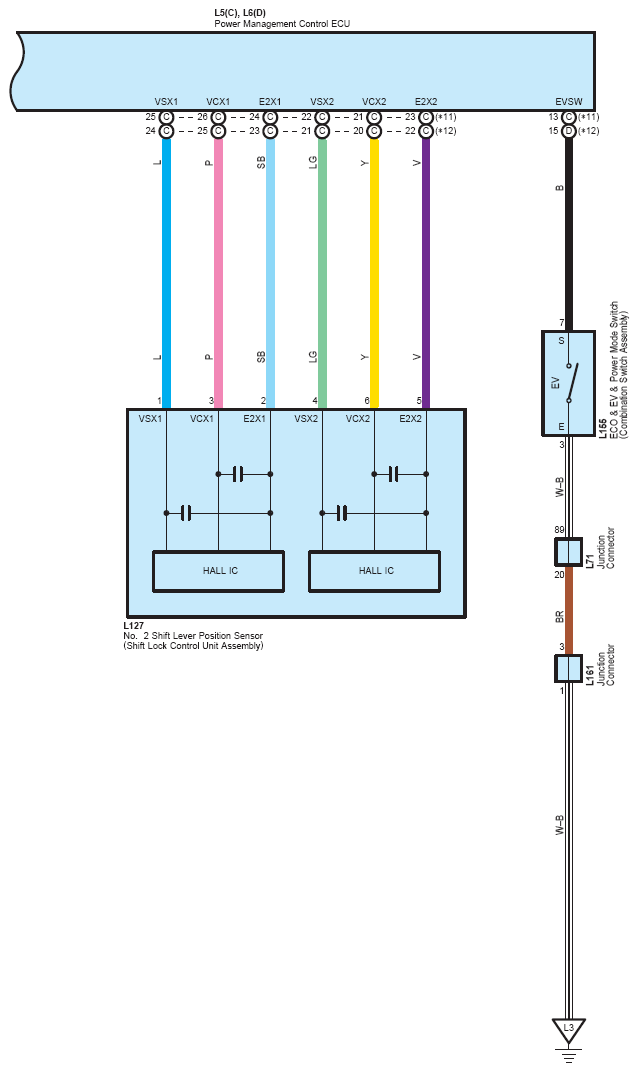

Fig 14: Combination Meter (14 Of 14)

G12214318

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
