System Diagrams — 2017 Toyota Prius V Three Service Manual ~ LEMON Manuals

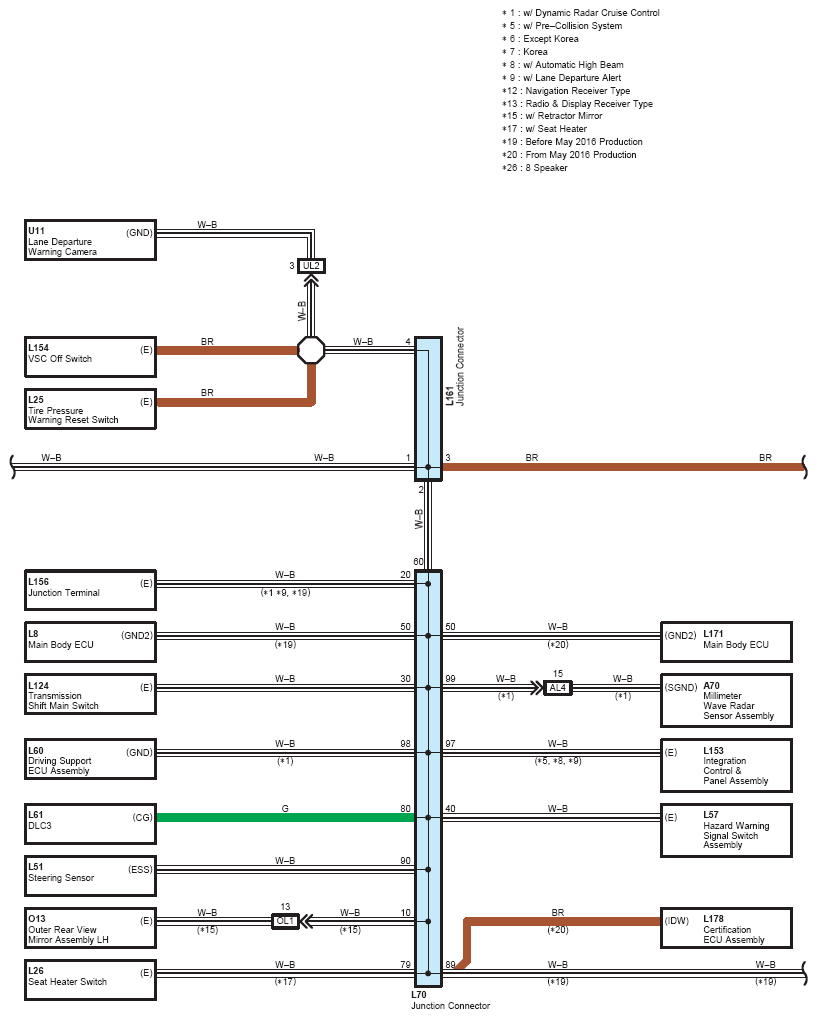

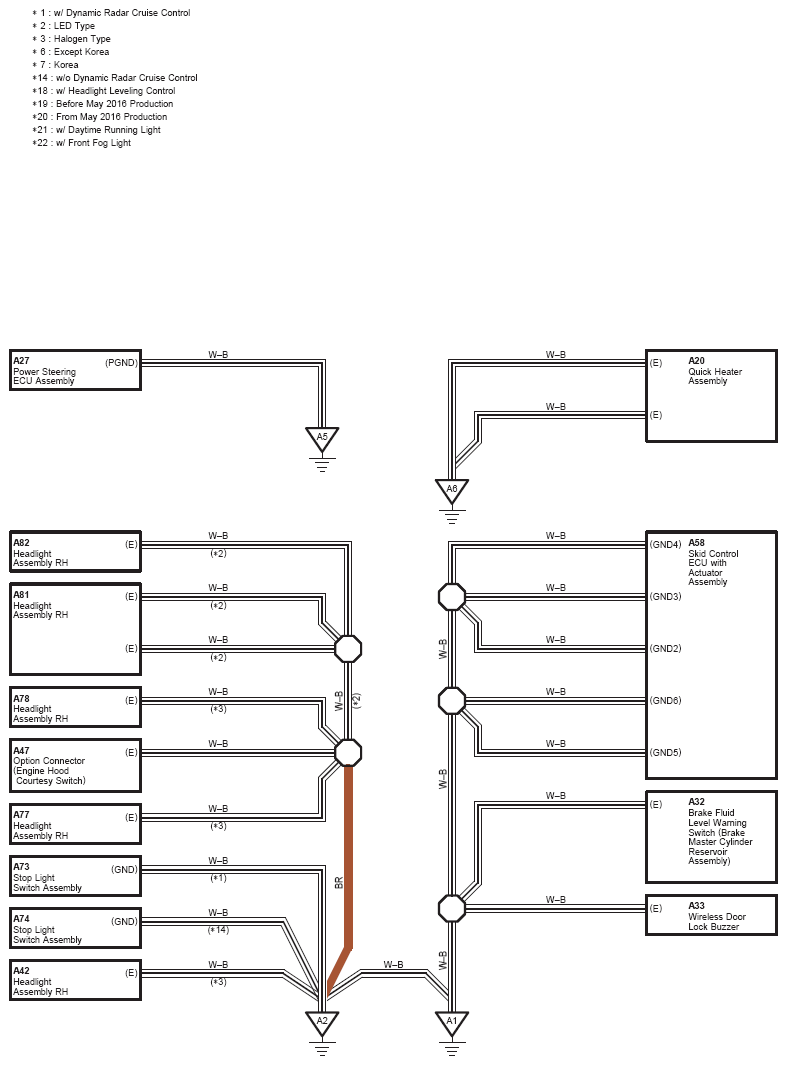

Fig 1: Ground Point (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

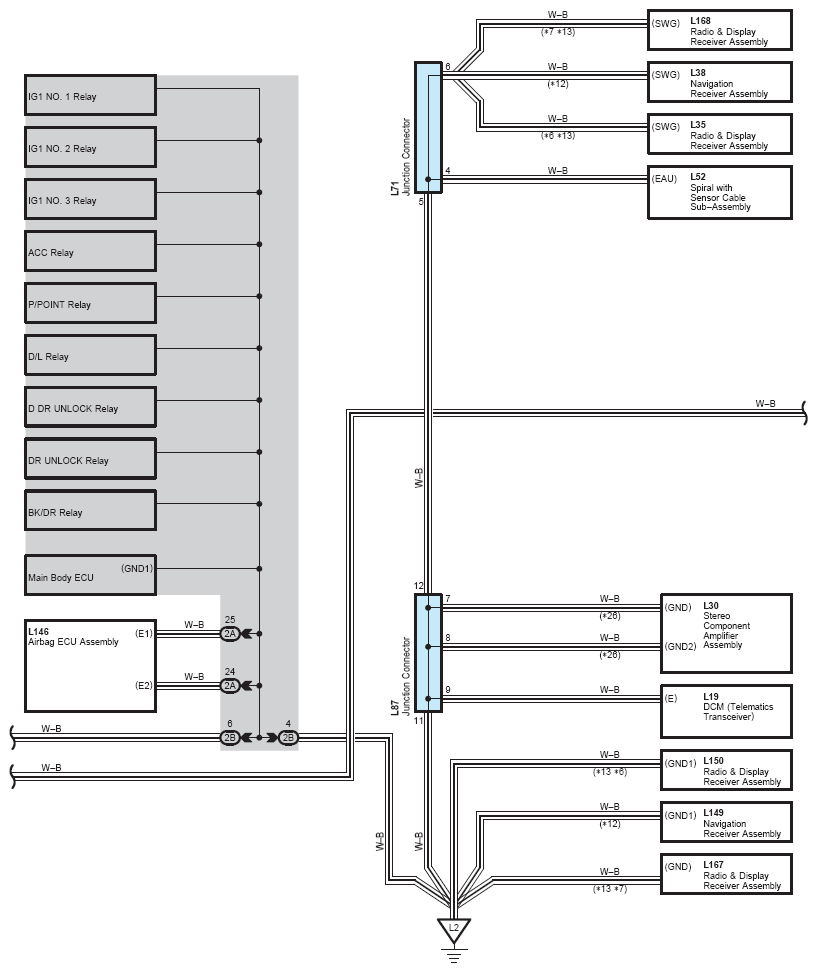

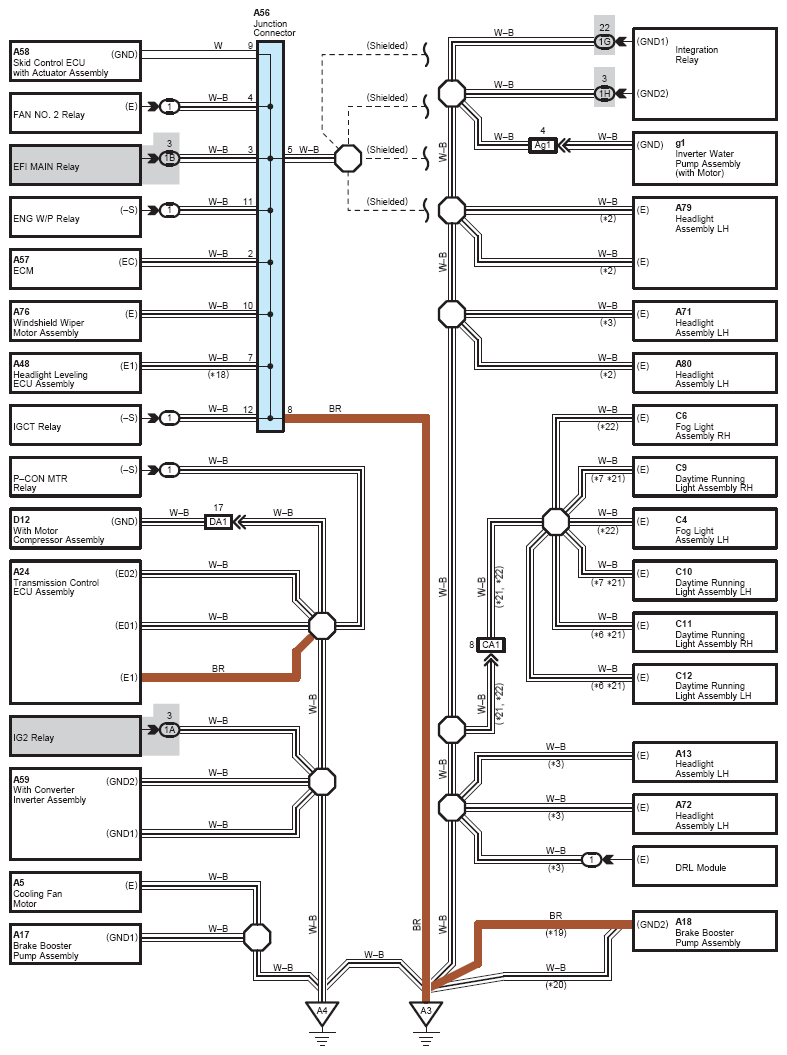

Fig 2: Ground Point (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

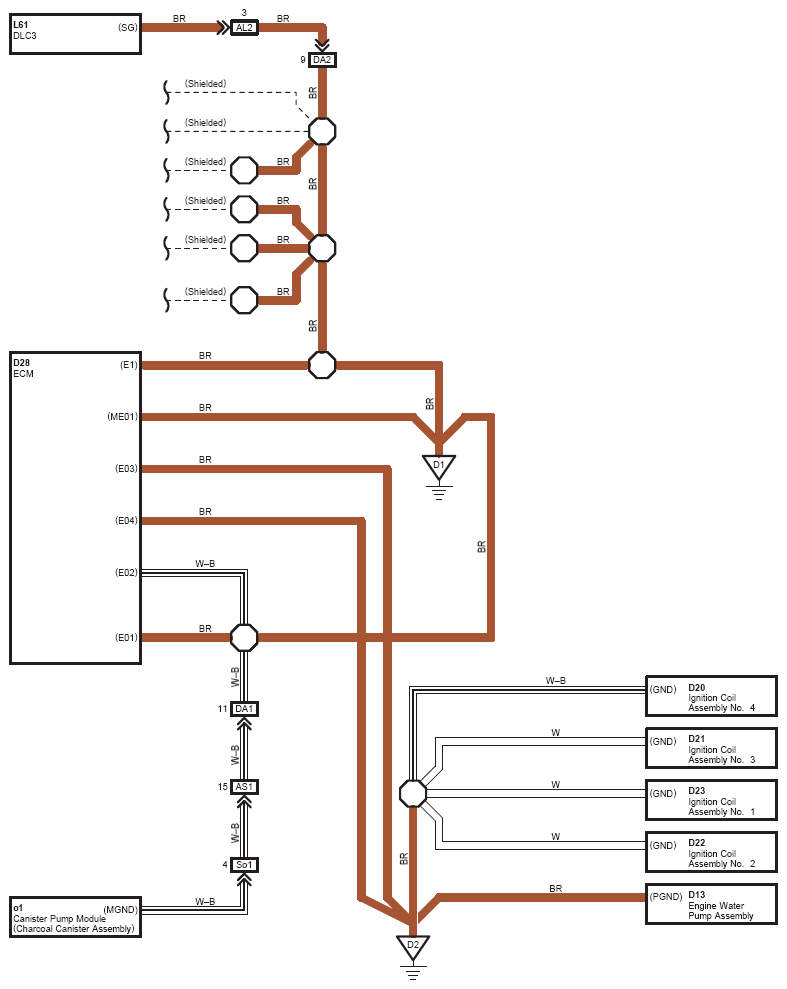

Fig 3: Ground Point (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

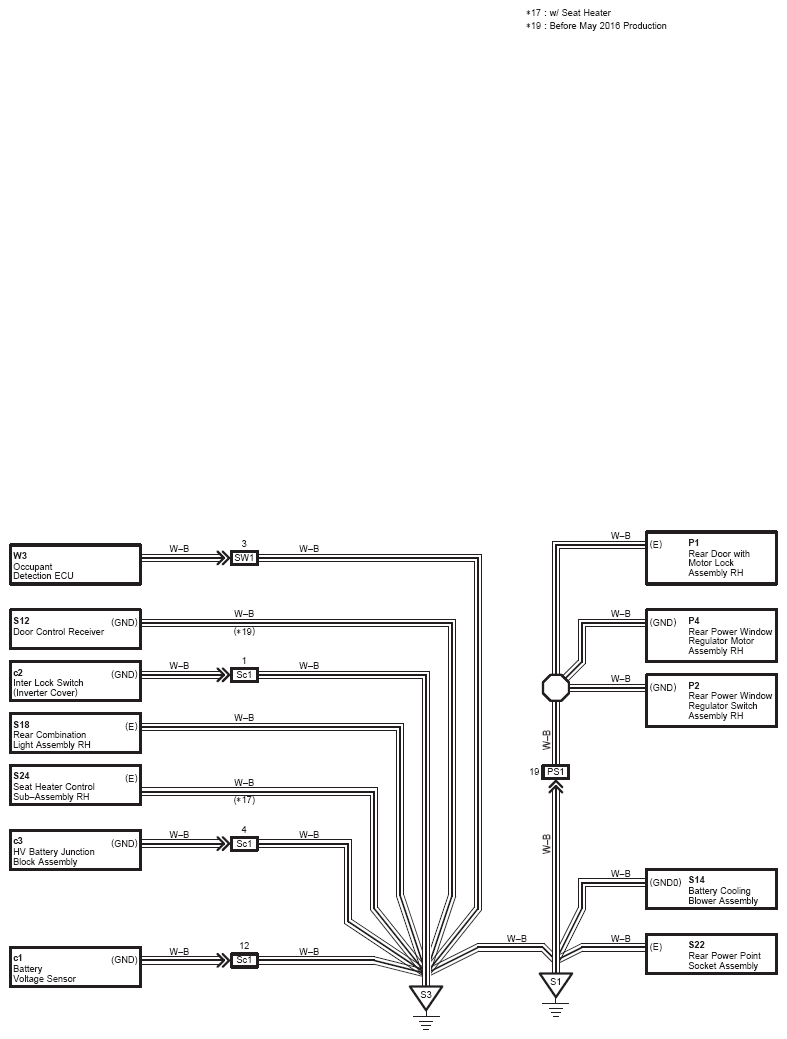

Fig 4: Ground Point (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

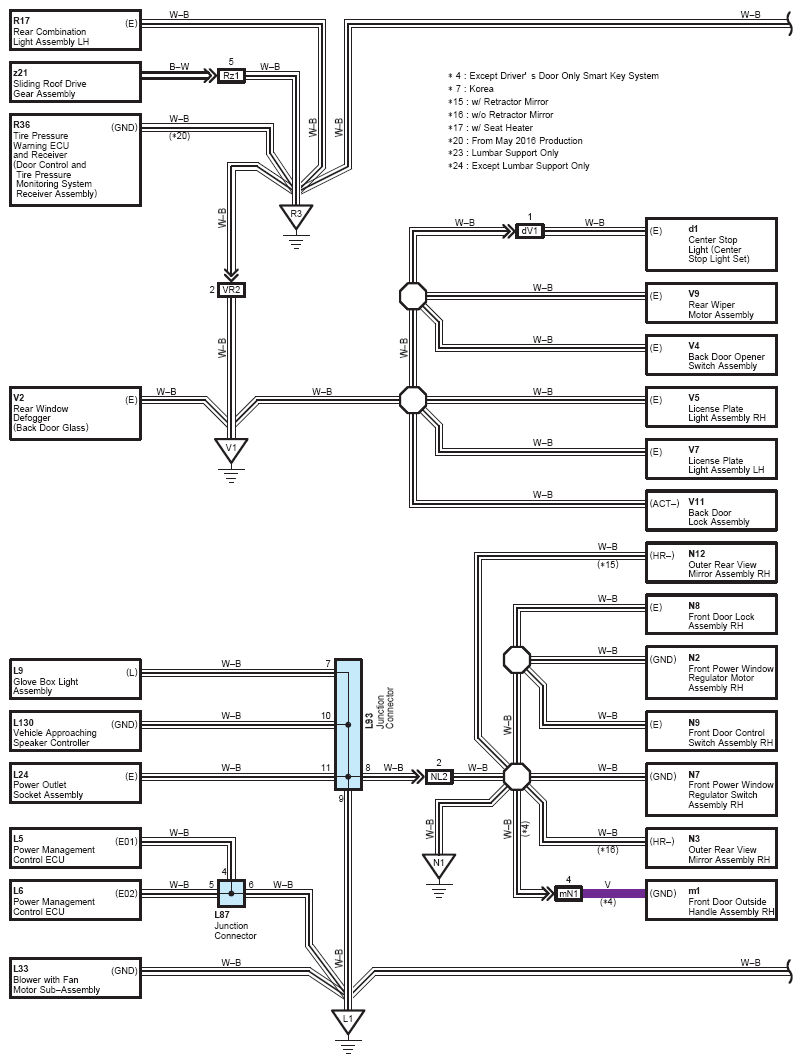

Fig 5: Ground Point (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

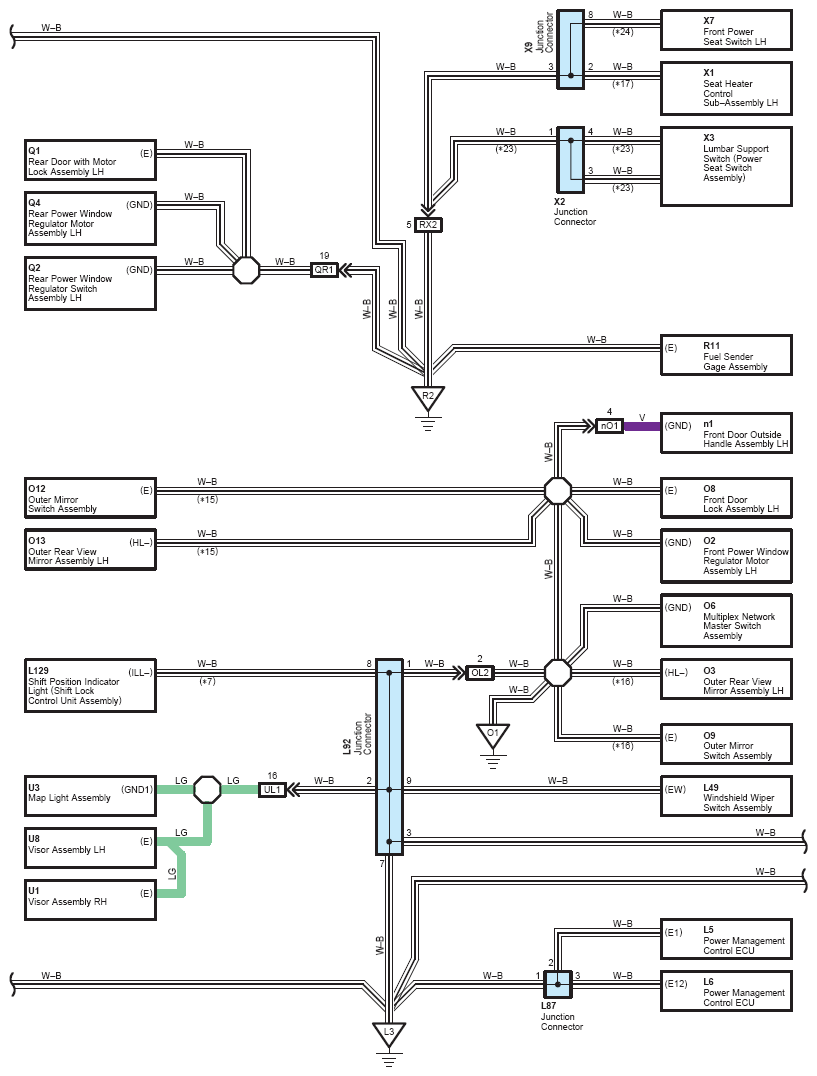

Fig 6: Ground Point (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Ground Point (7 Of 10)

Fig 8: Ground Point (8 Of 10)

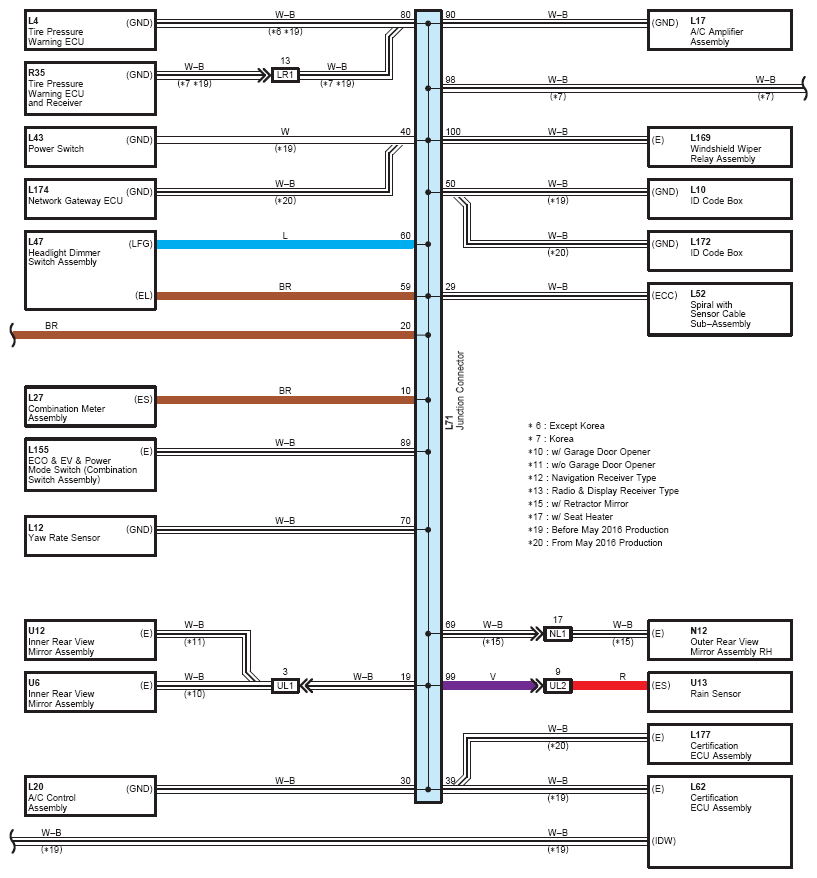

Fig 9: Ground Point (9 Of 10)

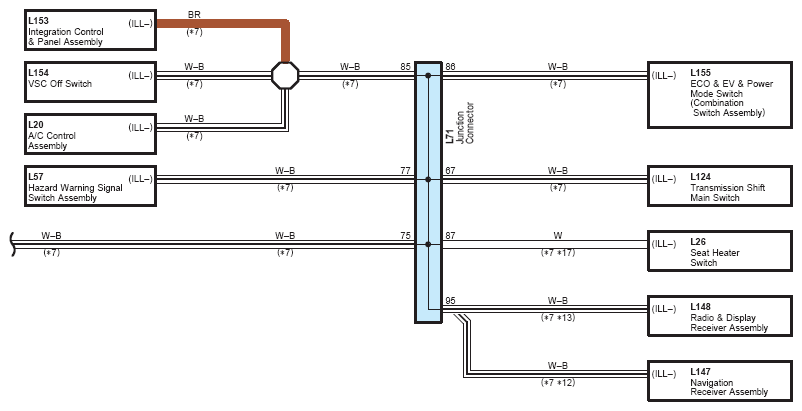

Fig 10: Ground Point (10 Of 10)
