System Diagrams — 2017 Toyota Prius V Three Service Manual ~ LEMON Manuals

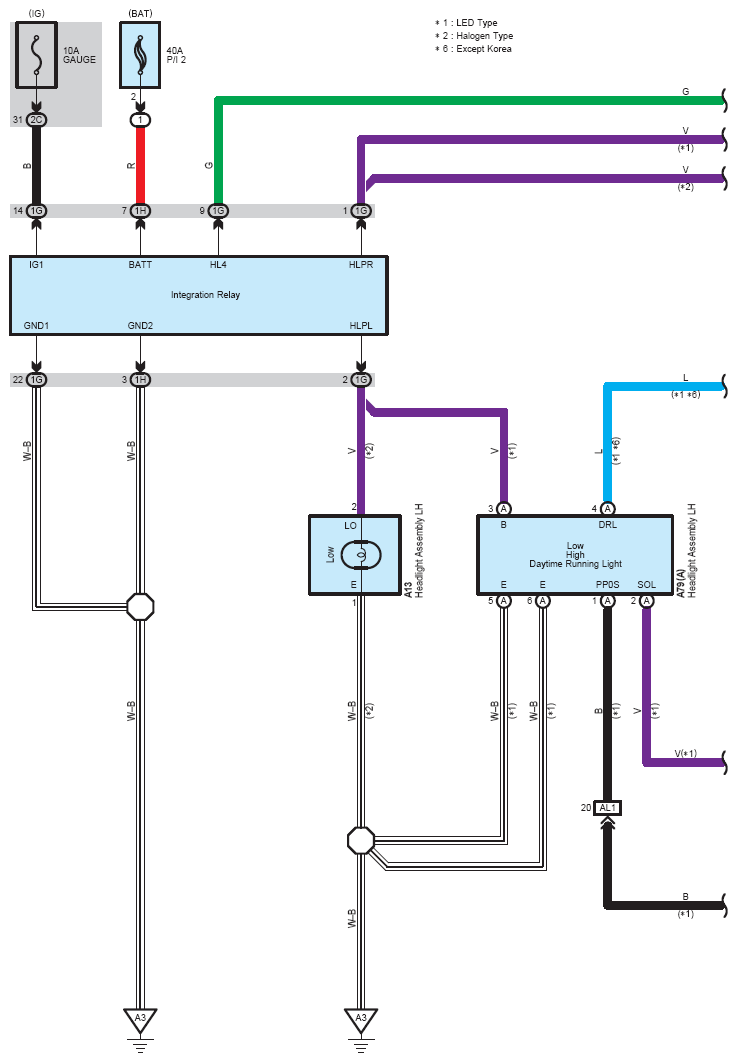

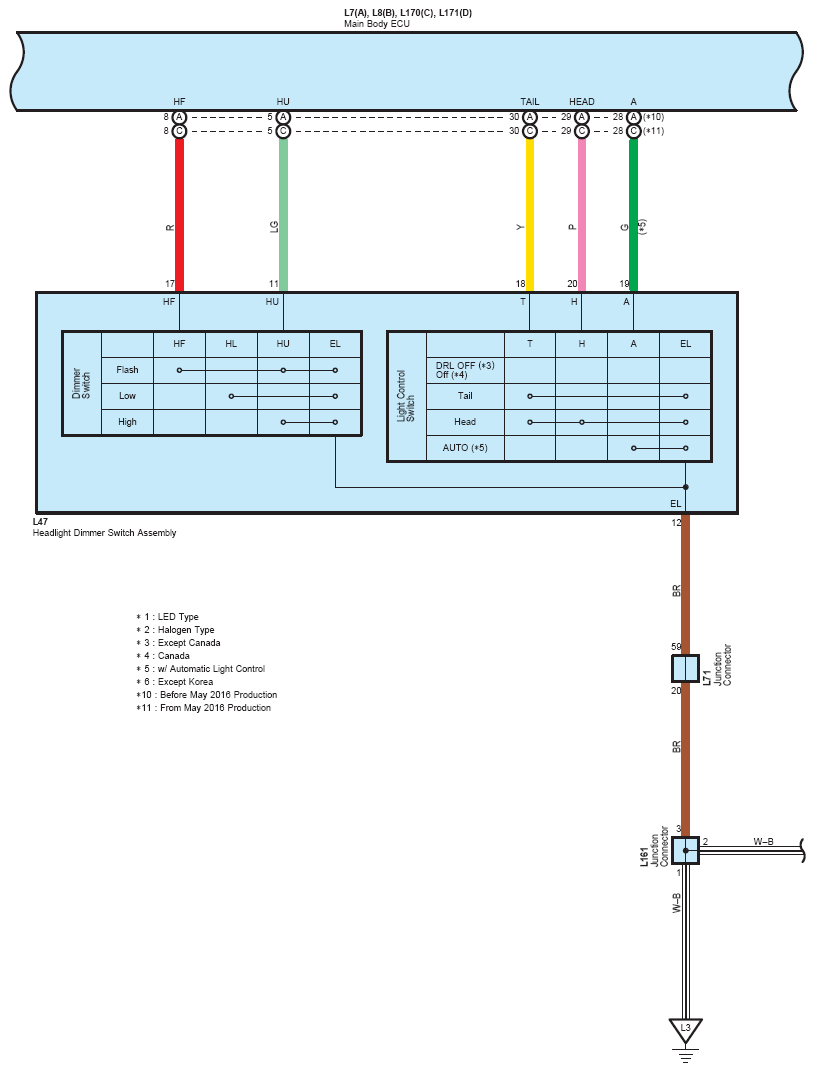

Fig 1: Headlight (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Headlight (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

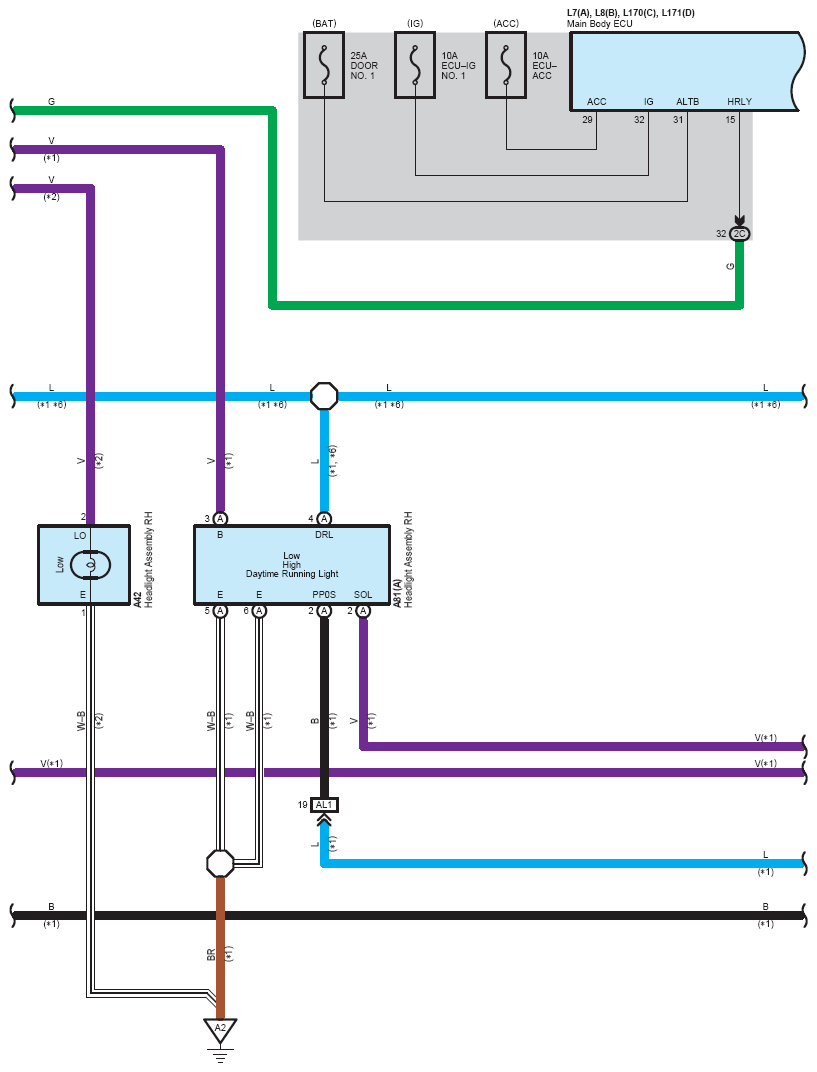

Fig 3: Headlight (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

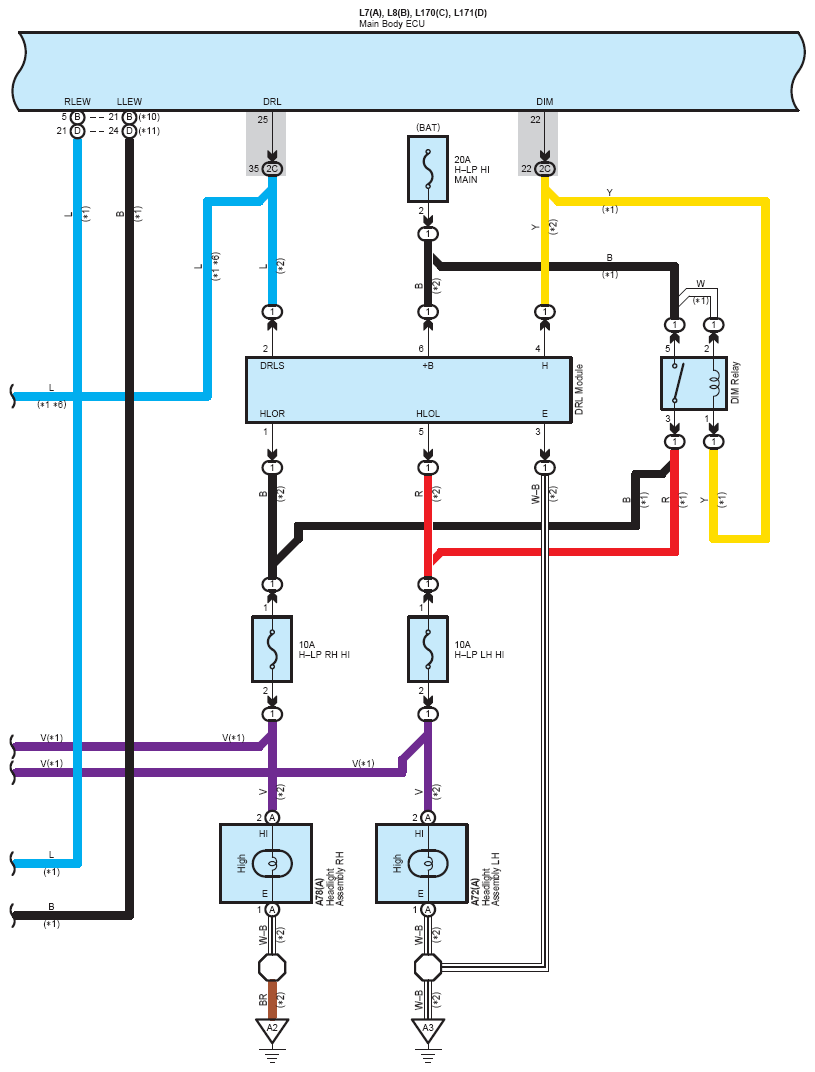

Fig 4: Headlight (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Headlight (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

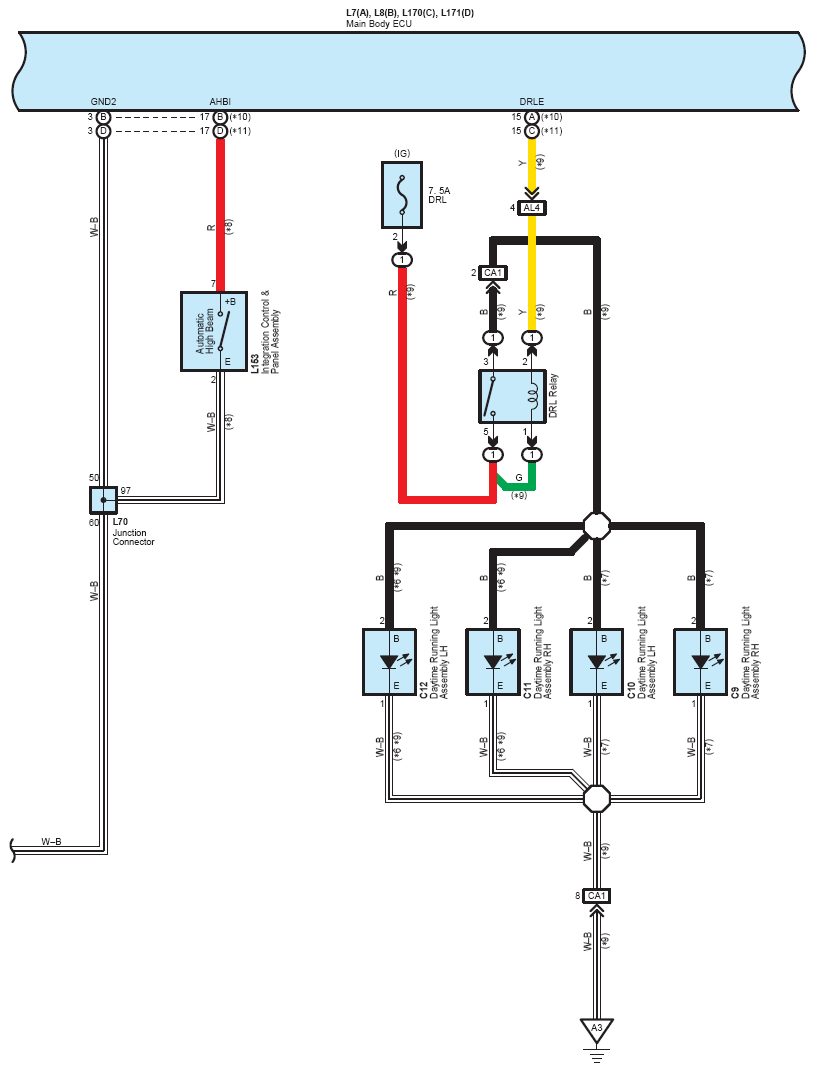

Fig 6: Headlight (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

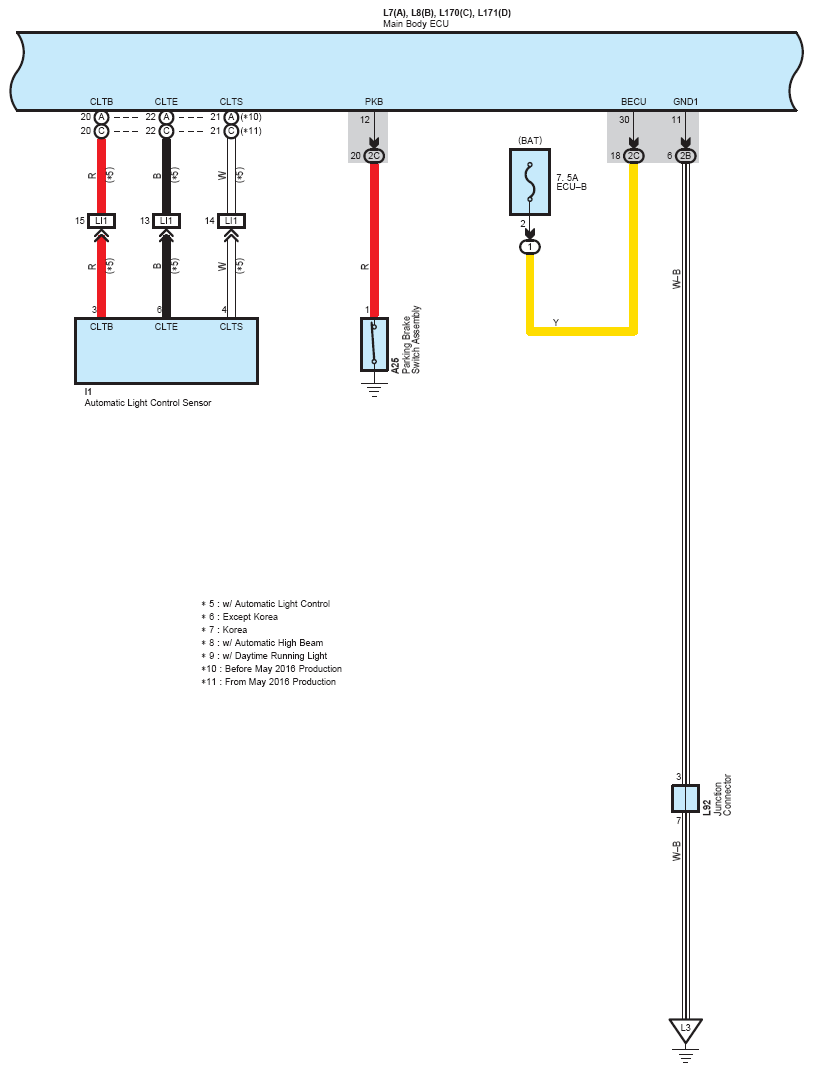

Fig 7: Headlight (7 Of 10)

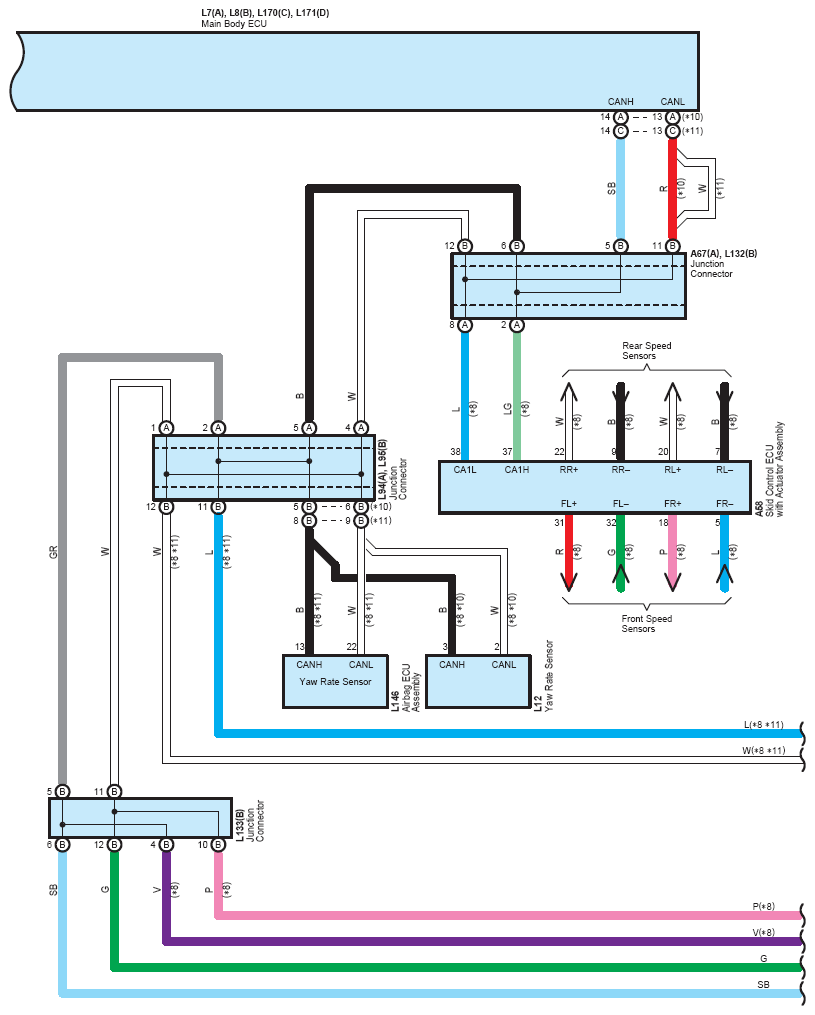

Fig 8: Headlight (8 Of 10)

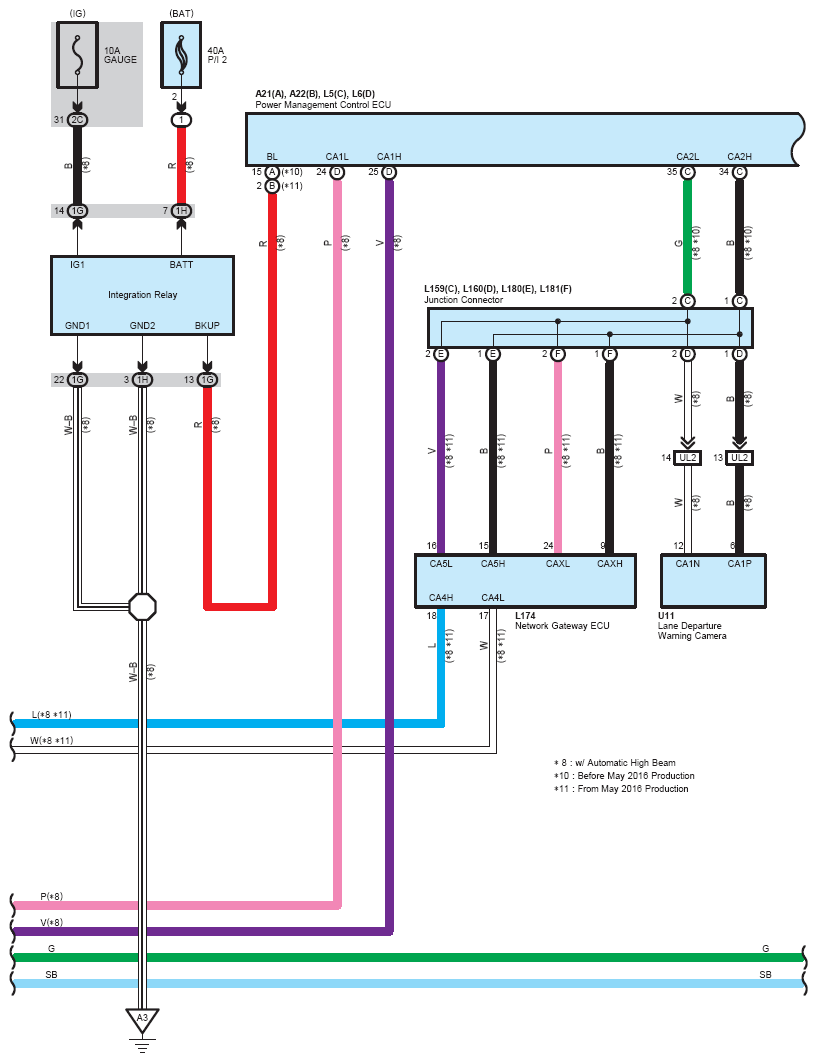

Fig 9: Headlight (9 Of 10)

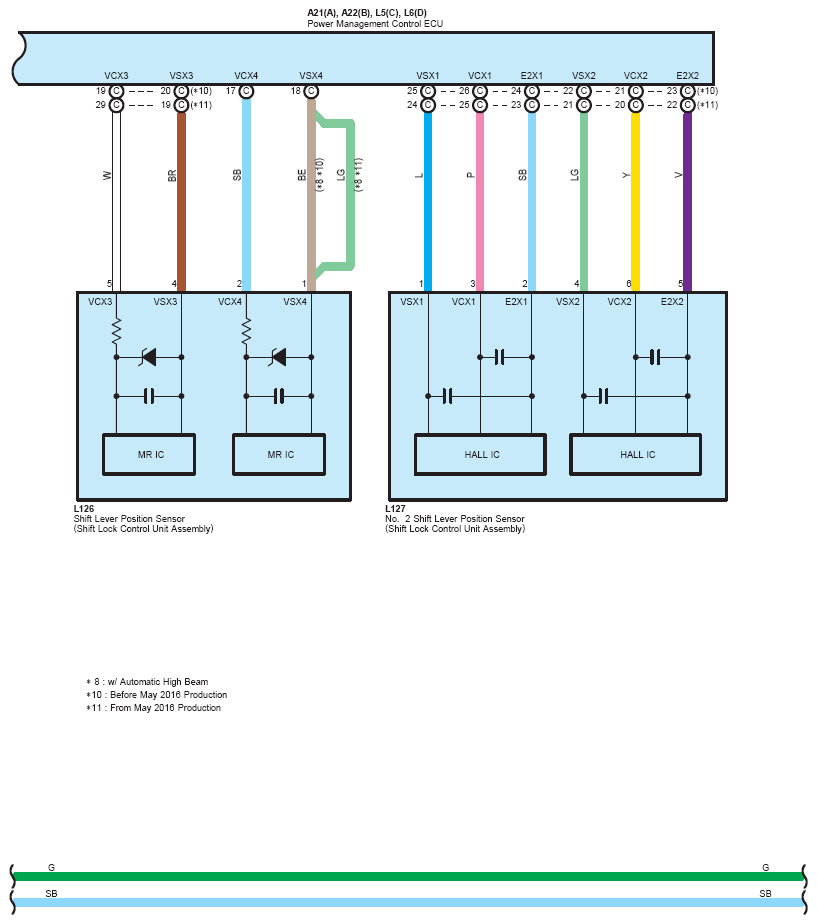

Fig 10: Headlight (10 Of 10)
