System Diagrams — 2017 Toyota Prius V Three Service Manual ~ LEMON Manuals

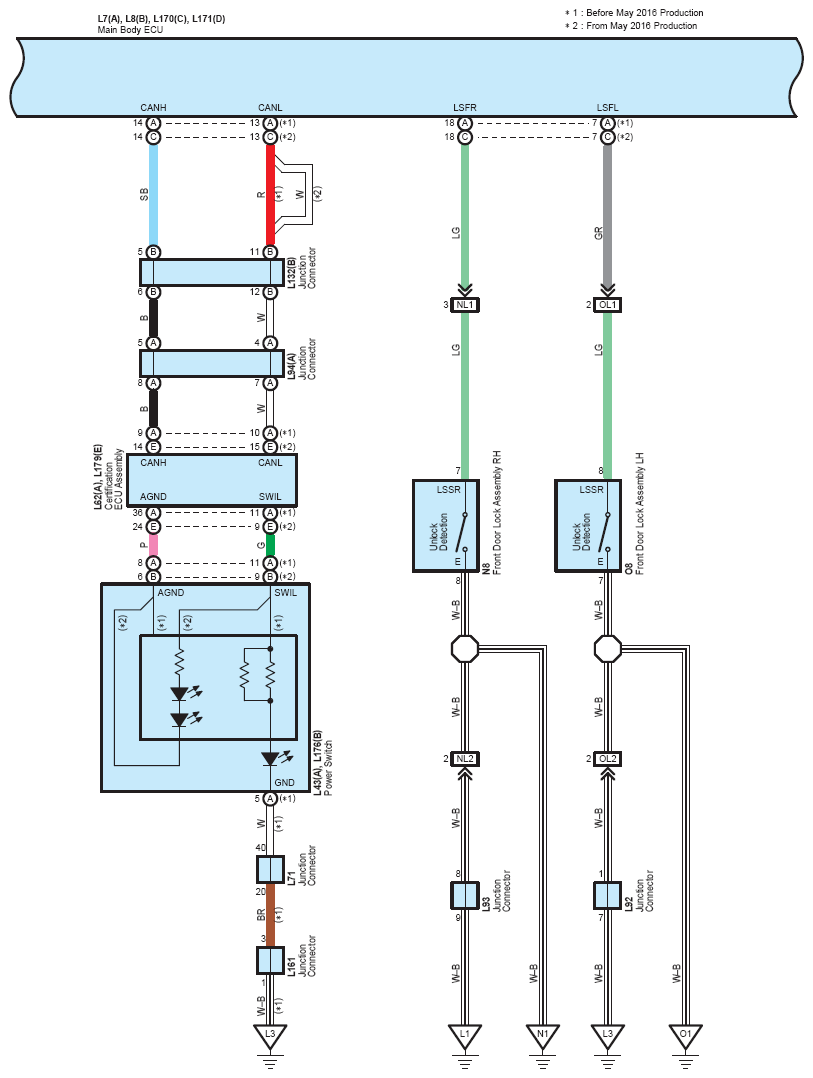

Fig 1: Interior Light (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

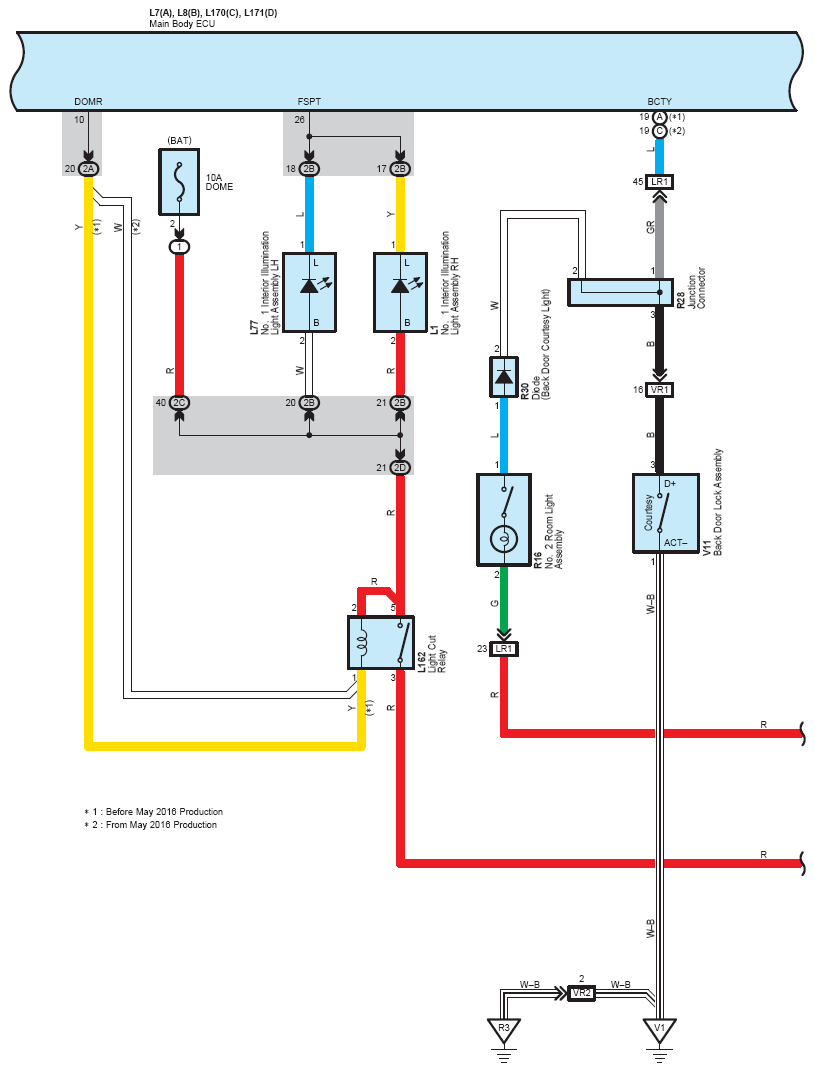

Fig 2: Interior Light (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

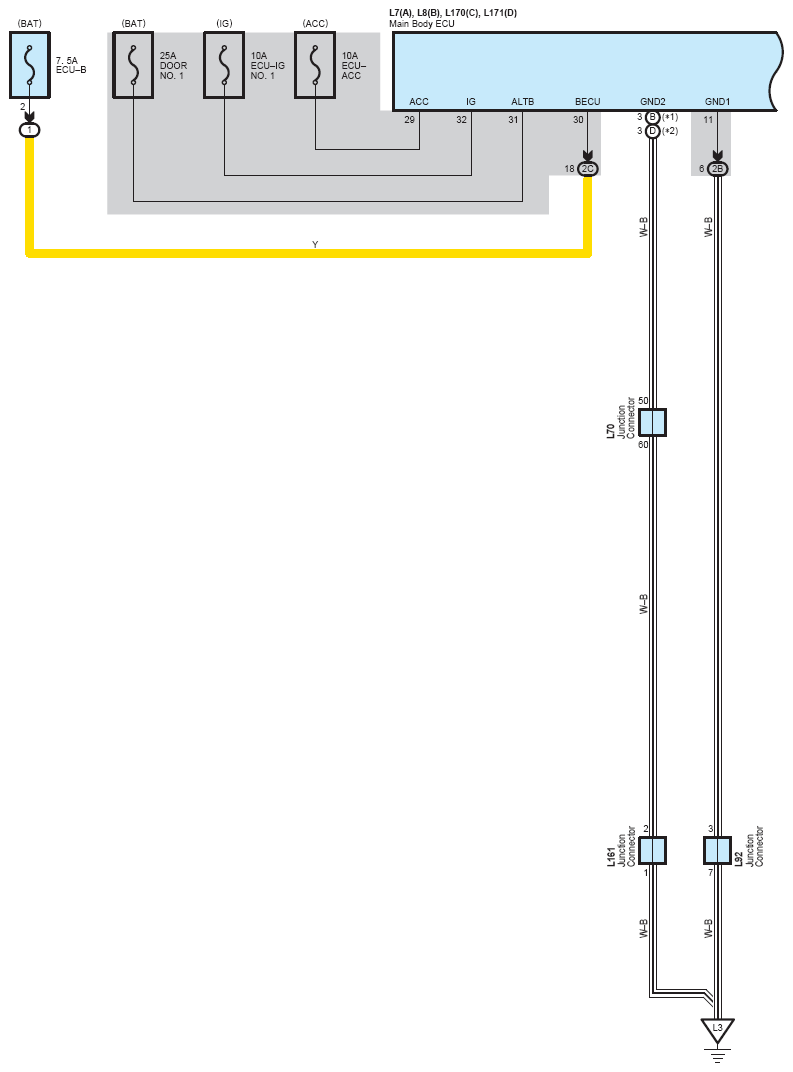

Fig 3: Interior Light (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

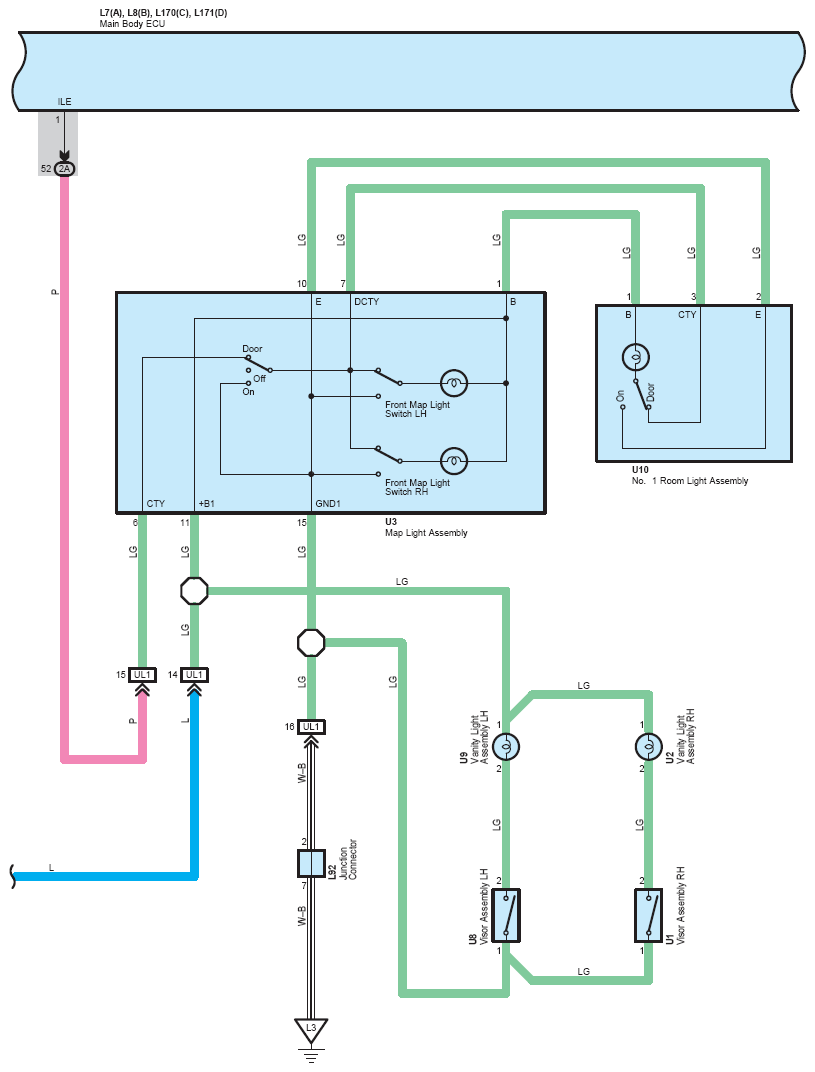

Fig 4: Interior Light (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

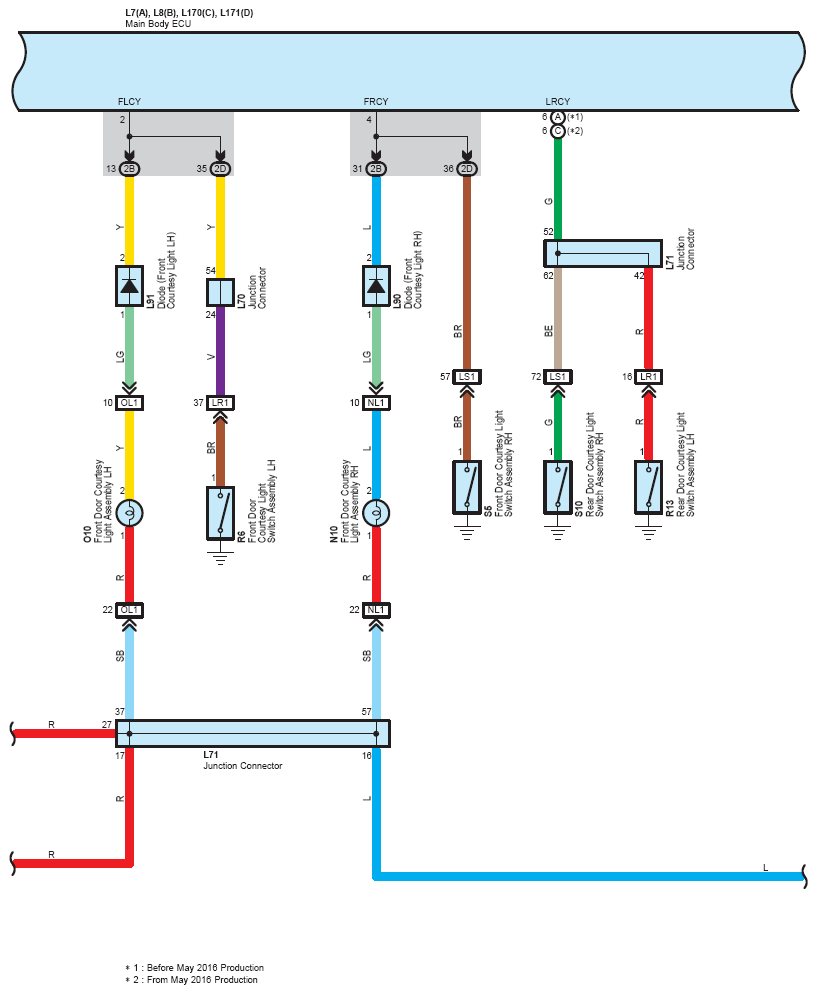

Fig 5: Interior Light (5 Of 6)

Fig 6: Interior Light (6 Of 6)
