Vehicle Proximity Notification System: Connectors

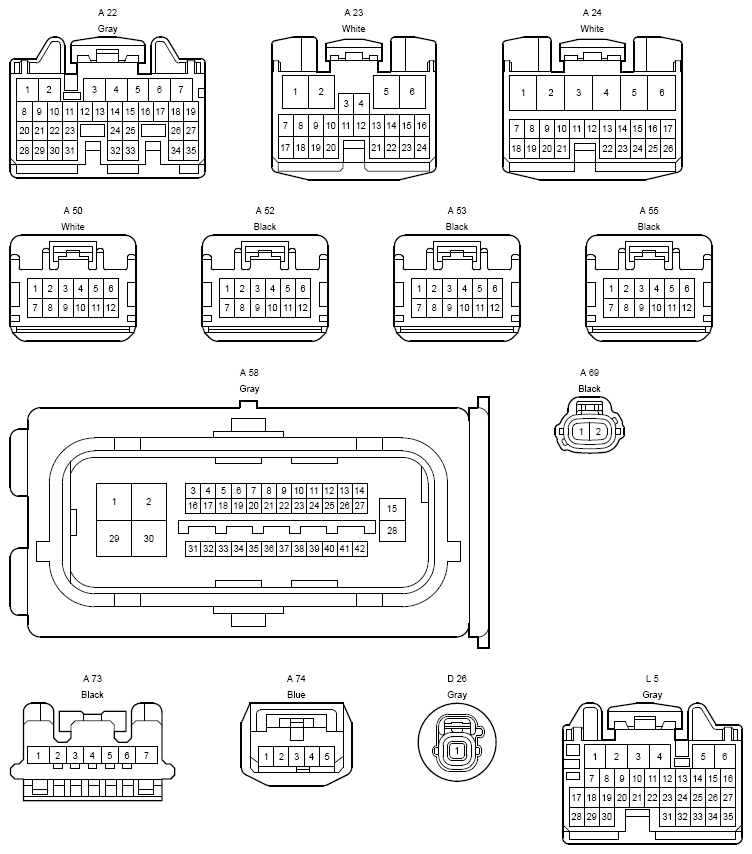

Fig 1: Connectors (1 Of 4)
G12214689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

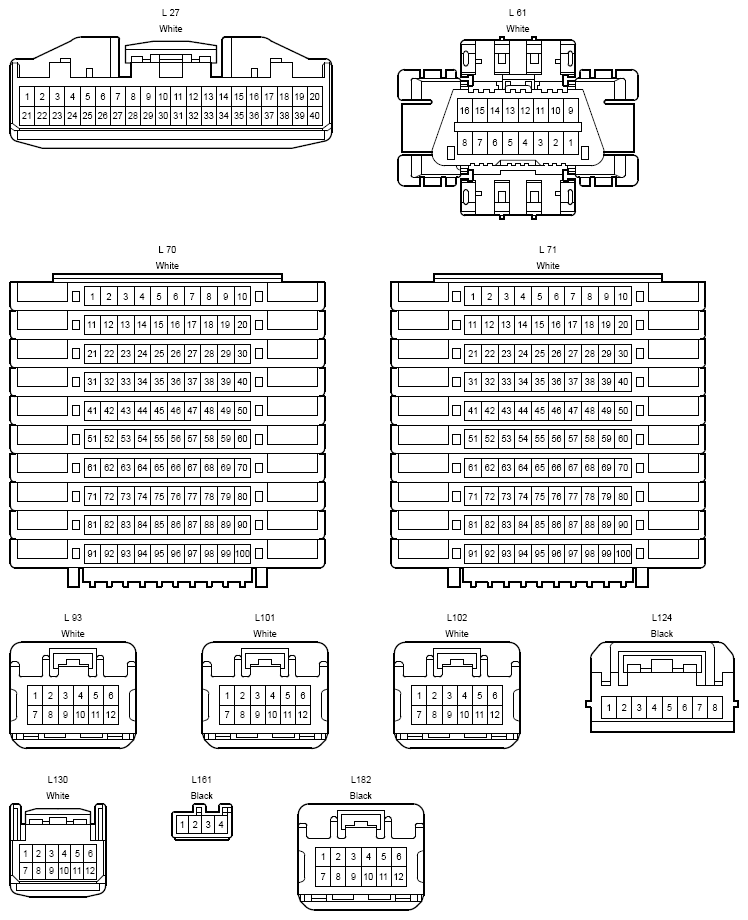

Fig 2: Connectors (2 Of 4)
G12214690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

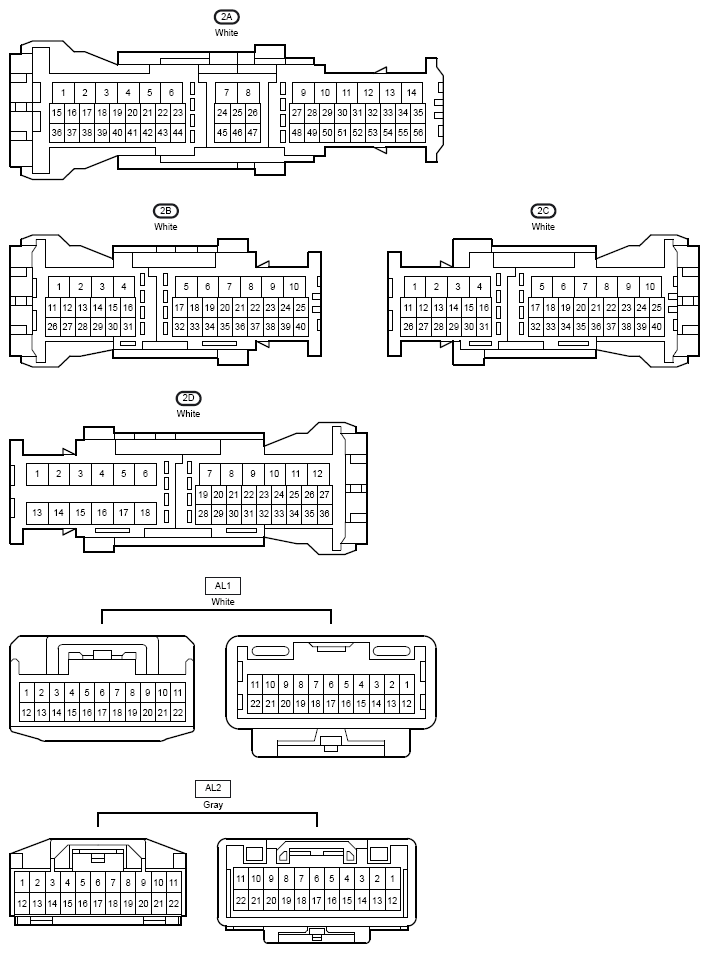

Fig 3: Connectors (3 Of 4)
G12214691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Connectors (4 Of 4)
G12214692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
