System Diagrams

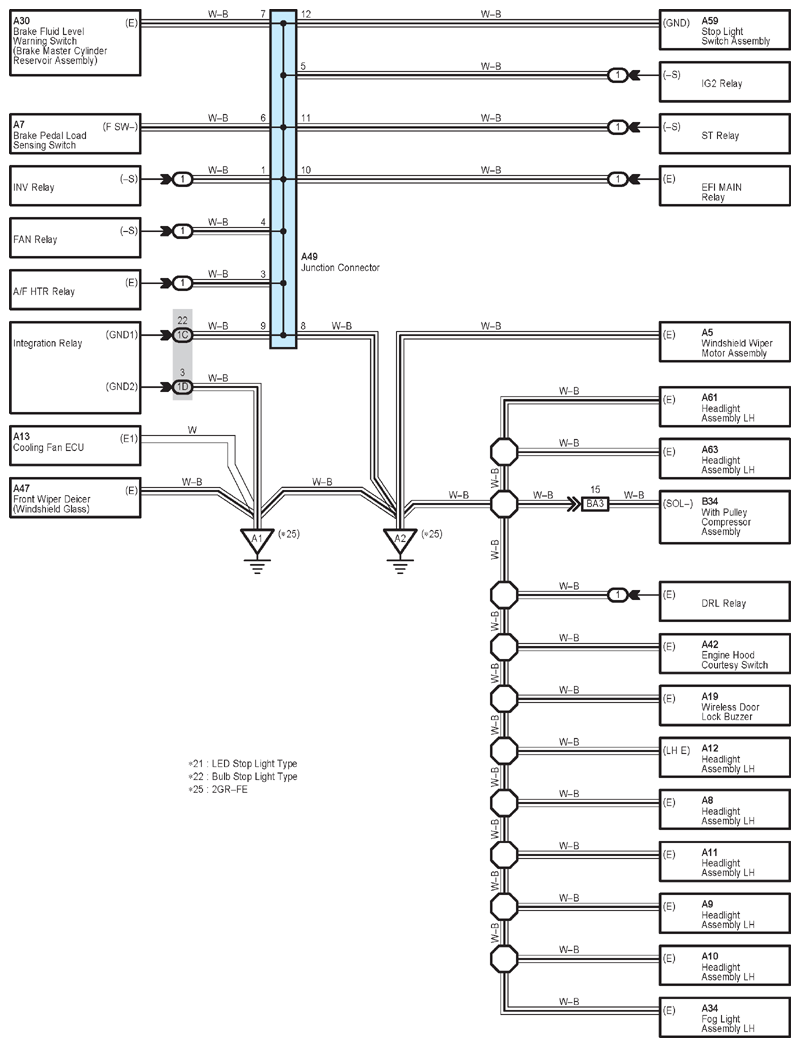

Fig 1: Ground Point (1 Of 15)

G12221530

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

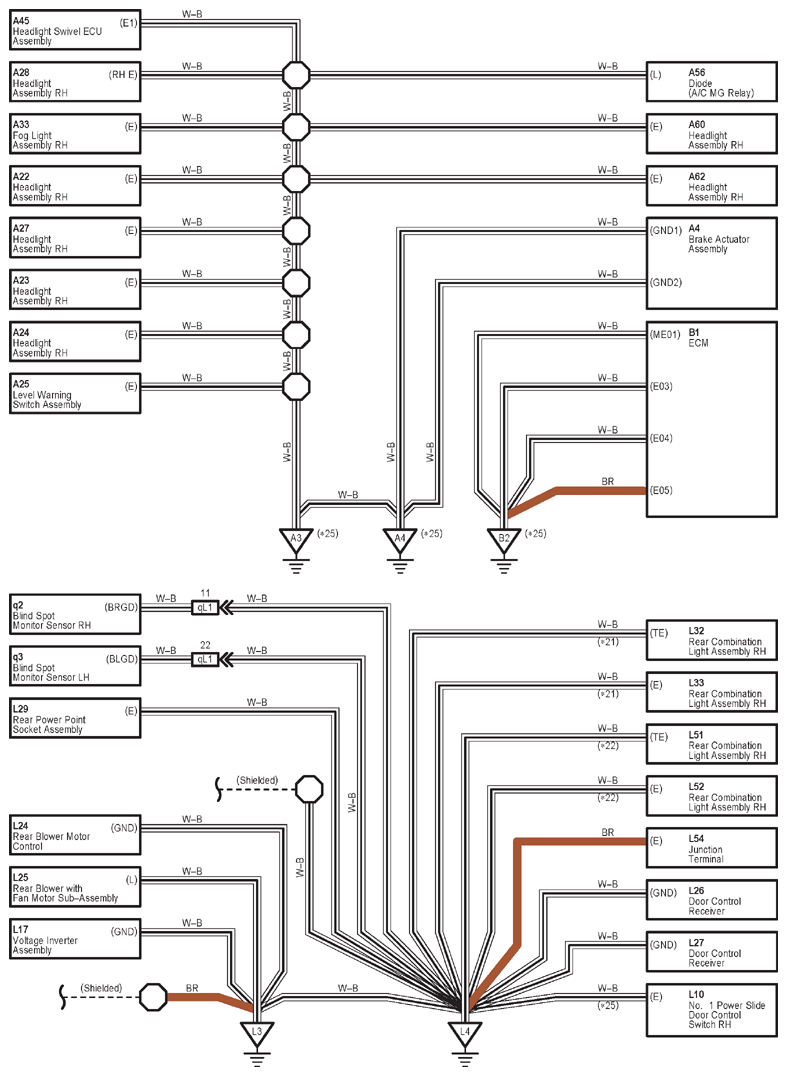

Fig 2: Ground Point (2 Of 15)

G12221531

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

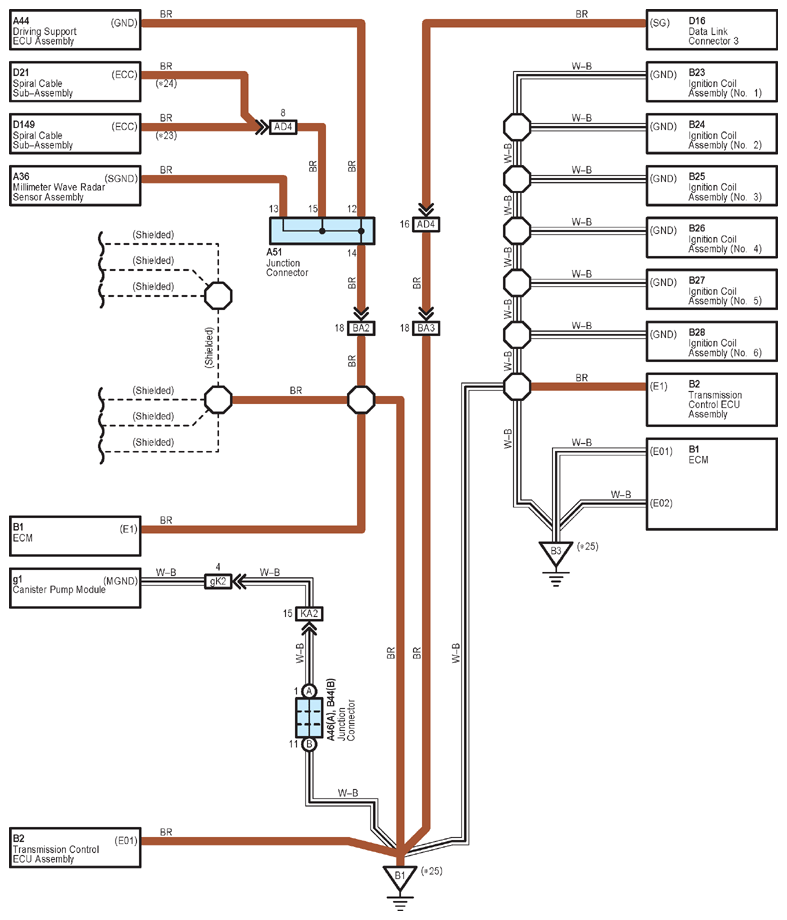

Fig 3: Ground Point (3 Of 15)

G12221532

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

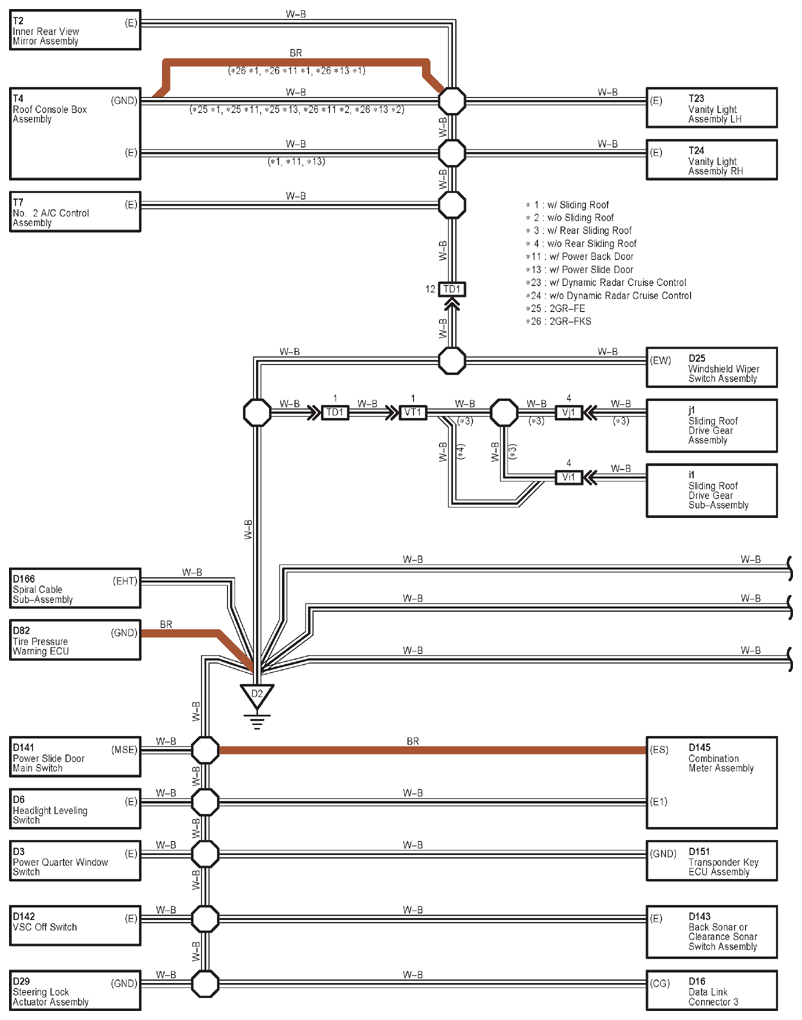

Fig 4: Ground Point (4 Of 15)

G12221533

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

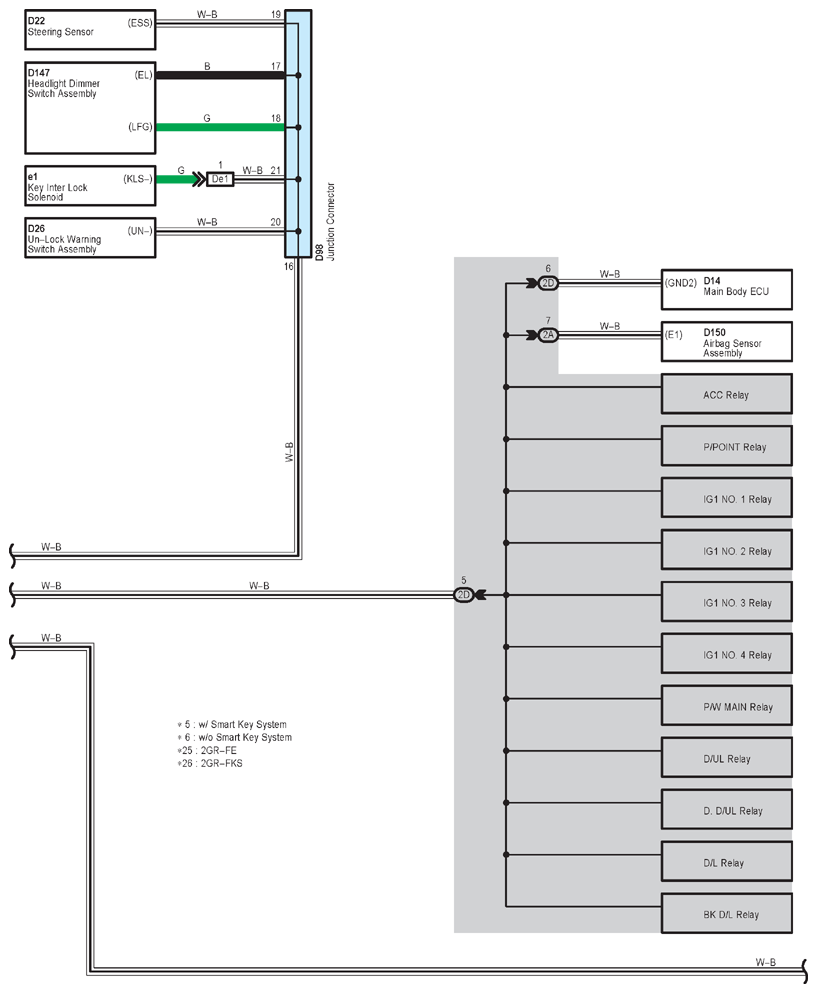

Fig 5: Ground Point (5 Of 15)

G12221534

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

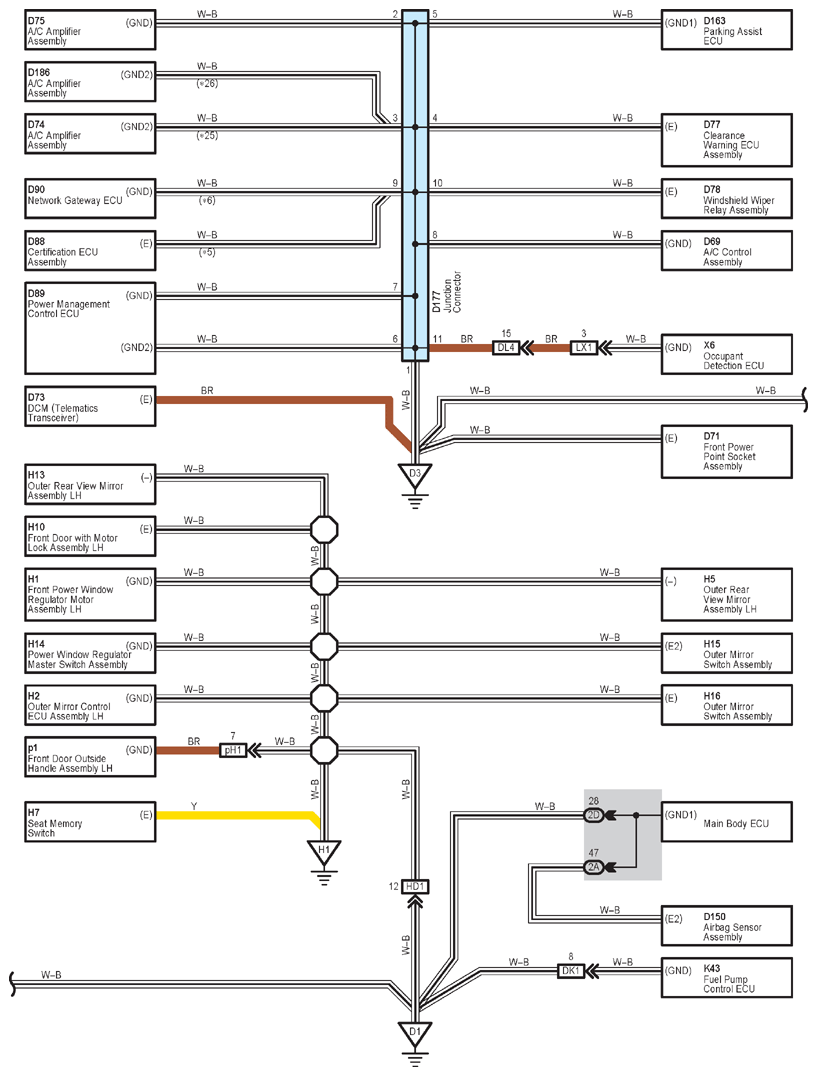

Fig 6: Ground Point (6 Of 15)

G12221535

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

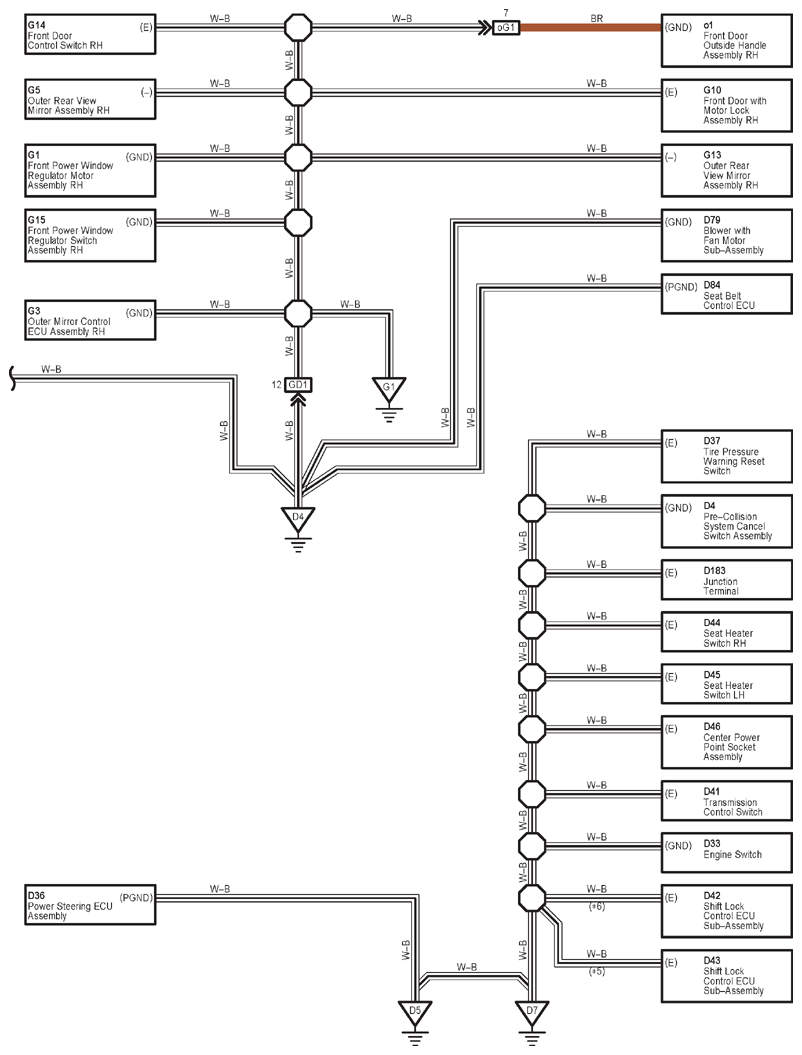

Fig 7: Ground Point (7 Of 15)

G12221536

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

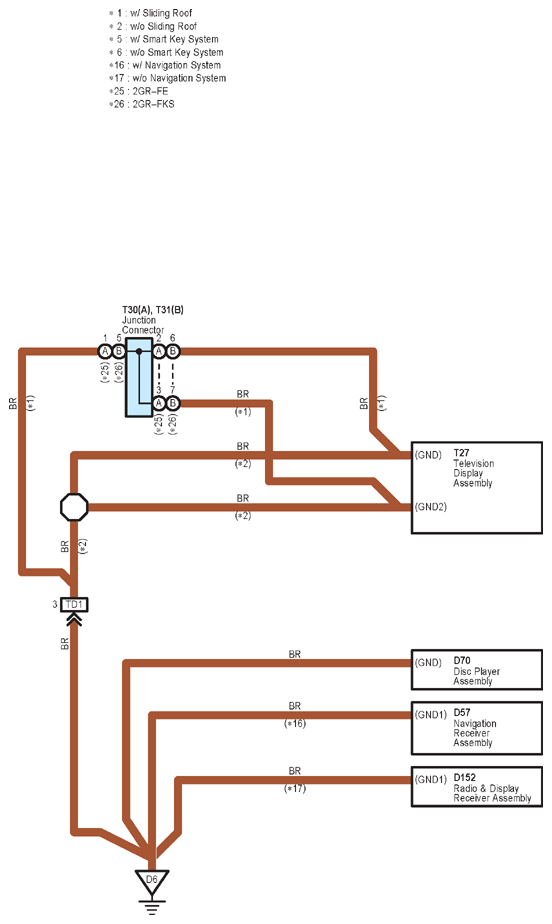

Fig 8: Ground Point (8 Of 15)

G12221537

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

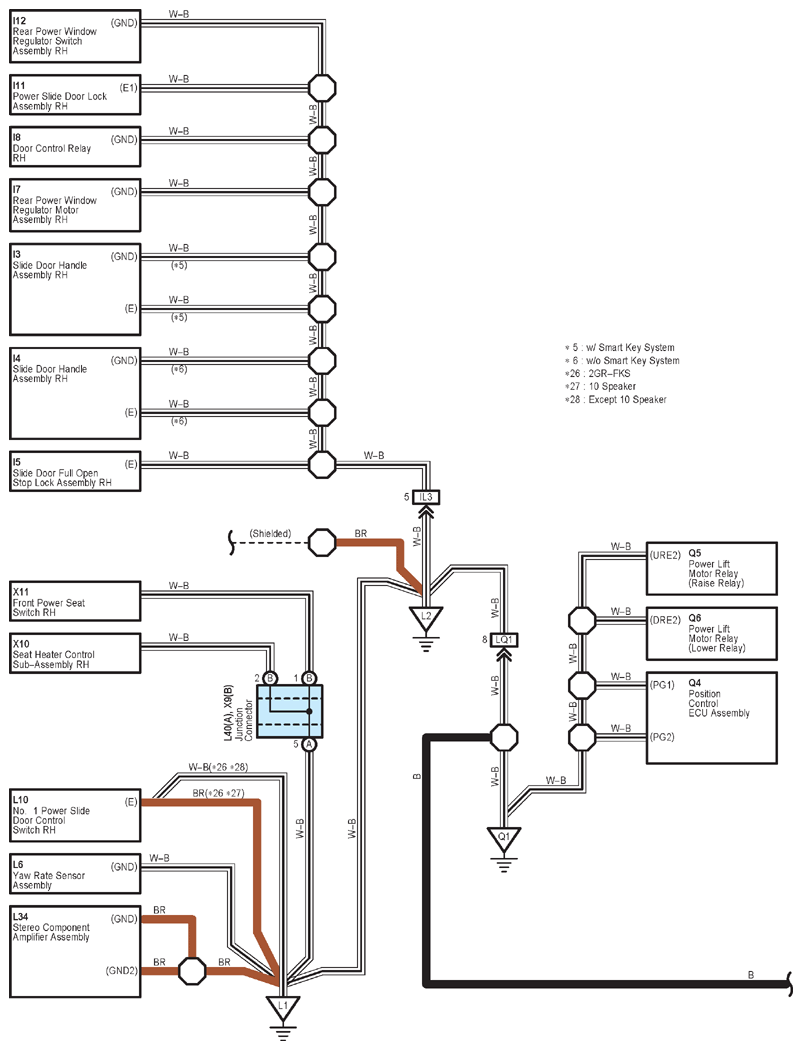

Fig 9: Ground Point (9 Of 15)

G12221538

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

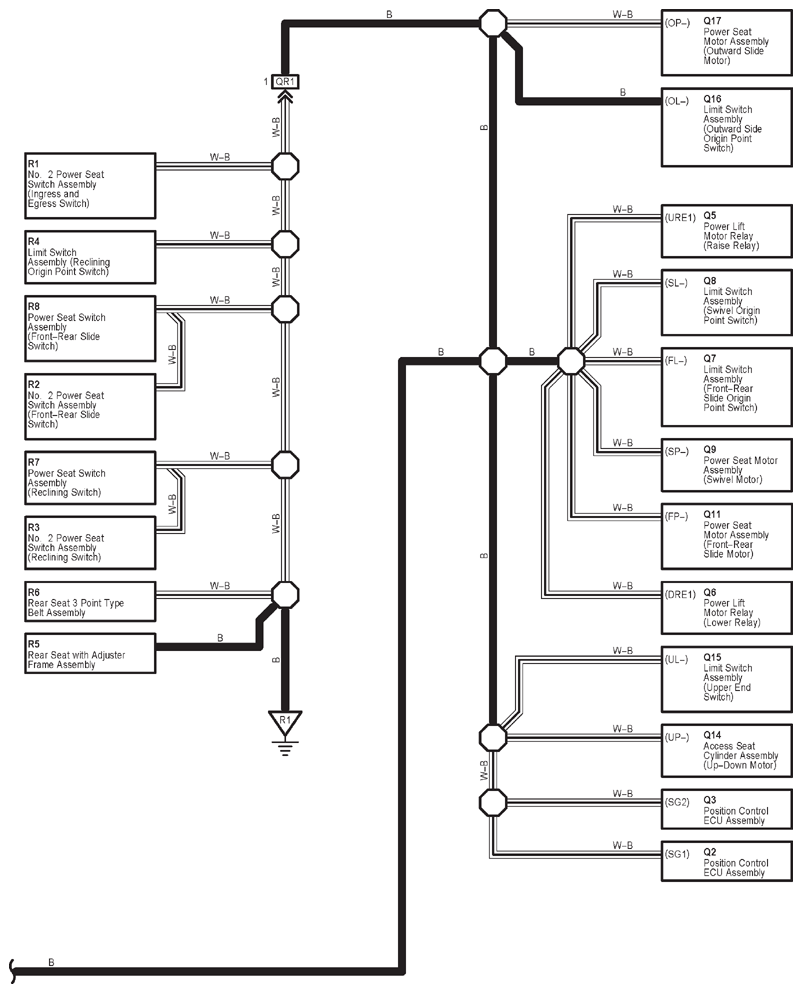

Fig 10: Ground Point (10 Of 15)

G12221539

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

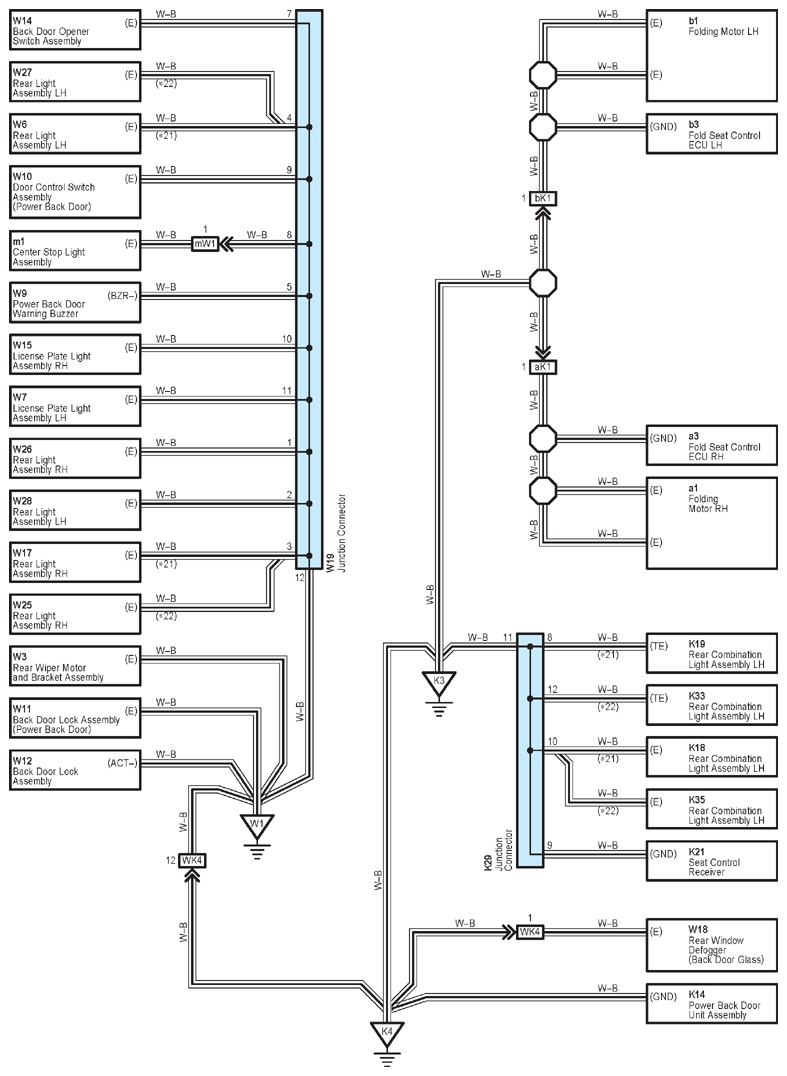

Fig 11: Ground Point (11 Of 15)

G12221540

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

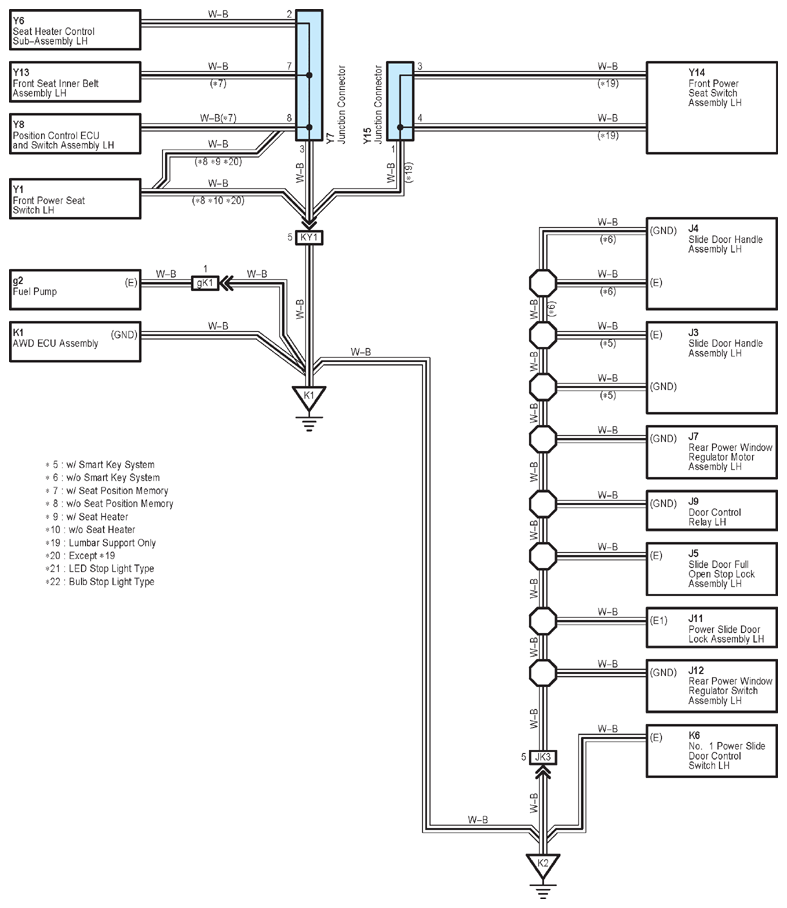

Fig 12: Ground Point (12 Of 15)

G12221541

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

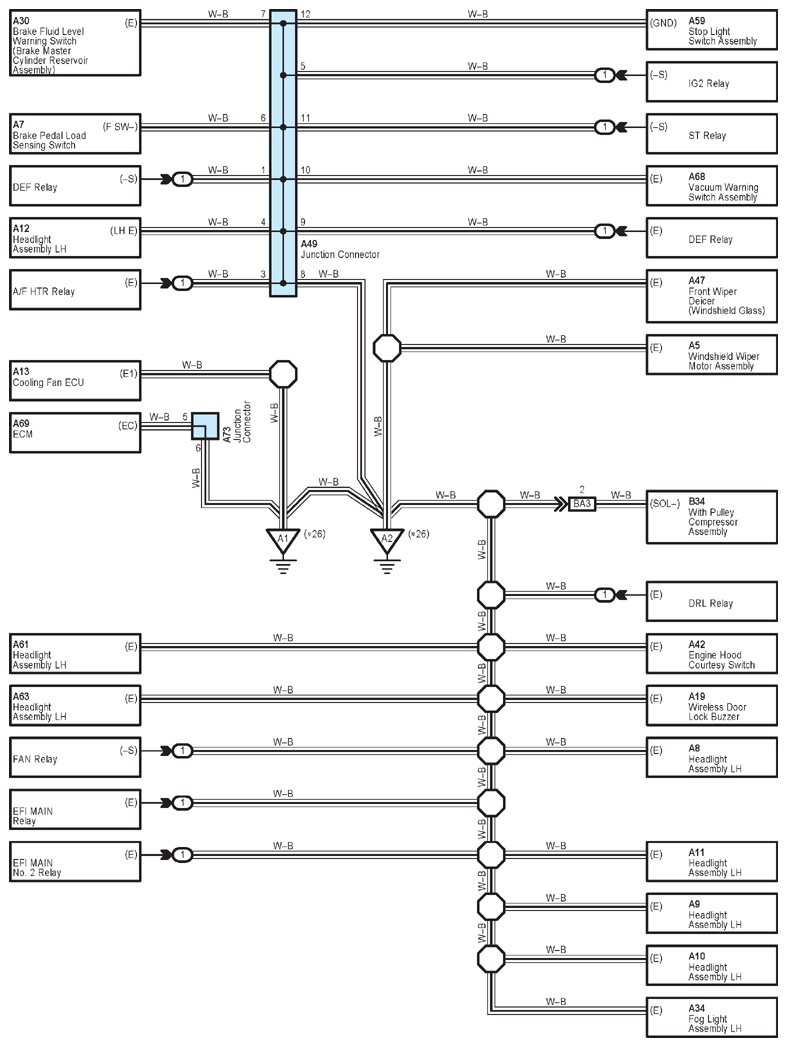

Fig 13: Ground Point (13 Of 15)

G12221542

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

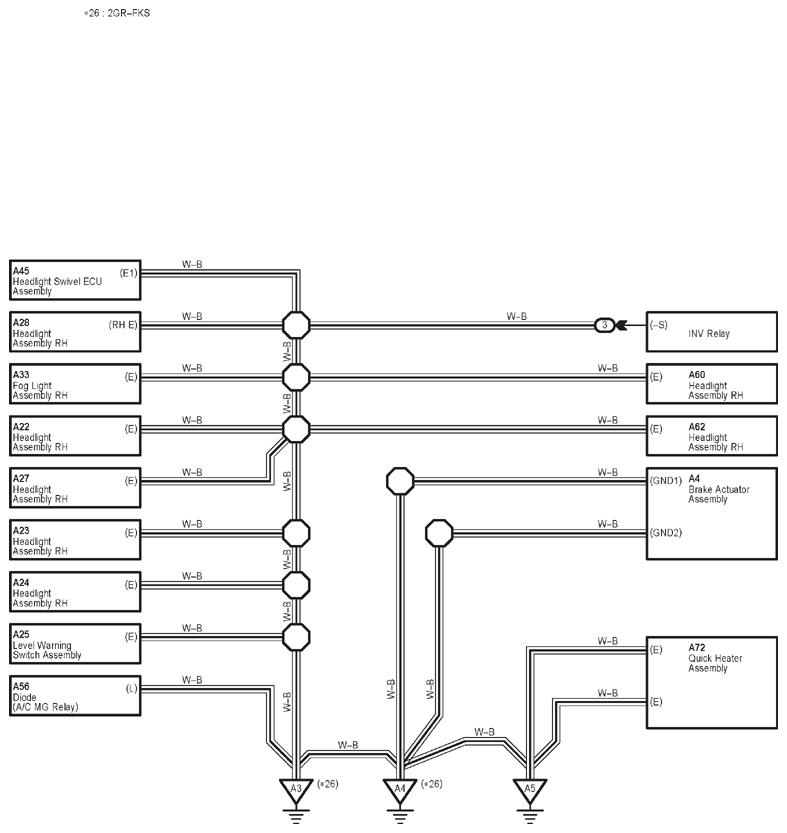

Fig 14: Ground Point (14 Of 15)

G12221543

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

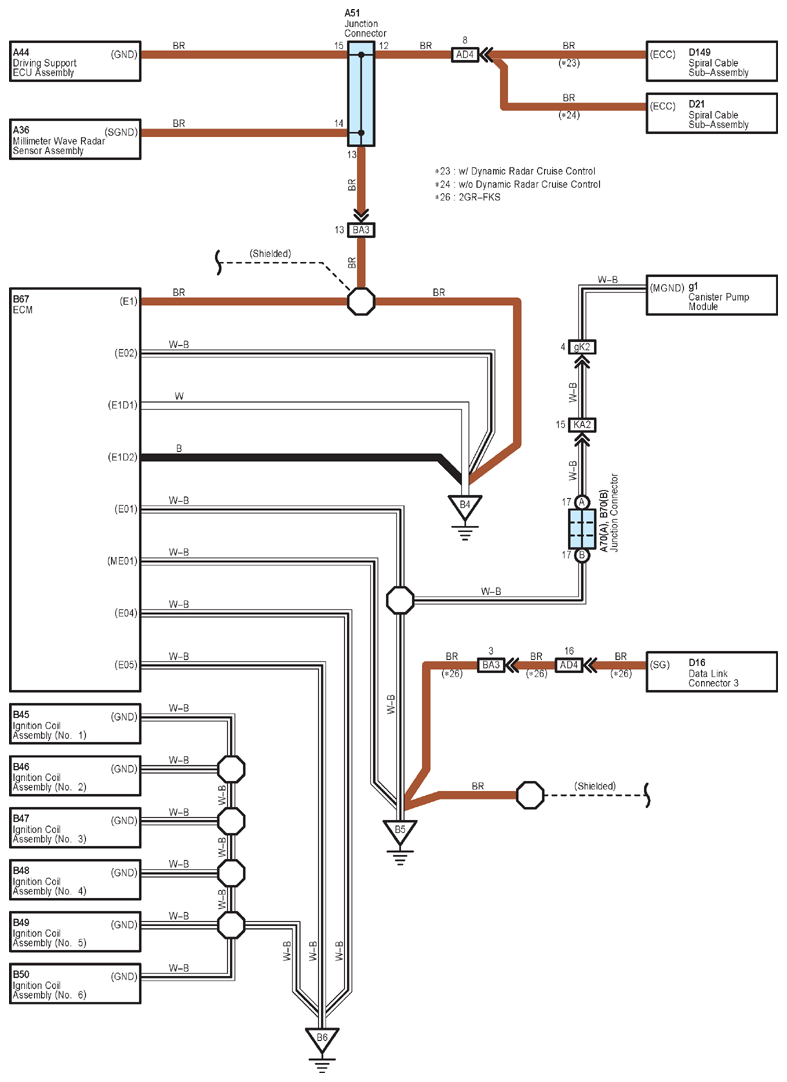

Fig 15: Ground Point (15 Of 15)

G12221544

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
