System Diagrams

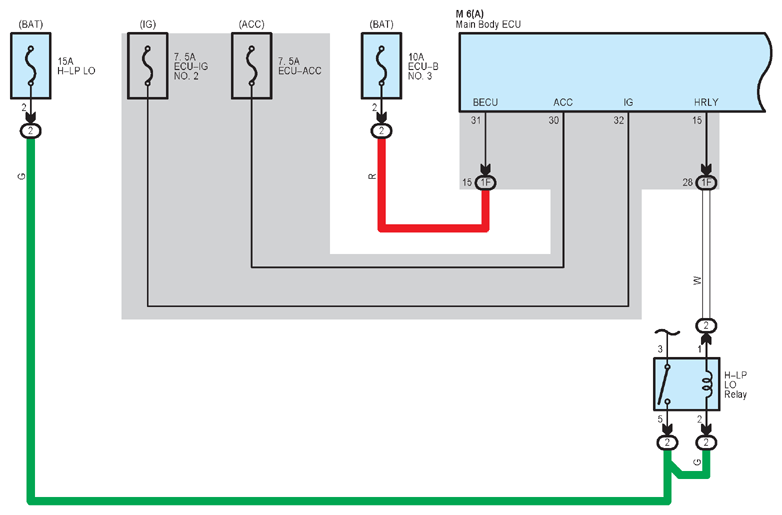

Fig 1: Automatic Light Control (1 Of 3)
G12222888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

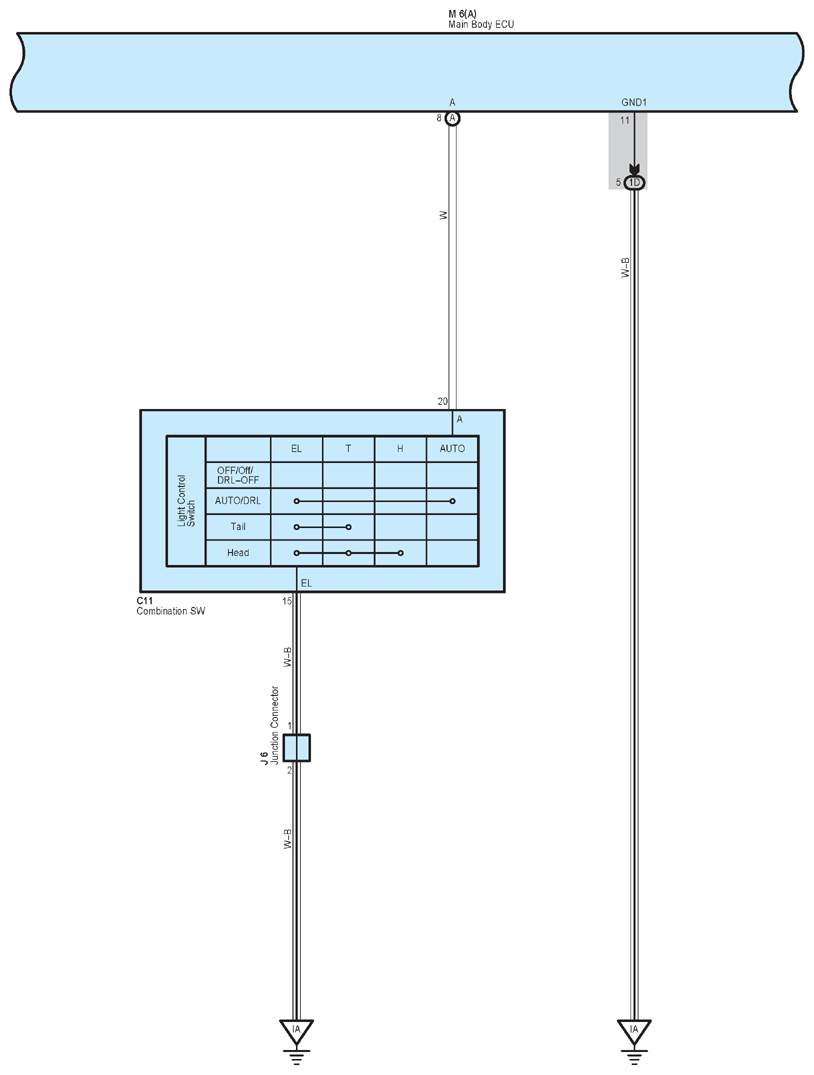

Fig 2: Automatic Light Control (2 Of 3)
G12222889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

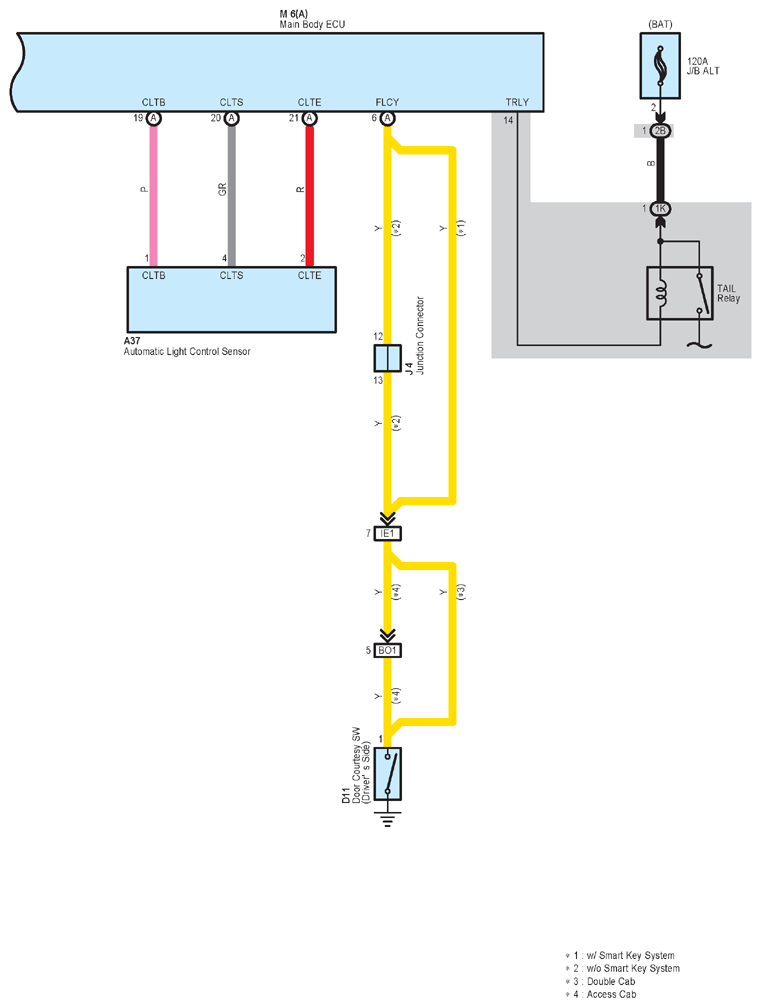

Fig 3: Automatic Light Control (3 Of 3)
G12222890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
