Toyota
>>
2017
>>
Tacoma TRD Pro, Automatic Trans
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM System Circuits
>>
Immobilizer System (W/O Smart Key System)
>>
System Diagrams
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagrams

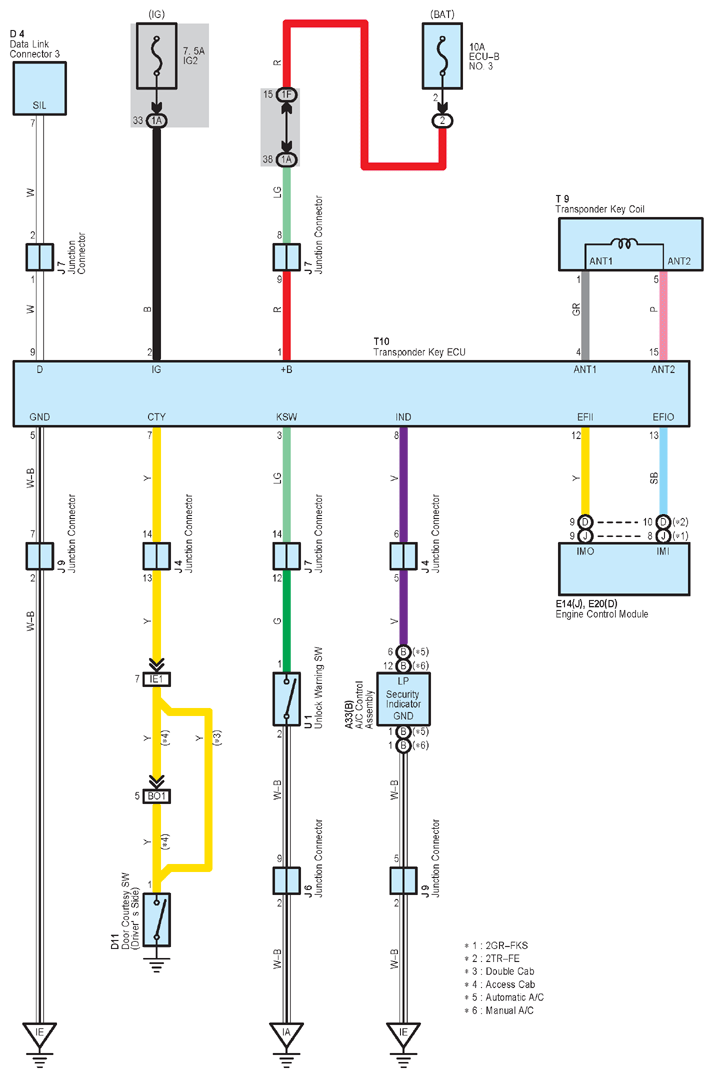

Fig 1: Immobilizer System (W/O Smart Key System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
