System Diagrams

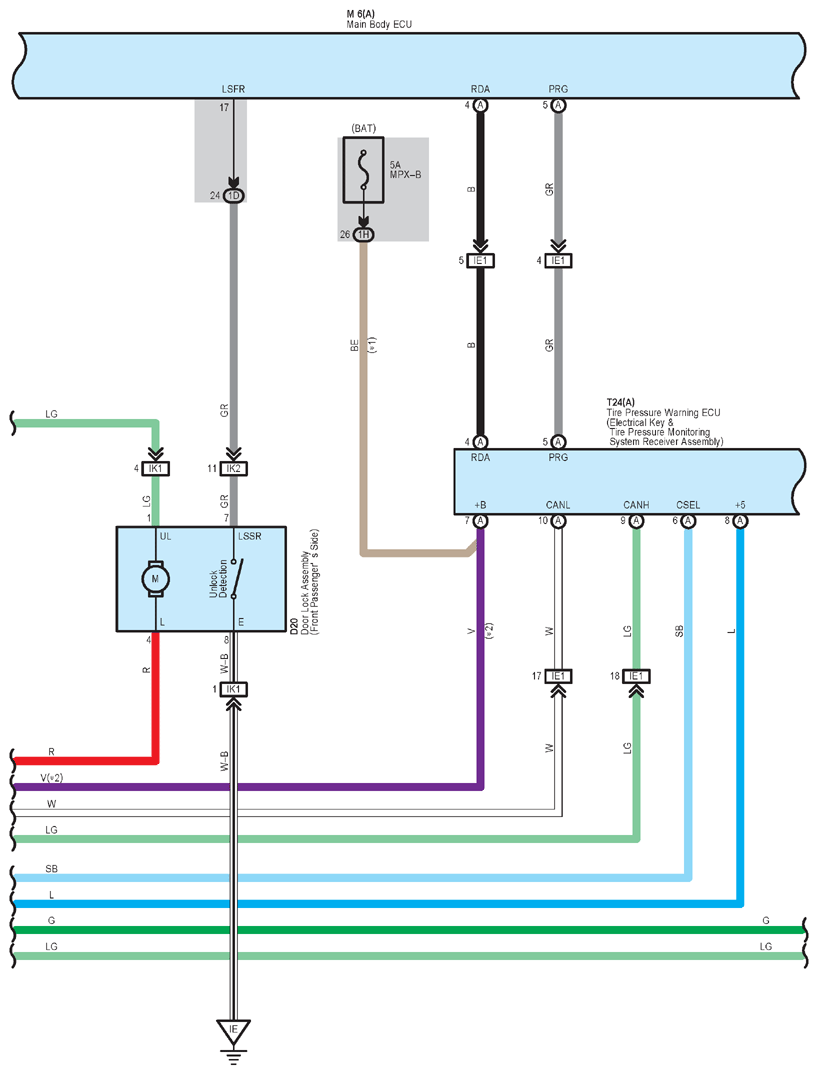

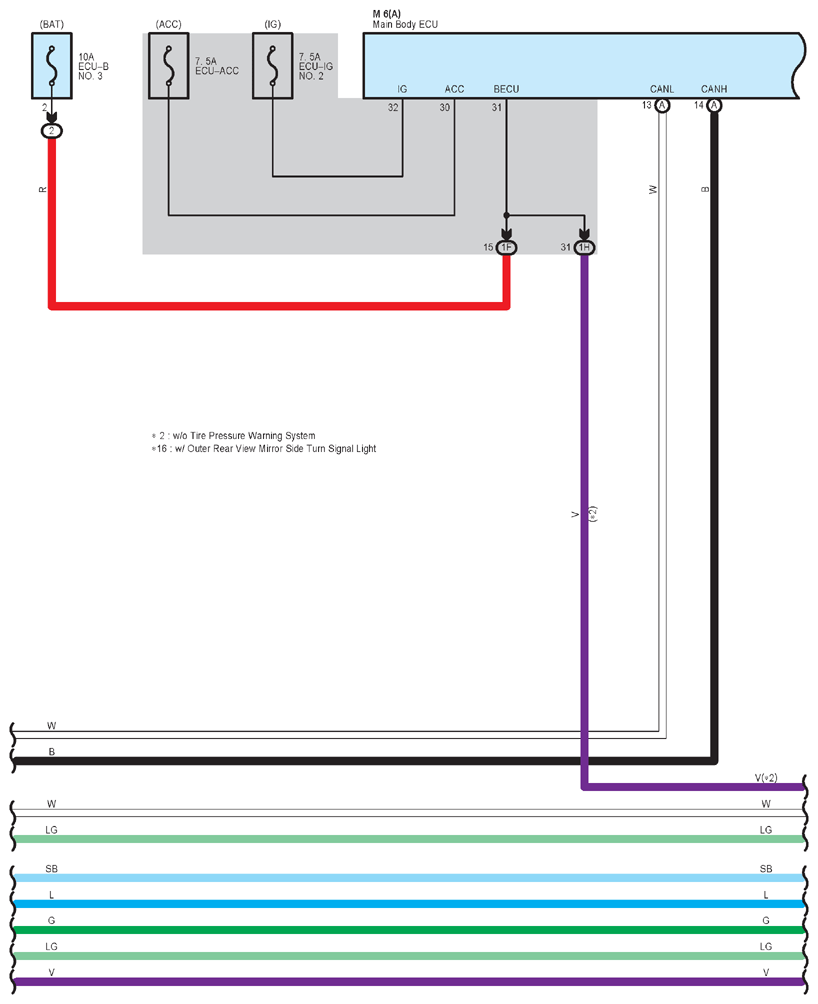

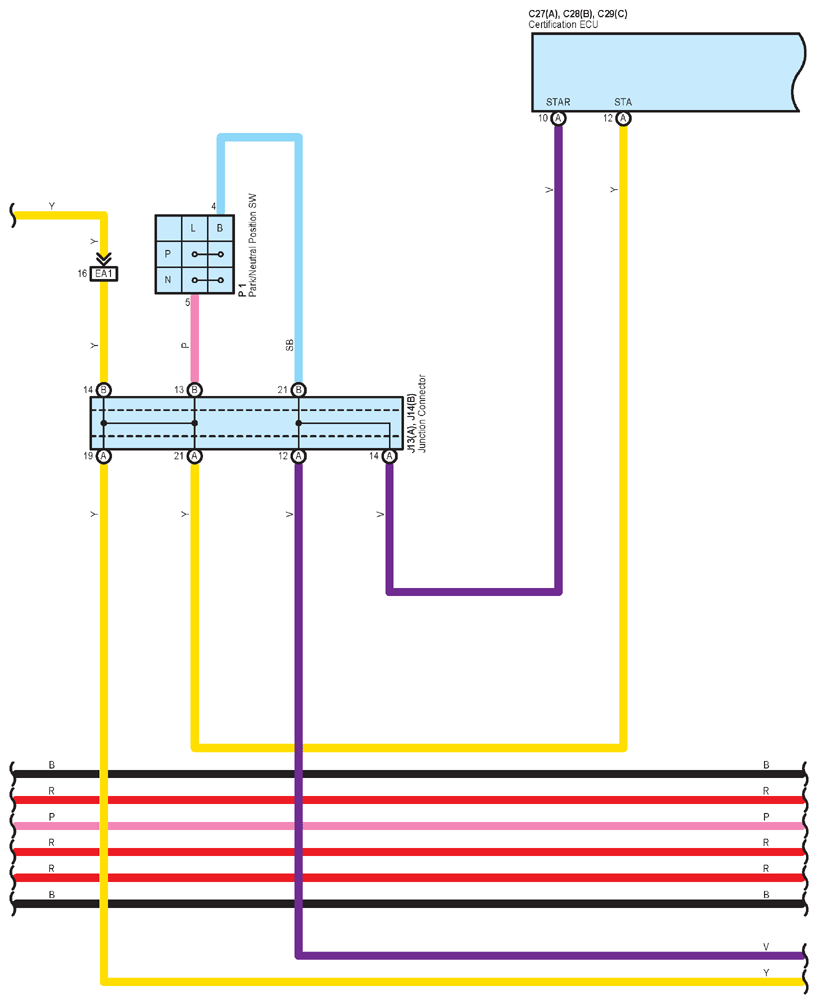

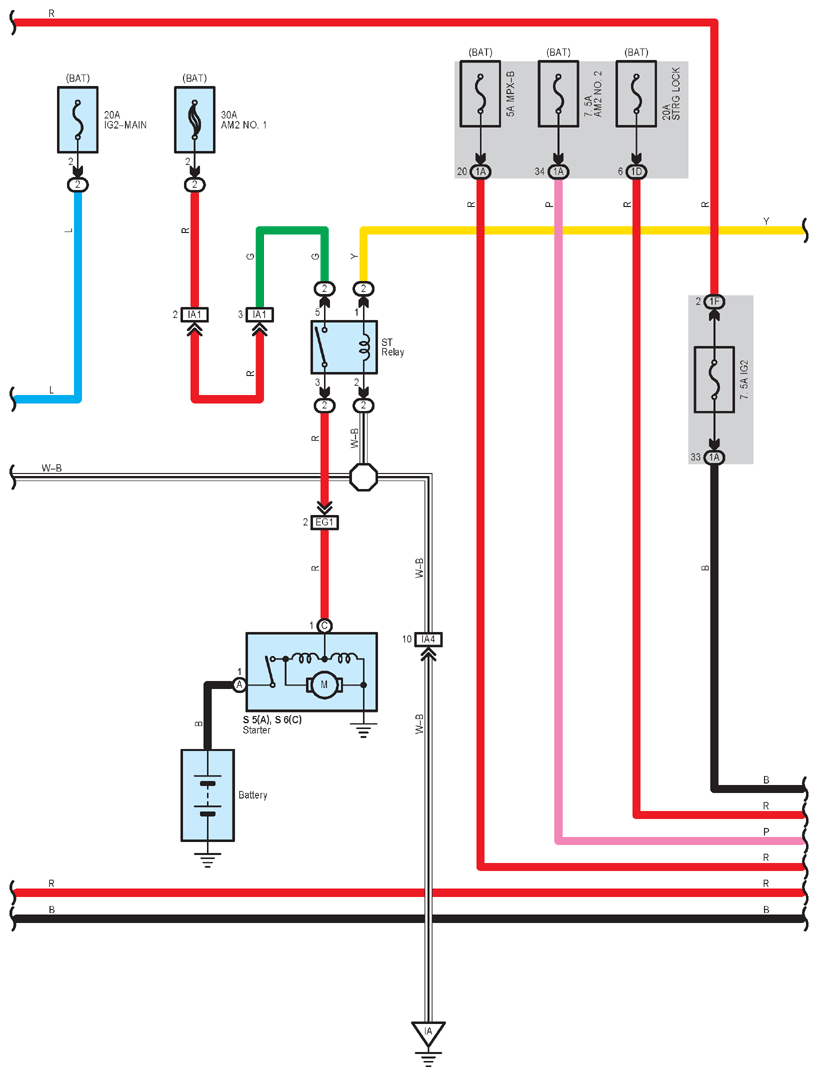

Fig 1: Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock, Wireless Door Lock Control (W/Smart Key System) (1 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

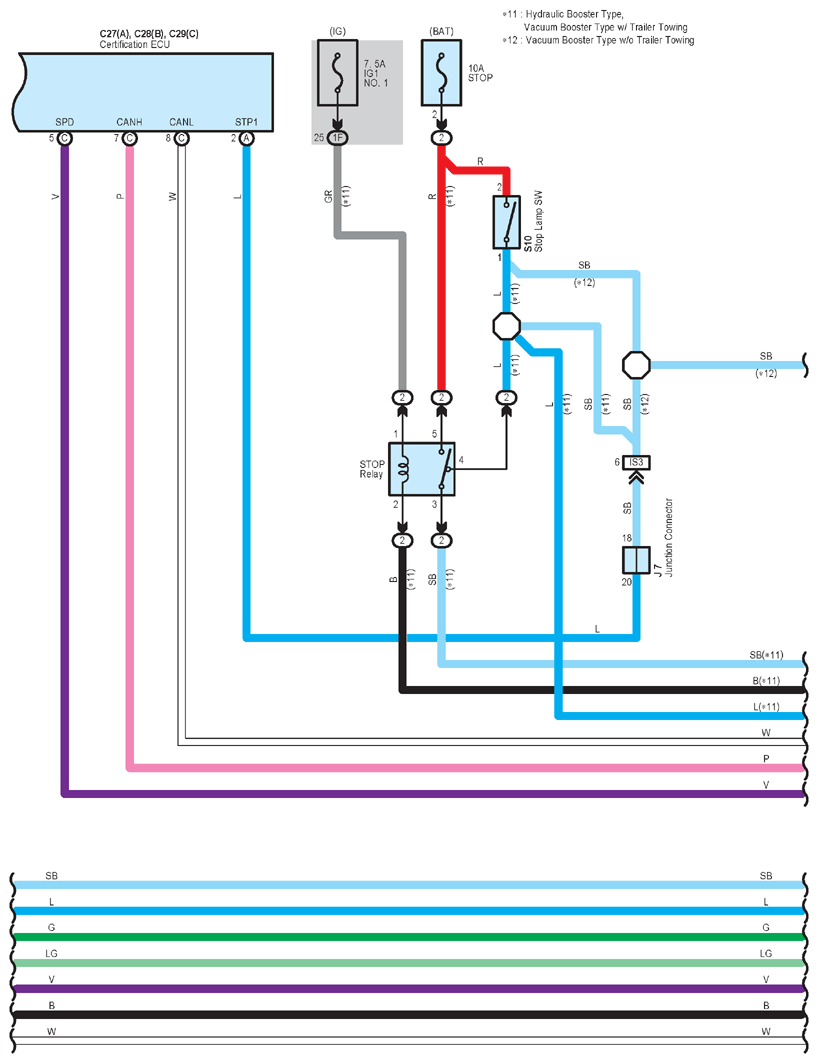

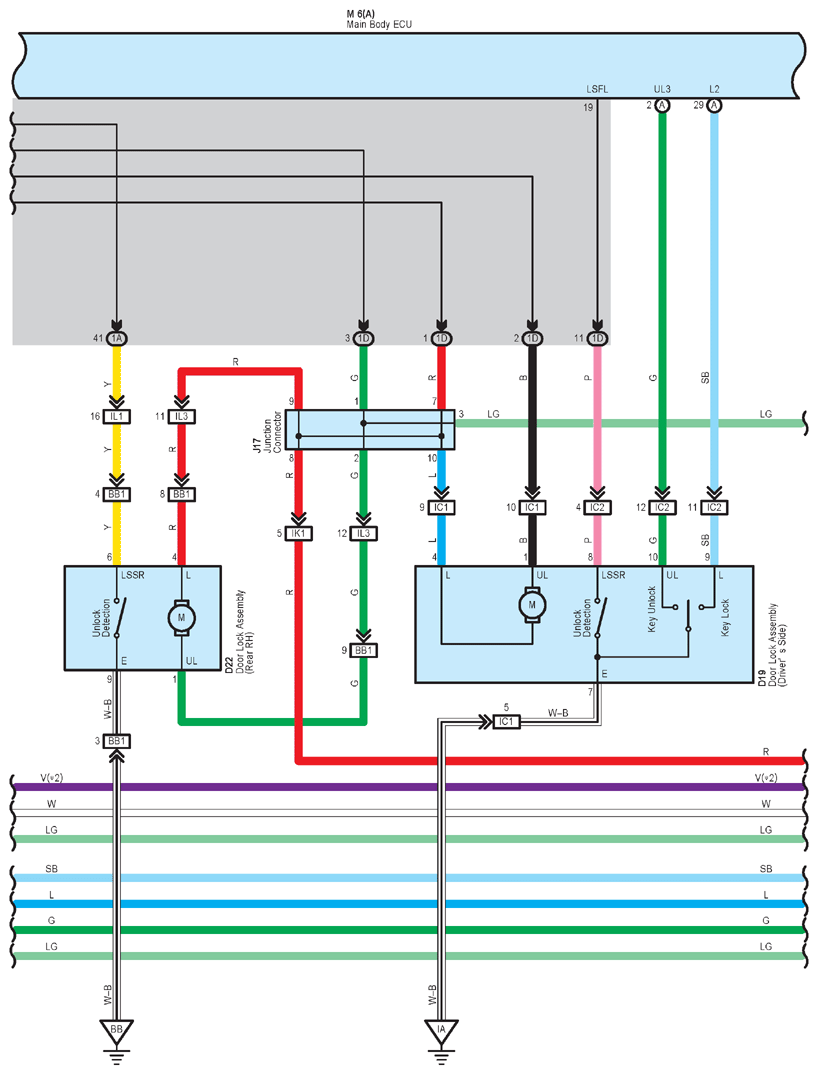

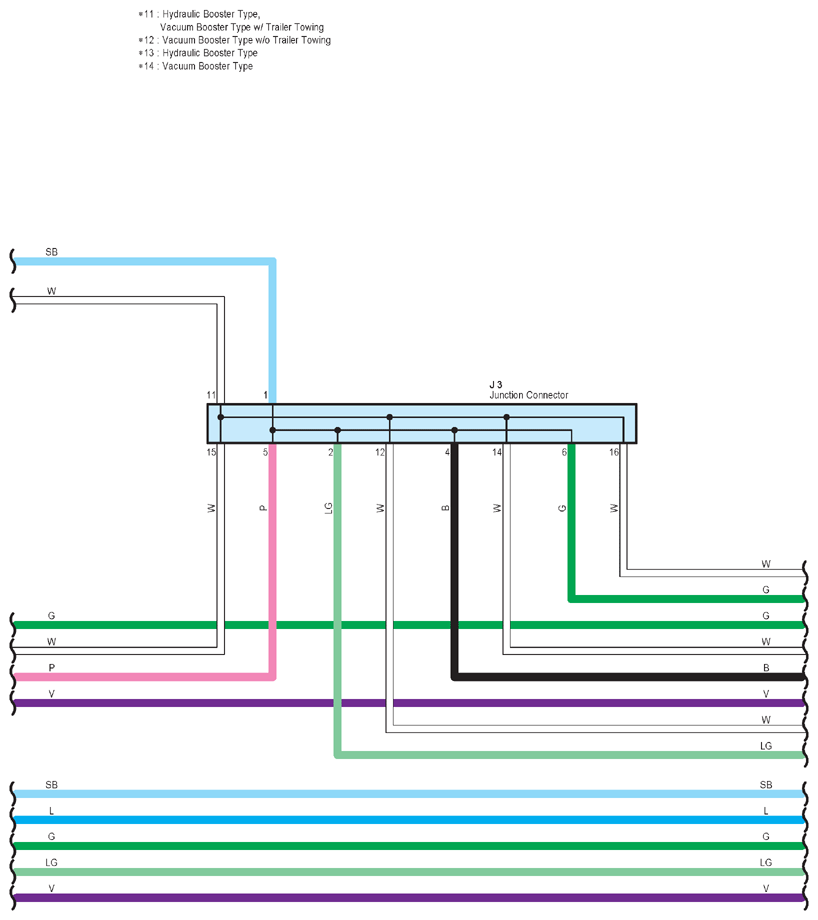

Fig 2: Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock, Wireless Door Lock Control (W/Smart Key System) (2 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

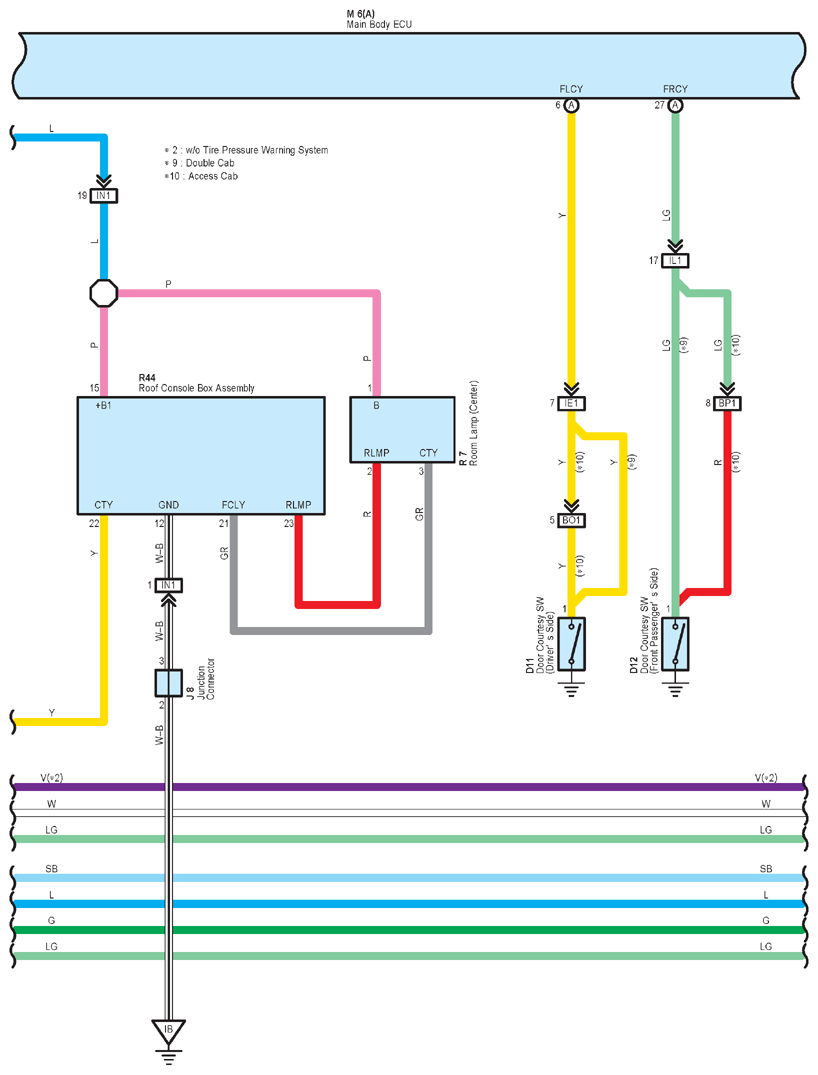

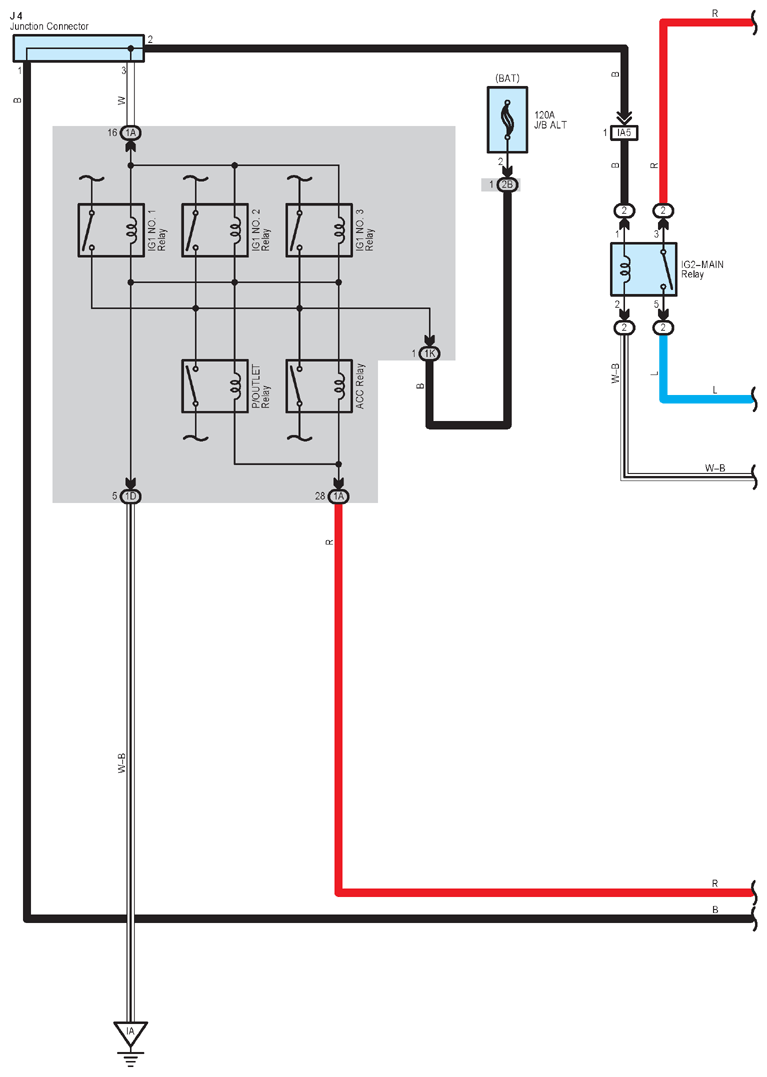

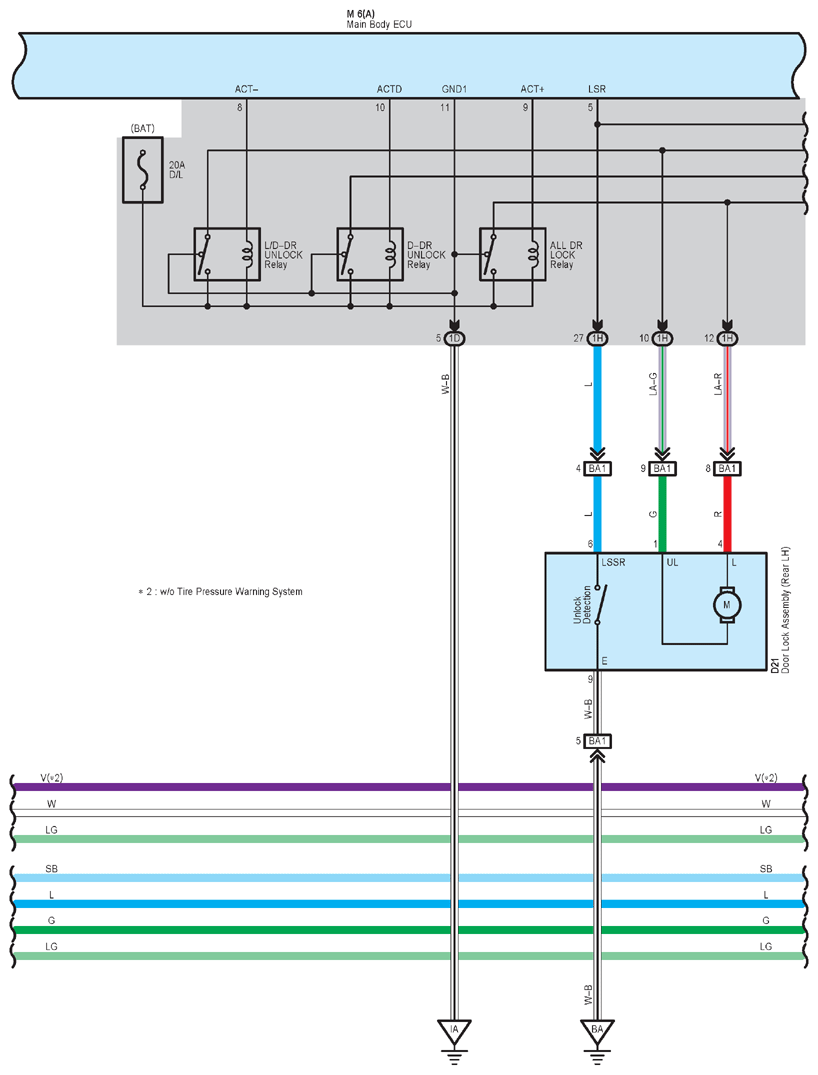

Fig 3: Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock, Wireless Door Lock Control (W/Smart Key System) (3 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

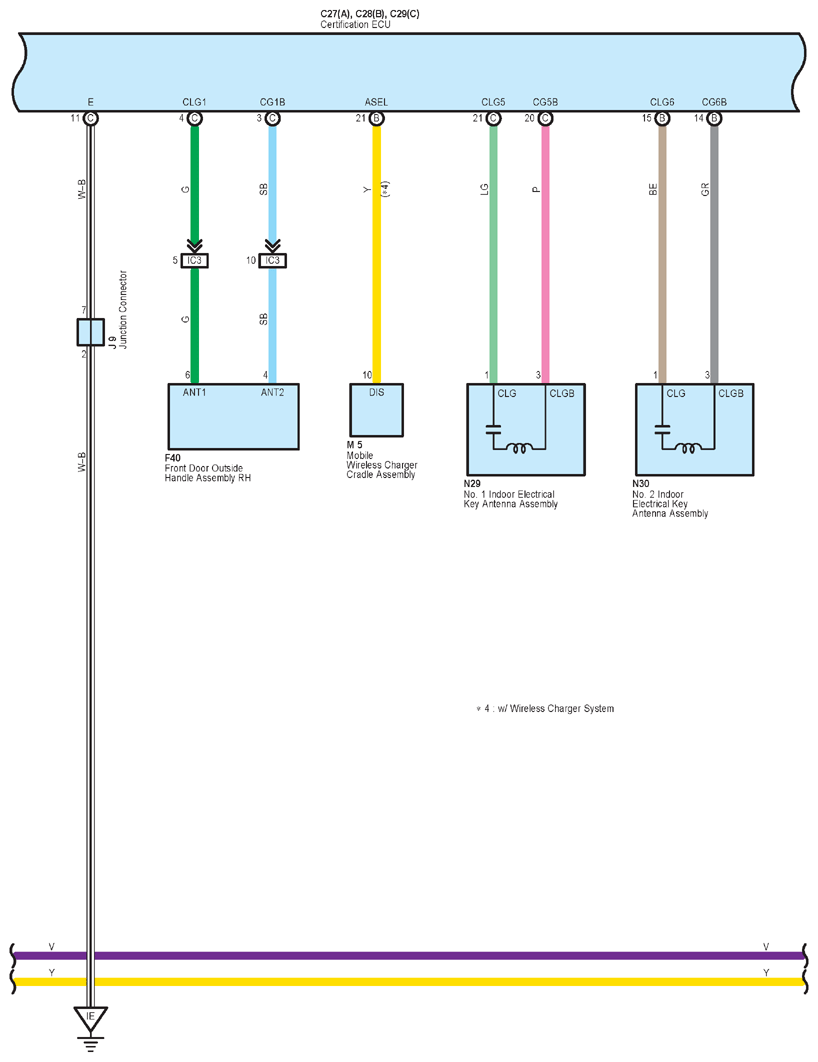

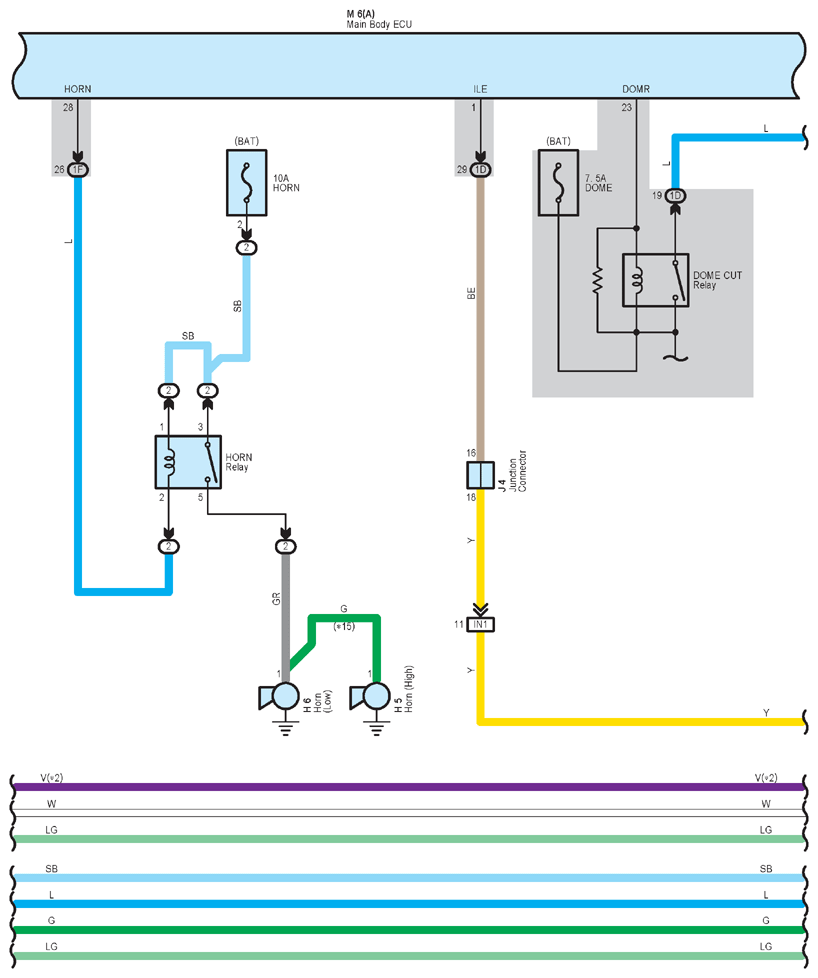

Fig 4: Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock, Wireless Door Lock Control (W/Smart Key System) (4 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

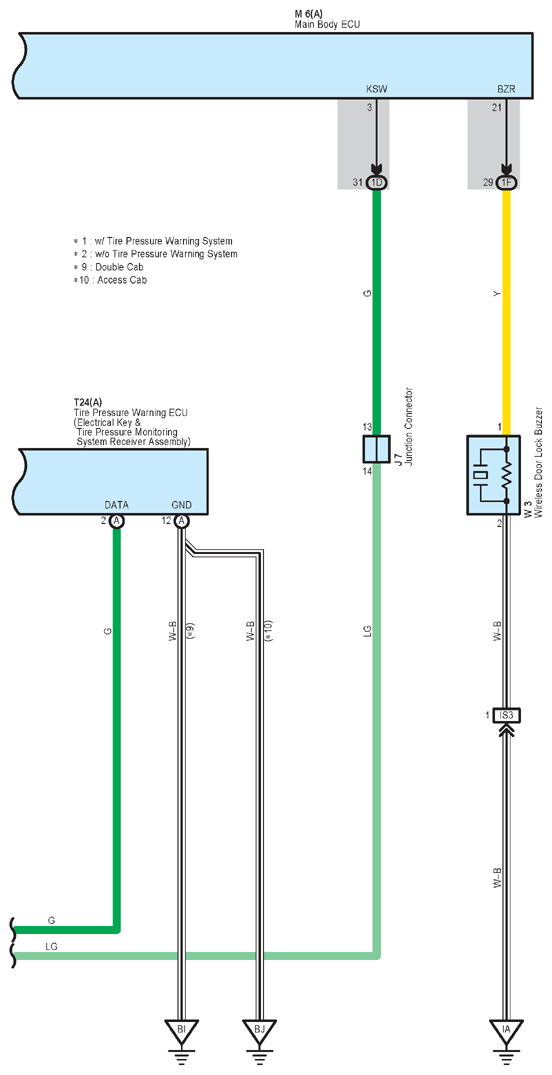

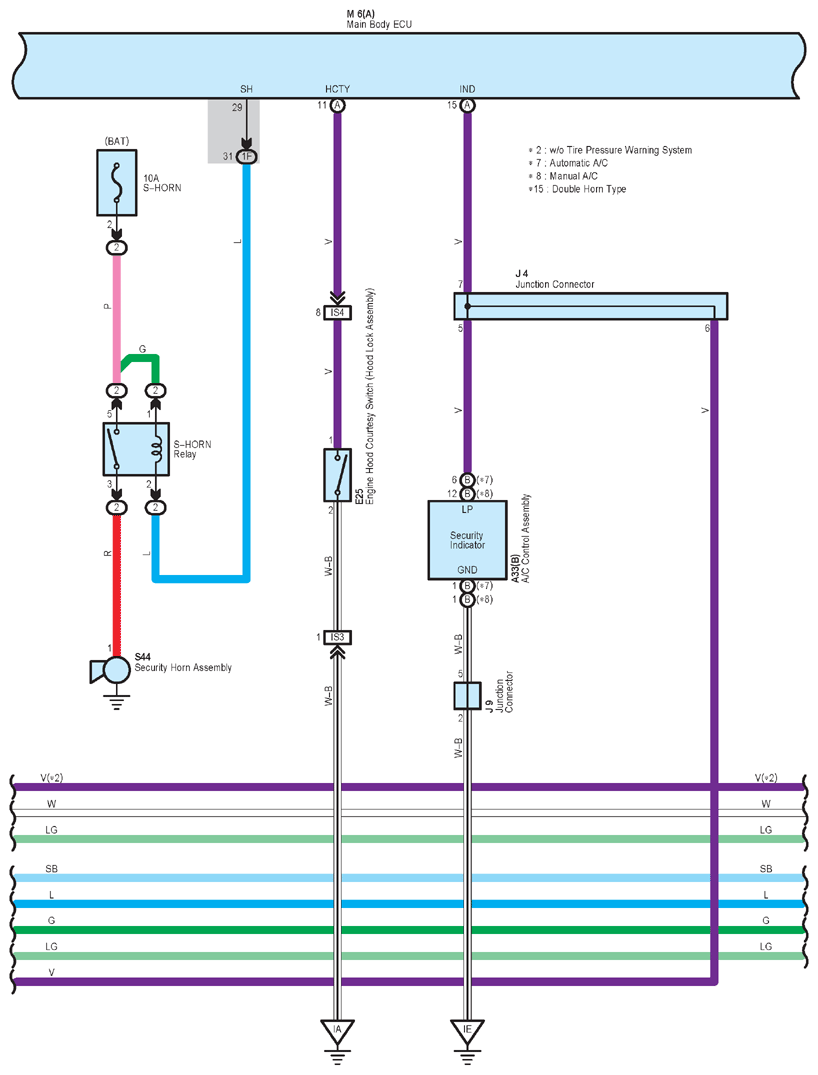

Fig 5: Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock, Wireless Door Lock Control (W/Smart Key System) (5 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

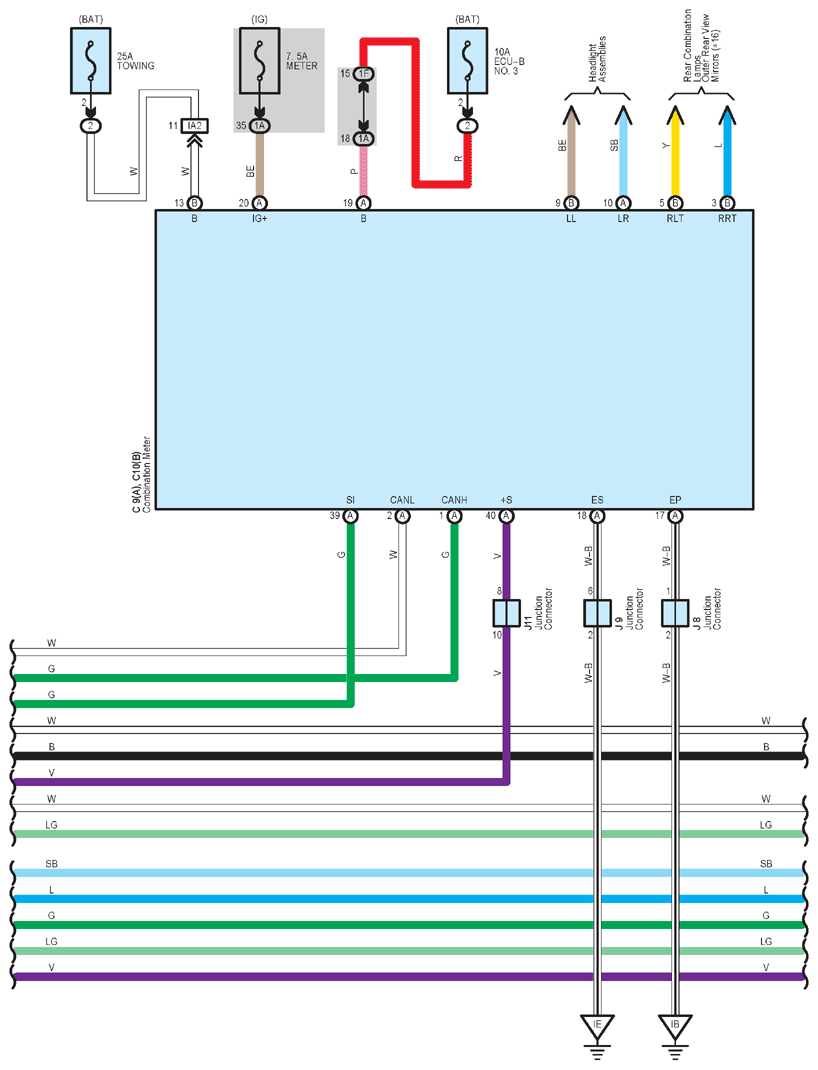

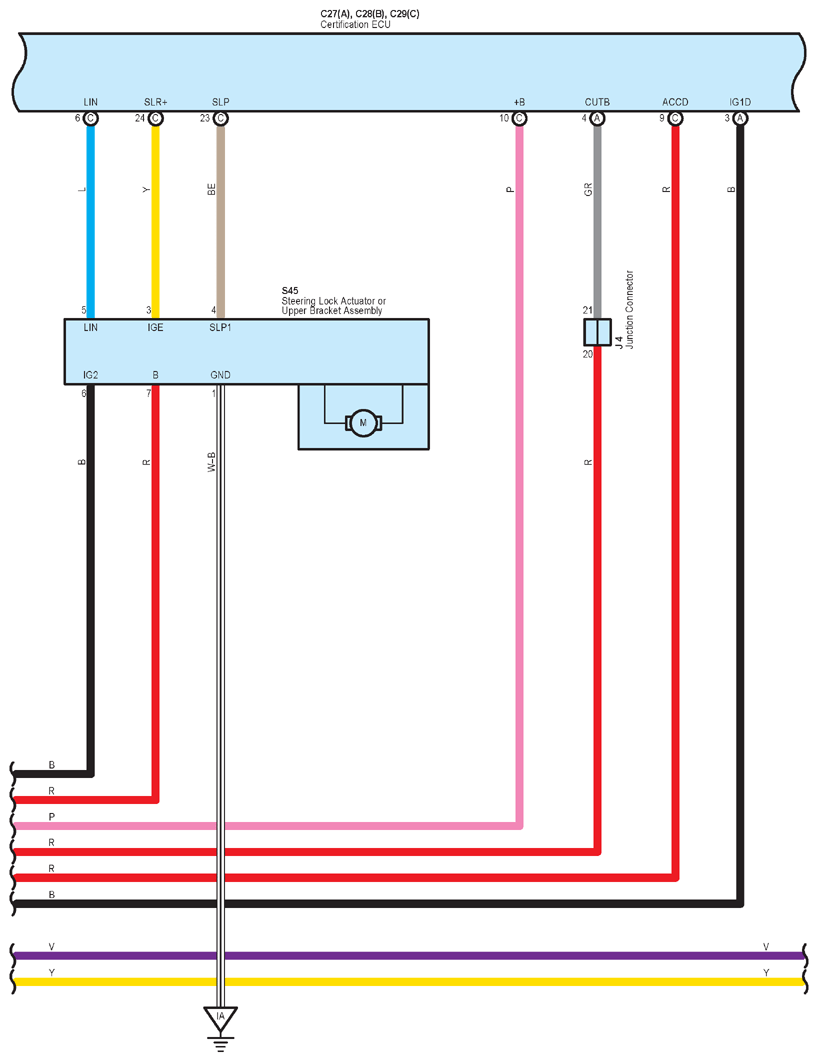

Fig 6: Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock, Wireless Door Lock Control (W/Smart Key System) (6 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

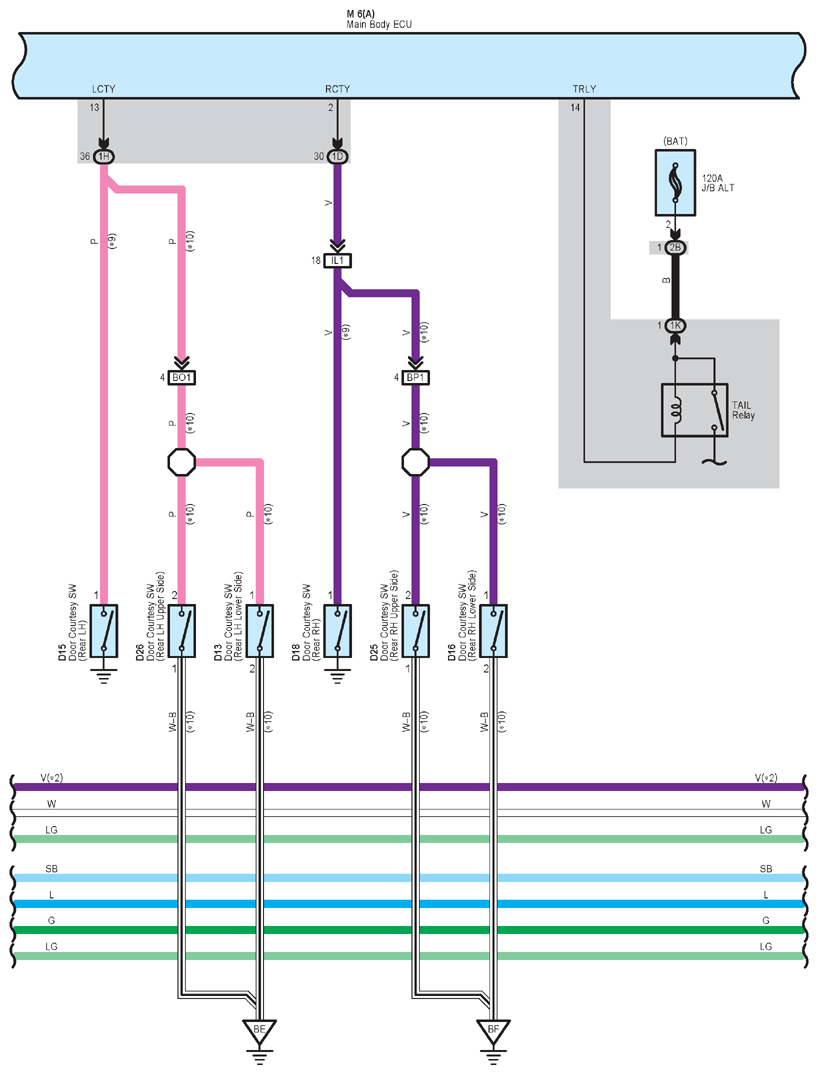

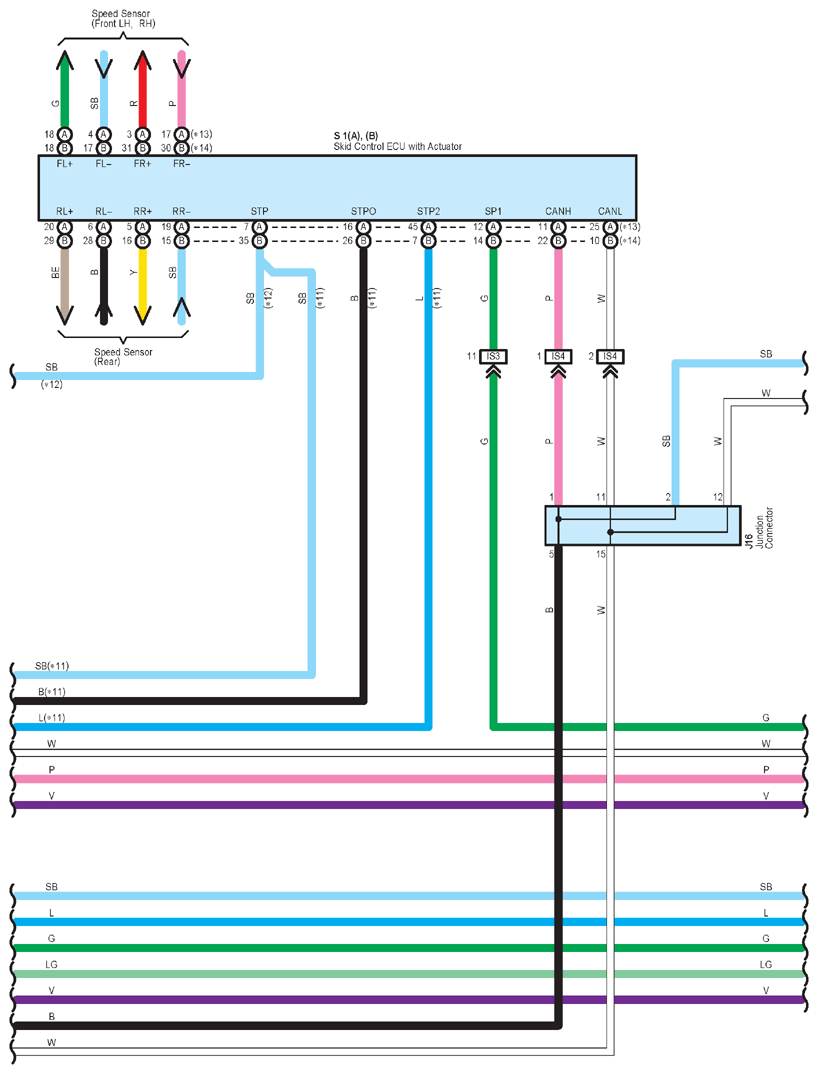

Fig 7: Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock, Wireless Door Lock Control (W/Smart Key System) (7 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

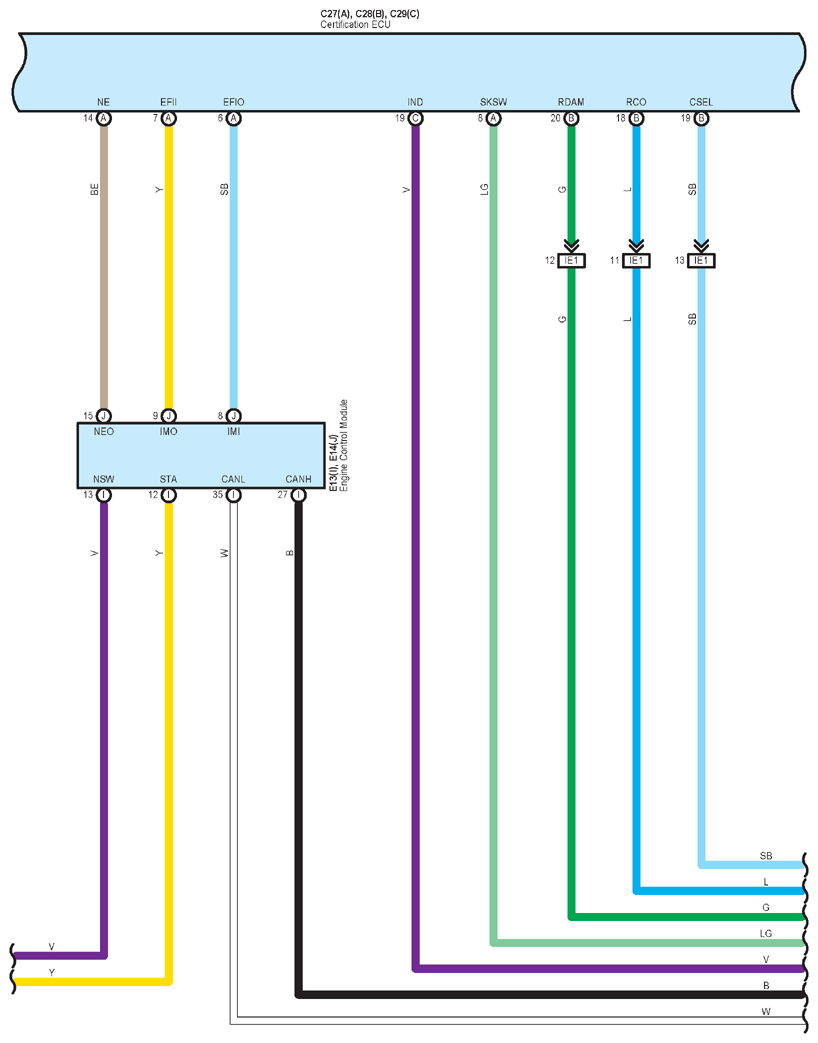

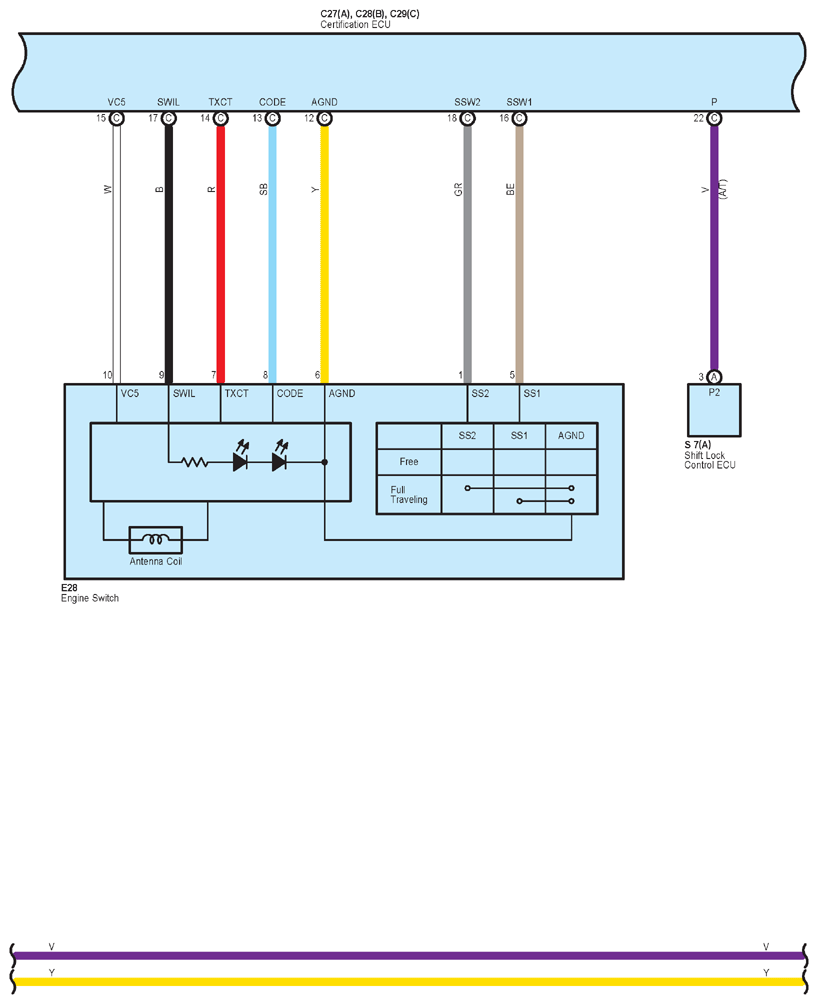

Fig 8: Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock, Wireless Door Lock Control (W/Smart Key System) (8 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock, Wireless Door Lock Control (W/Smart Key System) (9 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock, Wireless Door Lock Control (W/Smart Key System) (10 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock, Wireless Door Lock Control (W/Smart Key System) (11 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock, Wireless Door Lock Control (W/Smart Key System) (12 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock, Wireless Door Lock Control (W/Smart Key System) (13 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock, Wireless Door Lock Control (W/Smart Key System) (14 Of 20)

Fig 15: Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock, Wireless Door Lock Control (W/Smart Key System) (15 Of 20)

Fig 16: Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock, Wireless Door Lock Control (W/Smart Key System) (16 Of 20)

Fig 17: Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock, Wireless Door Lock Control (W/Smart Key System) (17 Of 20)

Fig 18: Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock, Wireless Door Lock Control (W/Smart Key System) (18 Of 20)

Fig 19: Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock, Wireless Door Lock Control (W/Smart Key System) (19 Of 20)

Fig 20: Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock, Wireless Door Lock Control (W/Smart Key System) (20 Of 20)
