System Diagrams

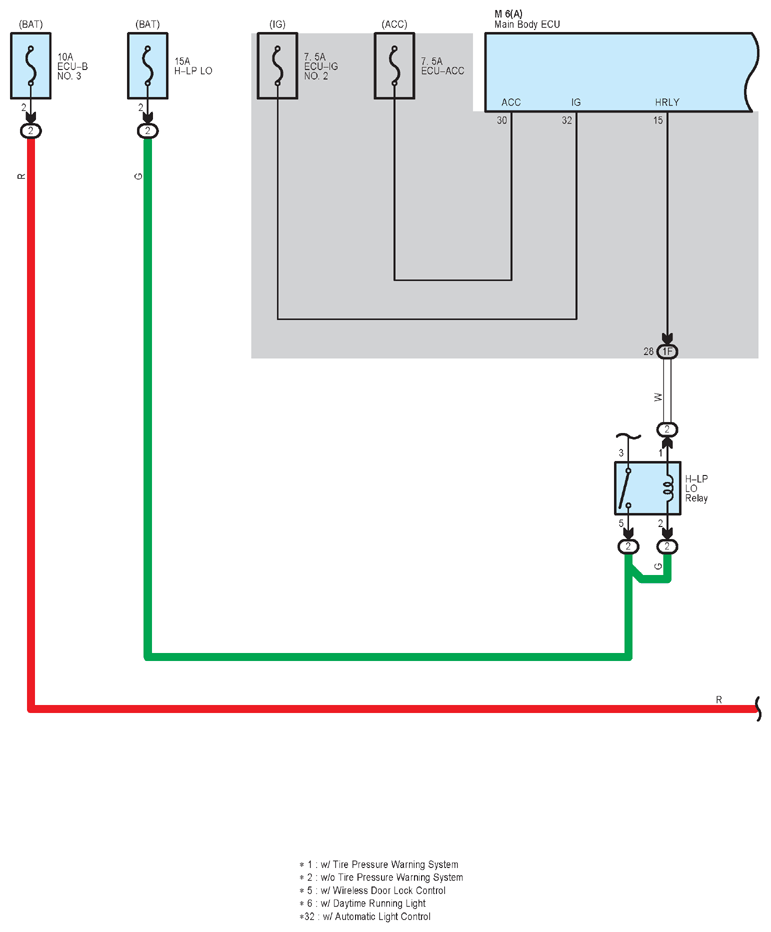

Fig 1: Light Auto Turn Off System (1 Of 4)
G12223112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

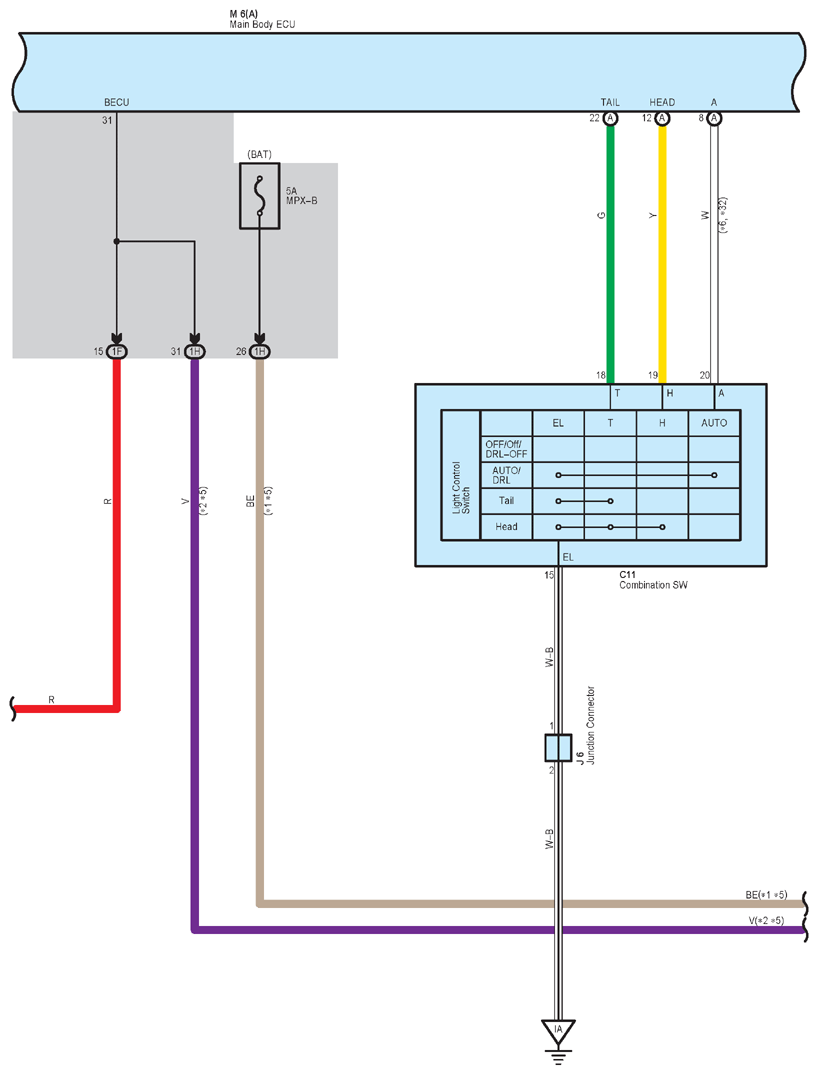

Fig 2: Light Auto Turn Off System (2 Of 4)
G12223113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

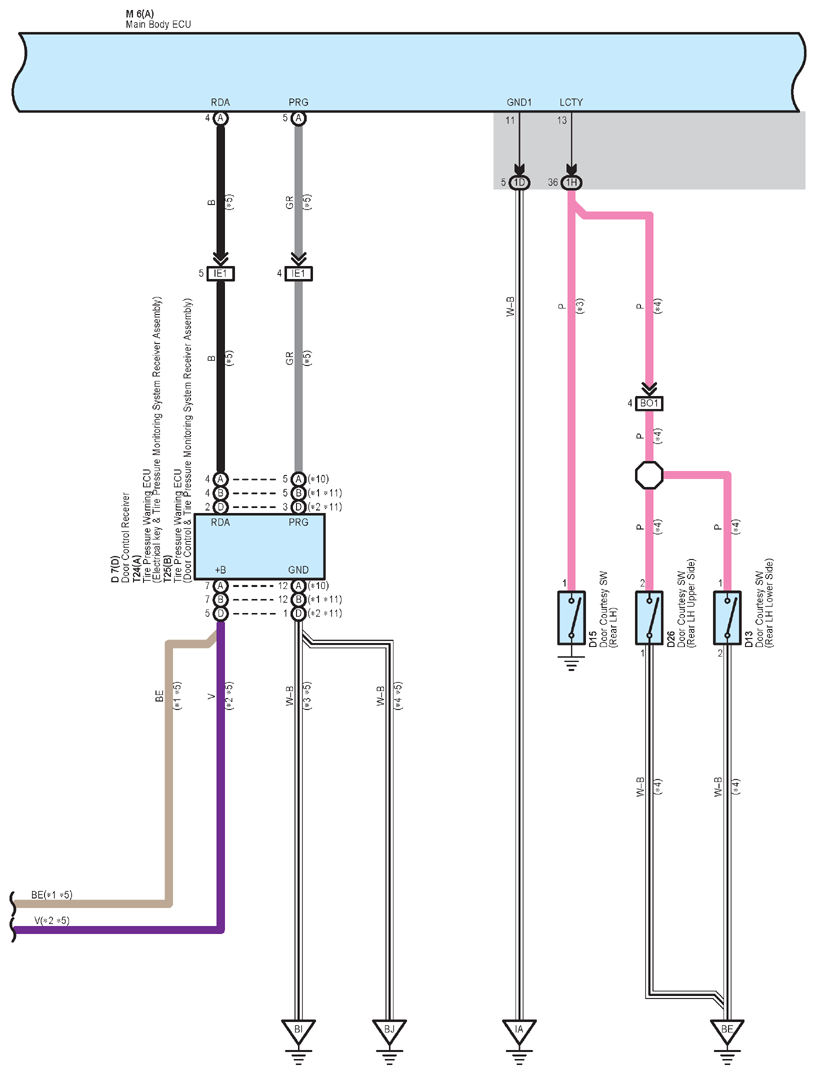

Fig 3: Light Auto Turn Off System (3 Of 4)
G12223114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

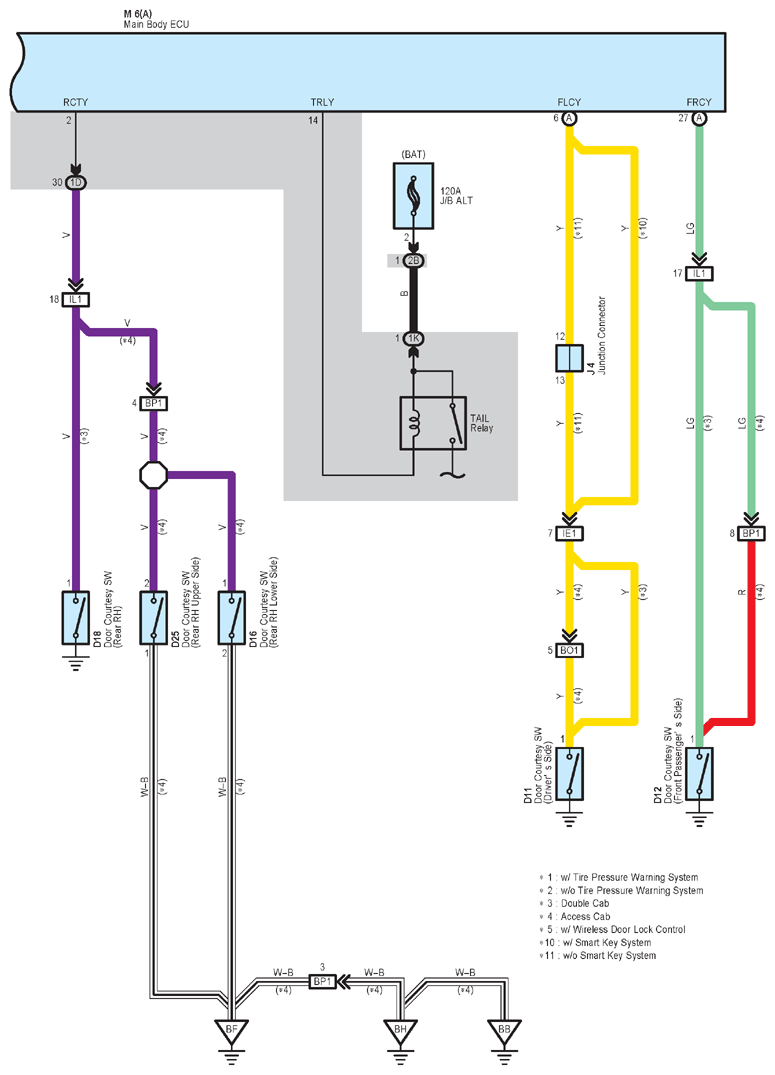

Fig 4: Light Auto Turn Off System (4 Of 4)
G12223115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
