System Diagrams

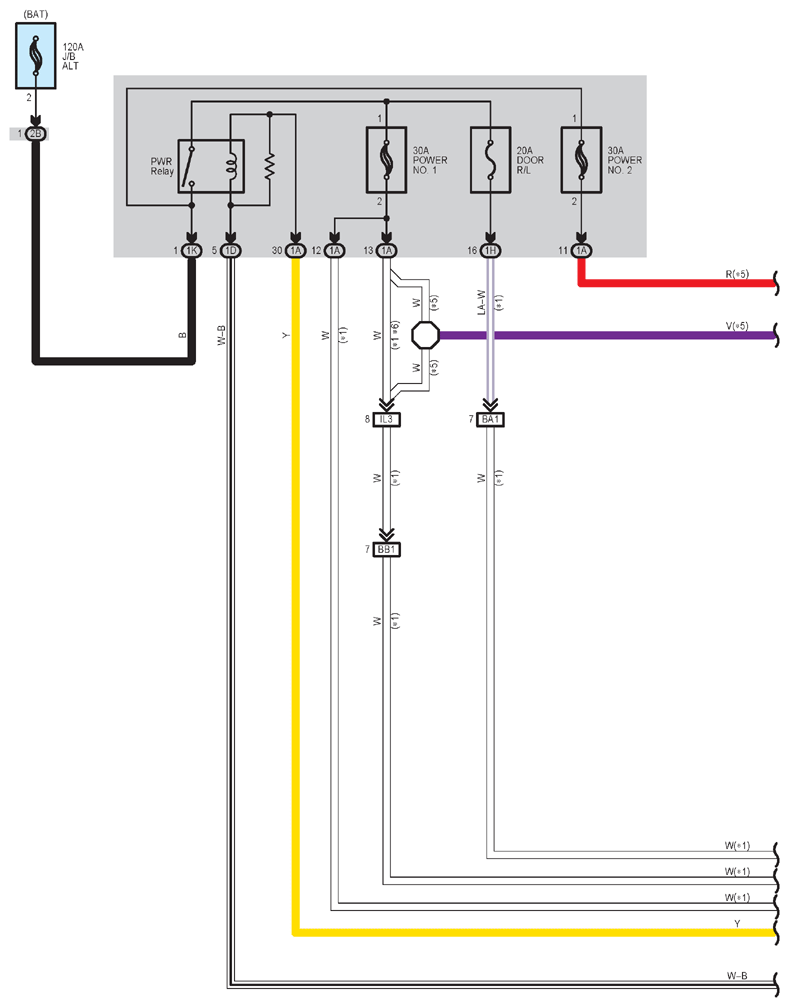

Fig 1: Power Window (W/Jam Protection) (1 Of 6)
G12223165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

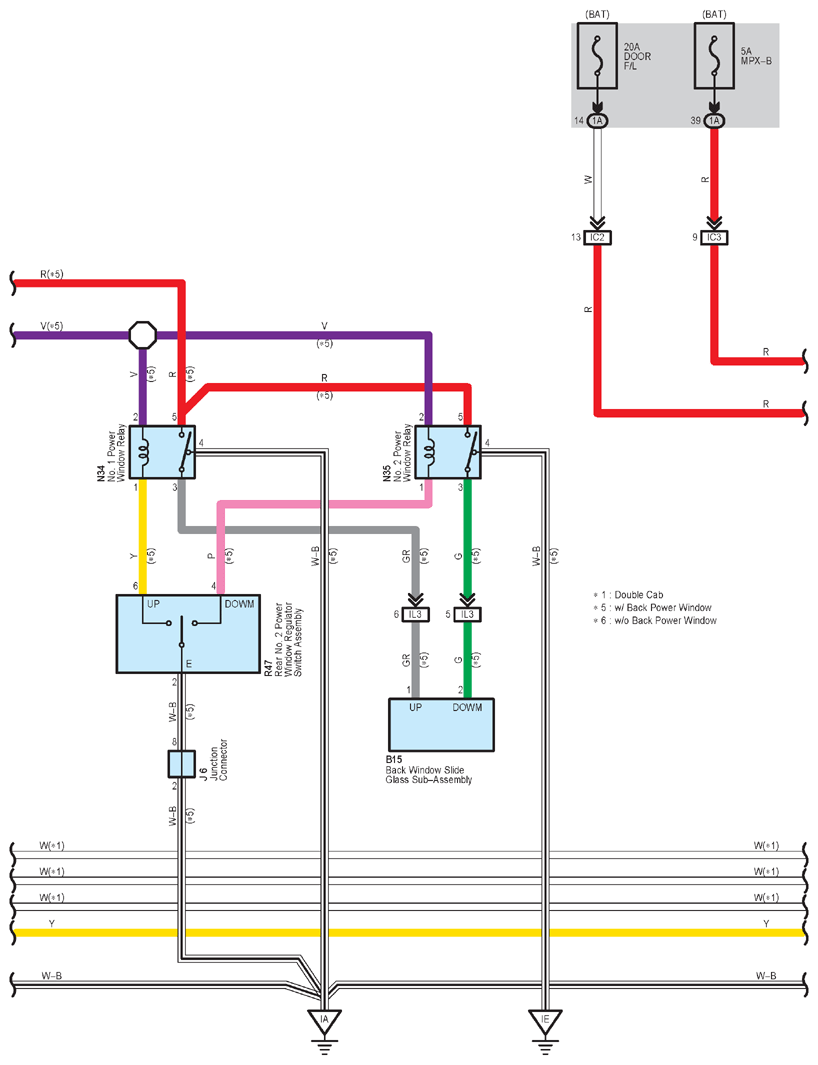

Fig 2: Power Window (W/Jam Protection) (2 Of 6)
G12223166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

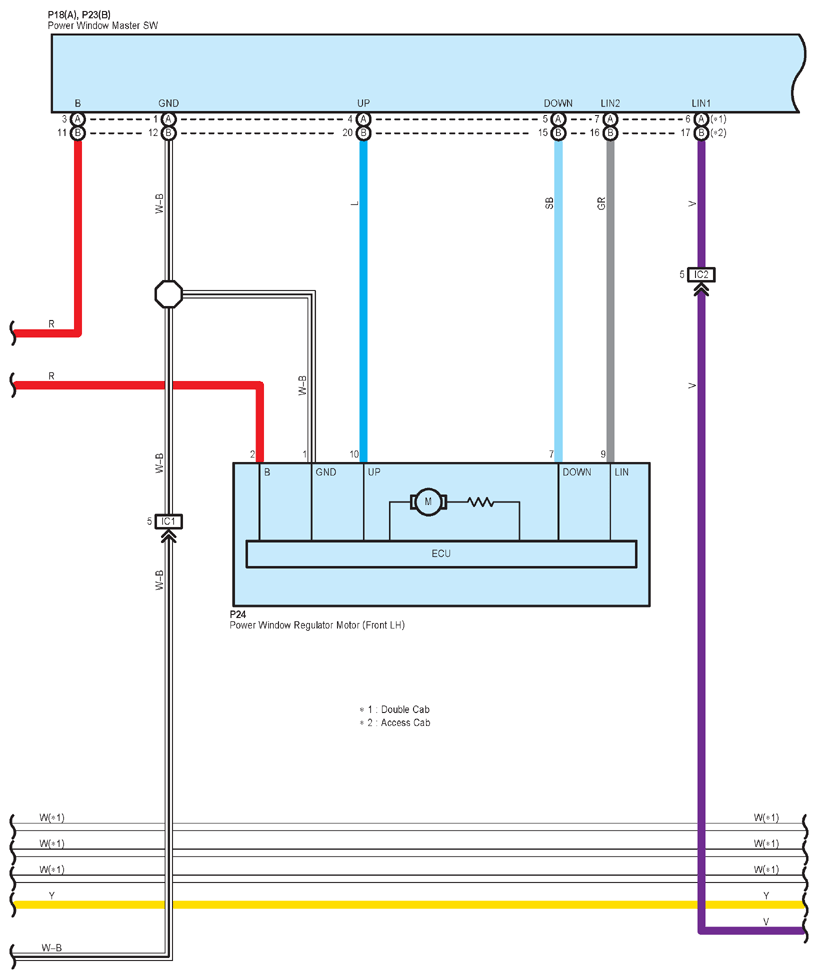

Fig 3: Power Window (W/Jam Protection) (3 Of 6)
G12223167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

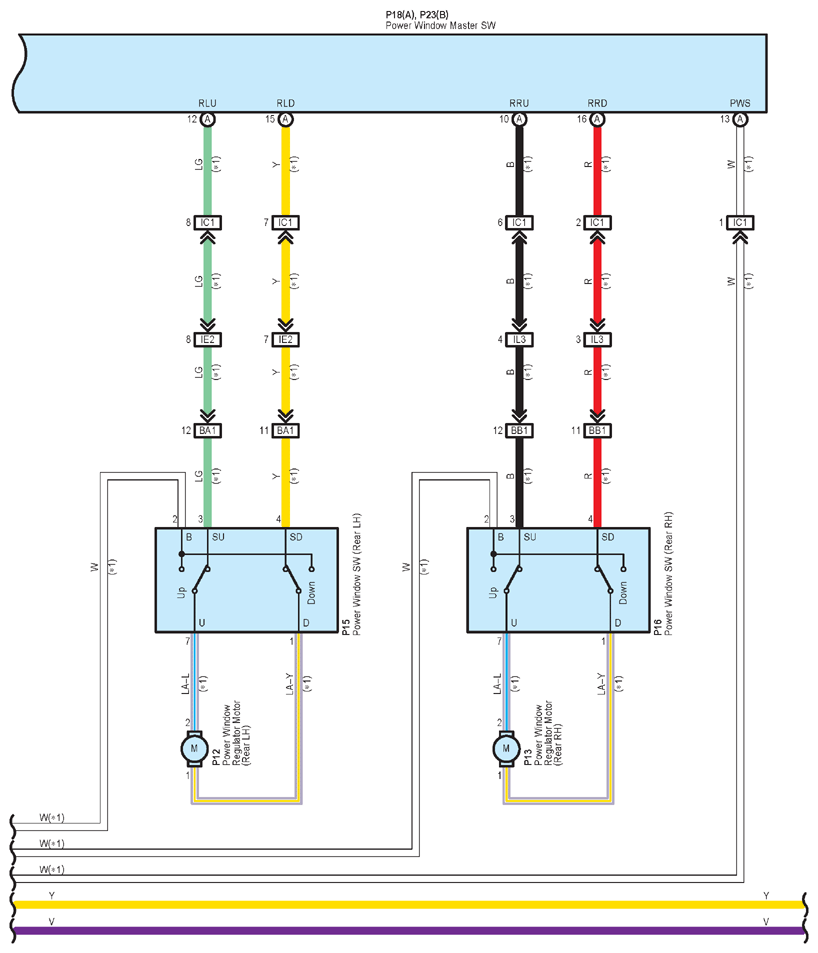

Fig 4: Power Window (W/Jam Protection) (4 Of 6)
G12223168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

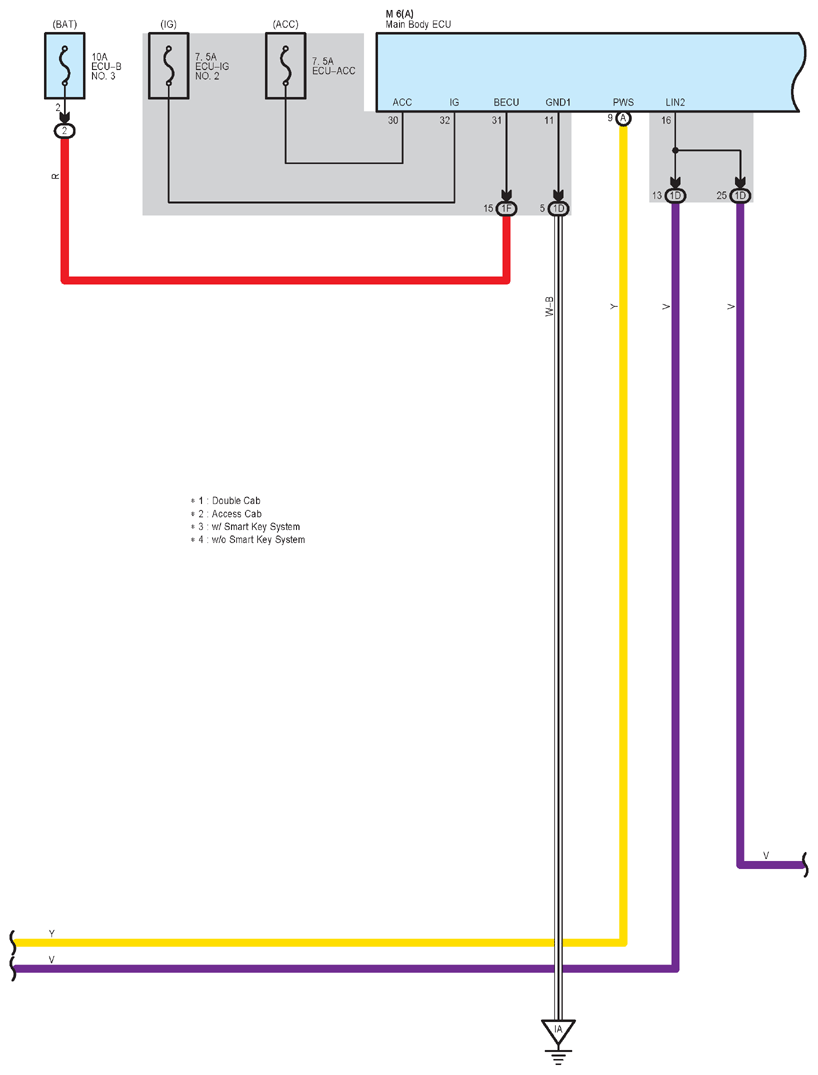

Fig 5: Power Window (W/Jam Protection) (5 Of 6)
G12223169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

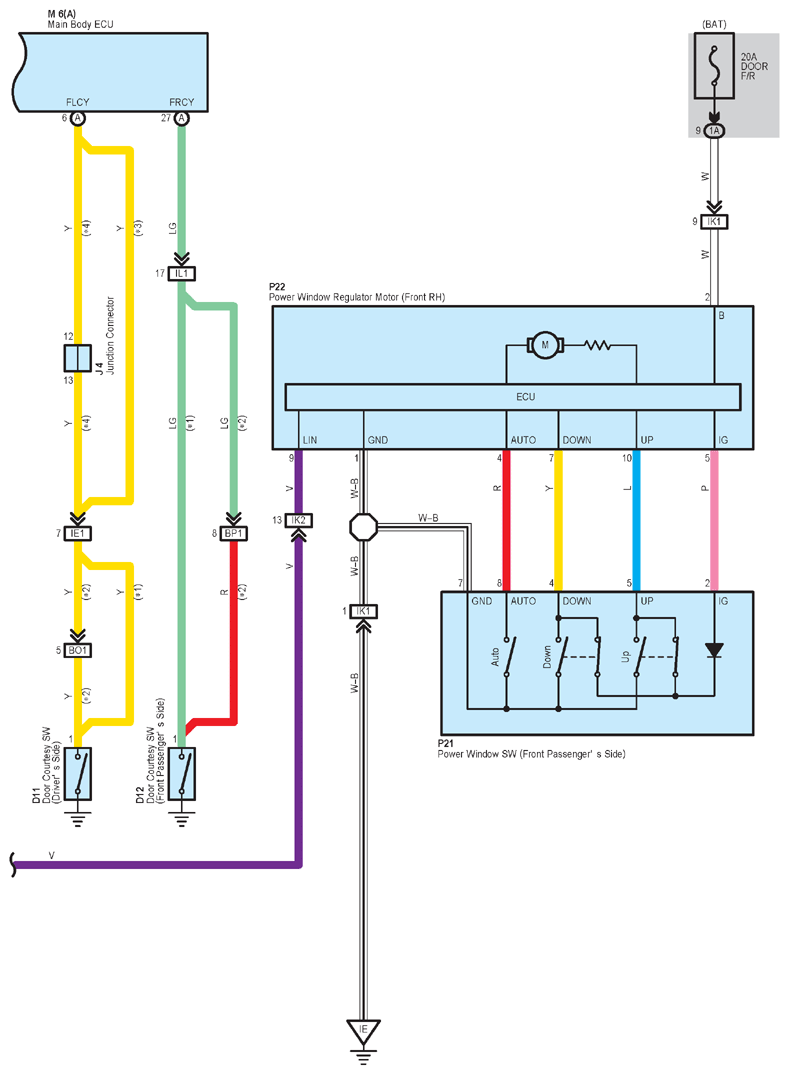

Fig 6: Power Window (W/Jam Protection) (6 Of 6)
G12223170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
