System Diagram

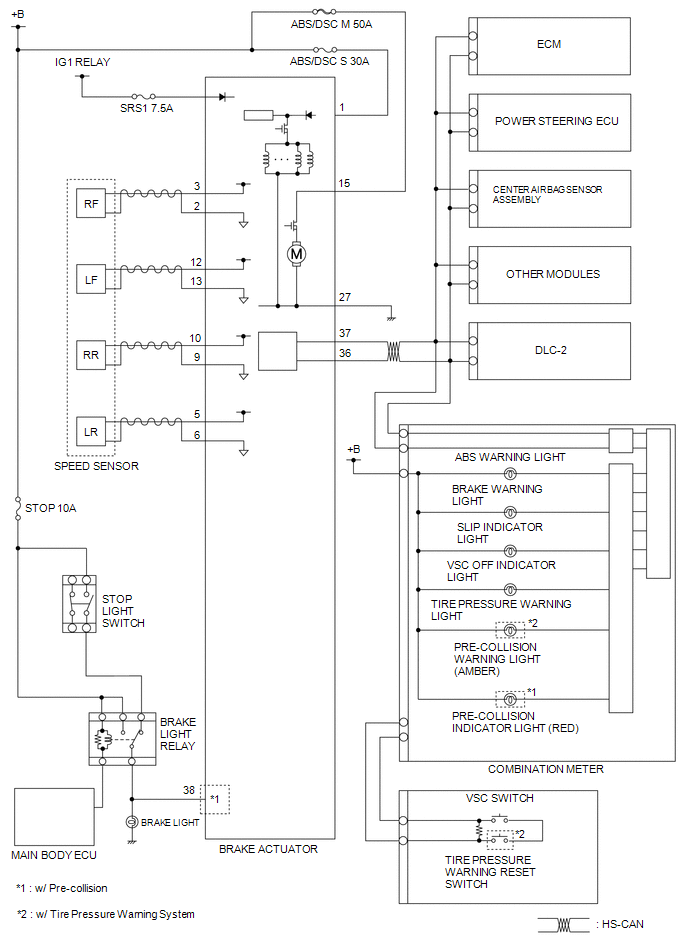

  1. SYSTEM WIRING DIAGRAM [BRAKE ACTUATOR]
    Fig 1: Vehicle Stability Control System Diagram (Brake Actuator)
    GTY491480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
