Front Speed Sensor: Removal: Procedure

  1. CONNECTOR DISCONNECTION NOTE
    1. Peel back the mudguard and disconnect the connector.

      Refer to REMOVAL

  2. REMOVE FRONT SPEED SENSOR
    1. Remove the connector.

      See step  1

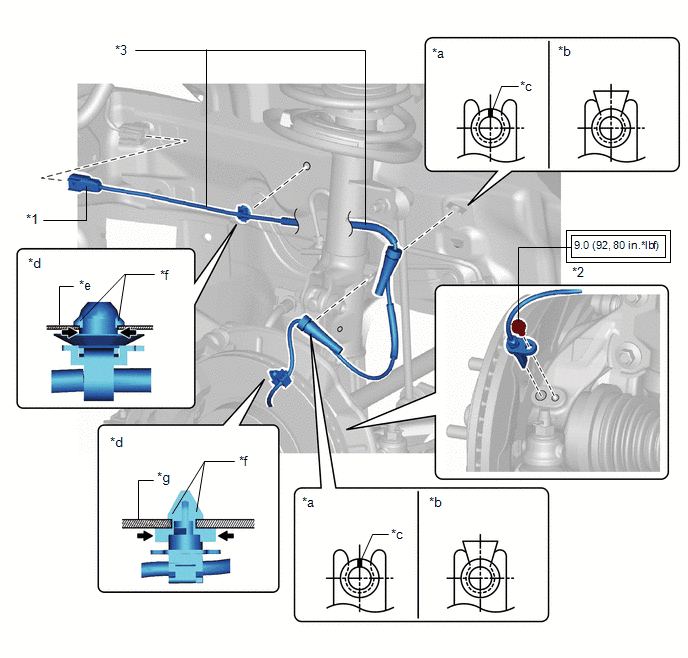

      GTY489292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Connector *2 Bolt
      *3 Front Speed Sensor - -
      *a Front Speed Sensor Type A *b Front Speed Sensor Type B
      *c Marking *d Remove Clip While Pressing Arrow Indication.
      *e Body *f Clip
      *g Front Shock Absorber - -
      N*m (kgf*cm, ft.*lbf): Specified torque - -
    2. Remove the clip.
    3. Remove the bolt.
    4. Remove the front speed sensor.
