Steering Angle Sensor: Inspection: Procedure

HINT:

• If the steering angle sensor is removed from the spiral cable, the steering angle sensor absolute angle could change, therefore, do not remove the steering angle sensor from the spiral cable.
• If the steering angle sensor is replaced, replace it together with the spiral cable.

  Refer to REMOVAL

1. Remove the column cover.

   Refer to REMOVAL

2. Connect the plus (+) end of a tester to steering angle sensor terminal 1 and the minus (-) end of the tester to terminal 2 (ground).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Switch the ignition ON (engine off or on).
4. Turn the steering wheel to the right and left.

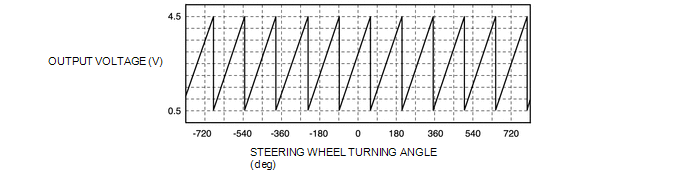

5. Verify that the voltage between steering angle sensor terminals 1 and 2 (ground) is as indicated in the table.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • If the voltage can be verified as indicated in the table, go to the next step.
   • If not as indicated in the table, replace the spiral cable.

     Refer to REMOVAL

6. Switch the ignition off.
7. Connect the plus (+) end of a tester to steering angle sensor terminal 3 and the minus (-) end of the tester to terminal B (ground).
8. Switch the ignition ON (engine off or on).
9. Turn the steering wheel to the right and left.
10. Verify that the voltage between steering angle sensor terminals 3 and 2 (ground) is as indicated in the table.

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    • If not as indicated in the table, replace the spiral cable.

      Refer to REMOVAL
