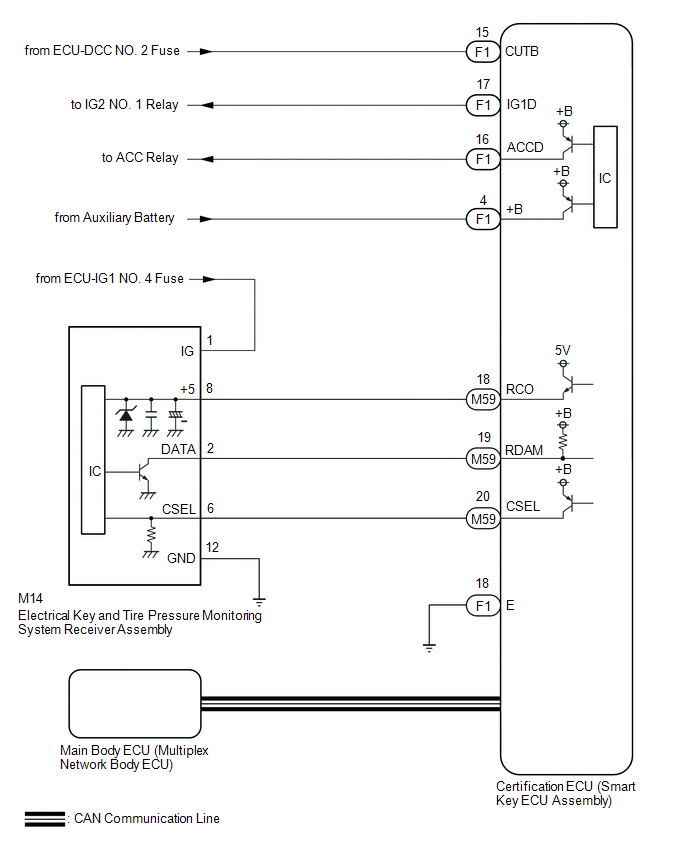

All Door Entry Lock/Unlock Functions and Wireless Functions do not Operate [12/2018 - ]: Wiring Diagram

GTY938140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
