Components [11/2015 -]

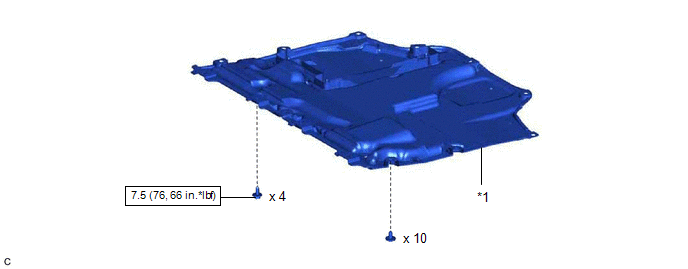

Fig 1: Oil Level Sensor Replacement Components With Torque Specifications (1 Of 2)
GTY554926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
Callout Description Callout Description
*1 NO. 1 ENGINE UNDER COVER - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

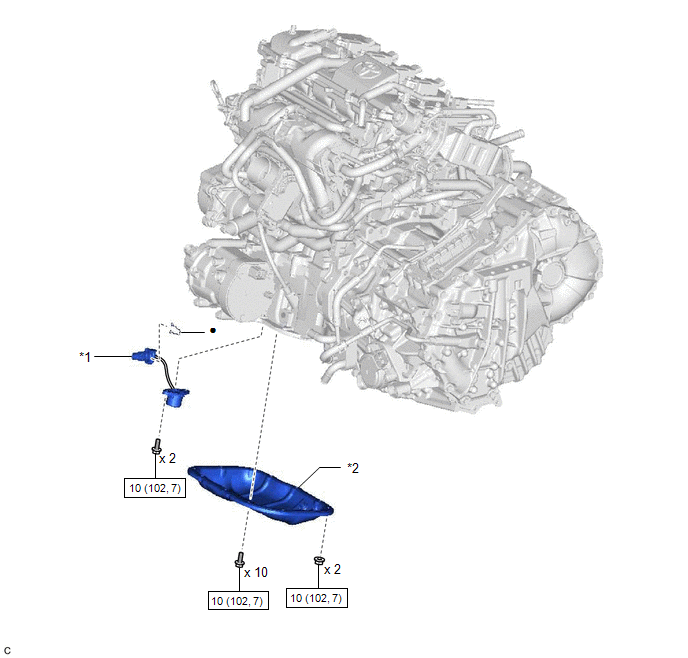

Fig 2: Oil Level Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY542966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
Callout Description Callout Description
*1 ENGINE OIL LEVEL SENSOR *2 NO. 2 OIL PAN SUB-ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
