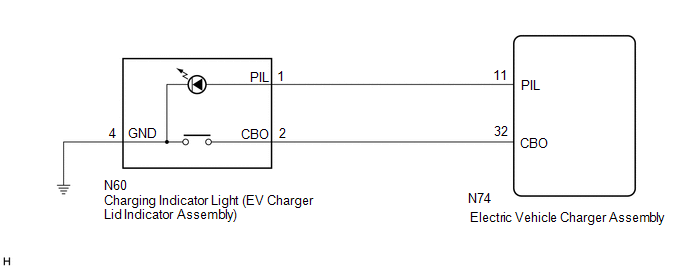

Charging Indicator Circuit [09/2016 - 05/2019]: Wiring Diagram

GTY716102

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
