Removal [11/2018 - ]: Procedure

  1. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [11/2018 - 12/2021] , or refer to REMOVAL [12/2021 - ]

  2. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

    Refer to REMOVAL [11/2018 - 02/2019] , or refer to REMOVAL [02/2019 - 10/2019] , or refer to REMOVAL [10/2019 - 08/2020] , or refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - ]

  3. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

    Refer to REMOVAL [11/2018 - ]

  4. REMOVE ECO RUN CANCEL SWITCH ASSEMBLY

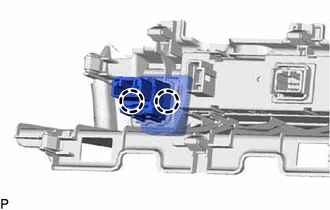

    1. Detach the 2 claws and remove the eco run cancel switch assembly from the lower center instrument panel finish panel assembly.
      GTY872372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
