Components [02/2017 - ]

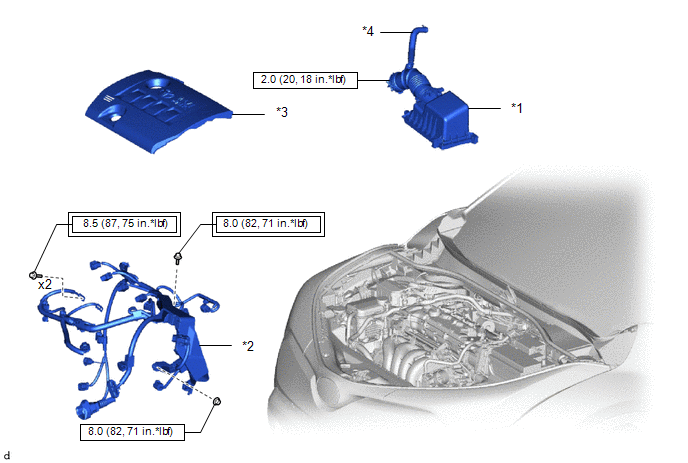

Fig 1: Continuously Variable Valve Lift Controller Replacement Components With Torque Specifications (1 Of 2)
| Callout | Description | Callout | Description |
| *1 | AIR CLEANER CAP WITH AIR CLEANER HOSE | *2 | ENGINE WIRE |
| *3 | NO. 2 CYLINDER HEAD COVER | *4 | NO. 2 VENTILATION HOSE |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque |

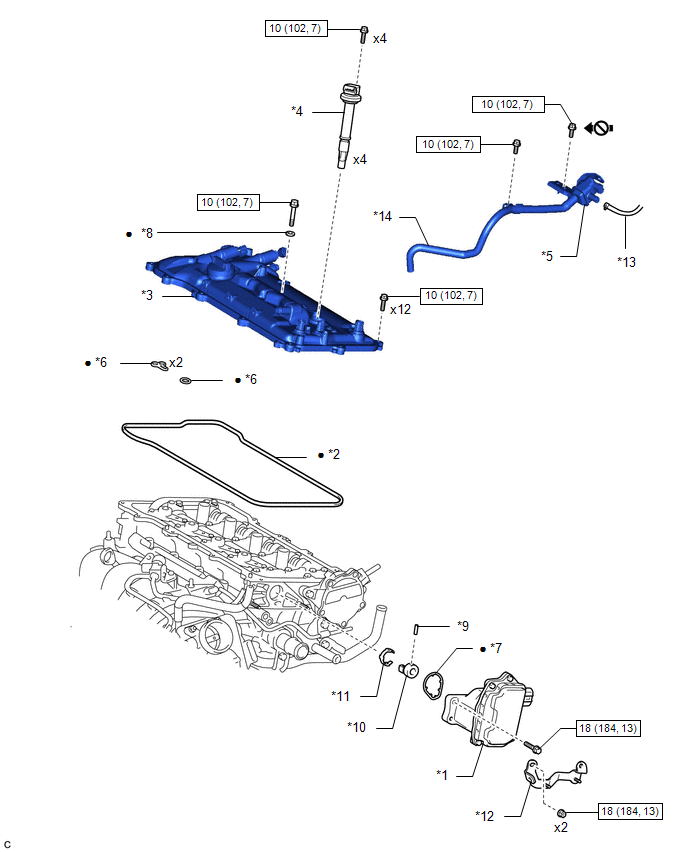

Fig 2: Continuously Variable Valve Lift Controller Replacement Components With Torque Specifications (2 Of 2)
| Callout | Description | Callout | Description |
| *1 | CONTINUOUSLY VARIABLE VALVE LIFT CONTROLLER ASSEMBLY | *2 | CYLINDER HEAD COVER GASKET |
| *3 | CYLINDER HEAD COVER SUB-ASSEMBLY | *4 | IGNITION COIL ASSEMBLY |
| *5 | PURGE VALVE (PURGE VSV) | *6 | GASKET |
| *7 | O-RING | *8 | SEAL WASHER |
| *9 | STRAIGHT PIN | *10 | VALVE LIFT CONTROL ACTUATOR CONNECTOR |
| *11 | VALVE LIFT CONTROL ACTUATOR CONNECTOR CLIP | *12 | WIRE HARNESS CLAMP BRACKET |
| *13 | FUEL VAPOR FEED HOSE | *14 | NO. 1 FUEL VAPOR FEED HOSE |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| Do not apply lubricants to the threaded parts | - | - |
