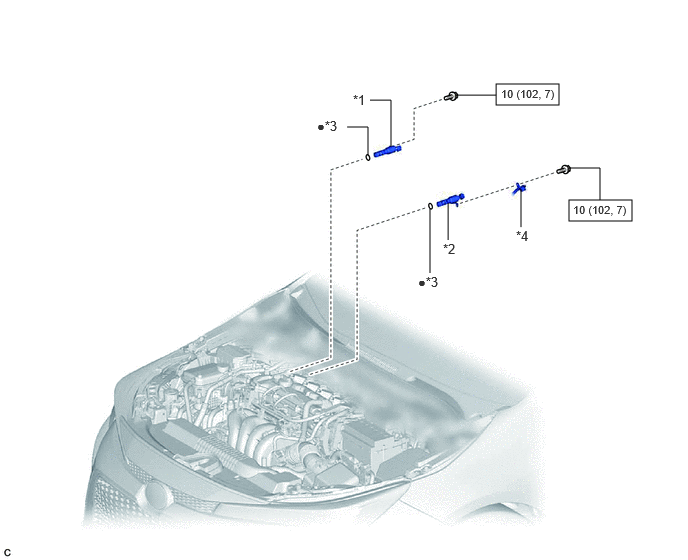

Components [01/2019 - 11/2022]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Side) | *2 | CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side) |
| *3 | O-RING | *4 | WIRE HARNESS BRACKET |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
