SMART KEY SYSTEM (for Entry Function)
>>
Entry Lock/Unlock Functions and Wireless Functions do not Operate After New/Additional Key ID Registration [11/2023 - ]
>>

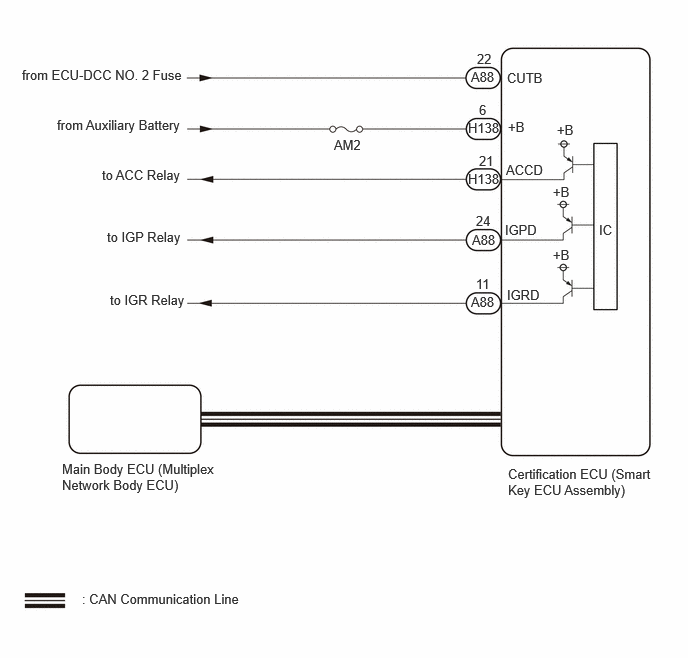

Wiring Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Entry Lock/Unlock Functions and Wireless Functions do not Operate After New/Additional Key ID Registration [11/2023 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
