Removal [10/2024 - ]: Procedure
- DRAIN ENGINE COOLANT (for Engine)
Refer to PROCEDURE - Step 1

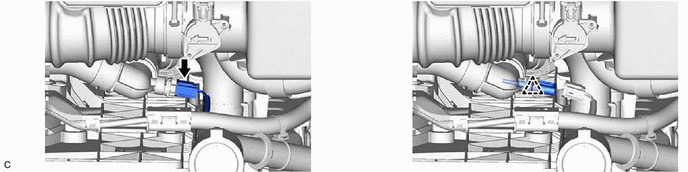

- REMOVE NO. 2 ENGINE COOLANT TEMPERATURE SENSOR (w/ Grille Shutter) NOTE:
If the No. 2 engine coolant temperature sensor has been struck or dropped, replace it.
- REMOVE INVERTER WITH CONVERTER ASSEMBLY
Refer to REMOVAL [10/2024 - ]

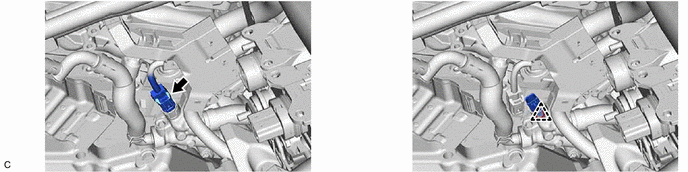

- REMOVE ENGINE COOLANT TEMPERATURE SENSOR NOTE:
If the engine coolant temperature sensor has been struck or dropped, replace it.
