Installation [11/2020 - ]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

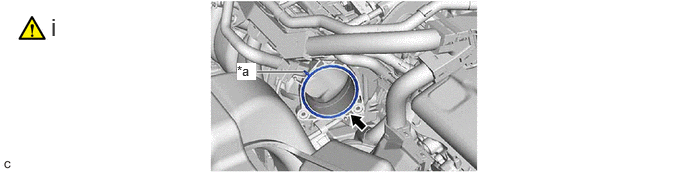

   *a

   Protrusion

   -

   -

   1. Install a new throttle body gasket to the intake manifold with the protrusion of the throttle body gasket oriented as shown in the illustration.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

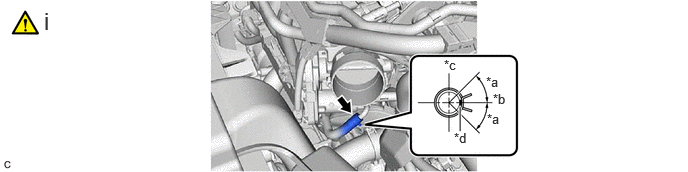

   *a	45°(Claw of Clip Location)	*b	Left of Vehicle
   *c	Top	*d	Paint Mark

   1. Connect the No. 6 water by-pass hose to the throttle body with motor assembly and slide the clip to secure it.
      NOTE:

      • If the throttle body with motor assembly has been struck or dropped, replace it.
      • Make sure to position the clip as shown in the illustration.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

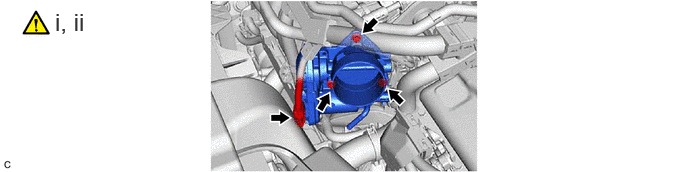

   1. Using an 8 mm socket wrench, install the throttle body with motor assembly to the intake manifold with the 3 bolts.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

   2. Connect the throttle body with motor assembly connector.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

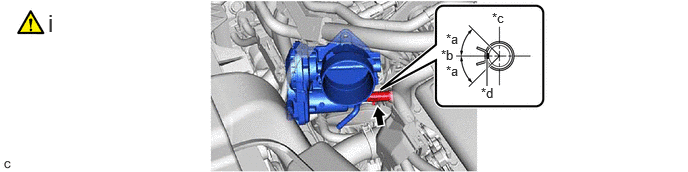

   *a	45°(Claw of Clip Location)	*b	Down
   *c	Right of Vehicle	*d	Paint Mark

   1. Connect the No. 5 water by-pass hose to the throttle body with motor assembly and slide the clip to secure it.
      NOTE:

      Make sure to position the clip as shown in the illustration.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

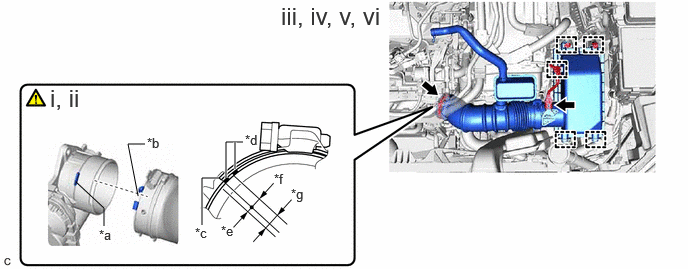

   *a	Protrusion	*b	Cutout
   *c	Hose Clamp End	*d	Paint Mark
   *e	2 mm (0.0787 in.)	*f	4 mm (0.157 in.)
   *g	End of Hose Clamp Location	-	-

   1. Install the air cleaner cap with air cleaner hose to the throttle body with motor assembly.
      NOTE:

      Align the cutout of the air cleaner hose assembly with the protrusion of the throttle body with motor assembly.

   2. Tighten the hose clamp in the position shown in the illustration.
      NOTE:

      Make sure that the end of the hose clamp is positioned as shown in the illustration.

   3. Engage the 2 guides to install the air cleaner cap sub-assembly to the air cleaner case sub-assembly.
   4. Engage the 2 air cleaner cap clamps.
   5. Engage the wire harness clamp.
   6. Connect the mass air flow meter sub-assembly connector.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

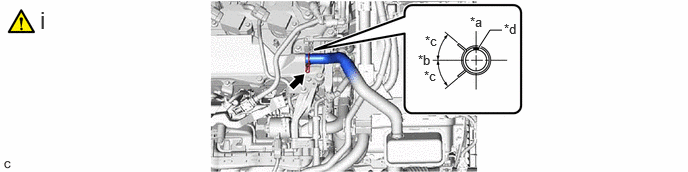

   *a	Top	*b	Front of Vehicle
   *c	45°(Claw of Clip Location)	*d	Paint Mark

   1. Connect the No. 2 ventilation hose to the cylinder head cover sub-assembly and slide the clip to secure it.
      NOTE:

      Make sure to position the clip as shown in the illustration.

Refer to PROCEDURE - Step 2

Refer to PROCEDURE - Step 1

1. Clear the DTCs.

   Powertrain > Engine > Clear DTCs

2. Perform "Inspection After Repair".
   • w/ Grille Shutter

     Refer to INITIALIZATION [11/2020 - ]

   • w/o Grille Shutter

     Refer to INITIALIZATION [11/2020 - ]

3. Put the engine in Inspection Mode (Maintenance Mode).

   Powertrain > Hybrid Control > Utility

   Tester Display
   Inspection Mode

4. Start the engine and check that the MIL is not illuminated. After the engine is warmed up, check that the idle speed is within the specified range with the A/C switch off.

   Standard Idle Speed

   1050 to 1150 rpm

   NOTE:

   • Be sure to perform this step with all accessories off.
   • Make sure that the shift lever is in P.
5. Perform a road test and confirm that there are no abnormalities.
