Components [07/2020 - ]

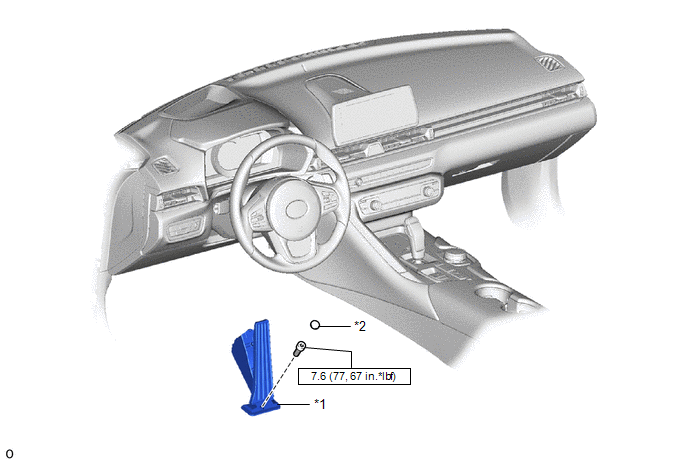

Fig 1: Accelerator Pedal Replacement Components With Torque Specifications [07/2020 - ]
GTY994819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ACCELERATOR PEDAL SENSOR ASSEMBLY *2 COVER
N*m (kgf*cm, ft.*lbf): Specified torque - -
