Components [07/2020 - ]

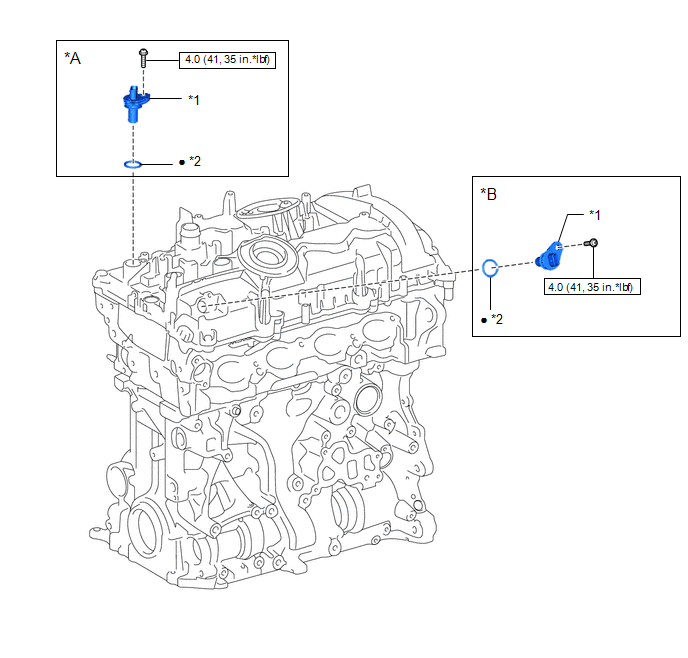

Fig 1: Camshaft Position Sensor Replacement Components With Torque Specifications [07/2020 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*A
for Exhaust Side
*B
for Intake Side
*1
CAMSHAFT POSITION SENSOR
*2
O-RING
N*m (kgf*cm, ft.*lbf): Specified torque
•
Non-reusable part
