Components [07/2020 - ]

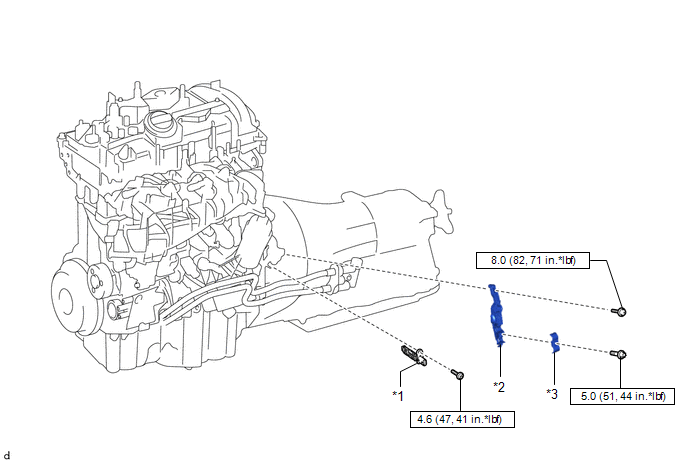

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications [07/2020 - ]
GTY995106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CRANKSHAFT POSITION SENSOR *2 NO. 2 AUTOMATIC TRANSMISSION OIL COOLER TUBE CLAMP
*3 NO. 3 AUTOMATIC TRANSMISSION OIL COOLER TUBE CLAMP - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
