Removal [07/2020 - ]: Procedure

  1. REMOVE INTAKE MANIFOLD

    Refer to REMOVAL [07/2020 - ]

  2. REMOVE OIL TEMPERATURE SENSOR
    WARNING:
    • Hot surfaces.

      Risk of burning!

      • Perform all work only on components that have cooled down.
    NOTE:
    • Electrostatic discharge.

      Damage to or destruction of electrical components.

      • Only touch the housings of electrical components. Do not touch pins or multi-pin connectors directly.
      • For additional information see:

        Refer to PRECAUTION [03/2019 - ]

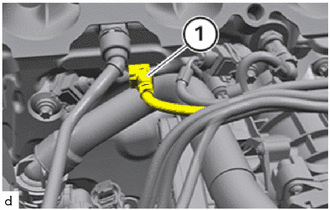

    1. Unlock connector (1) and pull off.
      GTY994640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

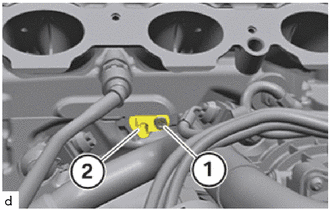

    2. Loosen T30 bolt (1).
      GTY994415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the oil temperature sensor (2) from the cylinder block sub-assembly.
